100amp Automatic Transfer Switch

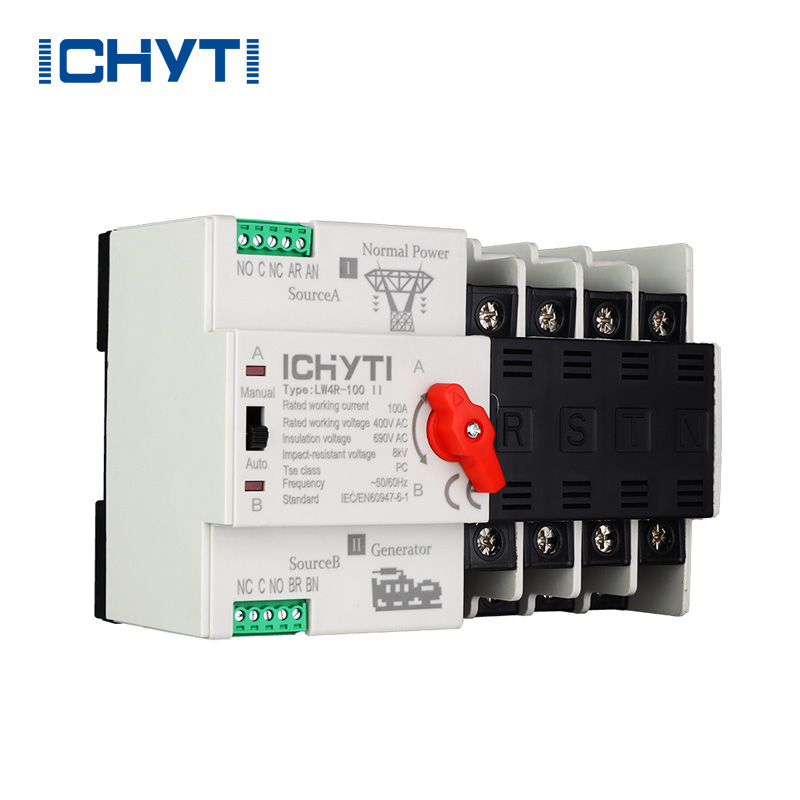

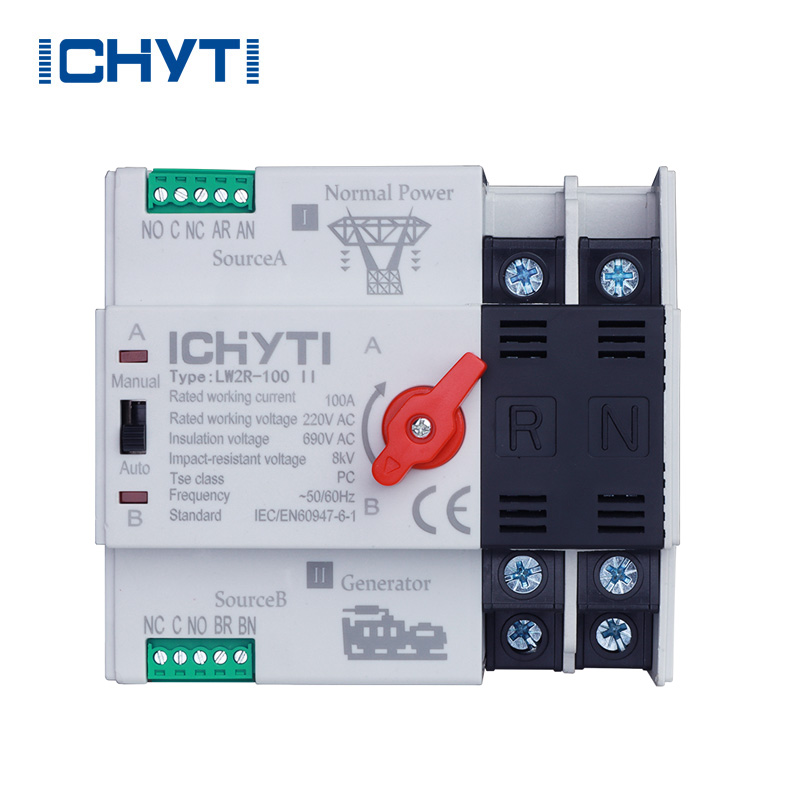

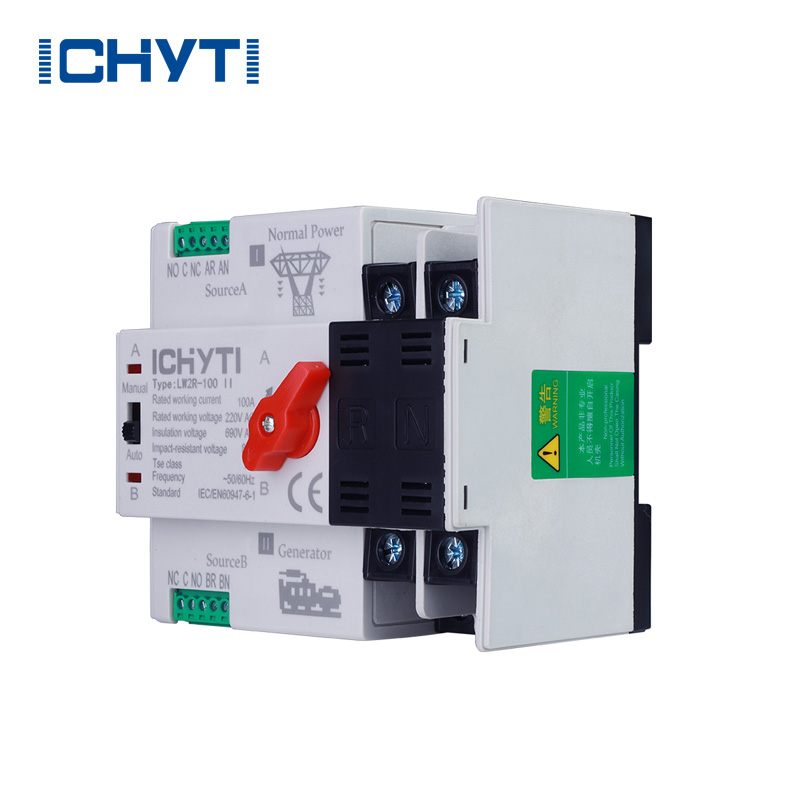

  • 100amp Automatic Transfer Switch100amp Automatic Transfer Switch
  • 100amp Automatic Transfer Switch100amp Automatic Transfer Switch
  • 100amp Automatic Transfer Switch100amp Automatic Transfer Switch
  • 100amp Automatic Transfer Switch100amp Automatic Transfer Switch

100amp Automatic Transfer Switch

If you require a high-quality 100amp automatic transfer switch to meet your specific application needs, China ICHYTI online service can assist you promptly. Along with the listed products, ICHYTI also offer the option to customize your unique 100amp automatic transfer switch according to your specific requirements. Please avail of our online service for timely assistance. ICHYTI 100amp automatic transfer switch are exported to Europe and the United States, the East, other countries and regions.

Send Inquiry    PDF DownLoad

Product Description

China Factory ICHYTI 100amp automatic transfer switch is ideal for emergency power supply systems with 400V and 100A AC rating at 50 or 60Hz. Its compact design, reliable transfer functionality, easy installation and maintenance, and long lifespan make it a popular choice. 100amp automatic transfer switch is suitable for various applications where continuous power supply is essential and can be operated both electrically and manually. LW2R Series 100amp automatic transfer switch is compliant with the requirements of IEC60947-6-1 for low-voltage switchgear and control gears.



ICHYTI 100amp automatic transfer switch Parameter (Specification)

Product Model

LW2R

LW3R

LW4R

Rated Current Ie: A

63A, 100A, 125A

Insulation Voltage Ui

AC690V 50/60HZ

Rated Voltage Ue

AC220V

AC400V

AC400V

Grade

PC Class

Pole

2P

3P

4P

Weight

0.65kq

0.75kg

0.85kg

Electrical Life

2000times

Mechanical Life

5000times

Rated impulse withstand voltage

8KV

Control Circuit Us

AC220V 50/60HZ

Standard

IEC60947-6-1

Operation

Manual / automatic

Type

Break-before-make type ATS



ICHYTI 100amp automatic transfer switch Feature

 This product adheres to the IEC947-6:1998 standard

 Equipped with pre-transfer and post-transfer load disconnect contacts for signaling motor starters, elevators, VFDs, and other selected loads.

 Additionally, it features three selectable control switches for voltage, frequency, and time delay settings, as well as other control options.

 The product also boasts electric interlocking and mechanical interlocking for double protection.

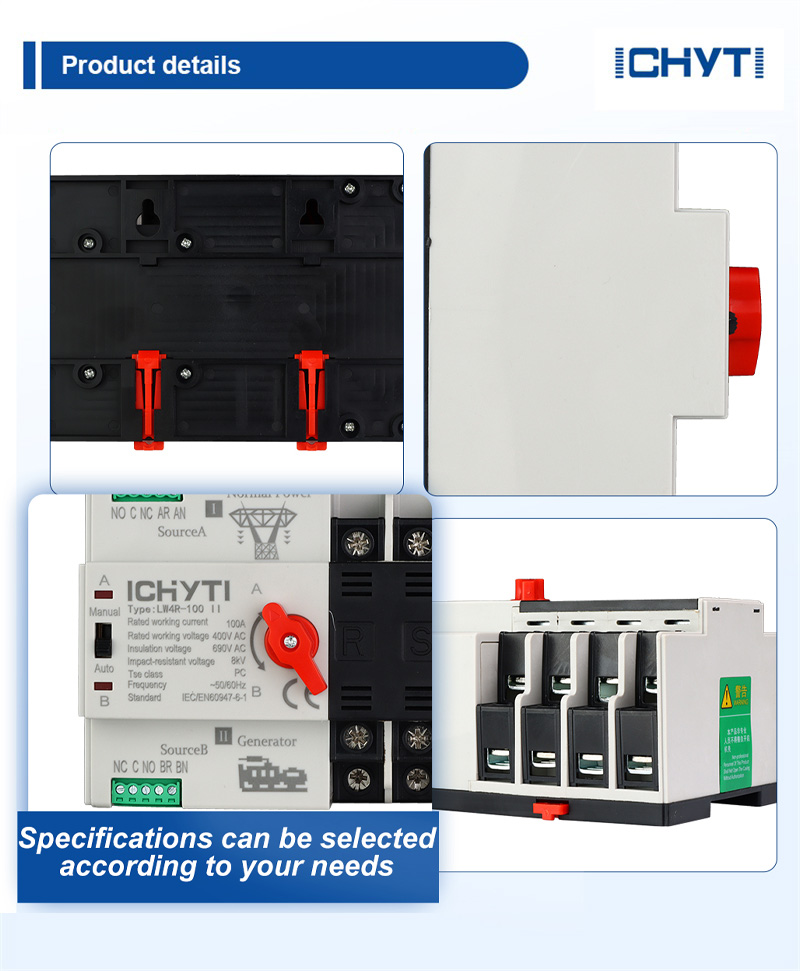

ICHYTI 100amp automatic transfer switch Details

100amp Automatic Transfer Switch



ICHYTI 100amp automatic transfer switch Dimensions and wiring

100amp Automatic Transfer Switch


ICHYTI 100amp automatic transfer switch FAQ

Q: What does an automatic transfer switch do?

A: CHYT ATS serves to maintain a constant supply of electricity to a connected load or electrical equipment, such as lights, motors, and computers, by seamlessly switching between two power sources.


Q: Where are automatic transfer switches used?

A: CHYT ATS (Automatic Transfer Switch) is commonly utilized in proximity to a backup generator to enable the generator to furnish provisional electrical power if the primary utility source becomes nonoperational.
