1500vdc Dc Fuse

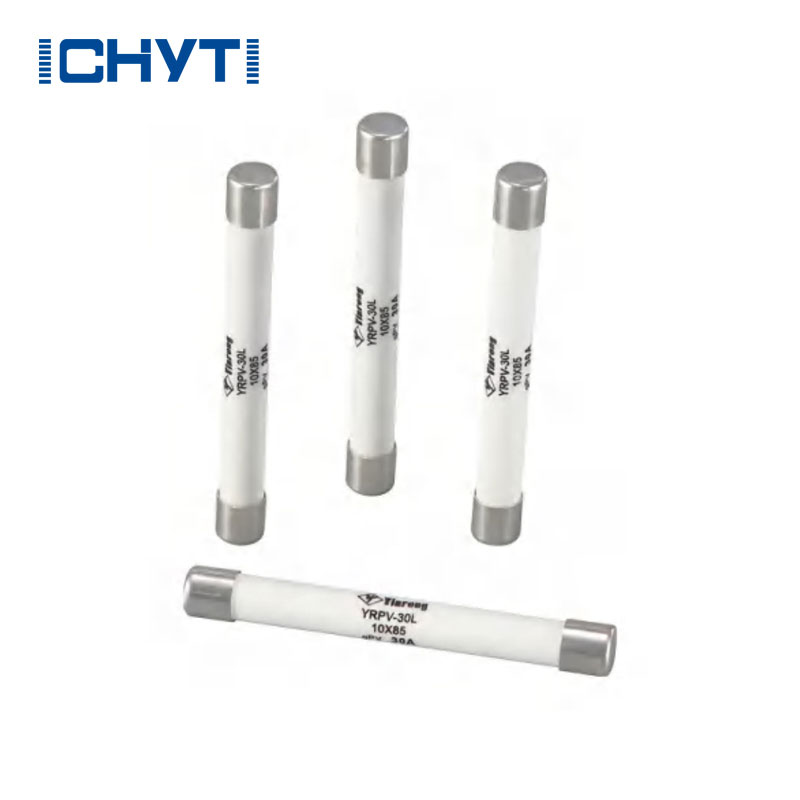

China Factory ICHYTI Customized 1500vdc dc fuse is suitable for solar photovoltaic power generation systems with a rated voltage of 1500V and a rated current of 2A to 30A. 1500vdc dc fuse can be used for overcurrent protection of photovoltaic module strings and photovoltaic arrays, as well as for charging inverter systems with photovoltaic panels and batteries connected in series and parallel. In addition, 1500vdc dc fuse can also be used for short-circuit protection in photovoltaic power plants and inverter rectifier systems, as well as surge and short-circuit fault voltages for fast circuit protection. Its rated breaking capacity is 40KA, and the product complies with IEC60629.1 and 60629.6.

ICHYTI 1500vdc dc fuse Parameter (Specification)

ICHYTI 1500vdc dc fuse Feature

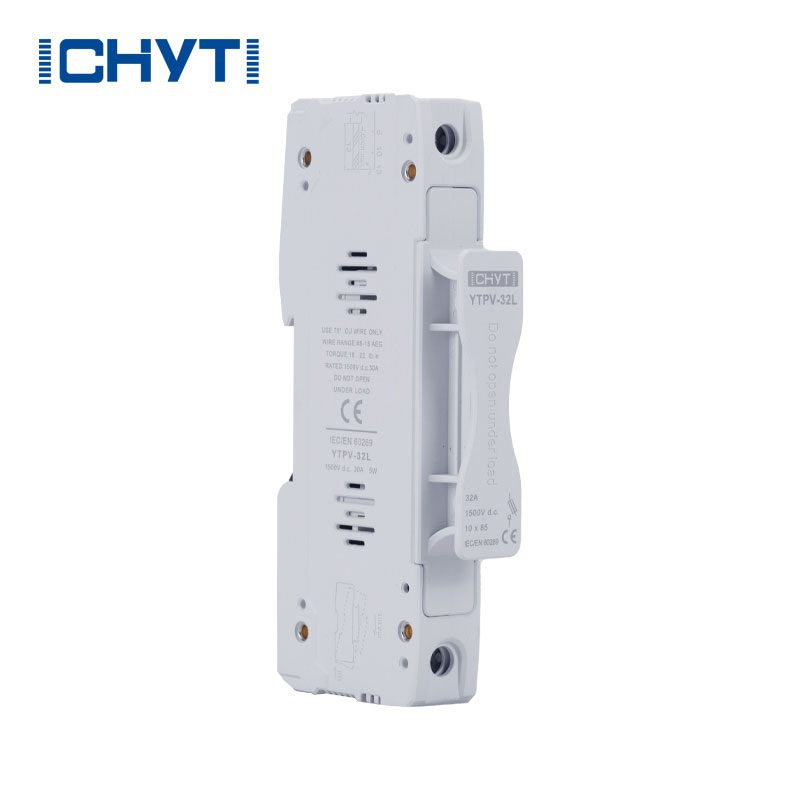

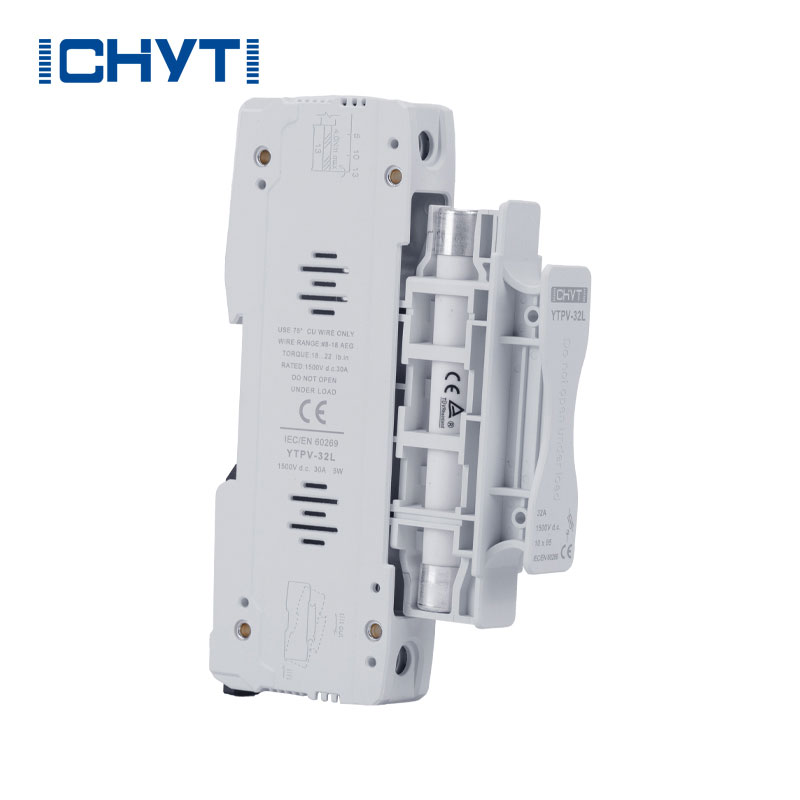

◉ DC fuse holder, used to protect the photovoltaic string, with a length of 10 * 85mm.

◉ The main function is to prevent the solar panel from breaking and maintain its effective state.

◉ This series of fuses has a beautiful appearance, small size, convenient matching, and safe and reliable use.

◉ IEC/EN60947-3 standard.

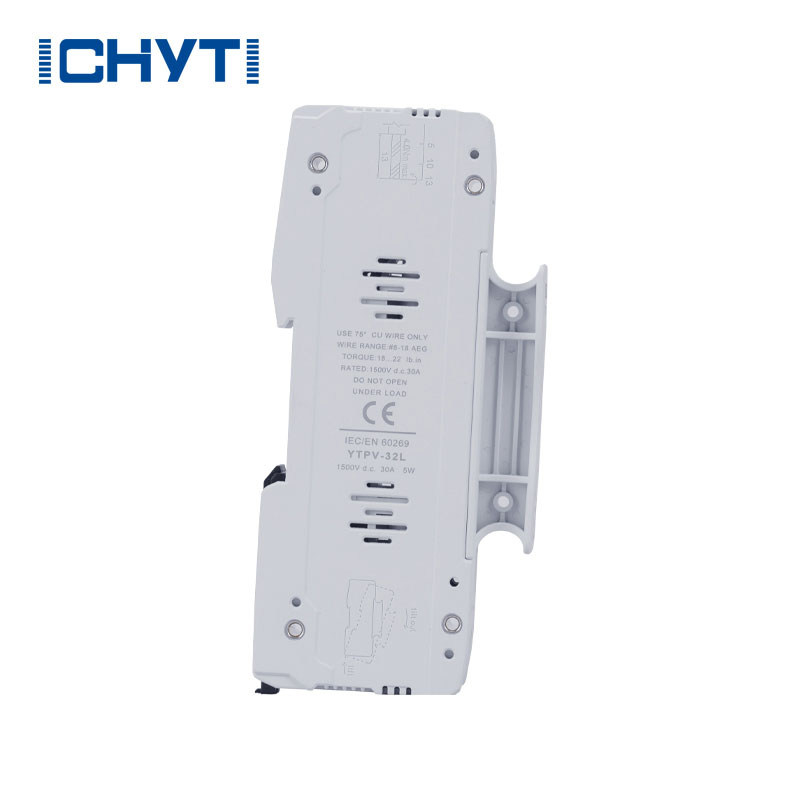

ICHYTI 1500vdc dc fuse Details

ICHYTI 1500vdc dc fuse Dimensions and wiring

ICHYTI 1500vdc dc fuse FAQ

Q: What is a solar fuse?

A: CHYT solar fuse is a specific type of fuse designed for use in solar power systems. These fuses may also be referred to as PV fuses, solar PV fuses, or fusible PV fuses. Solar panel fuse sizes vary based on voltage, ratings, and amperage ratings.

Q: Where should solar fuses be placed?

A: Solar panel fuses are typically installed in one of three locations. The first location is between the battery bank and the charge controller. Alternatively, the fuse may be located between the charge controller and the solar panels, or between the inverter and the battery bank.

Q: Does voltage matter for DC fuses?

A: The voltage rating of a fuse is crucial and must not be overlooked. It is essential to ensure that the chosen fuse's voltage rating is higher or equal to the circuit voltage to prevent any electrical hazards. The voltage rating becomes highly significant when the fuse tries to open due to its low resistance.
