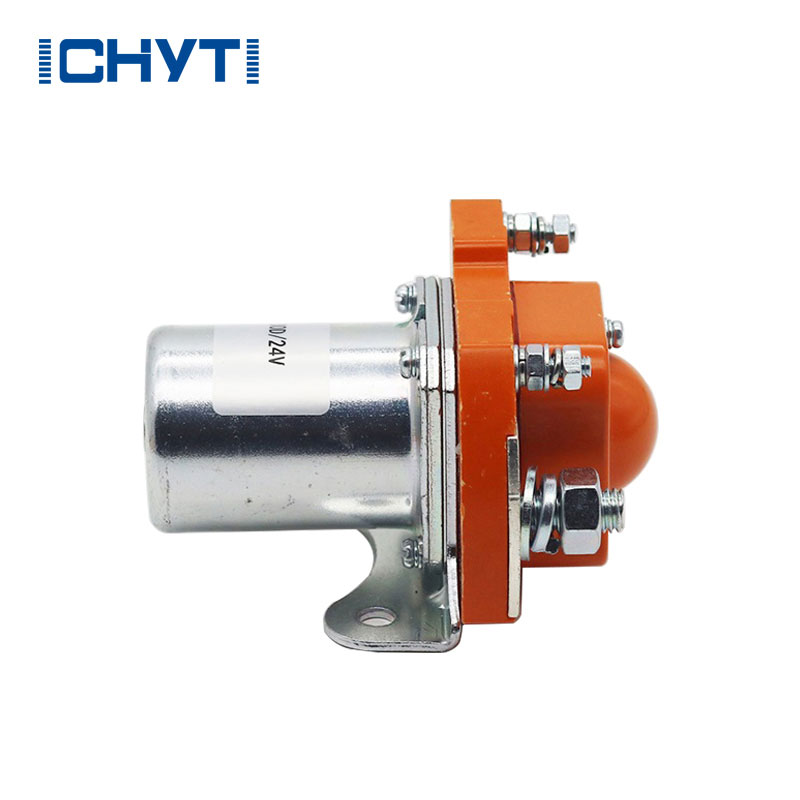

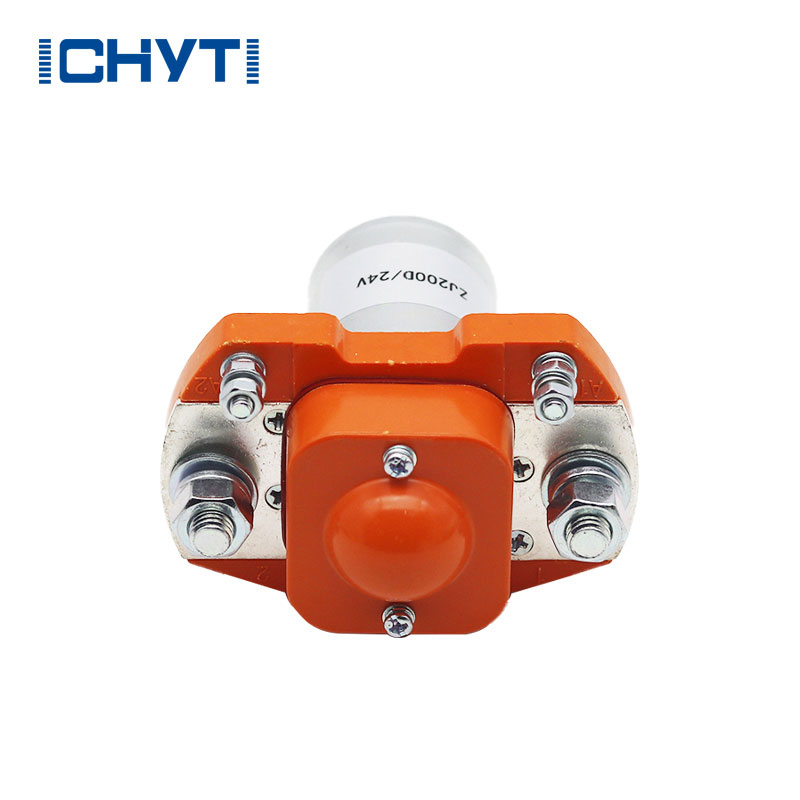

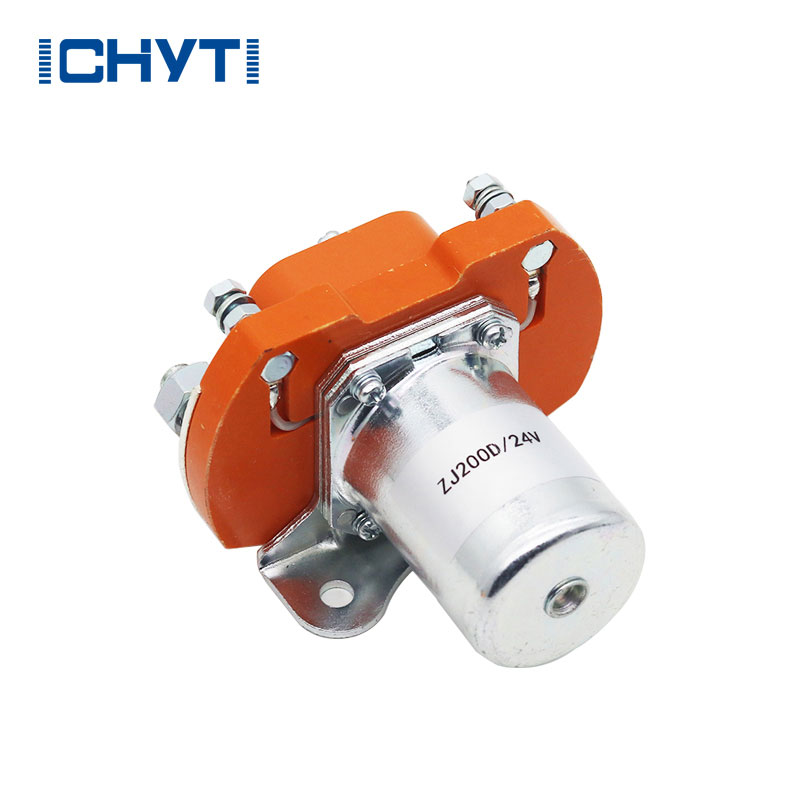

24v Dc Contactor
  • 24v Dc Contactor24v Dc Contactor
  • 24v Dc Contactor24v Dc Contactor
  • 24v Dc Contactor24v Dc Contactor
  • 24v Dc Contactor24v Dc Contactor

24v Dc Contactor

ICHYTI is one of the top manufacturers and exporters in the field of 24v dc contactor. We have 20 years of manufacturing experience in China, and can provide OEM services and customized material sizes and other requirements. Our 24v dc contactor have passed certifications such as CE.

Send Inquiry    PDF DownLoad

Product Description

China Factory ICHYTI Wholesale 24v dc contactor is an electrical device designed specifically for DC loads, mainly targeting motors used in electric vehicles such as industrial trucks. 24v dc contactor is suitable for frequently switching loads such as resistors, capacitors, inductors, etc. It can effectively open and close loads to avoid situations where contact resistance increases. At the same time, 24v dc contactor also has excellent conductivity, welding resistance, and wear resistance, which can withstand high current loads and maintain low contact resistance. In addition, the 24v dc contactor is compact in size, easy to install and maintain, and comes with a full range of spare parts to choose from.



ICHYTI 24v dc contactor Parameter (Specification)

Product Model

ZJ200D

Rated voltage

24V

Contact circuit rated load current

200A

Working system

Continuous

Export mode

M8 external thread

Dimension

85mm*56mm*93mm

Weight

<450g

Protection

IP50

Temperature

-25 ℃ - + 55 ℃

Humidity

5% 〜95%

Insulation resistance

>50MQ

Coil power

Start-up<250W, keep<5W

Coil type

Double coil

Electrical strength

<50Hz/60Hz 1500VAC/1min



ICHYTI 24v dc contactor Feature

 The protection level of this equipment is IP50.

 It is equipped with a set of normally open contacts.

 The power consumption range of the coil is 10 to 20 watts.

 This equipment is widely used in the fields of wind energy, photovoltaic, telecommunications and communication equipment, engineering machinery, battery trucks, electric forklifts, trains, electrical vessels, and other control systems, as well as uninterruptible power supplies.

 The equipment complies with the technical specifications of GB/T14048.4-2020.



ICHYTI 24v dc contactor Details

 Iron nickel plated support: The iron nickel plated bracket makes the product stronger and more firm, and the installation is convenient and simple.

 High content Silver contact: It has better conductivity, long service life and high temperature resistance

 All copper coil: QA-1/155 enamelled wire is adopted, with wide coil pull in range, long service life, low power consumption and long service life.

 IP50 protection grade: The dust-proof motor can prevent touching or approaching the live or rotating parts in the shell, and the dust intake is not enough to affect the normal operation of the motor

24v Dc Contactor



ICHYTI 24v dc contactor Dimensions

24v Dc Contactor
