2p 3p 1000v DC SPD

ICHYTI Manufacturers owns the independent brand "ICHYTI " and produces and sells a series of lightning protection products such as 2p 3p 1000vdc spd, power supply lightning protectors, etc. ICHYTI Manufacturers has our own production workshop and engineering and technical personnel with years of experience in lightning protection product development. We can provide various differentiated OEM/ODM manufacturing services according to the different needs of customers.

Send Inquiry PDF DownLoad

Product Description

China Suppliers ICHYTI Low Price 2p 3p 1000vdc spd plays a crucial role in protecting photovoltaic power supply systems. It can effectively prevent damage caused by lightning surge voltage to the system and ensure the stable operation of the photovoltaic power supply system.

When installing 2p 3p 1000vdc spd, attention should be paid to selecting appropriate positions for parallel connection to ensure that the protection device plays the maximum role in protecting the DC network that needs to be protected. It is recommended to install at both ends of the DC power line, namely the solar panel side and the inverter converter side, to effectively prevent the harm of lightning surge voltage to the photovoltaic power supply system.

In some special situations, such as long wiring or unstable external environment, it is necessary to use high-energy power supply overvoltage (MOV) with specific thermal isolation switches and related fault indicators. This type of device can provide a higher level of protection and has higher reliability, thereby ensuring the safety and stability of the photovoltaic power supply system.

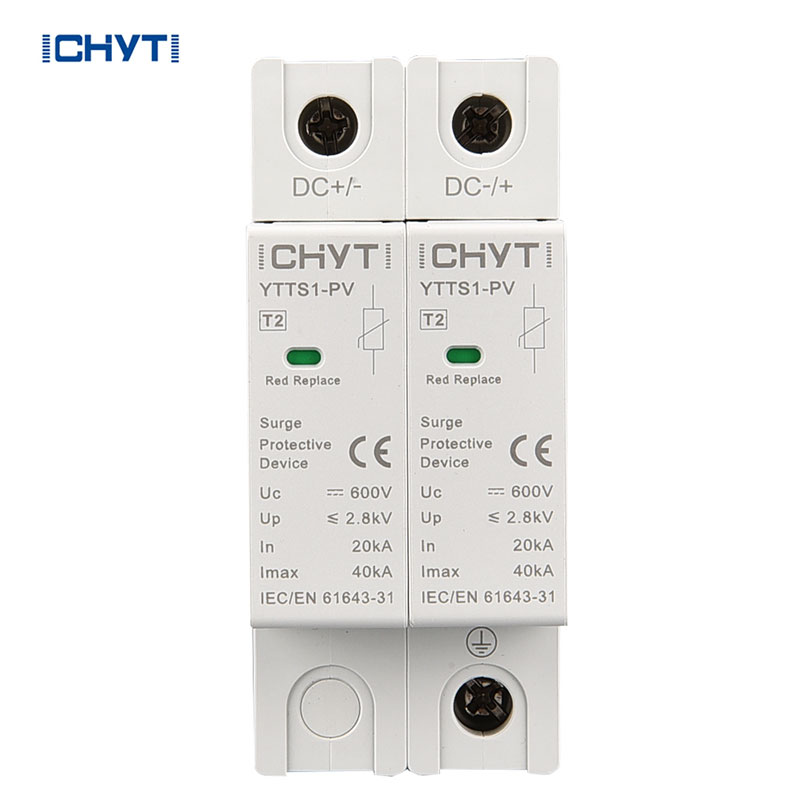

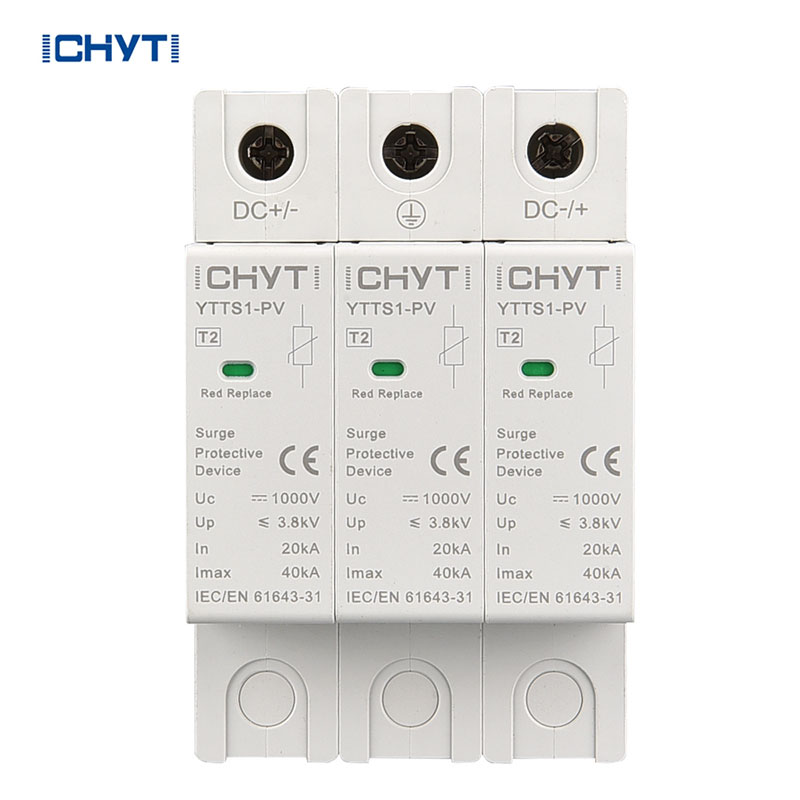

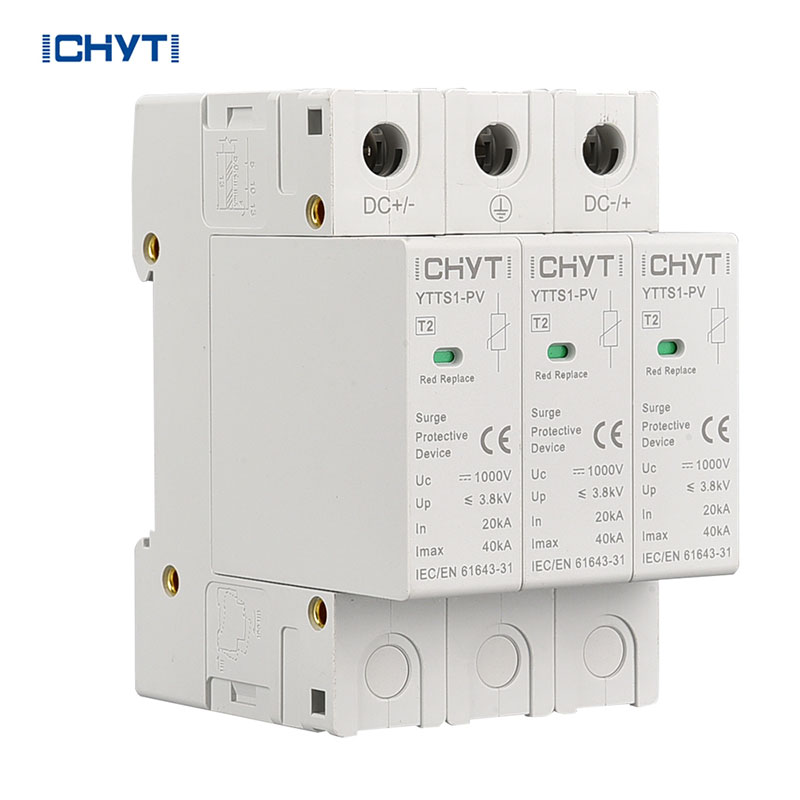

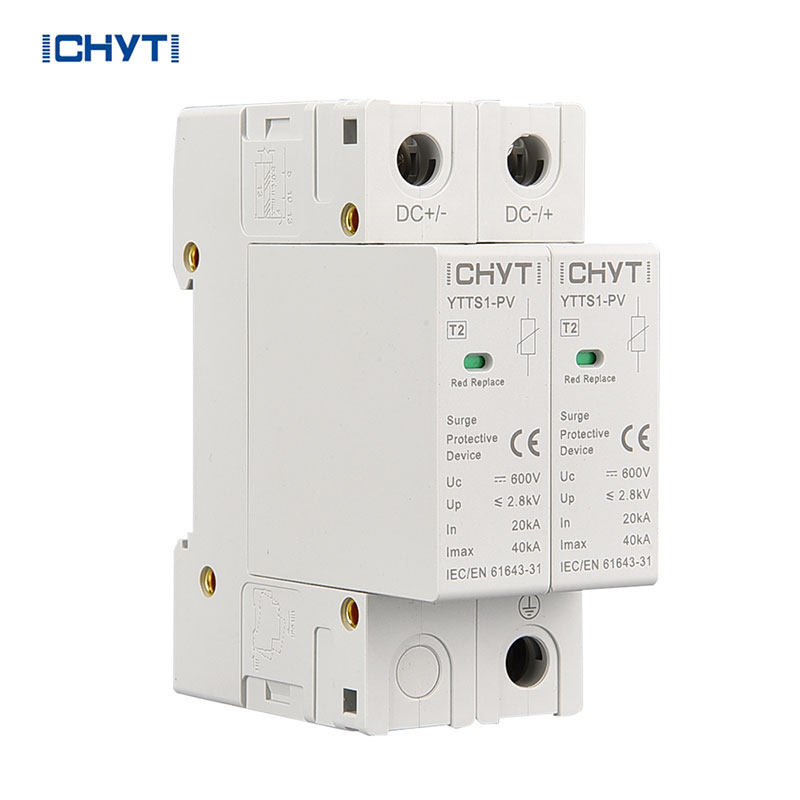

ICHYTI SUP2H-PV 2p 3p 1000vdc spd Parameter (Specification)

Product Model	YTTS1-PV
Pole	2P	3P
Rated Frequency	One port
SPD Category	Combined type
Test Category	Class II test
Colour	White	White
Maximum Continuous Operating Voltage Uc	600VDC 1000VDC	1000VDC 1500VDC
Voltage Protection Level Up(8/20μs)	≤2.8kV	≤3.5kV
Nominal Discharge Current In(8/20μs)	20kA	20kA
Maximum Discharge Current Imax(8/20μs)	40kA	40kA
Response Time tA	≤25ns
Size(mm)	36x85x66 54x85x66
Failure Indication	Green: Normal Red:Failure
Sectional Area Of Wires	6~25m㎡
Installation Method	35mm standard rail
Working Environment Temperature	-40℃~+85℃
Sheathing Material	Plastic
Protection Level	IP20
Executive Standard	IEC 61643-31

ICHYTI SUP2H-PV 2p 3p 1000vdc spd Feature

1.Under normal circumstances, the indicator window appears bright green, displaying information on the smooth operation of the device; Once a malfunction occurs, the indicator window will quickly turn noticeably red, reminding users to handle the problem in a timely manner and ensuring the safe operation of the equipment.

2.Each electrode has voltages of 1500 V, 1200 V, 1000 V, and 500 V respectively, providing strong support for stable output of the equipment.

3.In addition, the device also has more intelligent and considerate functions, which can timely prompt the working status and module degradation situation, making it convenient for users to monitor and manage the device status, achieving more efficient operational management.

4.For the wiring board, the equipment adopts a fully enclosed design to ensure that the interior of the equipment is not affected by ordinary environments and external influences, reduce various interference and fault problems, and make the equipment safer and more reliable.
