63a Automatic Changeover Switch

ICHYTI Manufacturers provide high-quality 63a automatic changeover switch that can meet various application requirements. If you need to purchase 63a automatic changeover switch, please contact our online customer service in a timely manner, and we will provide you with high-quality service. We can not only provide a product list, but also customize a unique 63a automatic changeover switch according to your specific needs. We attach great importance to every inquiry and ensure that we can quickly provide competitive quotations. We have a team of engineers to provide customers with comprehensive technical support. Our sales team is able to provide you with the highest quality service, whether it is collaborating with customers to bid or providing necessary documentation.

Send Inquiry PDF DownLoad

Product Description

China Suppliers ICHYTI Wholesale 63a automatic changeover switch Price is a CB grade product suitable for AC-33BCB grade usage categories, with a rated working current of 1A to 63A. It adopts high-performance miniature circuit breakers as action switches, with a rated short-circuit breaking capacity of up to 10kA. This 63a automatic changeover switch is suitable for emergency power systems with an AC frequency of 5060Hz and a rated working voltage of AC400V. It is used to achieve automatic conversion between two power sources to ensure continuous and reliable operation of important loads. The 63a automatic changeover switch is widely used in industries such as construction infrastructure.

ICHYTI 63a automatic changeover switch Parameter (Specification)

Product Model	LW2R-63II	LW4R-63II
Rated Current Ie: A	63A
Insulation Voltage Ui	AC690V 50/60HZ
Rated Voltage Ue	AC230V	AC400V
Grade	CB Class
Pole	2P	4P
Rated impulse withstand voltage	4KV
Rated short circuit making capacity Icm	6 KA
Rated short circuit breaking capacity Icn	4.5 KA
Electrical Life	2000times
Mechanical Life	5000times
Controller	Type A(basic type)
Control Circuit Us	AC230V 50/60HZ
Operating transfer time (no time delay)	W3s

ICHYTI 63a automatic changeover switch Feature

◉ This ATS (Automatic Transfer Switch) is an automatic transfer switch specifically designed to support important end loads;
◉ Its volume is very small, but its performance is exceptionally reliable;
◉ Users can quickly replace according to their needs to meet different requirements;
◉ Both closed and open transitions are achieved through a single electromagnetic winding.

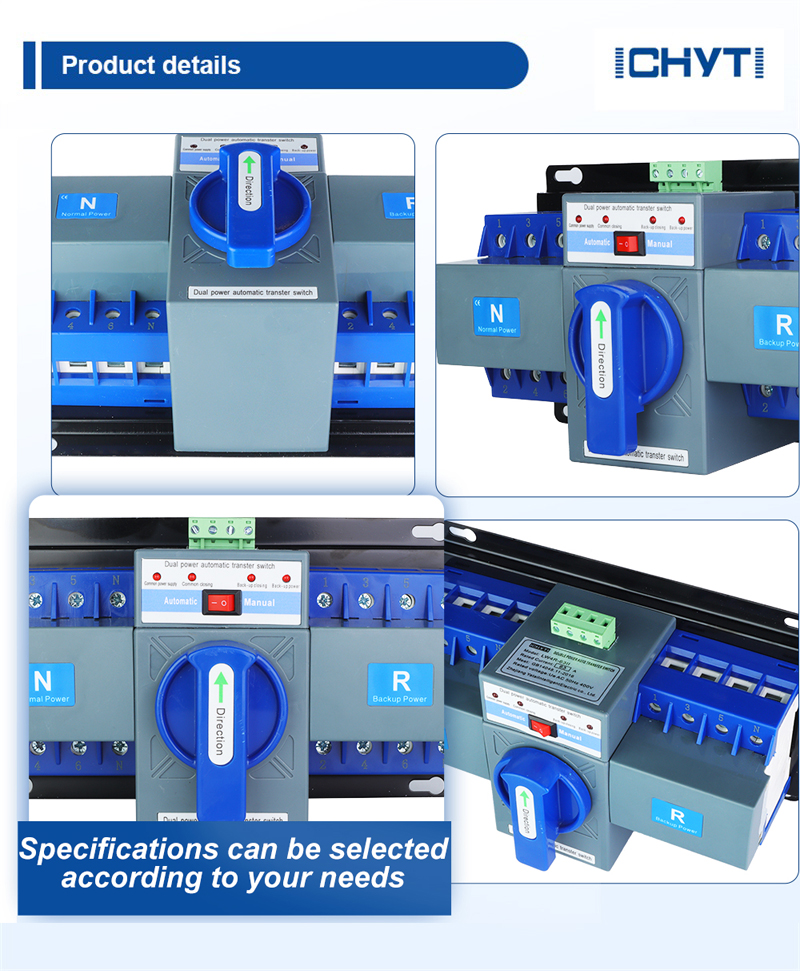

ICHYTI 63a automatic changeover switch Details

ICHYTI 63a automatic changeover switch Dimensions and wiring

ICHYTI 63a automatic changeover switch FAQ

Q: How to apply to become your agent?
A: Please contact us via email and we will provide the most favorable price. We look forward to hearing from you.

Q: Regarding the delivery situation?

A: We usually have sample inventory, and bulk orders require a delivery time of 7 days.

Q: Can we print our logo/website/company name on the product?

A: If you need to print your logo, website, or company name on the product, please provide the size of the logo and Pantone code..
