DC Circuit Breaker Switch

CHYT is one of professional leader China DC circuit breaker switch manufacturers with high quality and reasonable price. Welcome to contact us.

Send Inquiry

Product Description

One of Chinese manufacturers of DC circuit breaker switch, offering excellent quality at a competitive price, is CHYT. Feel free to get in touch. Its rated current shall not exceed 63A.

One of the key features of this DC Circuit Breaker Switch is its superior performance. This switch is engineered to deliver consistent and reliable performance, ensuring that your circuits remain safe at all times. It has a high interrupting capacity, making it capable of handling even the most extreme electrical loads.

Another important feature of this circuit breaker switch is its user-friendliness. The switch is easy to install and operate, requiring no special tools or training. Its intuitive controls make it easy to operate, so you can enjoy peace of mind knowing that your circuits are protected without having to worry about complicated procedures.

ICHYTI DC Circuit Breaker Switch Parameter (Specification)

Product Model		NBL7-63

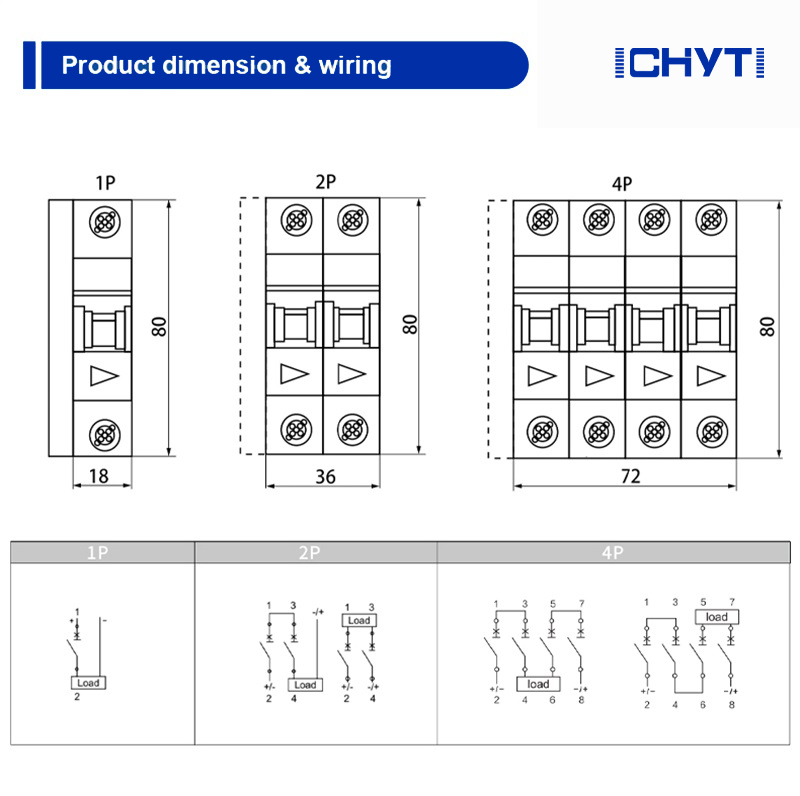

Pole		1P	2P	4P
Frame Current		63A
Rated Current	In	6, 10, 16, 20, 25, 32, 40, 50z63A
Rated Working Voltage	Ue(DC)	300V	500/600/1000V	1000V
Rated Insulation Voltage	Ui	1200V
Rated Impulse Withstand Voltage	Uimp	6kV
Breaking Capacity	leu	6 KA
Tripping Characteristic		C
Tripping Type		Thermal Magnetic
Electrical Life	Actual	500 Cycles(63A Frame)
	Standard	300 Cycles
Mechanical Life	Actual	10000 Cycles(63A Frame)
	Standard	9700 Cycles
Overvoltage Category		III
Pollution Degree		3
Ingress Protection		IP40 Wiring Port IP20
Resistance To Humidity And Heat		Class 2
Terminal Capacity		2.5 x 35mm2
Fastening Torque Of Terminals		2.0℃ 3.5Nm
Ambient Temperature		-30℃〜+70℃
Storage Temperature		-40℃〜+85℃
Installation Method		DIN
Standard		IEC60947-2

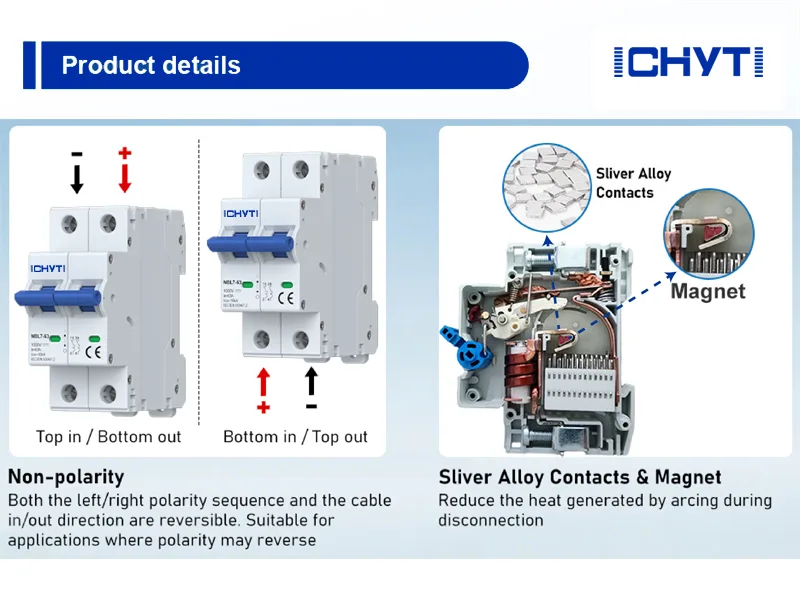

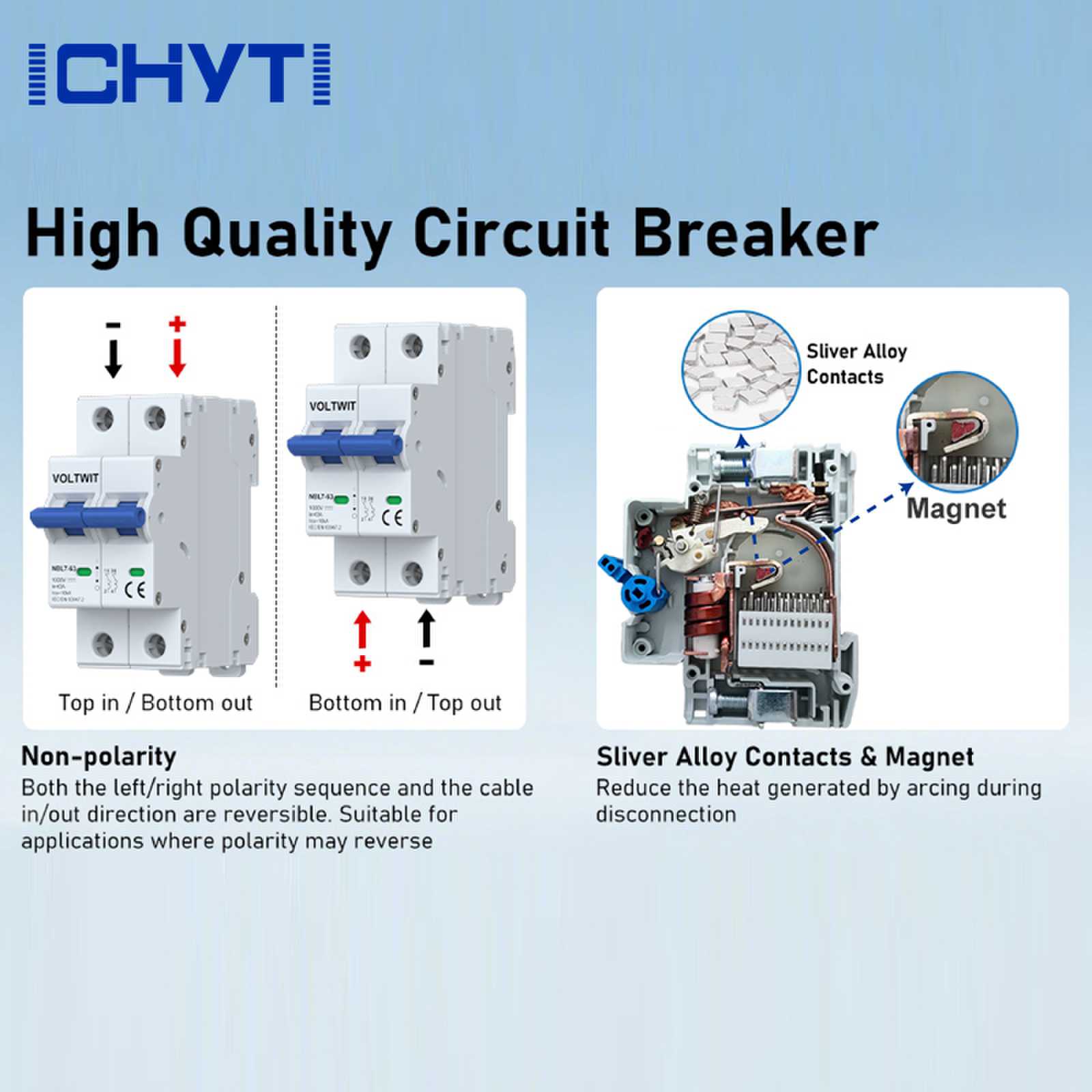

ICHYTI DC Circuit Breaker Switch Feature

◉ Designed for photovoltaic energy storage and other DC applications, with a rated voltage of up to 1000V.

◉ Comply with AS60947.3-2018 and IEC60947.1-2015 standards.

◉ Provide a 2-year warranty, product insurance, and recall insurance.

◉ This product is suitable for photovoltaic energy storage and other DC applications, with a voltage of up to 1000V, complying with AS60947.3-2018 and IEC60947.1-2015 standards, and providing a 2-year warranty, product insurance, and recall insurance.
