DC Circuit Breaker

High quality DC circuit breaker is offered by China manufacturers CHYT. Buy DC circuit breaker which is of high quality directly with low price.

Send Inquiry

Product Description

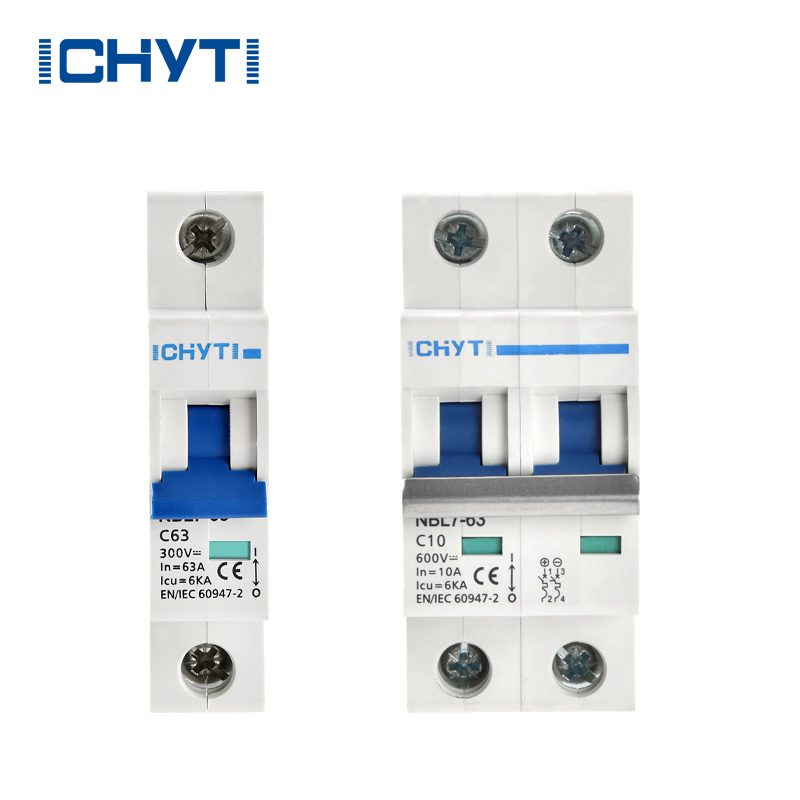

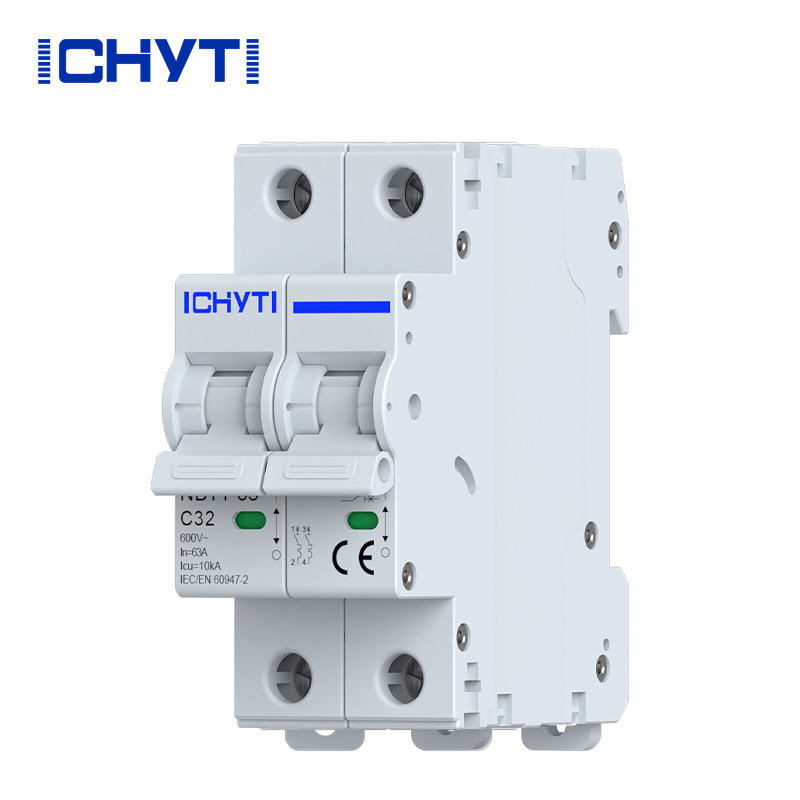

The producers of CHYT in China offer high-quality products, you are welcome to purchase straight high-quality DC circuit breaker at a good price. This China Suppliers ICHYTI dc miniature circuit breaker is suitable for rated DC circuits below 1000V, mainly used for overload and short circuit protection, and can be used for occasional operation switching. Its rated current shall not exceed 63A.

One of the standout features of our DC Circuit Breaker is its versatility. Thanks to its adjustable trip setting, it can be customized to suit a wide range of applications and current ratings. This feature makes it an ideal choice for a variety of industries, including renewable energy, telecommunications, marine, and automotive.

Another key benefit of our DC Circuit Breaker is its ease of installation and maintenance. The breaker includes simple yet powerful features that make installation quick and easy. Additionally, the breaker is designed to make troubleshooting and maintenance a breeze, with clear indicators for easy identification of faults and simple access to internal components.

ICHYTI DC Circuit Breaker Parameter (Specification)

Product Model		NBL7-63
Pole		1P	2P	4P
Frame Current		63A
Rated Current	In	6, 10, 16, 20, 25, 32, 40, 50z63A
Rated Working Voltage	Ue(DC)	300V	500/600/1000V	1000V
Rated Insulation Voltage	Ui	1200V
Rated Impulse Withstand Voltage	Uimp	6kV
Breaking Capacity	leu	6 KA
Tripping Characteristic		C
Tripping Type		Thermal Magnetic
Electrical Life	Actual	500 Cycles(63A Frame)
	Standard	300 Cycles
Mechanical Life	Actual	10000 Cycles(63A Frame)
	Standard	9700 Cycles
Overvoltage Category		III
Pollution Degree		3
Ingress Protection		IP40 Wiring Port IP20
Resistance To Humidity And Heat		Class 2
Terminal Capacity		2.5 x 35mm2
Fastening Torque Of Terminals		2.0℃ 3.5Nm
Ambient Temperature		-30℃〜+70℃
Storage Temperature		-40℃〜+85℃
Installation Method		DIN
Standard		IEC60947-2

ICHYTI DC Circuit Breaker Feature

◉ Designed for photovoltaic energy storage and other DC applications, with a rated voltage of up to 1000V.

◉ Comply with AS60947.3-2018 and IEC60947.1-2015 standards.

◉ Provide a 2-year warranty, product insurance, and recall insurance.

◉ This product is suitable for photovoltaic energy storage and other DC applications, with a voltage of up to 1000V, complying with AS60947.3-2018 and IEC60947.1-2015 standards, and providing a 2-year warranty, product insurance, and recall insurance.
