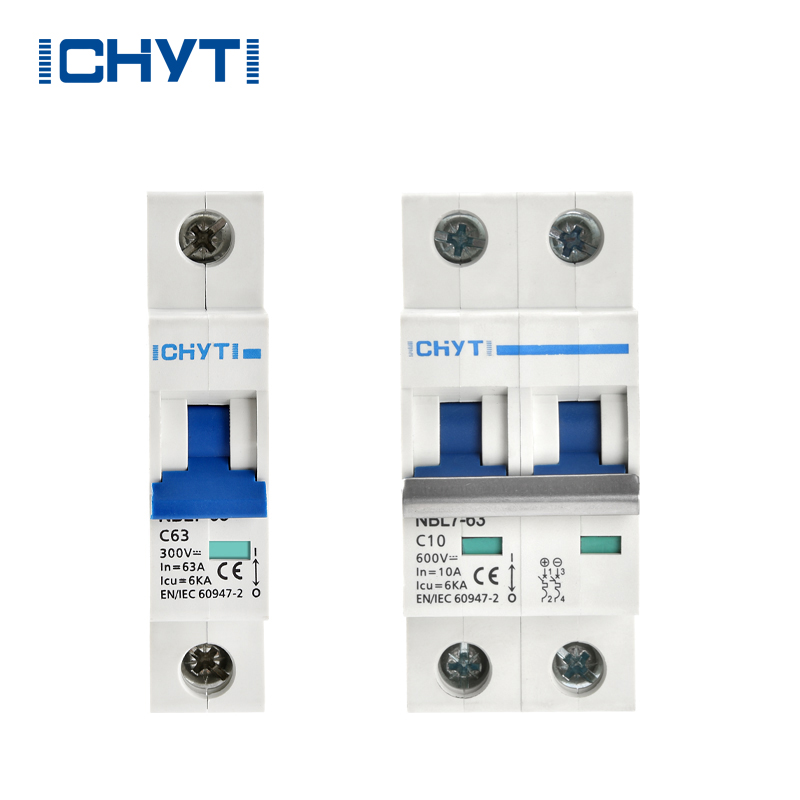

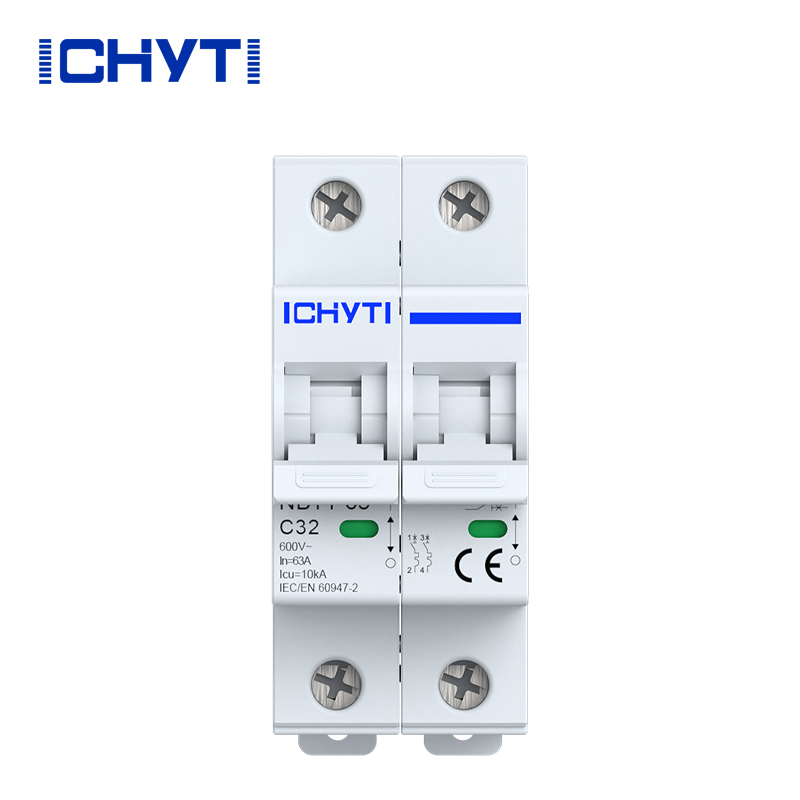

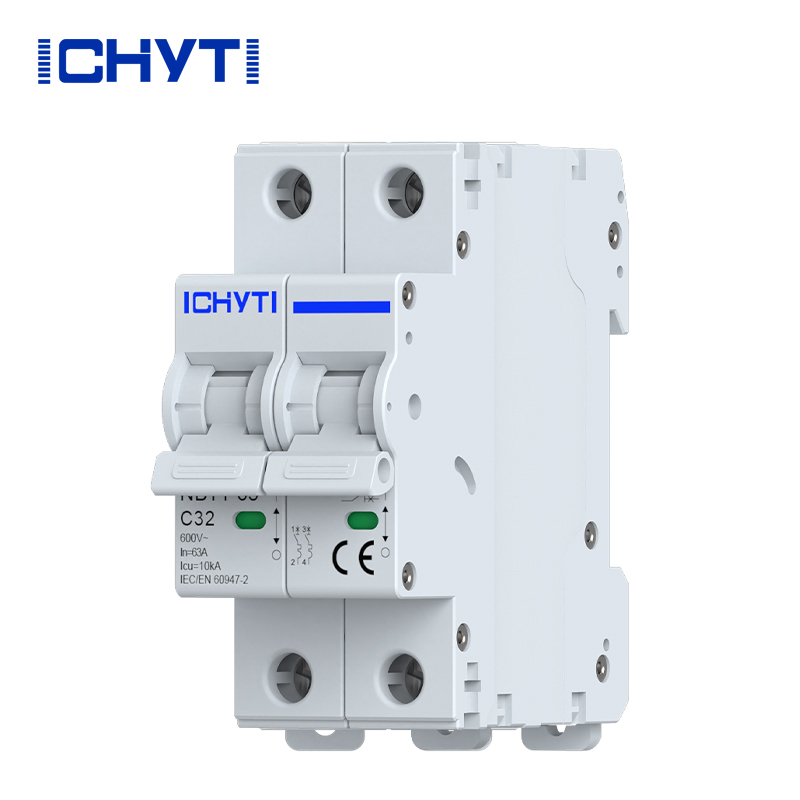

DC Trip Circuit Breaker

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality DC trip circuit breaker, CHYT looks forward to cooperating with you.

Send Inquiry

Product Description

CHYT invites you to visit our factory to purchase the newest, best-selling, affordable, and high-quality DC trip circuit breaker. We are looking forward to working with you. Its rated current shall not exceed 63A.

Whether you're an automotive enthusiast, a marine adventurer or a renewable energy enthusiast, the DC Trip Circuit Breaker is a must-have addition to your electrical system. It features a compact form-factor that allows it to be easily installed in even the tightest spaces, making it ideal for use in a variety of applications.

One of the key features of this circuit breaker is its ability to trip and interrupt the flow of current in the event of an overcurrent fault. This means that it can prevent damage to your electrical system by automatically shutting off power to the affected circuit. This feature is critical in protecting your equipment and preventing costly repairs.

ICHYTI DC Trip Circuit Breaker Parameter (Specification)

Product Model		NBL7-63

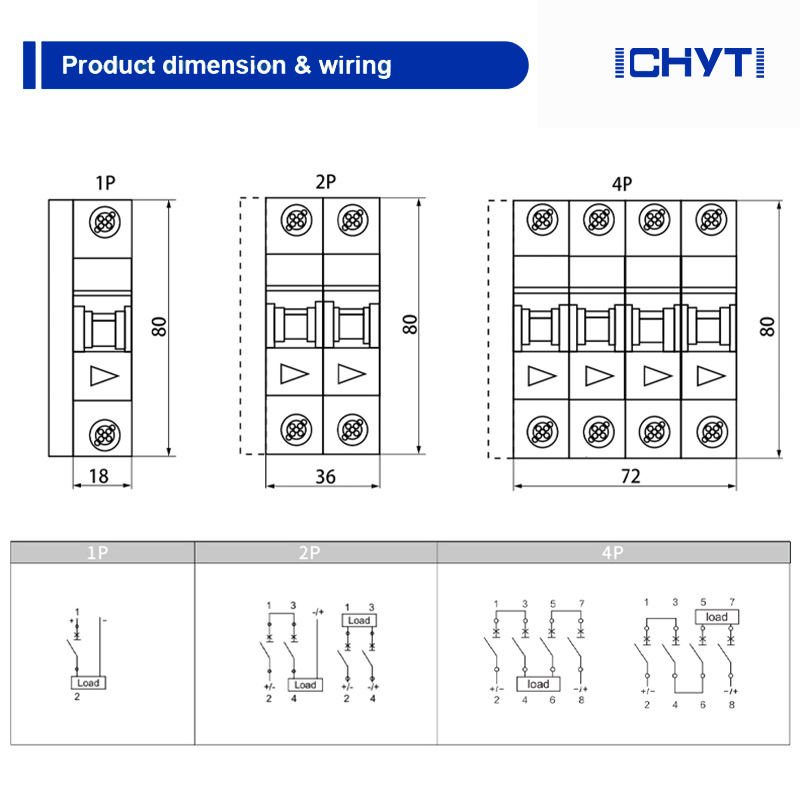

Pole		1P	2P	4P
Frame Current		63A
Rated Current	In	6, 10, 16, 20, 25, 32, 40, 50z63A
Rated Working Voltage	Ue(DC)	300V	500/600/1000V	1000V
Rated Insulation Voltage	Ui	1200V
Rated Impulse Withstand Voltage	Uimp	6kV
Breaking Capacity	leu	6 KA
Tripping Characteristic		C
Tripping Type		Thermal Magnetic
Electrical Life	Actual	500 Cycles(63A Frame)
	Standard	300 Cycles
Mechanical Life	Actual	10000 Cycles(63A Frame)
	Standard	9700 Cycles
Overvoltage Category		III
Pollution Degree		3
Ingress Protection		IP40 Wiring Port IP20
Resistance To Humidity And Heat		Class 2
Terminal Capacity		2.5 x 35mm2
Fastening Torque Of Terminals		2.0℃ 3.5Nm
Ambient Temperature		-30℃〜+70℃
Storage Temperature		-40℃〜+85℃

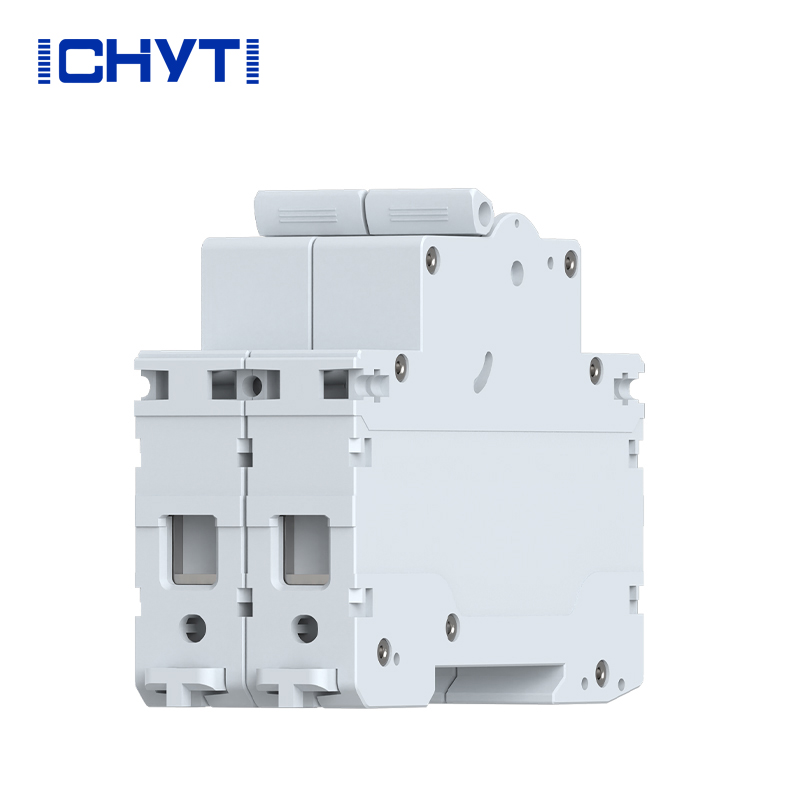

Installation Method		DIN
Standard		IEC60947-2

ICHYTI DC Trip Circuit Breaker Feature

◉ Designed for photovoltaic energy storage and other DC applications, with a rated voltage of up to 1000V.

◉ Comply with AS60947.3-2018 and IEC60947.1-2015 standards.

◉ Provide a 2-year warranty, product insurance, and recall insurance.

◉ This product is suitable for photovoltaic energy storage and other DC applications, with a voltage of up to 1000V, complying with AS60947.3-2018 and IEC60947.1-2015 standards, and providing a 2-year warranty, product insurance, and recall insurance.
