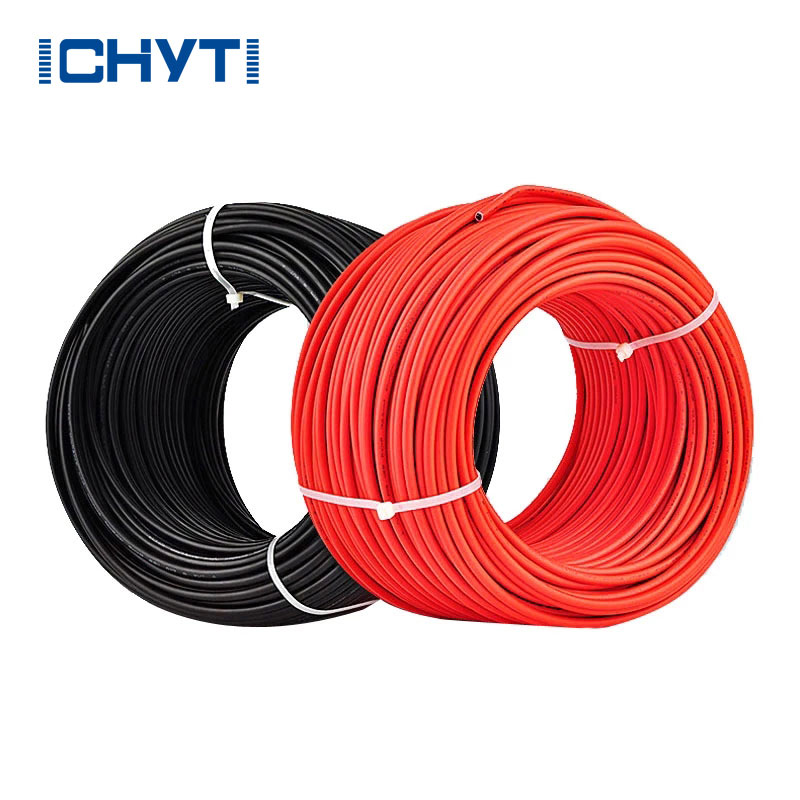

Durable Solar Panel Extension Cables

CHYT invites you to visit our factory to purchase the newest, best-selling, affordable, and high-quality Durable Solar Panel Extension Cables. We are looking forward to working with you.

Send Inquiry

Product Description

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Durable Solar Panel Extension Cables, CHYT looks forward to cooperating with you. Solar Panel Extension Cables feature 10 AWG wire which ensures the durability and longevity of your solar panel system. It can handle a maximum voltage of up to 600V and can carry a maximum current of up to 40A, making it ideal for residential and commercial solar panel systems.

You no longer need to worry about the hassle of running power cords across long distances or the limitations of having your solar panels mounted in one place. Our Solar Panel Extension Cables give you the flexibility to position your solar panels where you need them most and harness the power of the sun to meet your energy needs.

ICHYTI solar panel extension cable Parameter (Specification)

Type	Cross Section	Strand design	Conductor diameter	Conductor resistance	Outer diameter Ax B	Rated voltage	Rated current
Type	mm2	No.x(p(mm)	mm	Q/km	mm	VAC/DC	A
PV-1x2.5mm2	2.5	50 x(p0.25	2.0	8.06	5.3	1000/1800	30
PV-1x4.0mm2	4.0	56 x(p0.3	2.6	4.97	6.4	1000/1800	50
PV-1x6.0mm2	6.0	84 x(p0.3	3.3	3.52	7.2	1000/1800	70

Wire	Class 5, tinned
Insulation Material	XLPE
Double Insulated
Halogen-free
High resistance against oils, greases, oxygen
and ozone
Microbe-resistant
UV Resistant
High Wear And Abrasion Resistance
Flam Test According To	DIN EN 50265-2-1 UL1571(VW-1)
Smallest Permissible Bending Radius	5XD
Temperature Range	-40℃~ +90℃
Colours	Black/red

ICHYTI solar panel extension cable Feature

◉ The rated voltage of the cable is 0.6/1 kV AC (U0/U); Direct current 0.9/1.5 kV (U0/U).
◉ The maximum DC voltage allowed for this cable is 1.8 kV (conductor/conductor, non earthing system, no load circuit).
◉ The insulation resistance of the cable is 1000 megaohms per kilometer.
◉ After spark testing, the withstand voltage of the cable is 6000 volts AC (8400 volts DC).
◉ The cable can withstand an AC voltage of 6500 volts continuously for 5 minutes.

ICHYTI solar panel extension cable Details and structure

ICHYTI solar panel extension cable FAQ

Q: May know the standard of package?
A: In addition to the standard cartons, we also cater to the specific requests of our customers.

Q: How can I place order?

A: If you need to inquire about the specifics of your order, please feel free to reach out to us via email..

Q: What material is PV cable?

A: PV wire is a singular conductor wire utilized in connecting PV panels in solar power generation systems. There are two kinds of conductors utilized in PV wires, which are aluminum and copper.
