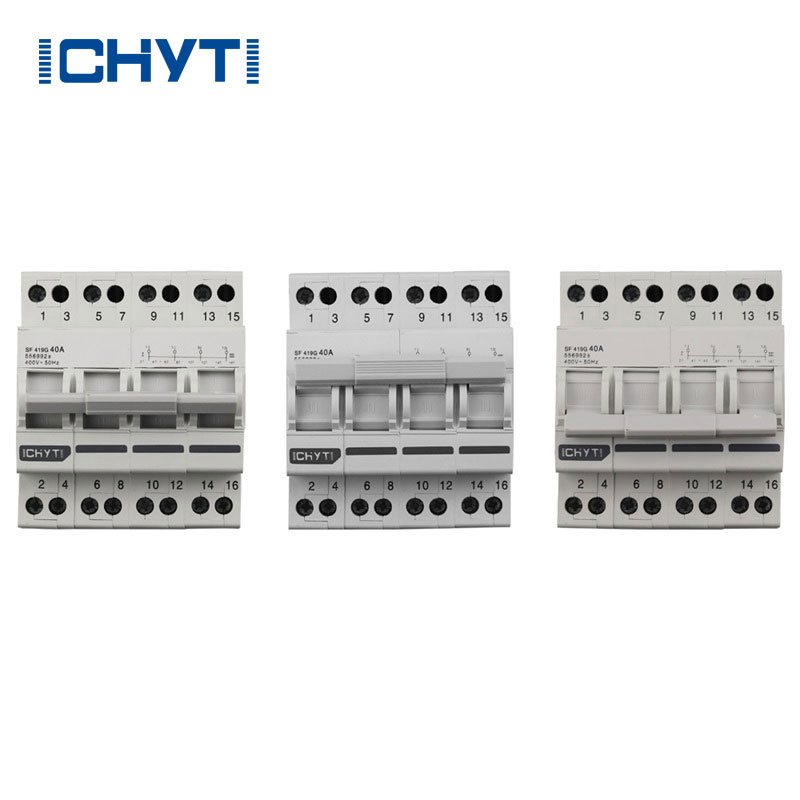

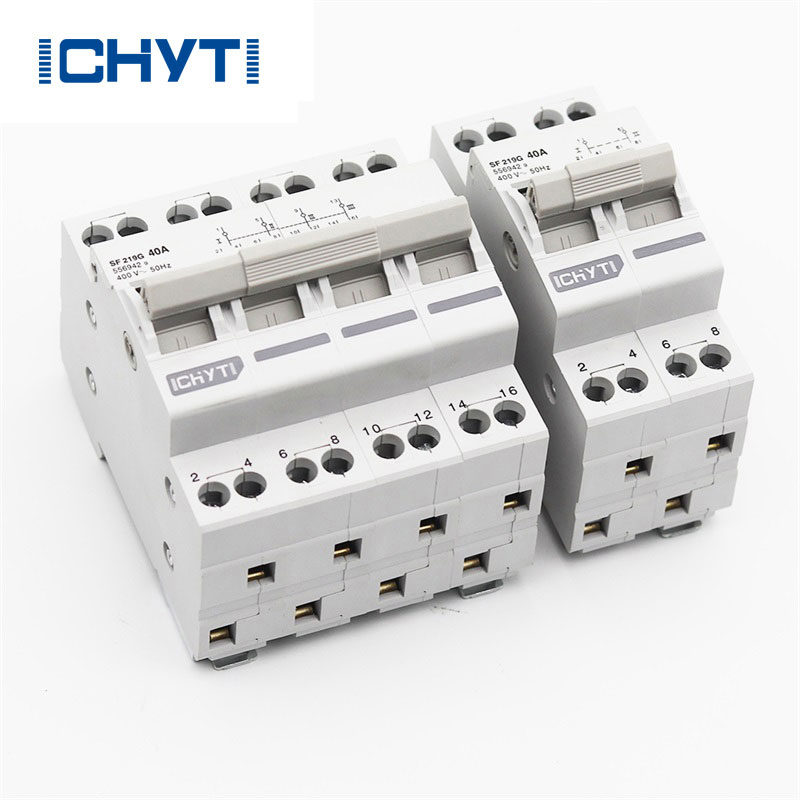

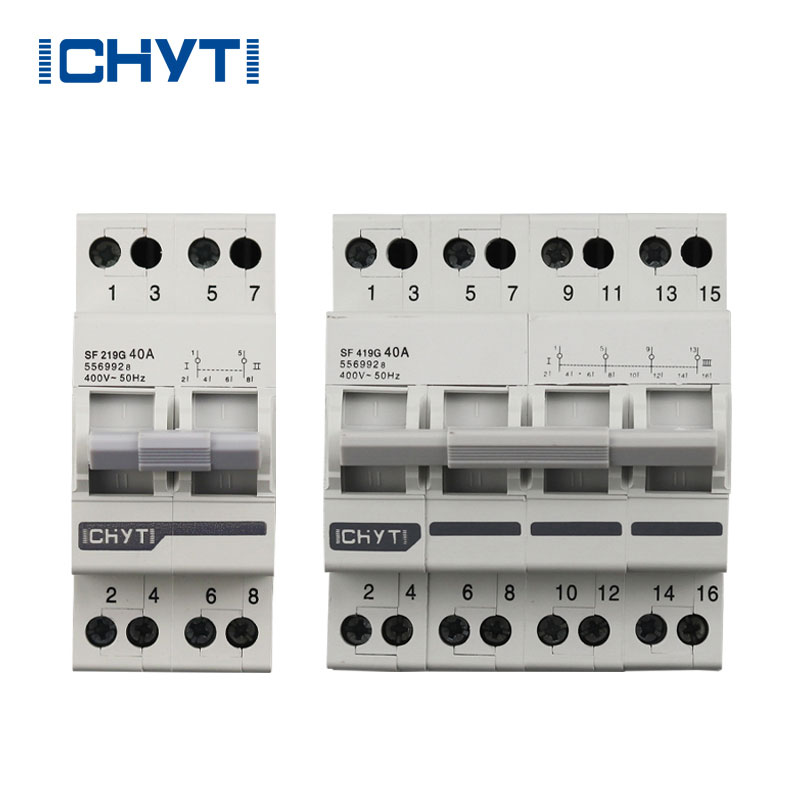

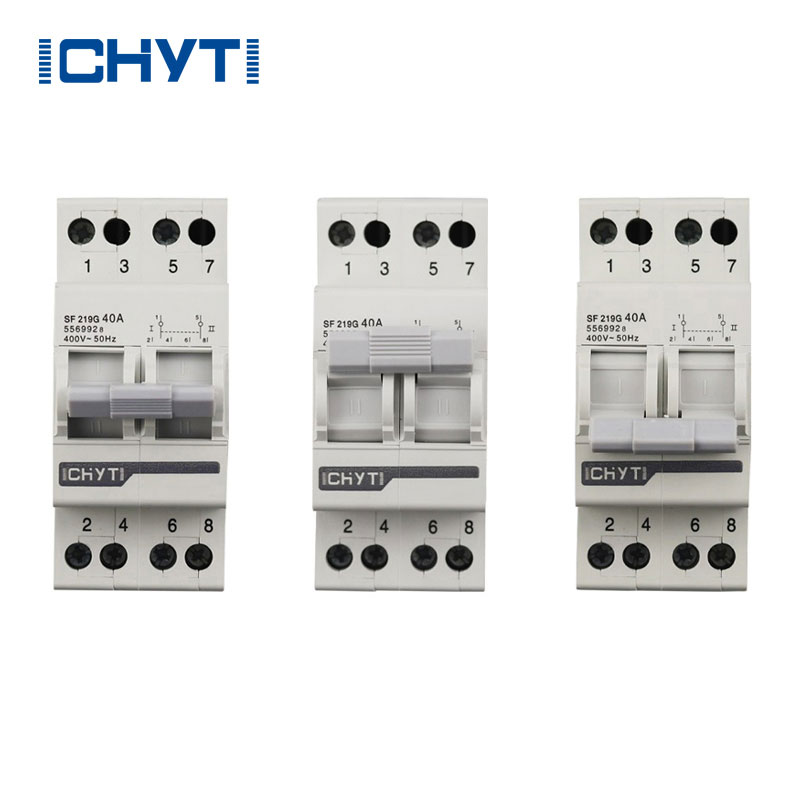

Electric Manual Transfer Switch
It is important to highlight that our perfect after-sales service is equally essential. So, if you are interested in our electric manual transfer switch services, do not hesitate to consult us. We will promptly respond to your inquiry. ICHYTI manufacturer is a professional solar system solution expert. Accumulated more than 5GW project experience. Provide free sample service. Exported to more than 50 countries overseas
Send Inquiry PDF DownLoad
Product Description
China Suppliers ICHYTI Wholesale electric manual transfer switch has multiple functions such as switching, conversion, and isolation, suitable for fast switching between different power sources or loads. electric manual transfer switch can be easily installed on DIN standard rails and features a PA66 injection molded casing, providing excellent fire resistance. electric manual transfer switch is mainly used in industrial equipment and circuits, and is an ideal product that can safely and reliably switch and switch up to 40A or 63A.
ICHYTI electric manual transfer switch Parameter (Specification)
|
Product Model |
SF 219G |
|
|
Pole |
2P |
4P |
|
Rated Current (A) |
40, 63 |
40, 63 |
|
Rated Voltage (V) |
230/400 |
230/400 |
|
Contact form |
1-0-2 |
|
|
Working Temperature |
-5℃~+40℃ |
|
|
Enclosed Class |
IP20 |
|
|
Installation |
Rail installation |
|
|
Frequency |
50/60HZ |
|
|
Electrical Life |
Not lessthan 1500 times |
|
|
Mechanical Life |
Not less than 8500 times |
|
ICHYTI electric manual transfer switch Feature
◉ Three level handle: Three position switch handle
◉ Transfer switch with zero position in the middle: a switch with zero position function
◉ Modular and Din rail installation: Suitable for the design of modular devices and Din rail installation.
ICHYTI electric manual transfer switch Details
◉ I and II switch, I Position: 1 and 2 connect / I Position: 5 and 6 connect
Middle: All disconnect
II position: 1 and 4 connect / II position: 5 and 8 connect
◉ Thermoset shell: With thermosetting resin as the main component, flame retardant.
◉ Handle design: Overall smooth lines, in line with human habits better pull.
◉ 35mm standard rail installation and disassembly is simple and convenient.
ICHYTI electric manual transfer switch Dimensions and wiring
