Miniature Circuit Breaker DC

As one of professional high quality Miniature circuit breaker DC manufacturers, you can rest assured to buy Miniature circuit breaker DC from CHYT and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

You can purchase Miniature circuit breaker DC from CHYT with confidence, as we are a proficient producer of high-quality Miniature circuit breaker DC. We promise to provide you with the best after-sale service and prompt delivery. This China Suppliers ICHYTI dc miniature circuit breaker is suitable for rated DC circuits below 1000V, mainly used for overload and short circuit protection, and can be used for occasional operation switching. Its rated current shall not exceed 63A.

One of the key features of the Miniature Circuit Breaker DC is its compact size. This allows for easy installation in a variety of spaces, making it perfect for both commercial and industrial applications. Its small size also means it won't take up too much valuable real estate in your equipment.

The Miniature Circuit Breaker DC is designed for use in direct current (DC) applications, including solar panels and battery systems. It can handle up to 63 amps of current, allowing it to keep up with the demanding needs of modern electrical equipment. Whether you're using it in a home or business setting, the Miniature Circuit Breaker DC provides reliable protection against overloads and short circuits.

ICHYTI Miniature Circuit Breaker DC Parameter (Specification)

Product Model		NBL7-63

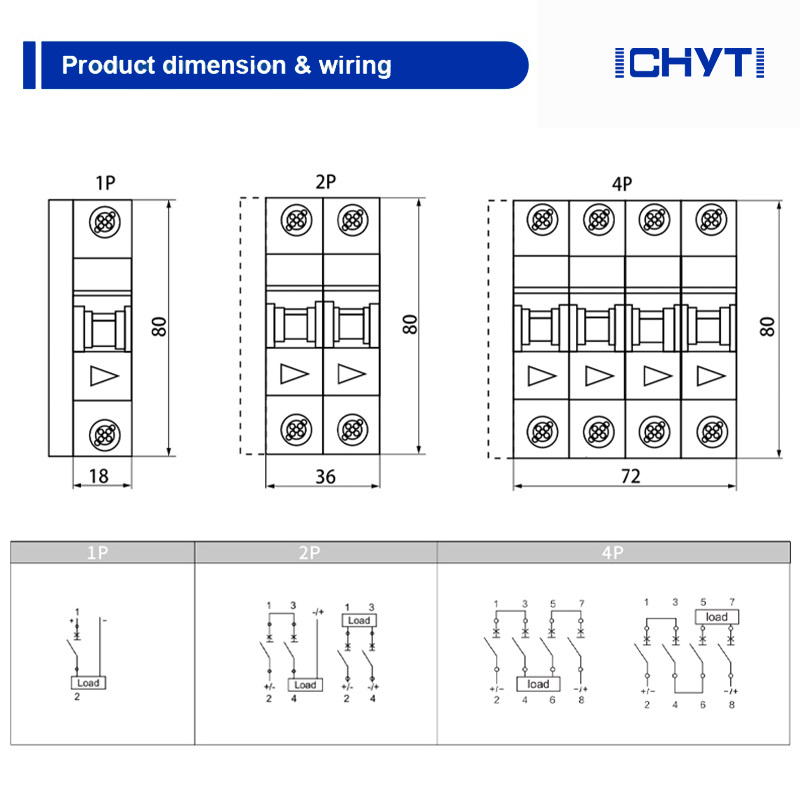

Pole		1P	2P	4P
Frame Current		63A
Rated Current	In	6, 10, 16, 20, 25, 32, 40, 50z63A
Rated Working Voltage	Ue(DC)	300V	500/600/1000V	1000V
Rated Insulation Voltage	Ui	1200V
Rated Impulse Withstand Voltage	Uimp	6kV
Breaking Capacity	leu	6 KA
Tripping Characteristic		C
Tripping Type		Thermal Magnetic
Electrical Life	Actual	500 Cycles(63A Frame)
	Standard	300 Cycles
Mechanical Life	Actual	10000 Cycles(63A Frame)
	Standard	9700 Cycles
Overvoltage Category		III
Pollution Degree		3
Ingress Protection		IP40 Wiring Port IP20
Resistance To Humidity And Heat		Class 2
Terminal Capacity		2.5 x 35mm2
Fastening Torque Of Terminals		2.0℃ 3.5Nm
Ambient Temperature		-30℃〜+70℃
Storage Temperature		-40℃〜+85℃
Installation Method		DIN
Standard		IEC60947-2

ICHYTI Miniature Circuit Breaker DC Feature

◉ Designed for photovoltaic energy storage and other DC applications, with a rated voltage of up to 1000V.

◉ Comply with AS60947.3-2018 and IEC60947.1-2015 standards.

◉ Provide a 2-year warranty, product insurance, and recall insurance.

◉ This product is suitable for photovoltaic energy storage and other DC applications, with a voltage of up to 1000V, complying with AS60947.3-2018 and IEC60947.1-2015 standards, and providing a 2-year warranty, product insurance, and recall insurance.
