Photovoltaic Solar Cable

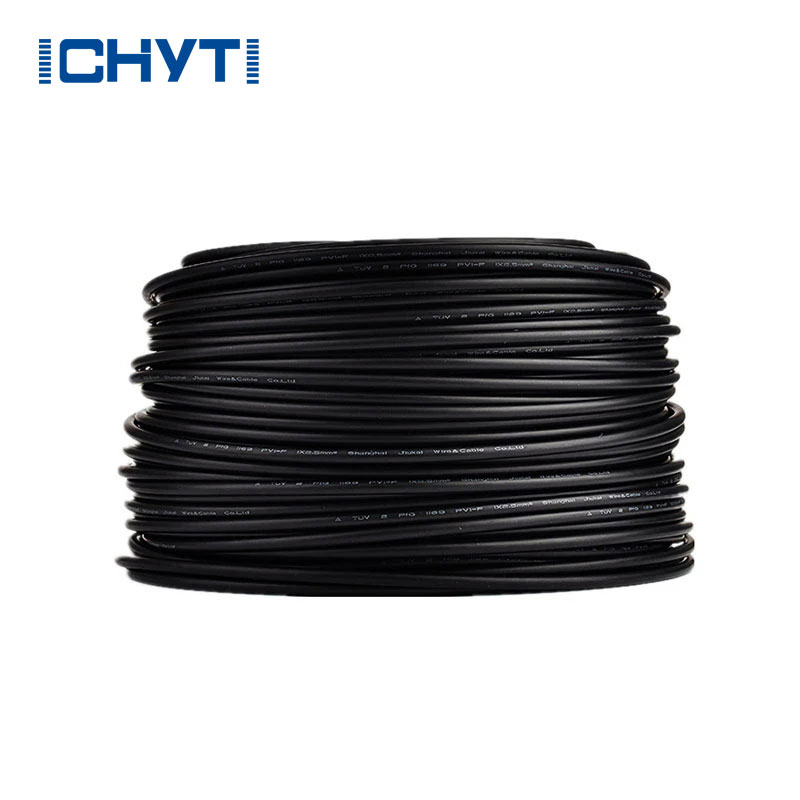

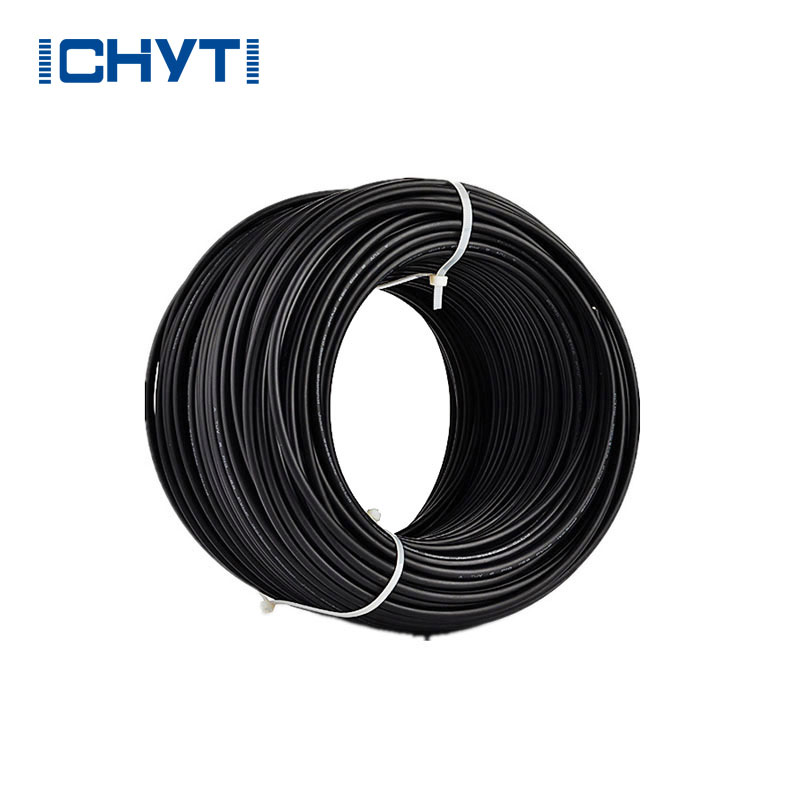

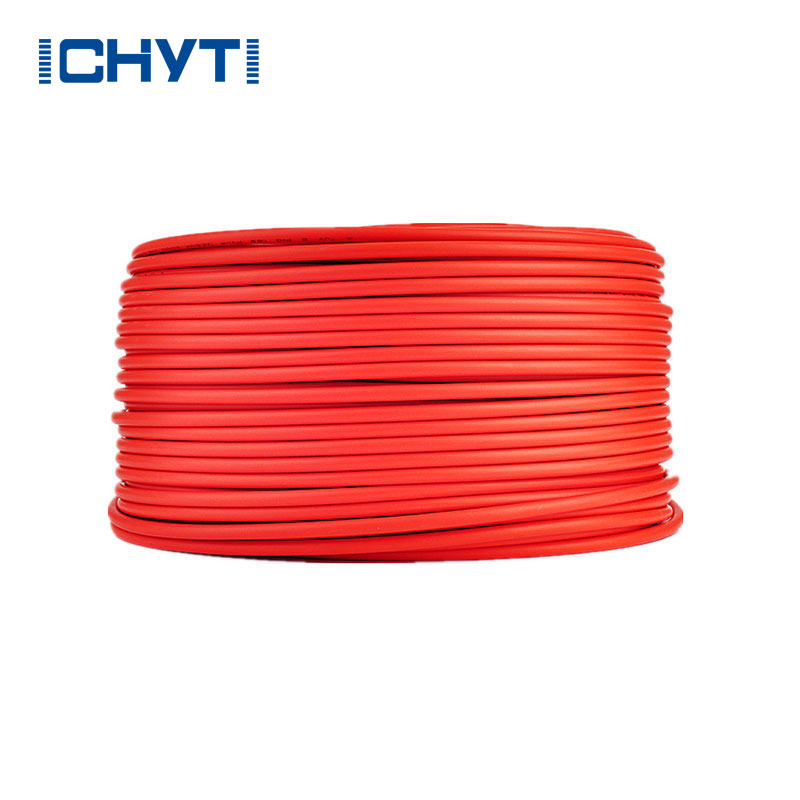

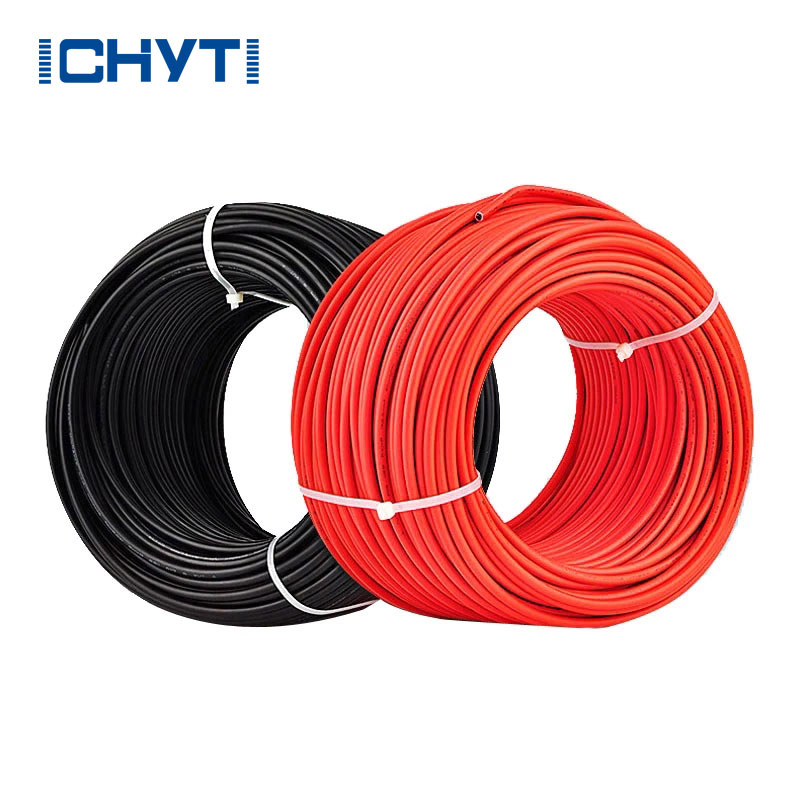

  • Photovoltaic Solar CablePhotovoltaic Solar Cable
  • Photovoltaic Solar CablePhotovoltaic Solar Cable
  • Photovoltaic Solar CablePhotovoltaic Solar Cable
  • Photovoltaic Solar CablePhotovoltaic Solar Cable
  • Photovoltaic Solar CablePhotovoltaic Solar Cable

Photovoltaic Solar Cable

ICHYTI Manufacturers fully understand the special needs of each customer for photovoltaic solar cable and are committed to meeting their product requirements to the greatest extent possible. It is precisely because of this that our photovoltaic solar cable quality has been highly praised by many customers and enjoys a good reputation in multiple countries.ICHYTI have achieved a smooth transition from the AC system to the DC system, enriching the company's product line. This makes ICHYTI the preferred one-stop service procurement center for customers.

Send Inquiry    PDF DownLoad

Product Description

China Suppliers ICHYTI Latest Selling photovoltaic solar cable is a type of cable specifically used to connect solar photovoltaic system panels. A photovoltaic system or solar panel is an electric power generation system that can absorb sunlight and convert light energy into electricity. Electricity is generated on solar panels, while photovoltaic solar cable are used to transmit and recycle electricity to collection points or other devices.


photovoltaic solar cable are a special type of cable designed for photovoltaic environments. In the field of power transmission, electricity can be divided into two types: AC and DC. Compared to alternating current, direct current has less energy loss during transmission because direct current flows directly during power transmission, resulting in very small losses and high currents. This makes direct current transmission faster and more energy-efficient.

ICHYTI photovoltaic solar cable Parameter (Specification)

Type

Cross Section

Strand design

Conductor diameter

Conductor resistance

Outer diameter

Ax B

Rated voltage

Rated current

mm2

No.x(p(mm)

mm

Q/km

mm

VAC/DC

A

PV-1x2.5mm2

2.5

50 x(p0.25

2.0

8.06

5.3

1000/1800

30

PV-1x4.0mm2

4.0

56 x(p0.3

2.6

4.97

6.4

1000/1800

50

PV-1x6.0mm2

6.0

84 x(p03

3.3

3.52

7.2

1000/1800

70


Wire

Class 5, tinned

Insulation Material

XLPE

Double Insulated



Halogen-free



High resistance against oils, greases, oxygen



and ozone



Microbe-resistant



UV Resistant



High Wear And Abrasion Resistance



Flam Test According To

DIN EN 50265-2-1 UL1571(VW-1)

Smallest Permissible Bending Radius

5XD

Temperature Range

-40℃~ +90℃

Colours

Black/red


ICHYTI photovoltaic solar cable Feature

 Solar photovoltaic systems operate under high temperatures and various environmental conditions. With the development, people generally use photovoltaic DC cables as transmission cables for various photovoltaic power plants. These photovoltaic DC cables need to have characteristics that are resistant to sunlight and high temperatures to meet environmental requirements.
 Photovoltaic DC cables are specifically designed for use in photovoltaic equipment, and some types of photovoltaic cables are typically used for underground service entrance applications. These cables are usually made of irradiated cross-linked insulation materials and have characteristics of resistance to sunlight or direct burial.
 Photovoltaic DC cables differ from other cables in terms of insulation thickness, rated voltage, and operating temperature. The photovoltaic DC cable adopts a thicker insulation layer to adapt to various harsh environments. Compared to the rated voltage of other cables up to 600V, the rated voltage of photovoltaic DC cables can reach 1500V.
 Photovoltaic DC cables can withstand higher temperatures, while other cable types have a maximum operating temperature of 90 ° C.
 Photovoltaic DC cables are one of the few single conductor types with a rated voltage exceeding 600V and suitable for direct burial without the need for shielding.

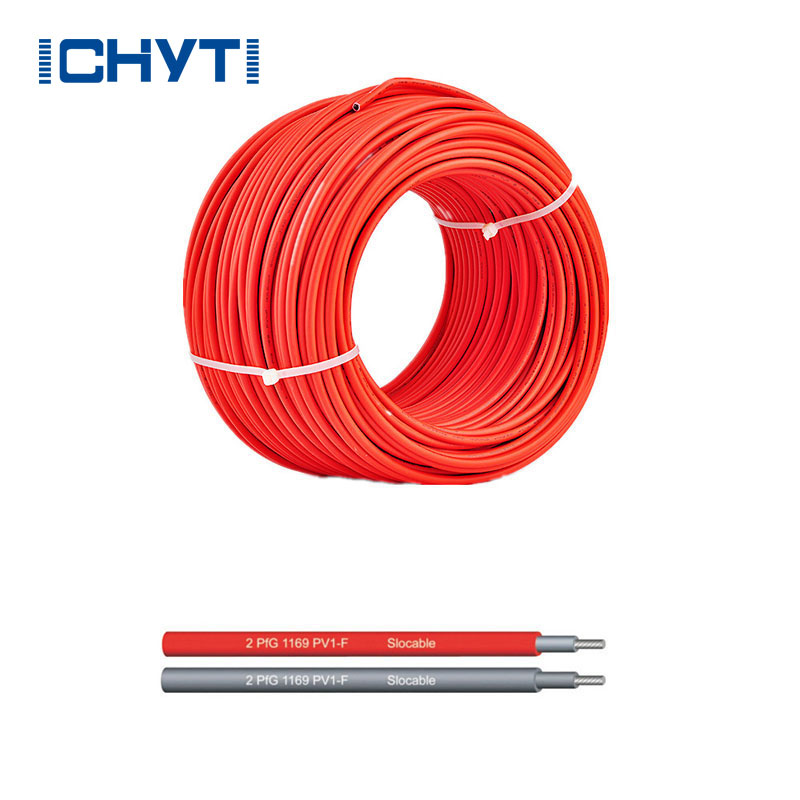

ICHYTI photovoltaic solar cable Details and structure


Photovoltaic Solar Cable
