Premium solar cables

CHYT is Premium solar cables manufacturers and suppliers in China. We can provide professional service and better price for you. If you interested in Premium solar cablesproducts, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

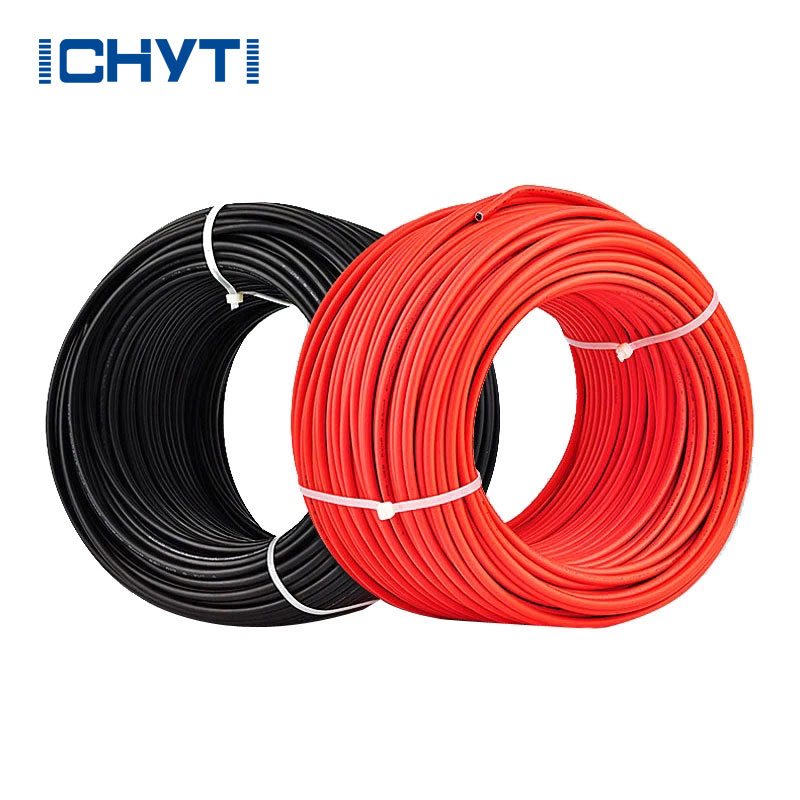

Designed specifically for use with solar power systems, our premium solar cables are manufactured to the highest standards using the finest materials. These cables are designed to withstand the rigors of outdoor use, making them the perfect choice for any solar power project.

Our premium solar cables come in a range of lengths and are available in a variety of colors to suit your needs. Whether you're looking for a simple connection between your solar panels and battery, or need a more complex wiring system to power multiple devices, our premium solar cables are up to the task.

Each cable is designed with durability in mind, using high-quality materials that are resistant to impact, abrasion, and weathering. This ensures that your solar power system will continue to function at peak efficiency for years to come.

ICHYTI solar panel extension cable Parameter (Specification)

Type	Cross Section	Strand design	Conductor diameter	Conductor resistance	Outer diameter Ax B	Rated voltage	Rated current
	mm2	No.x(p(mm)	mm	Q/km	mm	VAC/DC	A
PV-1x2.5mm2	2.5	50 x(p0.25	2.0	8.06	5.3	1000/1800	30
PV-1x4.0mm2	4.0	56 x(p0.3	2.6	4.97	6.4	1000/1800	50
PV-1x6.0mm2	6.0	84 x(p0.3	3.3	3.52	7.2	1000/1800	70

Wire	Class 5, tinned
Insulation Material	XLPE
Double Insulated
Halogen-free
High resistance against oils, greases, oxygen
and ozone
Microbe-resistant
UV Resistant
High Wear And Abrasion Resistance
Flam Test According To	DIN EN 50265-2-1 UL1571(VW-1)
Smallest Permissible Bending Radius	5XD
Temperature Range	-40℃~ +90℃
Colours	Black/red

ICHYTI solar panel extension cable Feature

◉ The rated voltage of the cable is 0.6/1 kV AC (U0/U); Direct current 0.9/1.5 kV (U0/U).
◉ The maximum DC voltage allowed for this cable is 1.8 kV (conductor/conductor, non earthing system, no load circuit).
◉ The insulation resistance of the cable is 1000 megaohms per kilometer.
◉ After spark testing, the withstand voltage of the cable is 6000 volts AC (8400 volts DC).
◉ The cable can withstand an AC voltage of 6500 volts continuously for 5 minutes.

ICHYTI solar panel extension cable Details and structure



ICHYTI solar panel extension cable FAQ

Q: May know the standard of package?
A: In addition to the standard cartons, we also cater to the specific requests of our customers.

Q: How can I place order?

A: If you need to inquire about the specifics of your order, please feel free to reach out to us via email..

Q: What material is PV cable?

A: PV wire is a singular conductor wire utilized in connecting PV panels in solar power generation systems. There are two kinds of conductors utilized in PV wires, which are aluminum and copper.
