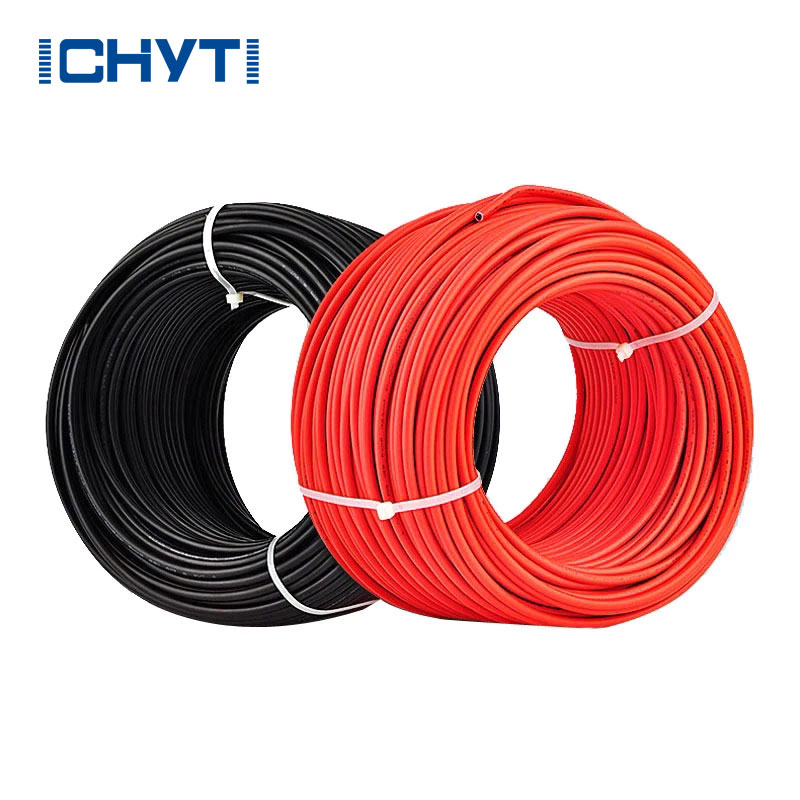

Premium Solar Panel Extension Cables

As one of professional manufacturers in China, CHYT would like to provide you Premium Solar Panel Extension Cables For Solar Panels. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

CHYT, a reputable manufacturer in China, is willing to offer you Premium Solar Panel Extension Cables. We promise to provide you with the best after-sale support and prompt delivery.

Our premium extension cables are constructed using the highest quality materials, ensuring that they are durable and built to last. The cables are made of tinned copper, ensuring high conductivity and low resistance, which minimize power loss and maximize energy efficiency.

Our solar panel extension cables come in a range of sizes, from 1 foot to 100 feet, making them suitable for a wide range of solar panel installations. You can choose the cable that best suits your requirements, eliminating the need for additional splicing or connectors.

Our extension cables are designed to withstand harsh weather conditions, including high temperatures, heavy rain, and strong winds. This makes them suitable for outdoor use for extended periods of time, ensuring that your solar panels continue to function effectively without any interruptions.

ICHYTI solar panel extension cable Parameter (Specification)

Type	Cross Section	Strand design	Conductor diameter	Conductor resistance	Outer diameter Ax B	Rated voltage	Rated current
Type	mm2	No.x(p(mm)	mm	Q/km	mm	VAC/DC	A
PV-1x2.5mm2	2.5	50 x(p0.25	2.0	8.06	5.3	1000/1800	30
PV-1x4.0mm2	4.0	56 x(p0.3	2.6	4.97	6.4	1000/1800	50
PV-1x6.0mm2	6.0	84 x(p0.3	3.3	3.52	7.2	1000/1800	70

Wire	Class 5, tinned
Insulation Material	XLPE
Double Insulated
Halogen-free
High resistance against oils, greases, oxygen
and ozone
Microbe-resistant
UV Resistant
High Wear And Abrasion Resistance
Flam Test According To	DIN EN 50265-2-1 UL1571(VW-1)
Smallest Permissible Bending Radius	5XD
Temperature Range	-40℃~ +90℃
Colours	Black/red

ICHYTI solar panel extension cable Feature

◉ The rated voltage of the cable is 0.6/1 kV AC (U0/U); Direct current 0.9/1.5 kV (U0/U).
◉ The maximum DC voltage allowed for this cable is 1.8 kV (conductor/conductor, non earthing system, no load circuit).
◉ The insulation resistance of the cable is 1000 megaohms per kilometer.
◉ After spark testing, the withstand voltage of the cable is 6000 volts AC (8400 volts DC).
◉ The cable can withstand an AC voltage of 6500 volts continuously for 5 minutes.

ICHYTI solar panel extension cable Details and structure

ICHYTI solar panel extension cable FAQ

Q: May know the standard of package?
A: In addition to the standard cartons, we also cater to the specific requests of our customers.

Q: How can I place order?

A: If you need to inquire about the specifics of your order, please feel free to reach out to us via email..

Q: What material is PV cable?

A: PV wire is a singular conductor wire utilized in connecting PV panels in solar power generation systems. There are two kinds of conductors utilized in PV wires, which are aluminum and copper.
