Pv Dc Isolator Switch

ICHYTI is a well-known manufacturer, supplier, and exporter of pv dc isolator switch in China. We always pursue the perfection of product quality and have received high praise from our customers. Our products are well designed, made of high-quality materials, with excellent performance and reasonable prices, which is what every customer pursues. At the same time, we have also passed CCC, CE, and TUV certifications. As an experienced exporter, our main markets cover the Middle East, Southeast Asia, the United States, and Europe.

Send Inquiry PDF DownLoad

Product Description

China Manufacturers ICHYTI Easy-maintainable Customized pv dc isolator switch can be used for lines up to 1000VDC, with a rated current not exceeding 32A. It can achieve on-load segmentation and effective isolation, mainly used in the photovoltaic field.

ICHYTI pv dc isolator switch Parameter (Specification)

Product Model	DS1DB-S32
Pole	4P
Rated Current (A)	32A
Rated Voltage (Vdc)	1000
Color	Yellow
Working Temperature	-40℃〜+70℃
Distance of contacts (per pole)	8mm
Pollution degree	2
Mechanical Life	Not less than 10000 times

ICHYTI pv dc isolator switch Feature

The DC isolation switch solves the AC/DC short circuit accident in the operating system of the DC isolation switch in the existing technology. This accident is caused by the insulation between the AC motor casing and the reduction mechanism being damaged due to DC or other reasons, or the AC motor leakage. It effectively protects the safe operation of power rectifier equipment and prevents significant economic losses and personal injuries.

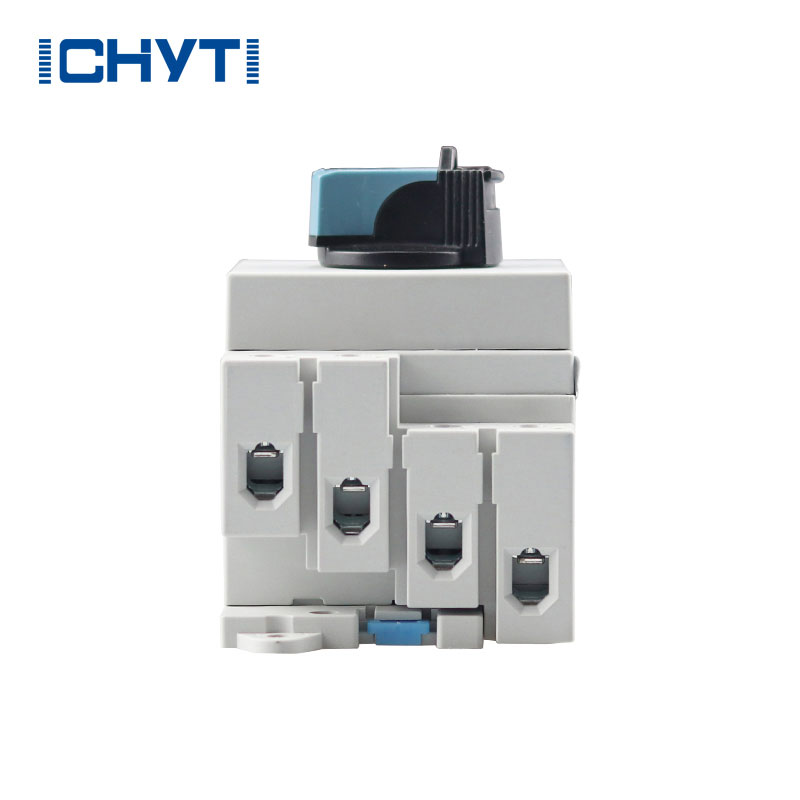

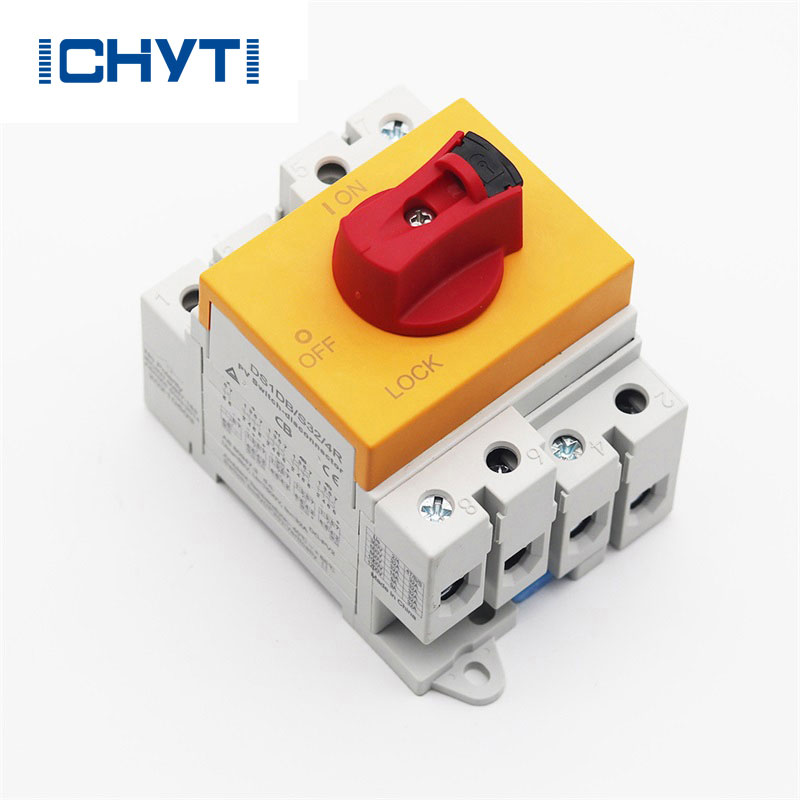

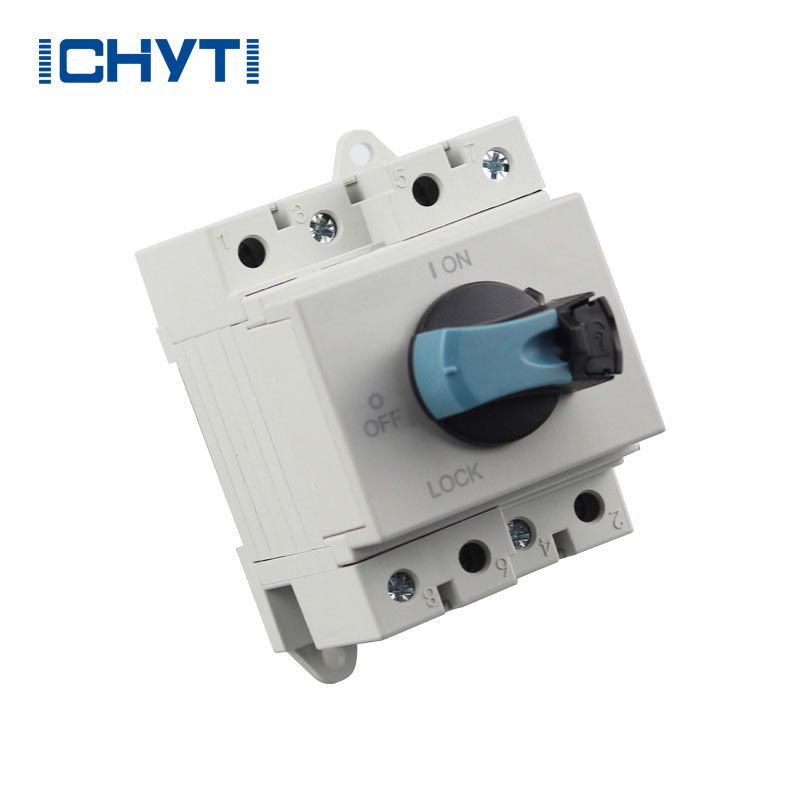

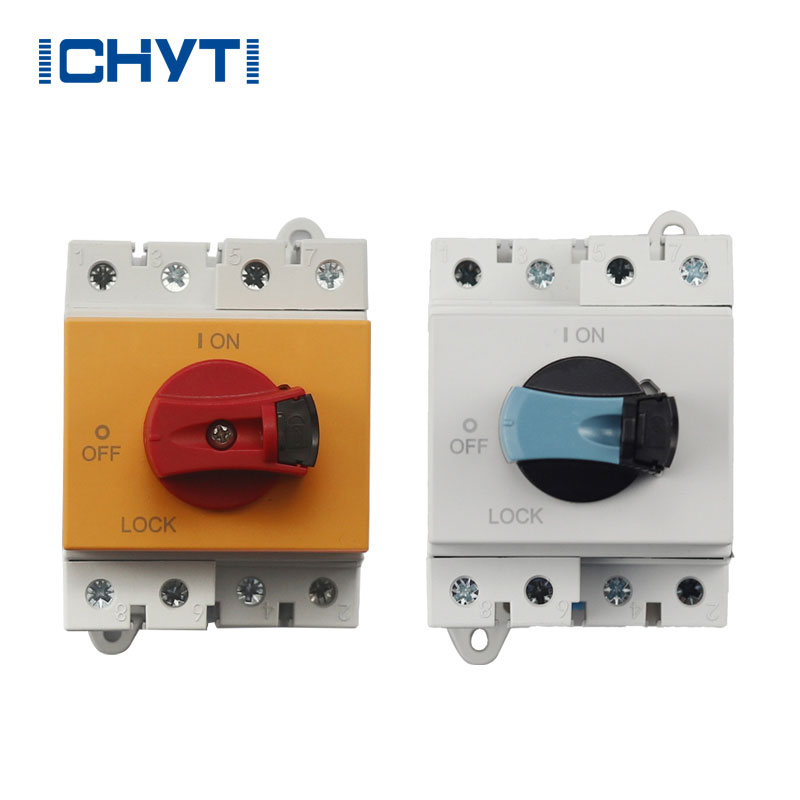

ICHYTI pv dc isolator switch Details

ICHYTI pv dc isolator switch Dimensions and wiring

ICHYTI pv dc isolator switch FAQ

Q: Can you send your staff to install the equipment for us?
A: Our electrical equipment is very convenient to install, and ordinary electricians will install it

Q: What can I buy from you?

A: DC circuit breakers, Surge Protective Devices, PV fuses, isolator switches, solar connectors etc.

Q: Can I delivery the goods from other supplier to your factory? Then load together?

A: Yes, no problem
