Solar Ac Combiner Box
CHYT has always been committed to creating a reliable brand of solar ac combiner box, valuing talent, strictly controlling quality, and promoting scientific development. The company has passed the certification of ISO9001 quality system, ISO14001 environmental management system, and OHSAS18001 occupational health and safety management system for the first time. In addition, CHYT has invested in the construction of a high-tech intelligent industrial park in Wenzhou, China, as well as a new research and development center and marketing center.
Send Inquiry PDF DownLoad
Product Description
China Manufacturers CHYTI Cheap solar ac combiner box 1 Years Warranty is suitable for inverters with a maximum input voltage of DC600V, capable of achieving 1 PV input channel and 1 output channel, and supporting a maximum of 63A MPPT AC partial DC+AC current. This solar ac combiner box adopts a brand new design, compact size, simple and convenient installation, providing users with safe, reliable, simple and beautiful photovoltaic system products.
◉ With DC 600V Surge Protection Device 2 pole 1 pcs
◉ With DC 600V Circuit Breaker 2 pole 1pcs
◉ With AC 275V Surge Protection Device 2 pole 1 pcs
◉ With AC 400V Circuit Breaker 2 pole 1pcs
◉ With Solar Connector 1 pair
A: About 10 minutes by car
CHYT solar ac combiner box Parameter (Specification)
|
YTPV1-1 Solar PV DC+AC 1 in 1 out Combiner Box |
|
|
Rated voltage of photovoltaic system |
DC 600V |
|
Max input amp for each string |
15A(changecb⑹ |
|
Input strings |
1 |
|
Number of output strings |
1 |
|
Inverter |
1.5-30kW |
|
DC S) |
/stem |
|
DC Fuse |
1P15A |
|
DC MCB |
2P 63A |
|
DCSPD |
2P 600V 20-40kA |
|
DC SPD Max discharge current |
40KA |
|
AC System(Single Phase) |
|
|
AC MCB |
2P63A |
|
AC SPD |
2P 275V 20-40kA |
|
System |
|
|
Protection grade |
IP65 |
|
Cable size of output terminals |
4-6 mm2 |
|
Cable size of PE-terminal |
2.5-4 mm2 |
|
Solar connector |
Optional |
|
Box material |
PVC |
|
Installation method |
Wall mounting type |
|
Operating temperature |
-25℃-+60℃ |
|
Installation: indoors/outdoors |
Yes |
|
Mechanical parameter |
|
|
Widh*high*Depth(mm) |
300*260*140 |
CHYT solar ac combiner box Composition
◉ With DC 1000V fuse 15A 2 pcs◉ With DC 600V Surge Protection Device 2 pole 1 pcs
◉ With DC 600V Circuit Breaker 2 pole 1pcs
◉ With AC 275V Surge Protection Device 2 pole 1 pcs
◉ With AC 400V Circuit Breaker 2 pole 1pcs
◉ With Solar Connector 1 pair

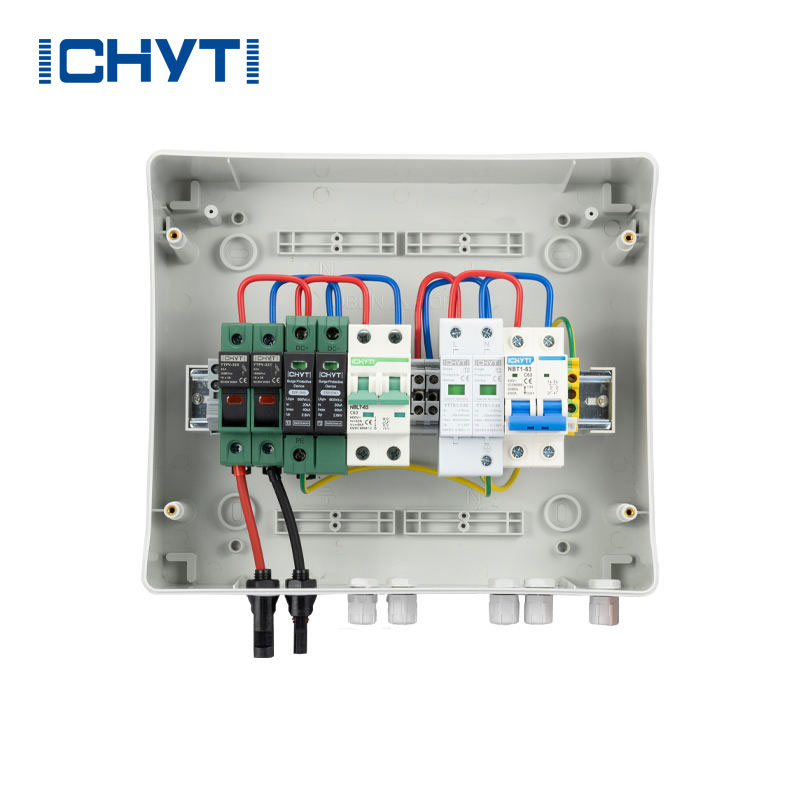

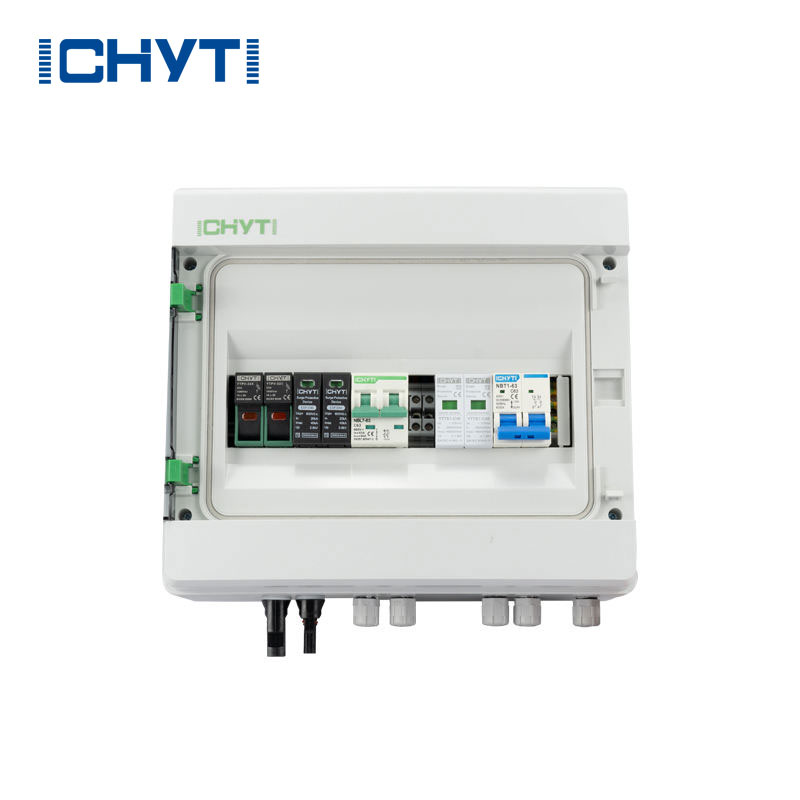

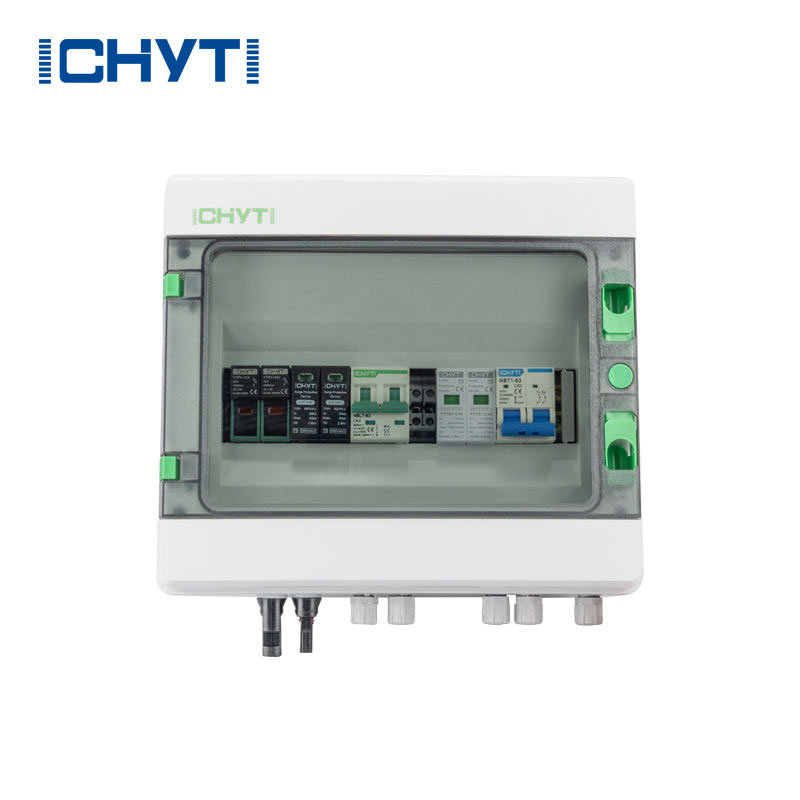

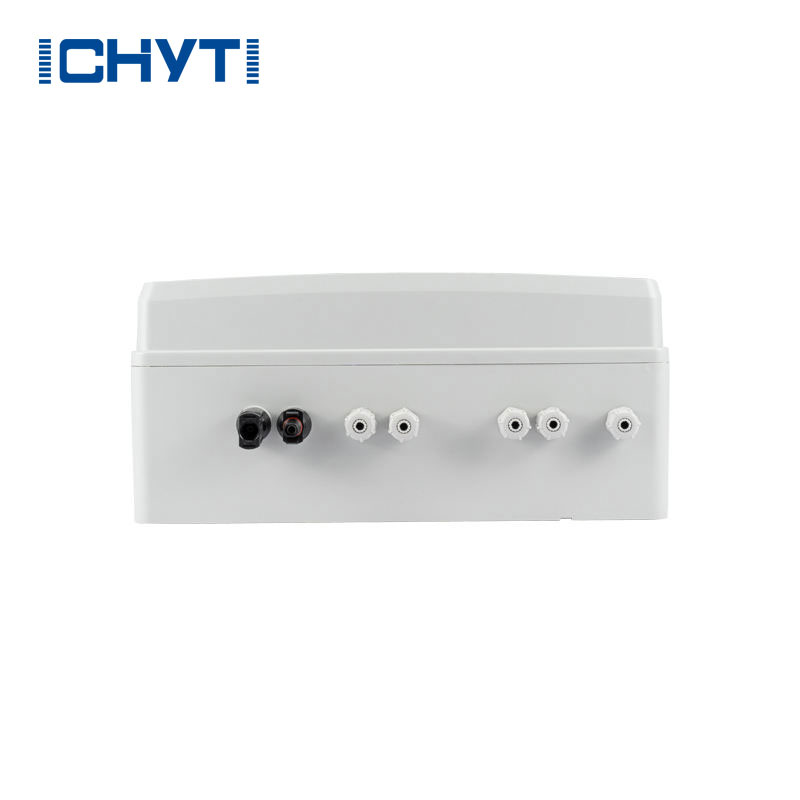

CHYT solar ac combiner box Details
CHYT solar ac combiner box Dimensions and wiring
CHYT solar ac combiner box FAQ
Q: How far is your factory from the city hotel?A: About 10 minutes by car
Q: Where is your factory located?
A: Our factory is located in Liushi, Yueqing, Zhejiang Province, the capital of electrical appliances in China
Q: If OEM is acceptable?
A: Yes, Our company is available for Retail & Wholesale& OEM& ODM
