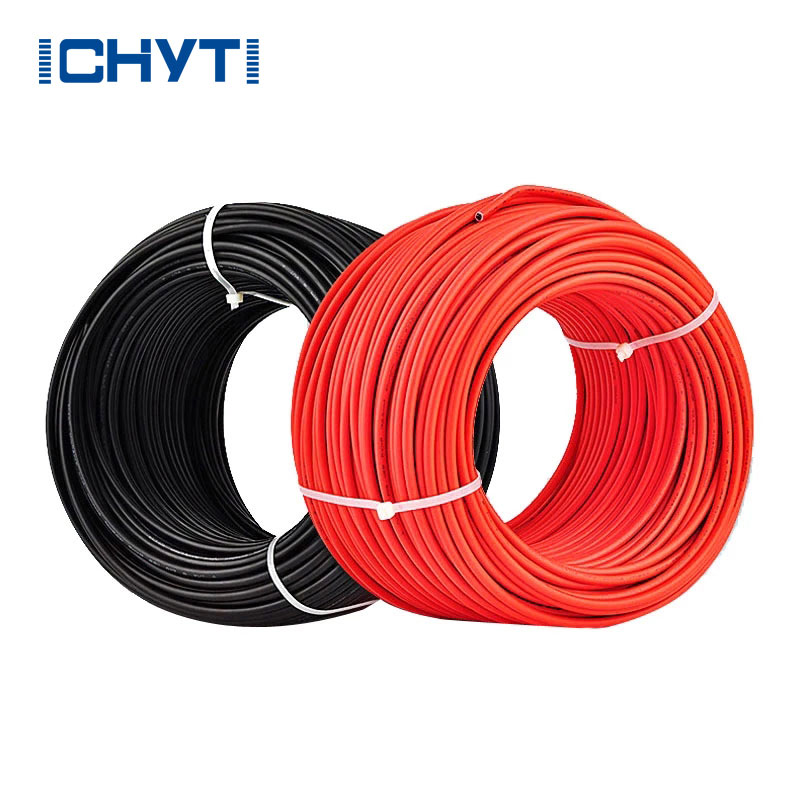

Solar Panel Extension Cables

As one of professional high quality Solar Panel Extension Cables manufacturers, you can rest assured to buy Solar Panel Extension Cables from CHYT and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

You can purchase Solar Panel Extension Cables from CHYT with confidence, as we are a proficient producer of high-quality Solar Panel Extension Cables. We promise to provide you with the best after-sale service and prompt delivery.

Crafted using high-quality materials, these cables are designed to withstand the elements, ensuring durability and long-term use. The durable connectors on either end ensure a secure fit, preventing any power loss or accidental disconnection.

One of the greatest features of these cables is their versatility. They work with standard MC4 connectors, so they are compatible with a wide range of solar products, including most popular brands.

Installation is a breeze with our Solar Panel Extension Cables. Simply plug them in and let the sun do the rest. Plus, their compact design makes them easy to store and transport, making them perfect for those who need a portable power solution.

ICHYTI solar panel extension cable Parameter (Specification)

Type	Cross Section	Strand design	Conductor diameter	Conductor resistance	Outer diameter Ax B	Rated voltage	Rated current
Type	mm2	No.x(p(mm)	mm	Q/km	mm	VAC/DC	A
PV-1x2.5mm2	2.5	50 x(p0.25	2.0	8.06	5.3	1000/1800	30
PV-1x4.0mm2	4.0	56 x(p0.3	2.6	4.97	6.4	1000/1800	50
PV-1x6.0mm2	6.0	84 x(p0.3	3.3	3.52	7.2	1000/1800	70

Wire	Class 5, tinned
Insulation Material	XLPE
Double Insulated
Halogen-free
High resistance against oils, greases, oxygen
and ozone
Microbe-resistant
UV Resistant
High Wear And Abrasion Resistance
Flam Test According To	DIN EN 50265-2-1 UL1571(VW-1)
Smallest Permissible Bending Radius	5XD
Temperature Range	-40℃~ +90℃
Colours	Black/red

ICHYTI solar panel extension cable Feature

◉ The rated voltage of the cable is 0.6/1 kV AC (U0/U); Direct current 0.9/1.5 kV (U0/U).
◉ The maximum DC voltage allowed for this cable is 1.8 kV (conductor/conductor, non earthing system, no load circuit).
◉ The insulation resistance of the cable is 1000 megaohms per kilometer.
◉ After spark testing, the withstand voltage of the cable is 6000 volts AC (8400 volts DC).
◉ The cable can withstand an AC voltage of 6500 volts continuously for 5 minutes.

ICHYTI solar panel extension cable Details and structure

ICHYTI solar panel extension cable FAQ

Q: May know the standard of package?
A: In addition to the standard cartons, we also cater to the specific requests of our customers.

Q: How can I place order?

A: If you need to inquire about the specifics of your order, please feel free to reach out to us via email..

Q: What material is PV cable?

A: PV wire is a singular conductor wire utilized in connecting PV panels in solar power generation systems. There are two kinds of conductors utilized in PV wires, which are aluminum and copper.
