Thick solar panel cables

CHYT is a professional China Thick solar panel cables manufacturer and supplier, if you are looking for the Thick solar panel cables, consult us now!

Our Thick Solar Panel Cables come in a variety of sizes, making it easy to find the perfect fit for your solar panel installation. Whether you need a short cable for a small installation or a longer cable for a larger installation, our variety of lengths has you covered.

One of the primary benefits of our Thick Solar Panel Cables is their ability to handle high currents. These cables are capable of handling currents up to 60 amps, making them ideal for high-powered solar systems. They also have a low resistance, which means that they provide maximum power transfer, allowing you to get the most out of your solar panels.

In addition to their high performance, our Thick Solar Panel Cables are also easy to install. The cables come with pre-attached connectors, which means that installation is a breeze. The connectors are also designed to fit snugly, ensuring a secure and reliable connection.

ICHYTI solar panel extension cable Parameter (Specification)

Type	Cross Section	Strand design	Conductor diameter	Conductor resistance	Outer diameter Ax B	Rated voltage	Rated current
	mm2	No.x(p(mm)	mm	Q/km	mm	VAC/DC	A
PV-1x2.5mm2	2.5	50 x(p0.25	2.0	8.06	5.3	1000/1800	30
PV-1x4.0mm2	4.0	56 x(p0.3	2.6	4.97	6.4	1000/1800	50
PV-1x6.0mm2	6.0	84 x(p0.3	3.3	3.52	7.2	1000/1800	70

Wire	Class 5, tinned
Insulation Material	XLPE
Double Insulated
Halogen-free
High resistance against oils, greases, oxygen
and ozone
Microbe-resistant
UV Resistant
High Wear And Abrasion Resistance
Flam Test According To	DIN EN 50265-2-1 UL1571(VW-1)
Smallest Permissible Bending Radius	5XD
Temperature Range	-40℃~ +90℃

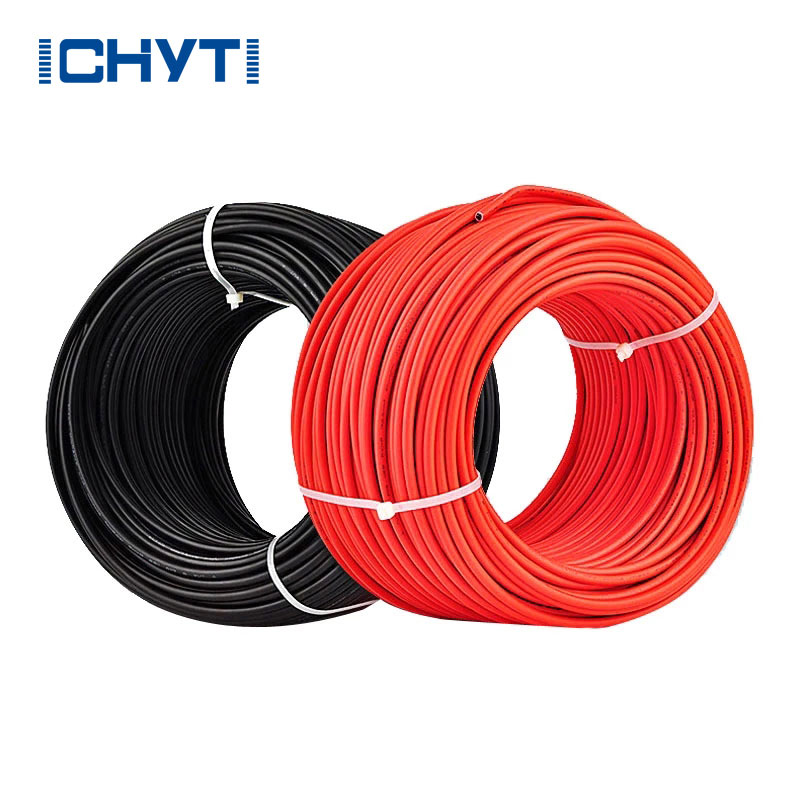

Colours	Black/red

ICHYTI solar panel extension cable Feature

◉ The rated voltage of the cable is 0.6/1 kV AC (U0/U); Direct current 0.9/1.5 kV (U0/U).
◉ The maximum DC voltage allowed for this cable is 1.8 kV (conductor/conductor, non earthing system, no load circuit).
◉ The insulation resistance of the cable is 1000 megaohms per kilometer.
◉ After spark testing, the withstand voltage of the cable is 6000 volts AC (8400 volts DC).
◉ The cable can withstand an AC voltage of 6500 volts continuously for 5 minutes.

ICHYTI solar panel extension cable Details and structure



ICHYTI solar panel extension cable FAQ

Q: May know the standard of package?
A: In addition to the standard cartons, we also cater to the specific requests of our customers.

Q: How can I place order?

A: If you need to inquire about the specifics of your order, please feel free to reach out to us via email..

Q: What material is PV cable?

A: PV wire is a singular conductor wire utilized in connecting PV panels in solar power generation systems. There are two kinds of conductors utilized in PV wires, which are aluminum and copper.
