Type 2 Ac Spd

As one of the leading Manufacturers in type 2 ac spd in China, ICHYTI is committed to offering professional solutions of low voltage electric and smart electricity for different fields customers from the countries and regions around the world, to satisfy worldwide customers' requirements on utilizing energy more safely and conveniently, help customers to constantly improve efficiency of production and energy, and reducing their impact on the environment.

Send Inquiry PDF DownLoad

Product Description

China Suppliers ICHYTI Buy Discount type 2 ac spd is suitable for low voltage distribution cabinets and equipment used in buildings are connected in parallel with three-phase single-phase AC power sources.

ICHYTI type 2 ac spd Parameter (Specification)

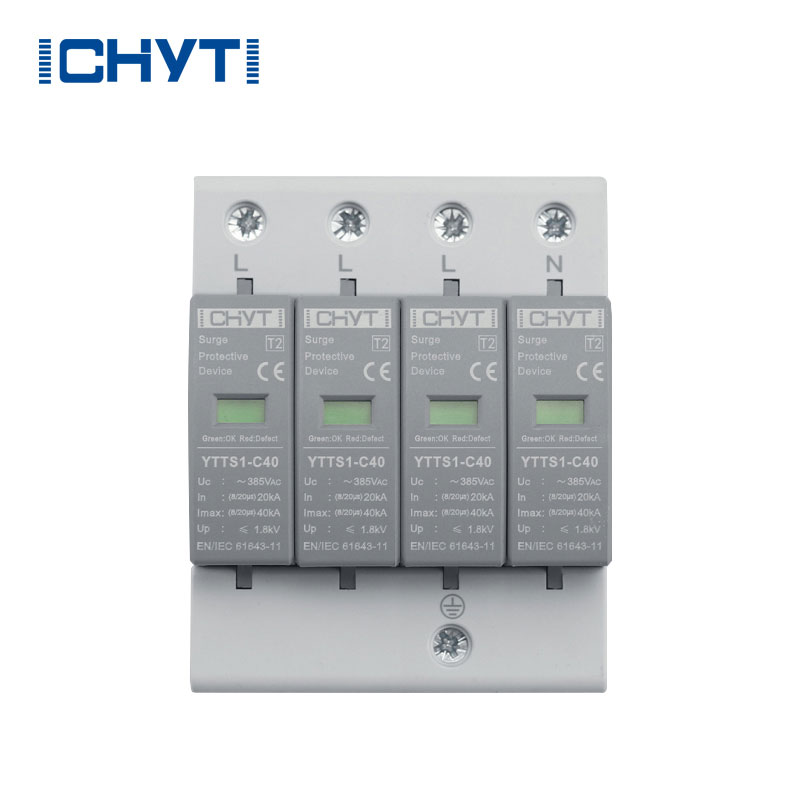

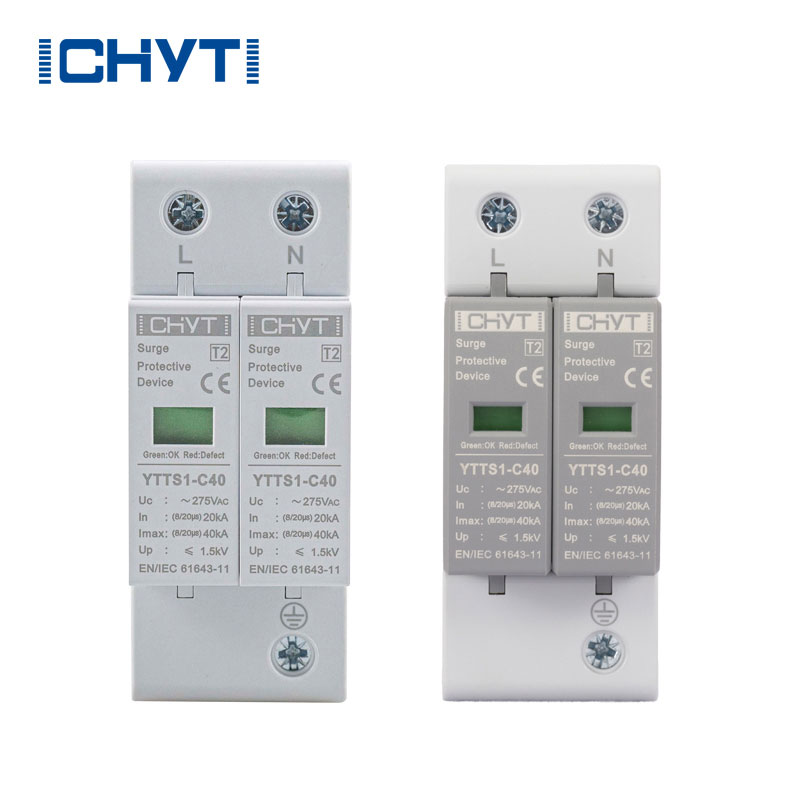

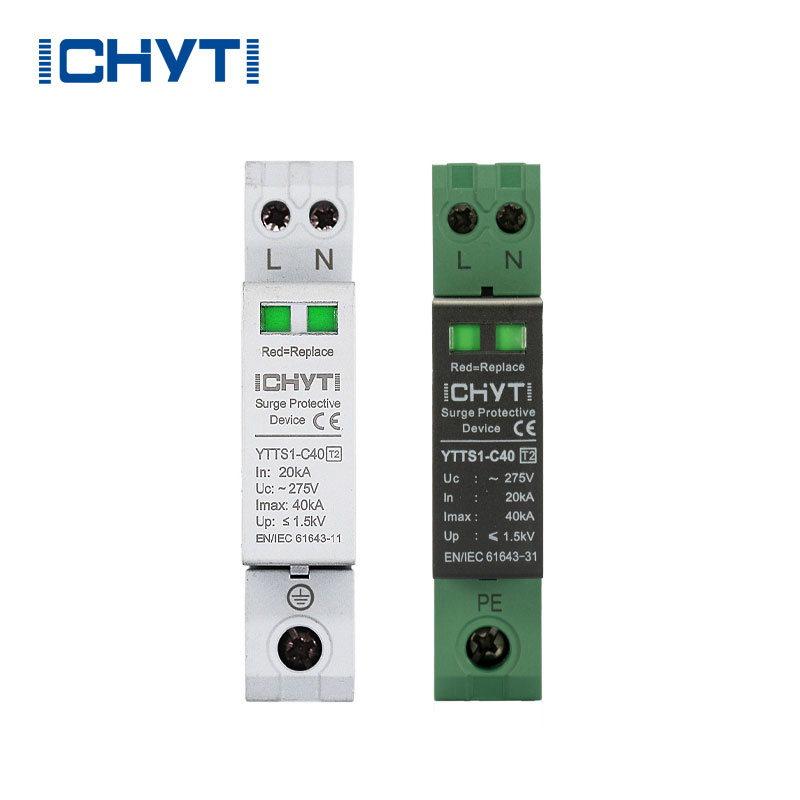

Product Model	YTTS1-C40
Pole	1P +N	2P	4P
Rated Frequency	One port
SPD Category	Combined type
Test Category	Class H test
Maximum Continuous Operating Voltage Uc	275VAC	275VAC	385VAC
Voltage Protection Level Up(8/20\|Js)	<1.5kV	<1.5kV	<1.8kV
Nominal Discharge Current ln(8/20\|Js)	20kA
Maximum Discharge Current lmax(8/20\|Js)	40kA
Response Time tA	<25ns
Size	18x90x72	36x90x72	72x90x72
Failure Indication	Green: Normal Red: Failure
Sectional Area Of Wires	6〜25mm2
Installation Method	35mm standard rail
Working Environment Temperature	-40℃ ~ + 85℃
Sheathing Material	Plastic
Protection Level	IP20
Executive Standard	IEC 61643-11

ICHYTI type 2 ac spd Feature

◉ The green window represents normal, while the red window represents a fault and the module needs to be replaced.

◉ Dual thermal buckle device and temperature controlled circuit breaker technology provide more reliable protection.

◉ The equipment has low leakage current, fast response, and low residual voltage.

◉ Equipment equipped with remote contacts can perform remote monitoring and provide remote alarm and control functions.

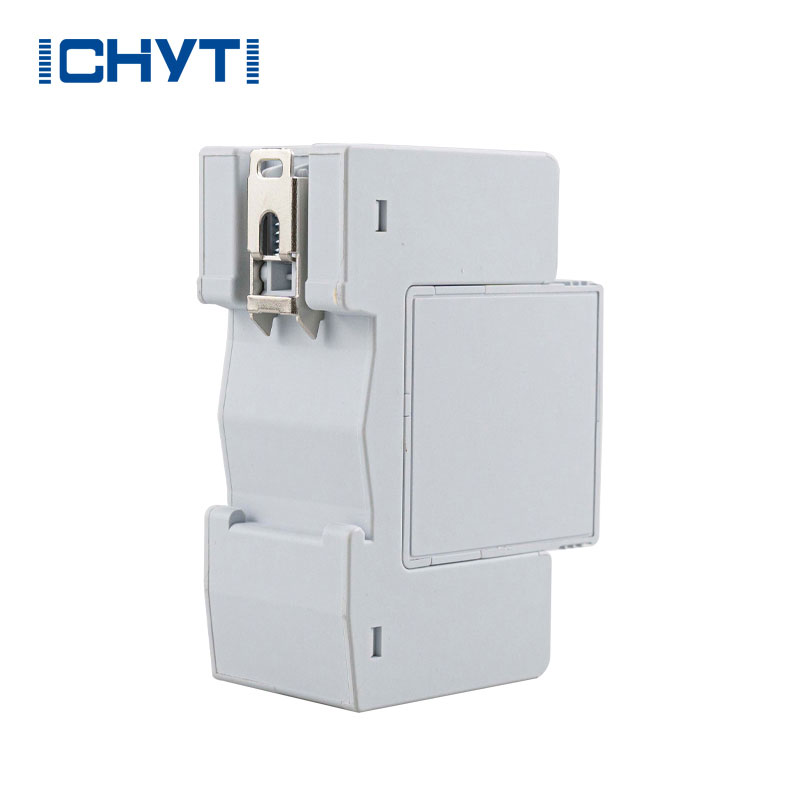

ICHYTI type 2 ac spd Details

Type 2 Ac Spd China

ICHYTI type 2 ac spd Dimensions and wiring

Type 2 Ac Spd China

ICHYTI type 2 ac spd FAQ

Q: What can I buy from you?

A: DC circuit breakers, Surge Protective Devices, PV fuses, isolator switches, solar connectors etc.

Q: Can I transfer the money to you then you pay to other supplier?

A: We can help you buy from other suppliers, and then you can pay me together.

Q: When will you leave your factory and to have your spring festival holidays?

A: The Spring Festival is the most important holiday in China, and we will have a holiday of about 20 days. Of course, you can also contact us, and our sales personnel will reply to you when they see it.
