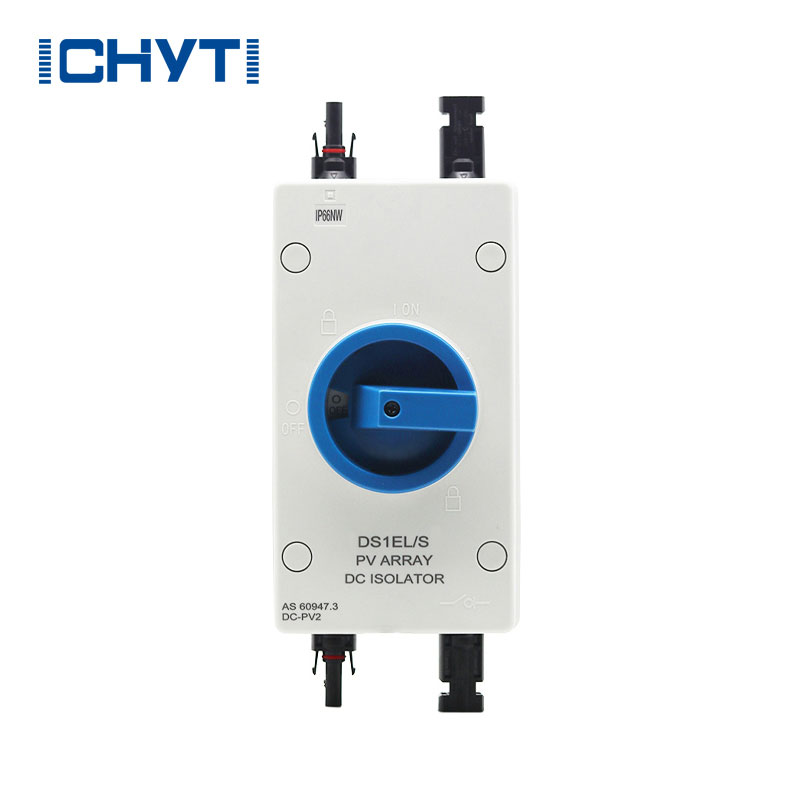

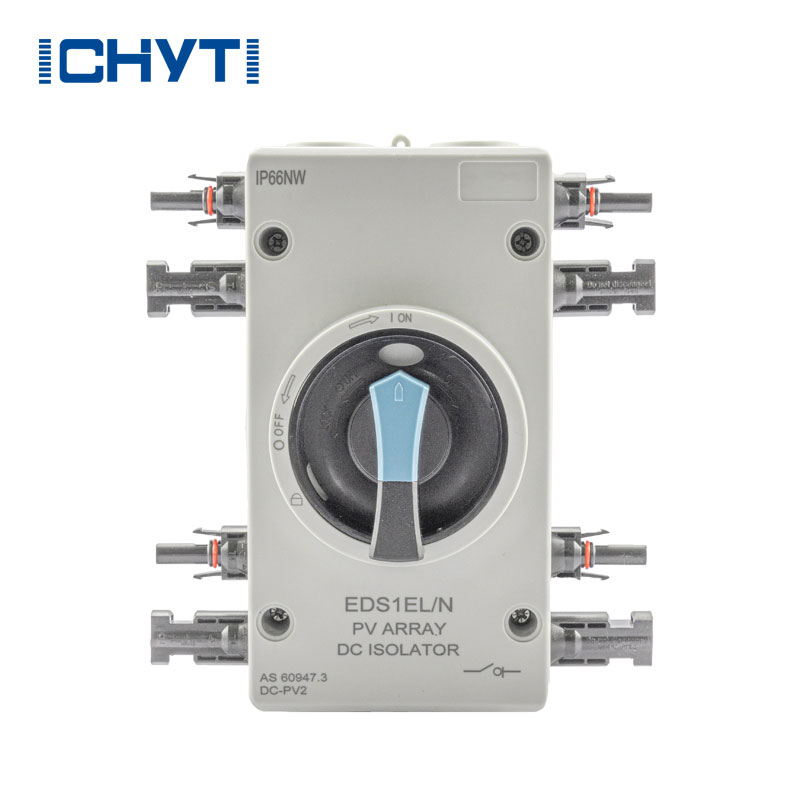

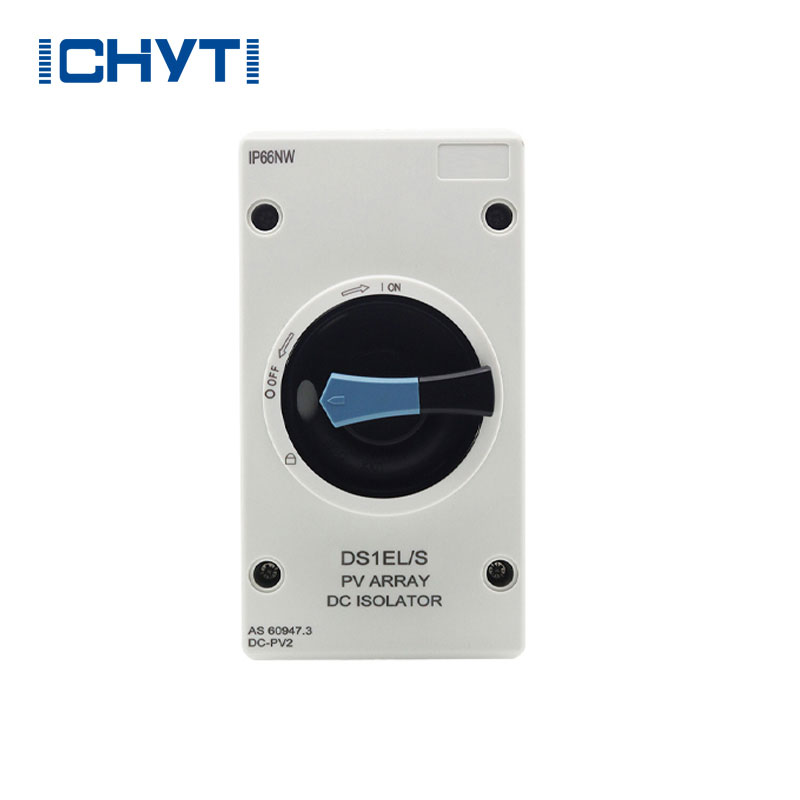

Waterproof Rotary Isolator Switch
  • Waterproof Rotary Isolator SwitchWaterproof Rotary Isolator Switch
  • Waterproof Rotary Isolator SwitchWaterproof Rotary Isolator Switch
  • Waterproof Rotary Isolator SwitchWaterproof Rotary Isolator Switch
  • Waterproof Rotary Isolator SwitchWaterproof Rotary Isolator Switch

Waterproof Rotary Isolator Switch

If you are looking for a reliable waterproof rotary isolator switch manufacturer in China, look no further than ICHYTI. You can trust us to provide high-quality products from our factory, along with excellent after-sales service and on-time delivery. Shop with confidence knowing that you are in good hands. ICHYTI value every Inquiry Sent To Us, Ensure Quick Competitive Offer. ICHYTI Are A Sales Team, With All Technical Support From Engineer Team. waterproof rotary isolator switch https://youtu.be/0oMP02HazMY ICHYTI(公司品牌) waterproof rotary isolator switch Introduction China Suppliers ICHYTI(公司品牌) Discount waterproof rotary isolator switch is a closed isolation switch with a DC current capacity of 1000V and 32A, specifically designed for the installation of solar power generation systems. waterproof rotary isolator switch is usually installed between the solar panel array and the inverter on the roof to isolate the photovoltaic panel array during system installation or maintenance. waterproof rotary isolator switch has a waterproof rating of IP66 and is suitable for outdoor use. ICHYTI(公司品牌) waterproof rotary isolator switch Parameter (Specification) ICHYTI(公司品牌) waterproof rotary isolator switch Feature 1. Choosing a load breaker that can handle up to 8 times the rated current is ideal for isolating the motor. 2. The switch has a high IP66 rating. 3. This is a non-polarized DC isolation switch. 4. It is strongly recommended to ensure that the cover is closed. 5. The switch is of type DC-PV1 DC-PV2 DC-21B. 6. The large blue handle is lockable. ICHYTI(公司品牌) waterproof rotary isolator switch Details IP66 waterproof: High impact strength, good toughness, good pollution resistance Multiple inlet holes: The four ends of the product are respectively provided with two knock down holes. which are used for incoming and outgoing lines after being broken ICHYTI(公司品牌) waterproof rotary isolator switch Dimensions and wiring

Send Inquiry    PDF DownLoad

Product Description

China Suppliers ICHYTI Discount waterproof rotary isolator switch is a closed isolation switch with a DC current capacity of 1000V and 32A, specifically designed for the installation of solar power generation systems. waterproof rotary isolator switch is usually installed between the solar panel array and the inverter on the roof to isolate the photovoltaic panel array during system installation or maintenance. waterproof rotary isolator switch has a waterproof rating of IP66 and is suitable for outdoor use.



ICHYTI waterproof rotary isolator switch Parameter (Specification)

Product Model

DS1EL-S32

Rated insulation voltage Ui

1500V

Rated heating current Ithe

32A

Pole

4P

Rated impulse withstand voltage Uimp

8000V

Rated short-time withstand current(ls) lew

1000A

Rated short-circuit making capacity Icm

1000A

Working Temperature

-40℃〜+ 85°C

Mechanical life

10,000 times

Waterproof grade

IP66



ICHYTI waterproof rotary isolator switch Feature

 Choosing a load breaker that can handle up to 8 times the rated current is ideal for isolating the motor.

 The switch has a high IP66 rating.

 This is a non-polarized DC isolation switch.

 It is strongly recommended to ensure that the cover is closed.

 The switch is of type DC-PV1 DC-PV2 DC-21B.

 The large blue handle is lockable.


ICHYTI waterproof rotary isolator switch Details

 IP66 waterproof: High impact strength, good toughness, good pollution resistance.

 Multiple inlet holes: The four ends of the product are respectively provided with two knock down holes. which are used for incoming and outgoing lines after being broken.

Waterproof Rotary Isolator Switch



ICHYTI waterproof rotary isolator switch Dimensions and wiring

Waterproof Rotary Isolator Switch
