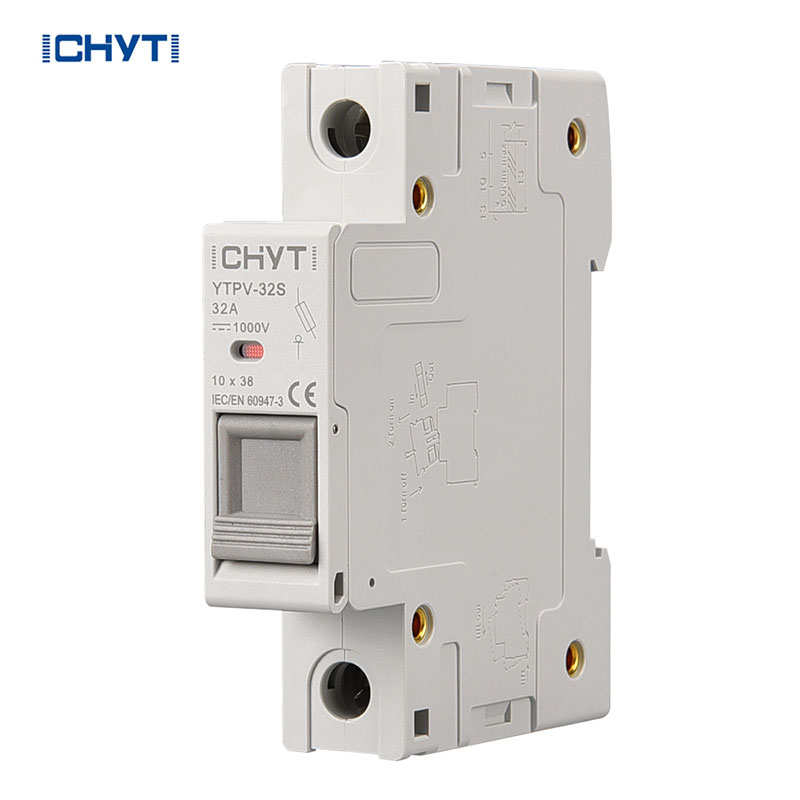

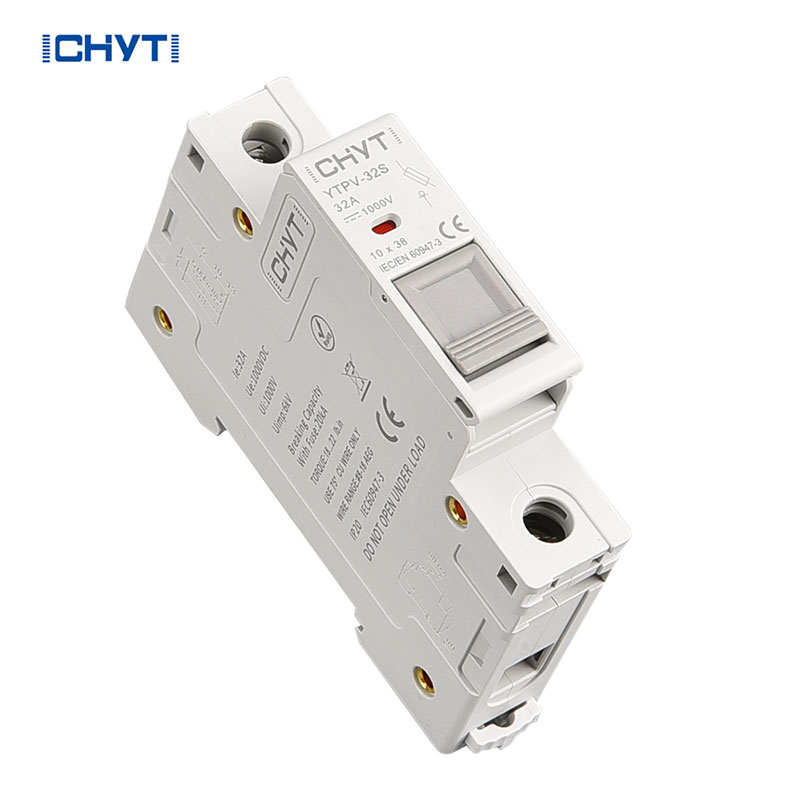

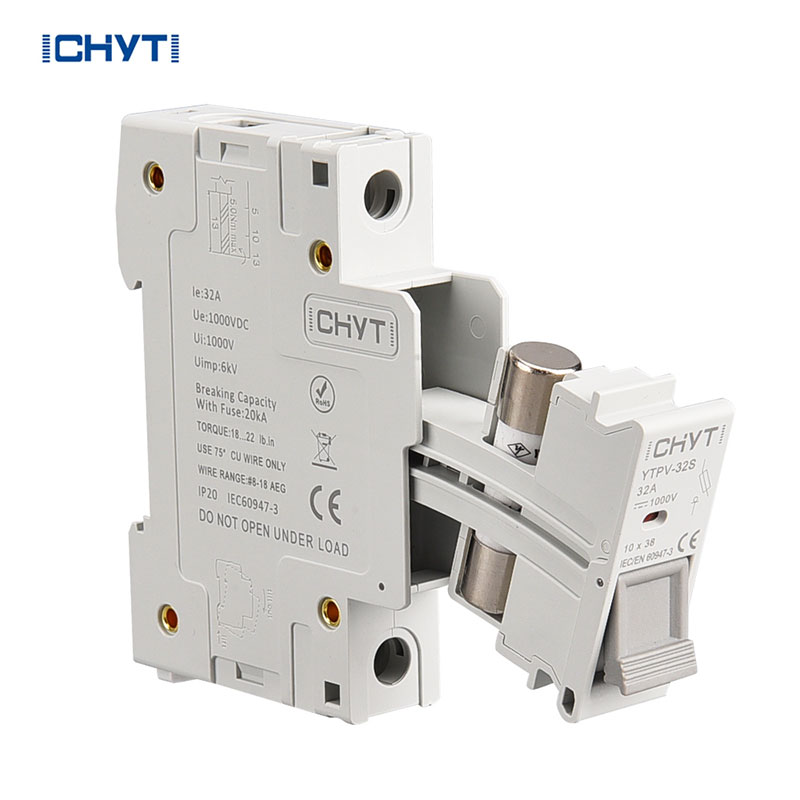

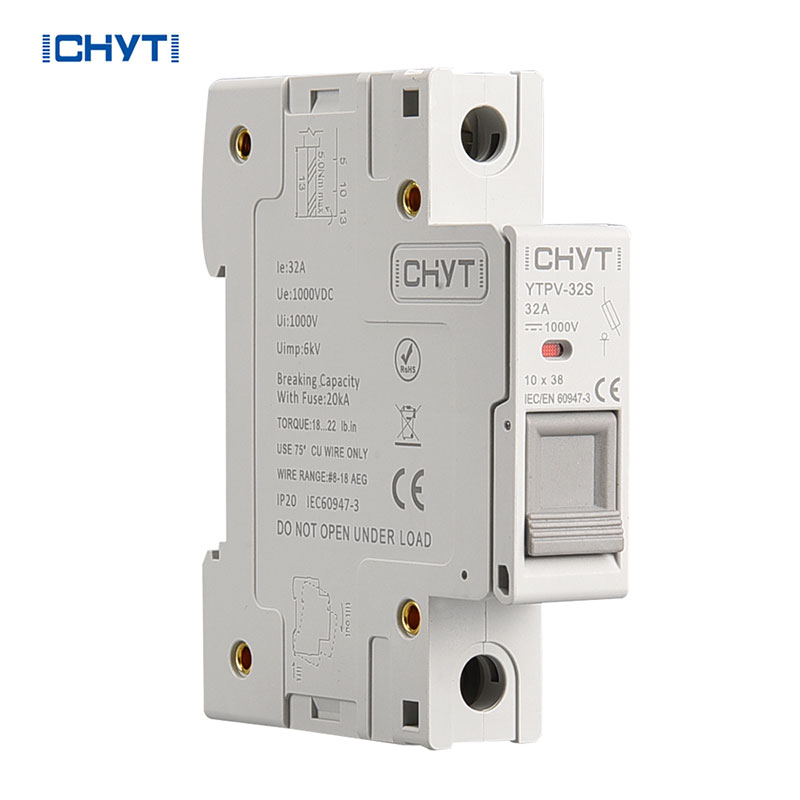

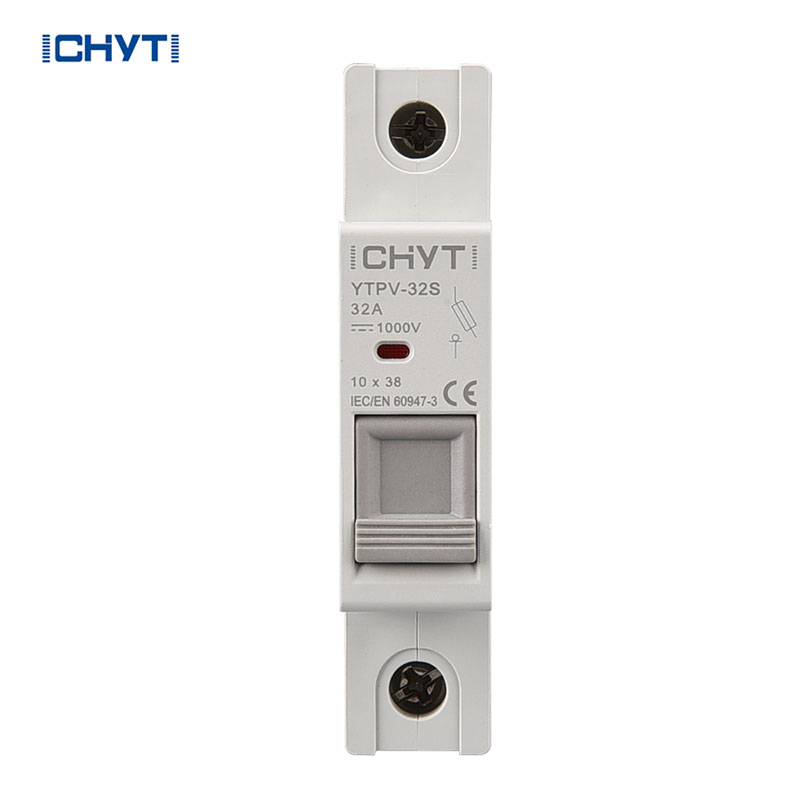

1000v DC 1p Fuse Holder

Since its establishment, the ICHYTI Manufacturers has always adhered to the principles of integrity and mutual benefit, and is enthusiastic about providing the high quality 1000vdc 1p fuse holder and the fastest supply services to new and old customers. In the same industry, ICHYTI are renowned in the international market for our comprehensive variety, large spot inventory, excellent quality, and good credit.

Send Inquiry PDF DownLoad

Product Description

China Suppliers ICHYTI Buy Discount 1000vdc 1p fuse holder is made of pure silver material, processed with low tin solder during welding, and then encapsulated in high-strength ceramics. The internal fuse tube is filled with high-purity quartz sand and chemically treated to be used as an arc medium. The fuse itself and contact terminals are connected using spot welding technology. The use of these materials and technologies aims to enhance the performance of DC fuse holders in solar panels, ensuring their reliability and safety, promoting the development of clean energy, and achieving environmental and sustainable development.

ICHYTI BR-30 1000vdc 1p fuse holder Parameter (Specification)

YTPV-32S
According to	IEC60947-3
Electrical Characteristics
Rated Working Voltage	1000VDC
Rated Current	32A
Breaking Capacity	20kA
Max Power Dissipation	3W
Control and Indication
Connection and Installation Wire	2.5-6mm
Terminal Screws	M3.5
Torque	0.8~1.2N-m
Degree of Protection	IP20
Installation Environment
Fuse Size	10x38mm
Operating Temperature Range	-30~+70℃
Mounting	DIN rail IEC/EN 60715
Pollution Degree	3
Relative Humidity	+20℃≤95%, +40℃≤50%,
Installation Class	III
Weight	0.07kg Per pole
