DC Pv Solar Fuse Holder

ICHYTI supplier always adheres to continuous development, integrating the design, development, production, and sales of dc pv solar fuse holder. We have a professional understanding and continuous improvement of dc pv solar fuse holder, and adhere to the quality oriented development of products in different fields to meet the changing needs of the market. and our products have obtained TUV CE CQC and other product quality certifications.

Send Inquiry PDF DownLoad

Product Description

China Manufacturers ICHYTI Newest dc pv solar fuse holder is an important protective device, which can effectively protect the solar photovoltaic collector box and other DC circuits from the harm of circuit overload and short circuit current. It has exquisite design and efficient protection functions, making our solar photovoltaic system more stable and reliable, providing lasting and reliable energy security for our life and work.

ICHYTI SRD-30 dc pv solar fuse holder Parameter (Specification)

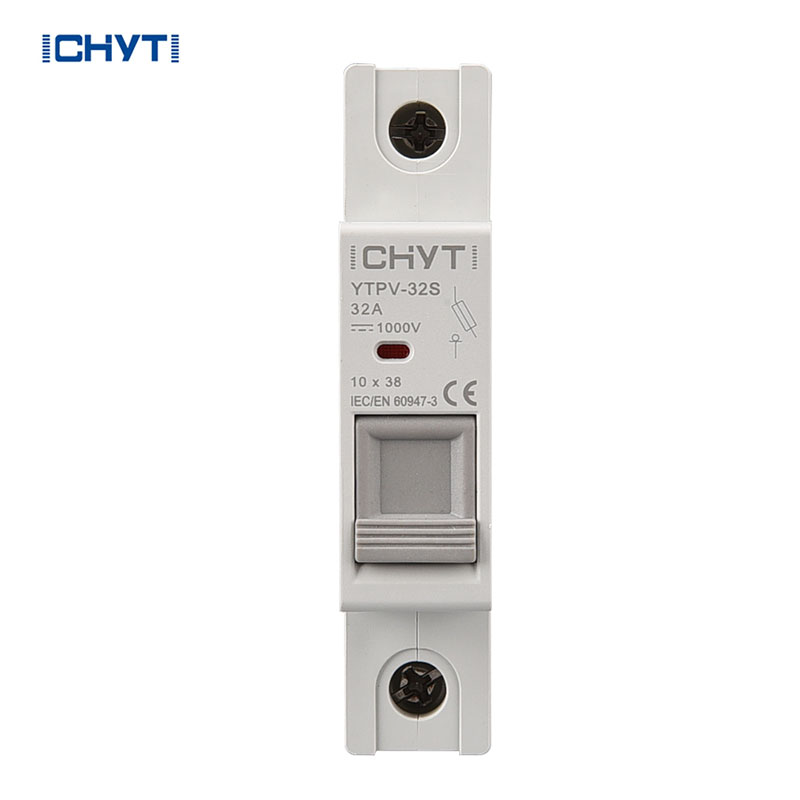

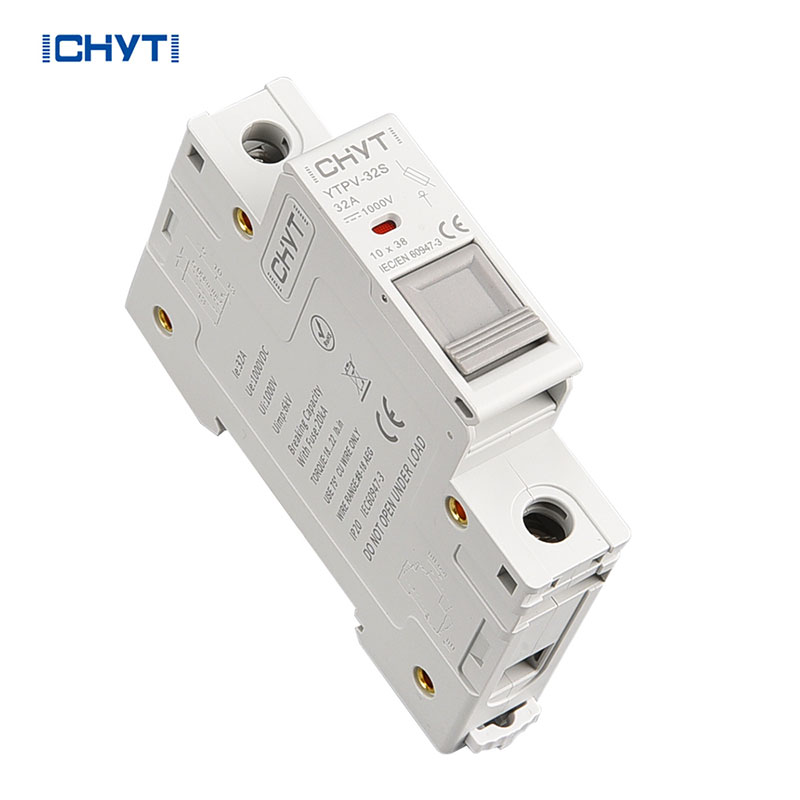

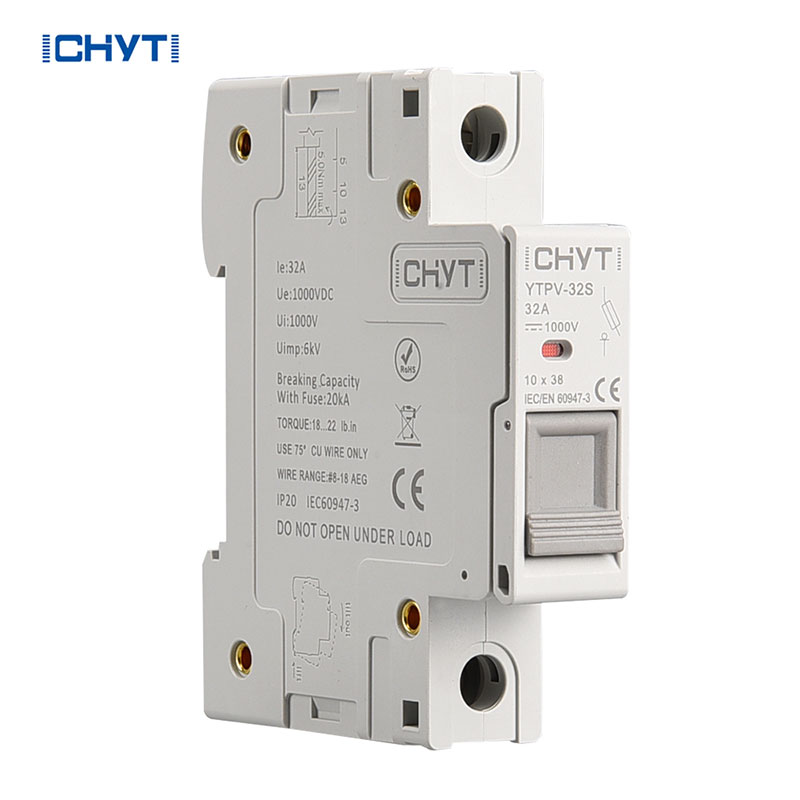

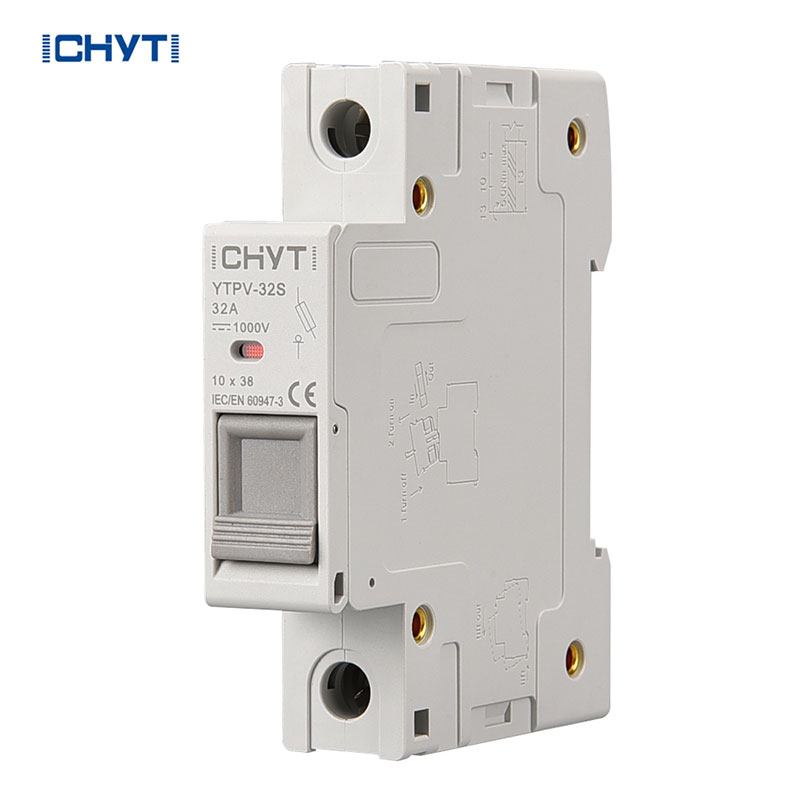

YTPV-32S
According to	IEC60947-3
Electrical Characteristics
Rated Working Voltage	1000VDC
Rated Current	32A
Breaking Capacity	20kA
Max Power Dissipation	3W
Control and Indication
Connection and Installation Wire	2.5-6mm
Terminal Screws	M3.5
Torque	0.8~1.2N-m
Degree of Protection	IP20
Installation Environment

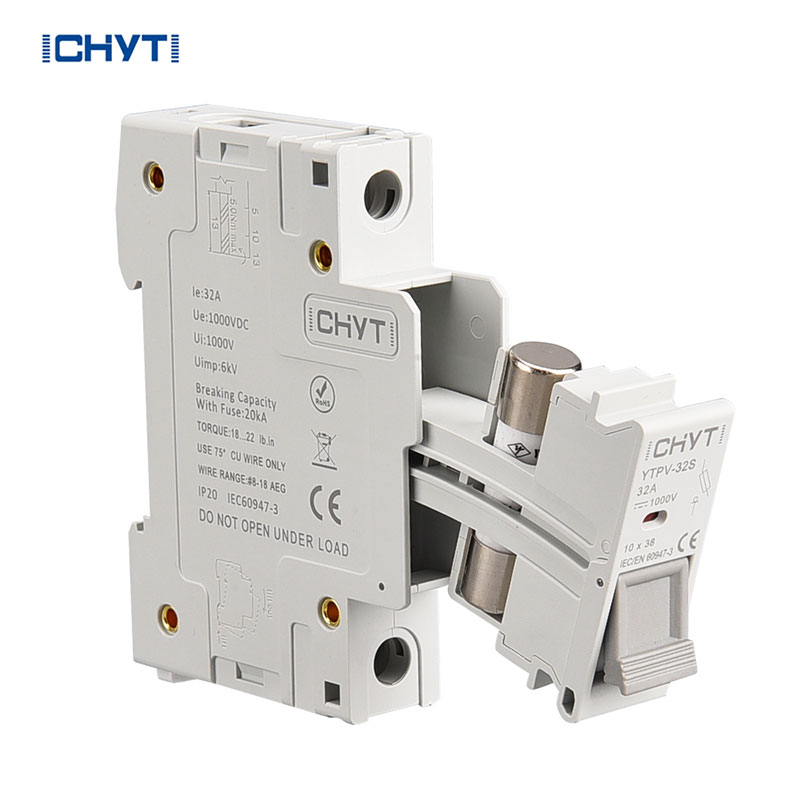

Fuse Size	10x38mm
Operating Temperature Range	-30~+70℃
Mounting	DIN rail IEC/EN 60715
Pollution Degree	3
Relative Humidity	+20℃≤95%, +40℃≤50%,
Installation Class	III
Weight	0.07kg Per pole

ICHYTI SRD-30 dc pv solar fuse holder Feature

1.Solar photovoltaic power generation system is a clean, green, and efficient energy solution. Due to the precise design and optimization of multiple photovoltaic panels, the system can efficiently collect solar energy and convert it into electricity, while maintaining a good environment, making us more confident about the future.

2.The combination of photovoltaic arrays can better adapt to various environmental conditions. Meanwhile, the installation and maintenance of photovoltaic junction boxes can ensure the stability and reliability of the system. The efficient conversion of direct current to alternating current by photovoltaic inverters can make it more convenient for users to use clean electricity.

3.The use of solar photovoltaic power generation systems is not only environmentally friendly, but can also create economic benefits for society and enterprises. Solar photovoltaic power generation systems are not limited by regions, and their considerable economic benefits can encourage more enterprises, governments, and people to adopt clean energy, providing more renewable energy options for the world, and enabling us to move towards a better future.
