1p 2p 3p 4p DC MCB

ICHYTI Suppliers was established in 2004 and is one of the earliest companies in the industry to manufacture 1p 2p 3p 4p dc mcb. ICHYTI(公司品牌) Suppliers adheres to the business philosophy of "focus and innovation", effectively utilizes resources, and is committed to becoming a first-class low-voltage electrical supplier, providing the market with the best cost-effective products.

Send Inquiry PDF DownLoad

Product Description

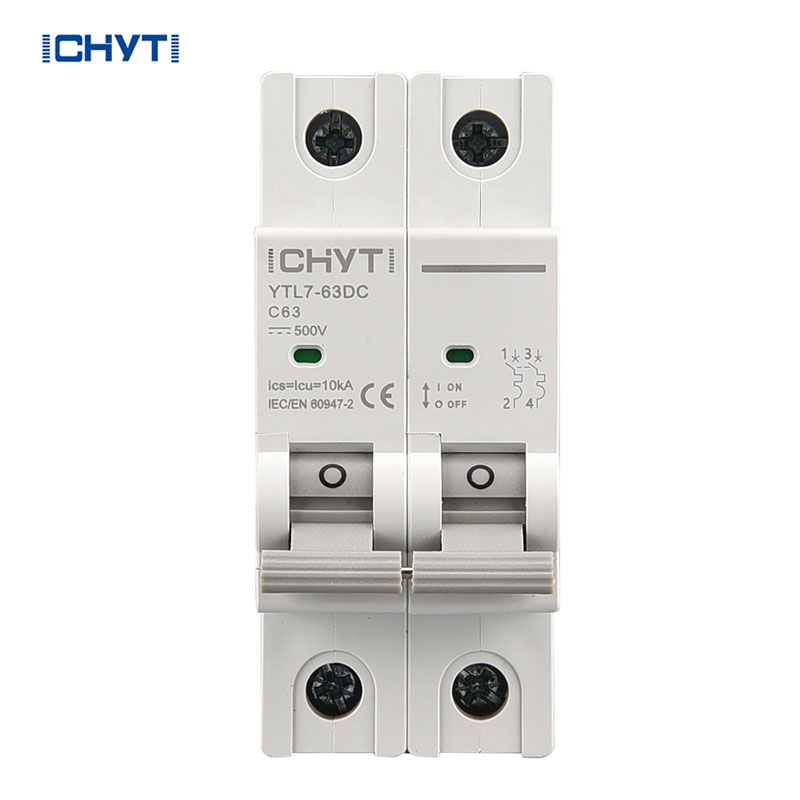

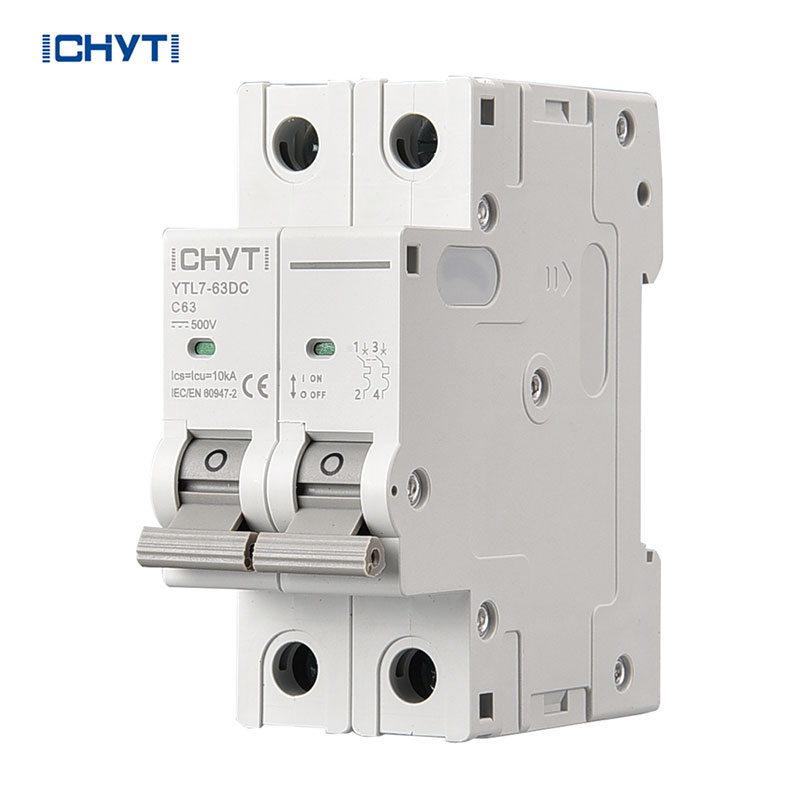

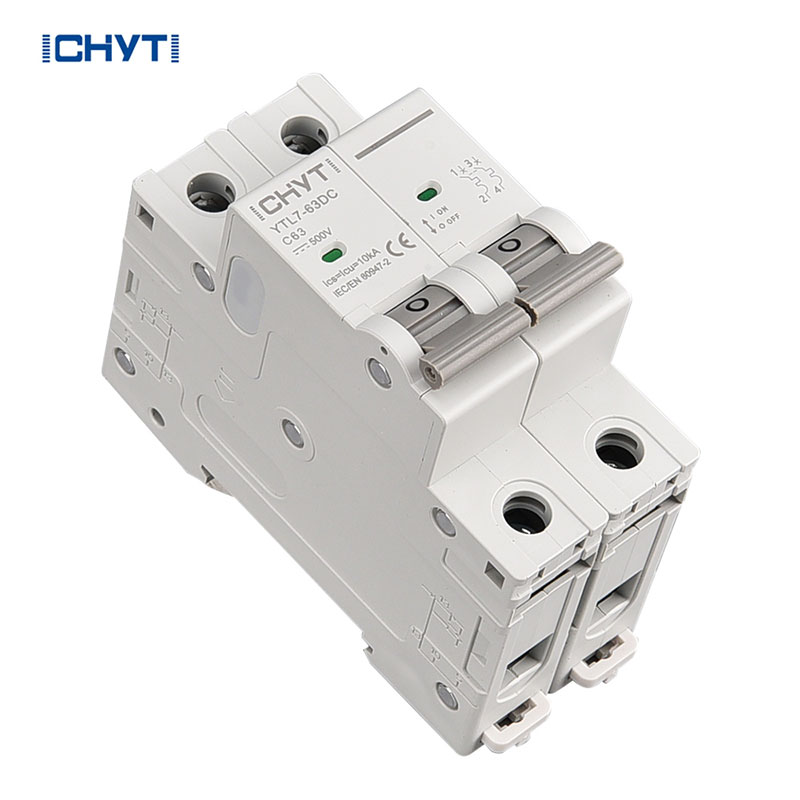

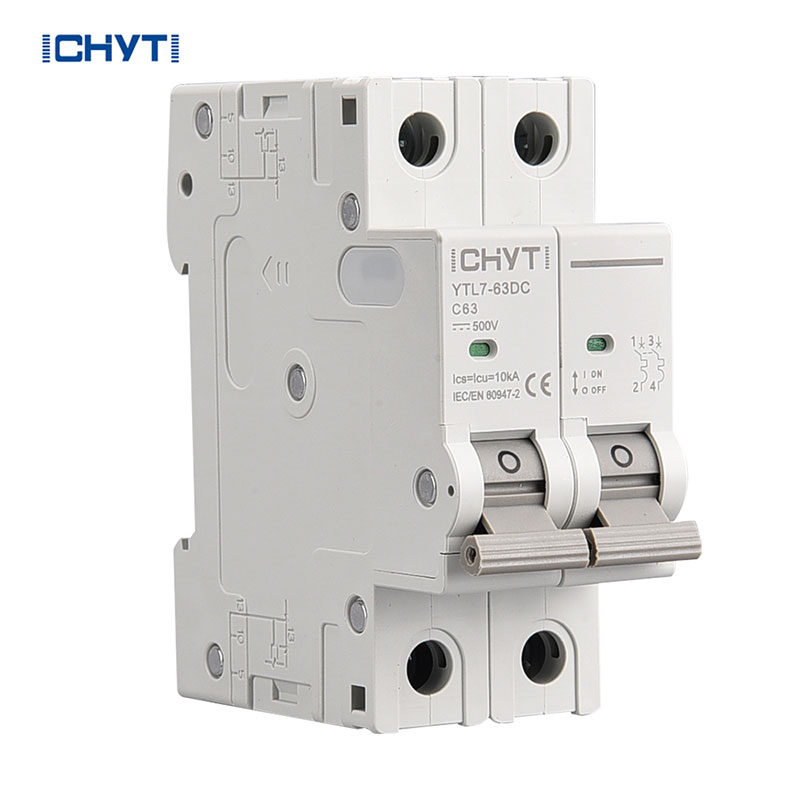

China Manufacturers ICHYTI NC-100H 1p 2p 3p 4p dc mcb is an important electrical protection device that can help us protect the safe operation of DC control circuits. This type of device is suitable for various situations that require overcurrent protection, ensuring that electrical appliances or equipment can operate safely without damage. Whether it has branch circuit protection or not, this type of 1p 2p 3p 4p dc mcb can play a good protective role, ensuring the long-term stable operation of electrical equipment. 1p 2p 3p 4p dc mcb as auxiliary protectors together, providing more reliable guarantees for the safe operation of electrical equipment!

ICHYTI NC-100H 1p 2p 3p 4p dc mcb Parameter (Specification)

Number of poles		1P	2P	3P	4P
Operating voltage(Ue)	VDC	250	500	750	1,000
Rated insulation voltage(Ui)	VDC	1,000
Breaking capacity(lcu)	kA	10
Impulse voltage(Uimp)	kV	4
Electrical connection		By the bottom for In and Out
Standards		IEC 60947-2 EN 60947-2

ICHYTI 1p 2p 3p 4p dc mcb Feature

This product not only has overload and short circuit protection functions, but also has a rated short circuit breaking capacity of 10kA, which can automatically disconnect the circuit, ensuring the stability and safety of the circuit. More convenient to use, supporting non-polar connection methods, so you don't have to worry about the difficulty of operation. At the same time, the rated current can reach 63A, which can meet various electricity needs. This is a circuit protector that is reassuring, convenient to use, and highly practical.

Main Characteristics
Rated service breaking capacity(lcs)		100% of thelcu
Endurance(O-C)	Electrical	1,500 cycles(whereL/R=2 ms)
	Mechanical	20,000cycles
Mechanical		20,00Ocycles
Degree of pollution		2
Category		A (no delay in accordance with IEC / EN 60947-2 standards)
Degree of protection (IEC 60529)	Device in modular enclosure	IP40
Tropicalisation		Relative humidity: 95% at 55°C in accordance with IEC 60068-2 and GB 14048.2 standards
Temperature	Operating	-25℃to70℃(Reference temperature 30°C,ref.Table 1)
	Storage	-40℃to 85℃
