Solar Dc Mcb

ICHYTI is a well-established China manufacturer and supplier of solar dc mcb with years of experience in the industry. We are committed to building strong business relationships with our customers. Our company boasts a team of more than 20 senior technicians with excellent technology research and development capabilities. We leverage advanced 3D software to design and develop our products, ensuring they exceed our customers' expectations.

Send Inquiry PDF DownLoad

Product Description

https://youtu.be/g04KekMbbSE

China manufacturers ICHYTI Advanced solar dc mcb Free Sample is a switching device that automatically breaks the circuit. When the current in the circuit exceeds the rated current, solar dc mcb will automatically open the circuit. Its arc extinguishing medium usually uses insulating oil and gas, and has operating characteristics similar to vacuum circuit breakers and sulfur hexafluoride circuit breakers (SF6). solar dc mcb are usually composed of operating mechanisms, arc extinguishing chambers, operating mechanisms, and other components.

ICHYTI solar dc mcb Parameter (Specification)

Product Model		NBL7-63
Pole		1P	2P	4P
Frame Current		63A
Rated Current	In	6, 10, 16,20,25, 32, 40, 50, 63A
Rated Working Voltage	Ue(DC)	300V	500/600/1000V	1000V
Rated Insulation Voltage	Ui	1200V
Rated Impulse Withstand Voltage	Uimp	6kV
Breaking Capacity	leu	6 KA
Tripping Characteristic		C
Tripping Type		Thermal Magnetic
Electrical Life	Actual	500 Cycles(63A Frame)
	Standard	300 Cycles
Mechanical Life	Actual	10000 Cycles(63A Frame)
	Standard	9700 Cycles
Overvoltage Category		III
Pollution Degree		3
Ingress Protection		IP40 Wiring Port IP20
Resistance To Humidity And Heat		Class 2
Terminal Capacity		2.5 x 35mm2
Fastening Torque Of Terminals		2.0℃ 3.5Nm
Ambient Temperature		-30℃ ~+70℃
Storage Temperature		-40℃〜+85℃
Installation Method		DIN
Standard		IEC60947-2

ICHYTI solar dc mcb Feature

◉ It has the characteristics of small volume and light weight.

◉ Simple structure and easy maintenance.

◉ Quick action and high reliability.

◉ Long service life.

◉ Suitable for various working environment requirements.

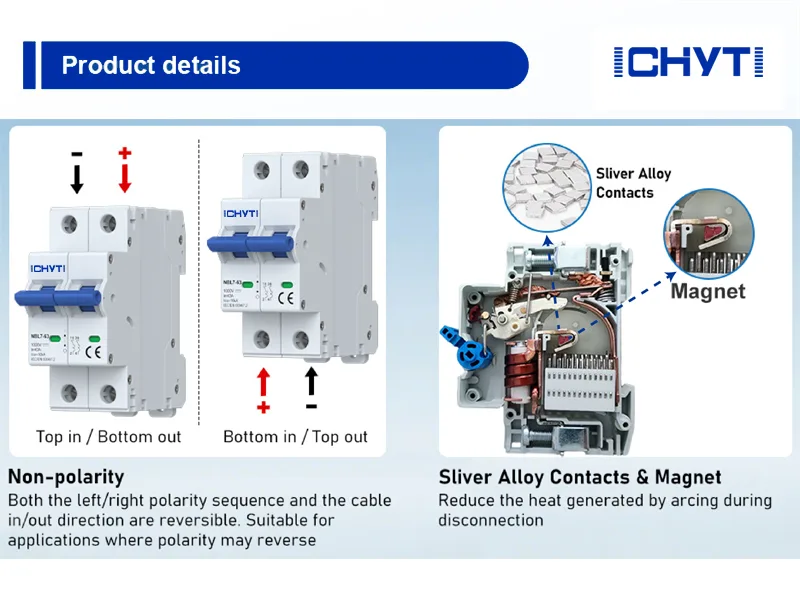

ICHYTI solar dc mcb Details

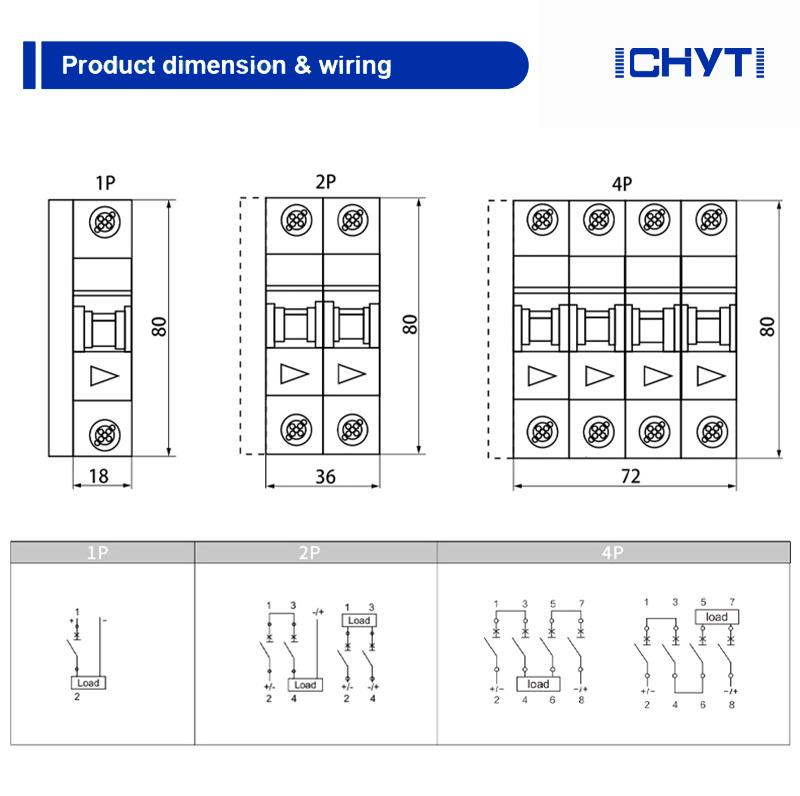

ICHYTI solar dc mcb Dimensions and wiring

ICHYTI solar dc mcb Application

DC circuit breaker is one of the important components in urban rail transit system and electric locomotive. Due to the fact that most of its DC power supply is provided by high-power silicon rectifier devices, the requirements for DC power grid protection components are higher. The DC dedicated circuit breaker with fast response and breaking is one of the key components to ensure the safe and stable operation of rail transit.

In the power system and electric propulsion system of ships, DC circuit breakers are also one of the most important components. It provides fault protection for the power transformation and distribution system and electrical equipment, taking various protective measures to ensure the safe and stable operation of the ship's power supply system and electrical equipment.
