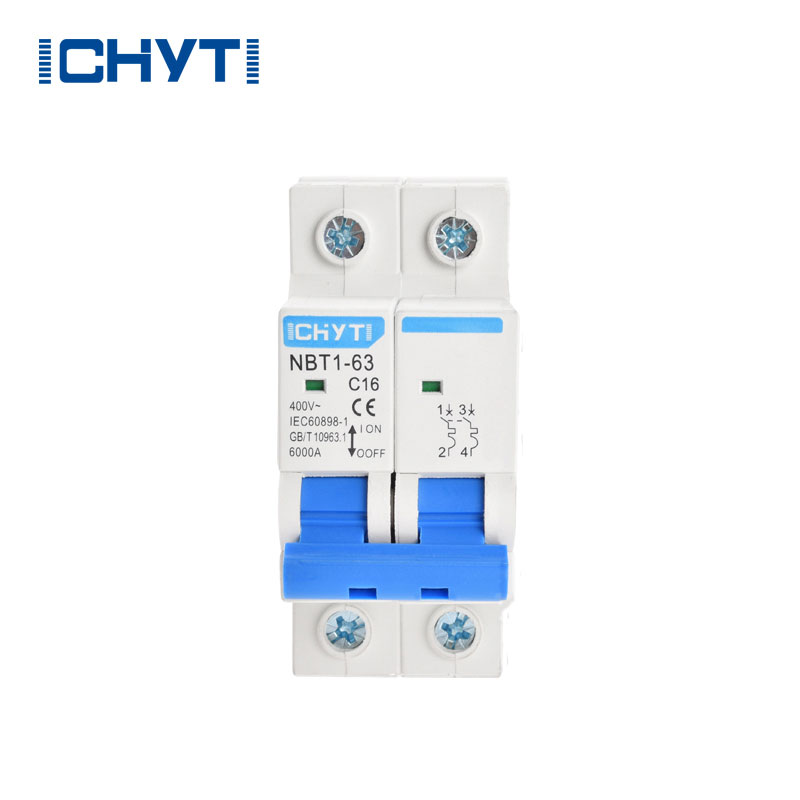

2 Pole 63a Ac Mcb

ICHYTI is a professional manufacturer that specializes in the research and development, manufacturing, and sales of 2 pole 63a ac mcb. ICHYTI currently offers a wide range of products, with 16 different series and over 600 specifications available. With advanced manufacturing and testing facilities, a dedicated R&D team, and a commitment to scientific production processes and strict quality management systems, ICHYTI is a reliable and trusted source for high-quality electrical products.

Send Inquiry PDF DownLoad

Product Description

https://youtu.be/oHB6RjLBMo4

China Suppliers ICHYTI Cheap 2 pole 63a ac mcb Made in China is the abbreviation for Micro Circuit Breaker or Minimal Circuit Breaker, and is the most widely used terminal protection appliance in building electrical terminal distribution devices. 2 pole 63a ac mcb is suitable for single-phase and three-phase circuits below 63A, and can be used for short circuit, overload, and overvoltage protection, including different types such as single pole 1P, double pole 2P, three pole 3P, and four pole 4P.

ICHYTI 2 pole 63a ac mcb Parameter (Specification)

Product Model	NBT1-63

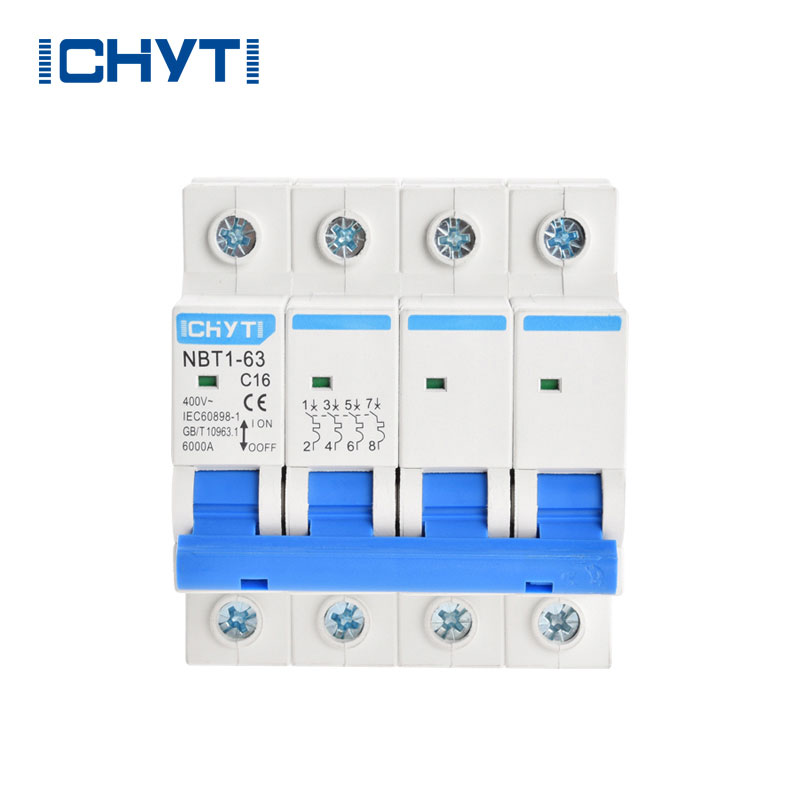

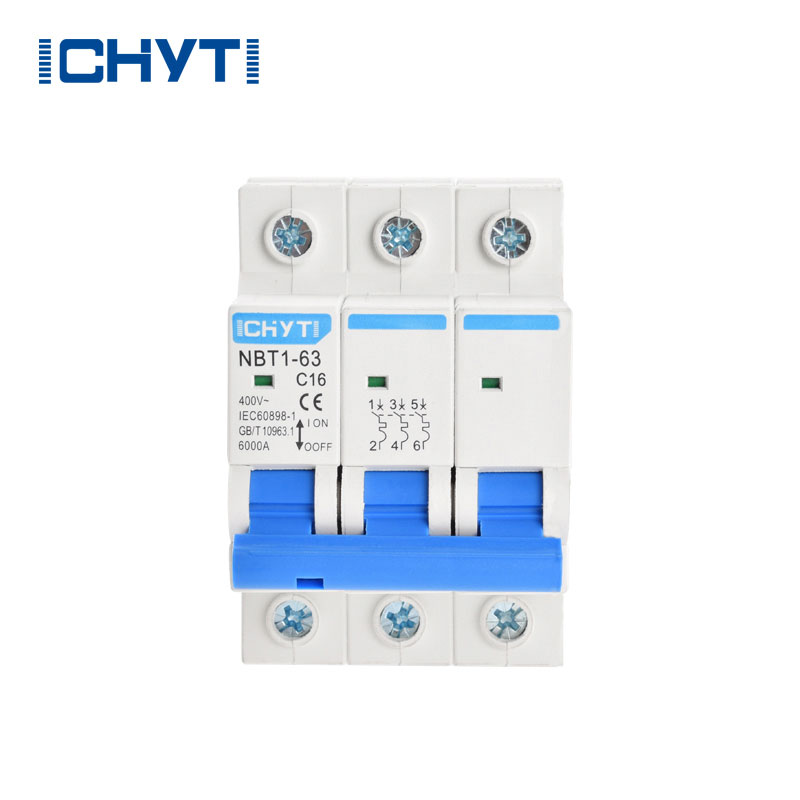

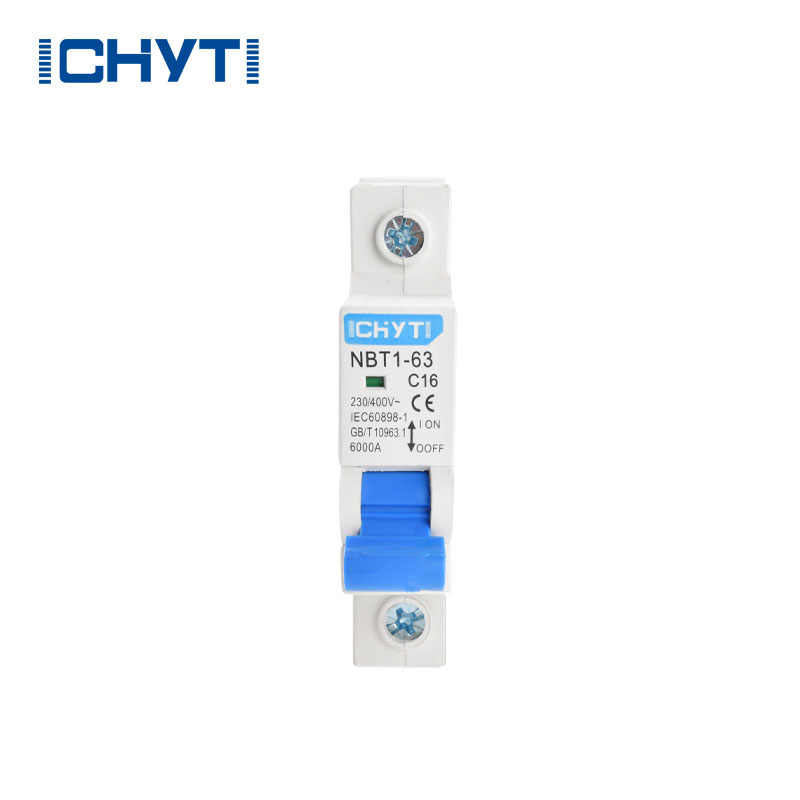

Pole	1P	2P	3P	4P
Rated Current (A)	6, 10, 16, 20, 25, 32, 40, 50r63
Rated Voltage (V)	230/400	400	400	400
Breaking Capacity(kA)	6
Colour	White and transparent
Characteristic Curve	C
Working Temperature	-5℃~+40℃
Enclosed Class	IP20
Standard	IEC60898-1
Frequency	50/60Hz
Electrical Life	Not less than 8000 times
Mechanical Life	Not less than 20000 times

ICHYTI 2 pole 63a ac mcb Working principle

◉ MCB is a type of building electrical terminal protection appliance, mainly composed of operating mechanisms, contacts, protection devices (including overcurrent releases, thermal releases, and undervoltage releases), and arc extinguishing systems. The operating mechanism can be manually or electrically closed, and after closing, the free release mechanism locks the main contact. The overcurrent release and thermal release are connected in series with the main circuit, while the undervoltage release is connected in parallel with the power supply.

◉ When a short circuit or severe overload occurs in the circuit, the coil of the overcurrent release generates a magnetic field, causing the armature to absorb and operate the free release mechanism, thereby causing the main contact to open. When the circuit is overloaded, the thermal component of the thermal release heats up, causing the bimetallic sheet to bend and pushing the free release mechanism to operate. When the circuit is under voltage, the armature of the undervoltage release releases, causing the free release mechanism to operate.
