2P 4P ATS Automatic Transfer Switch

China ICHYTI suppliers is located in Xiangyang Industrial Zone, Yueqing (Liushi), mainly focusing on the production of 2P 4P ATS automatic transfer switch and providing customers with the most comprehensive smart electrical solutions.

Send Inquiry

Product Description

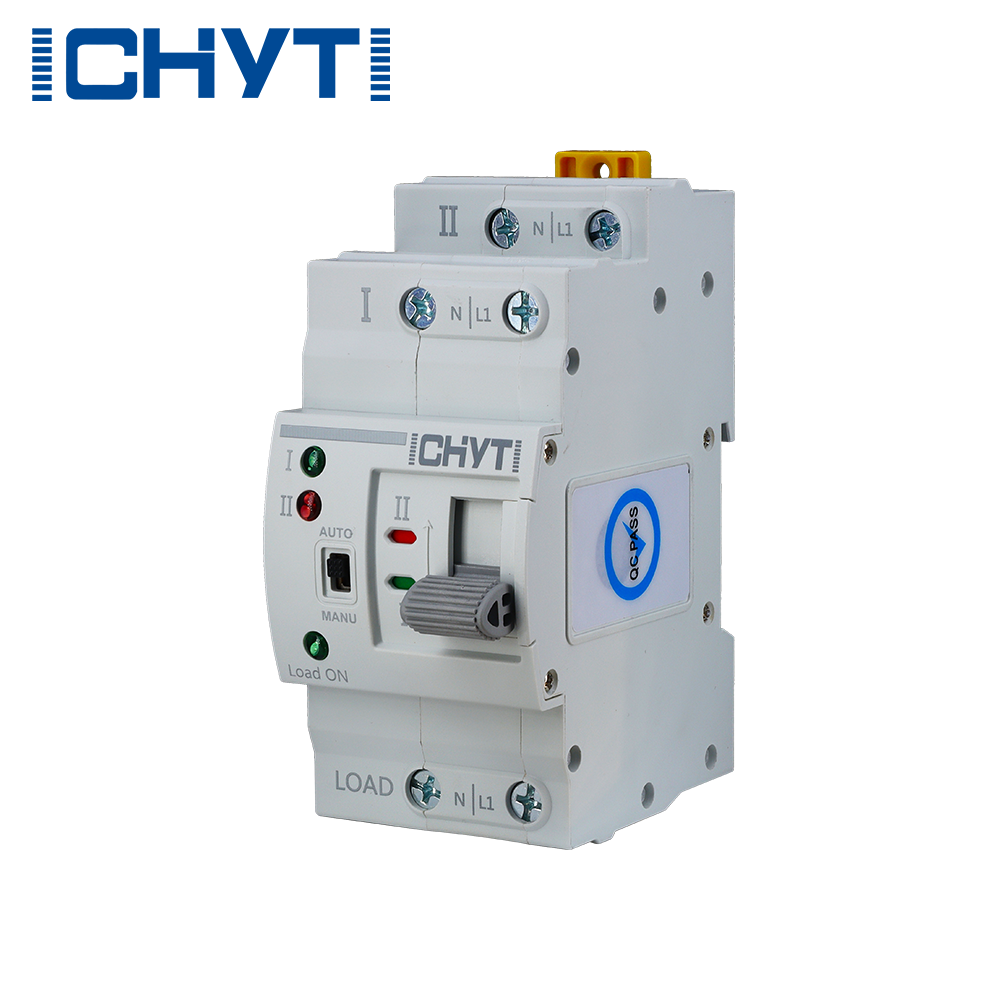

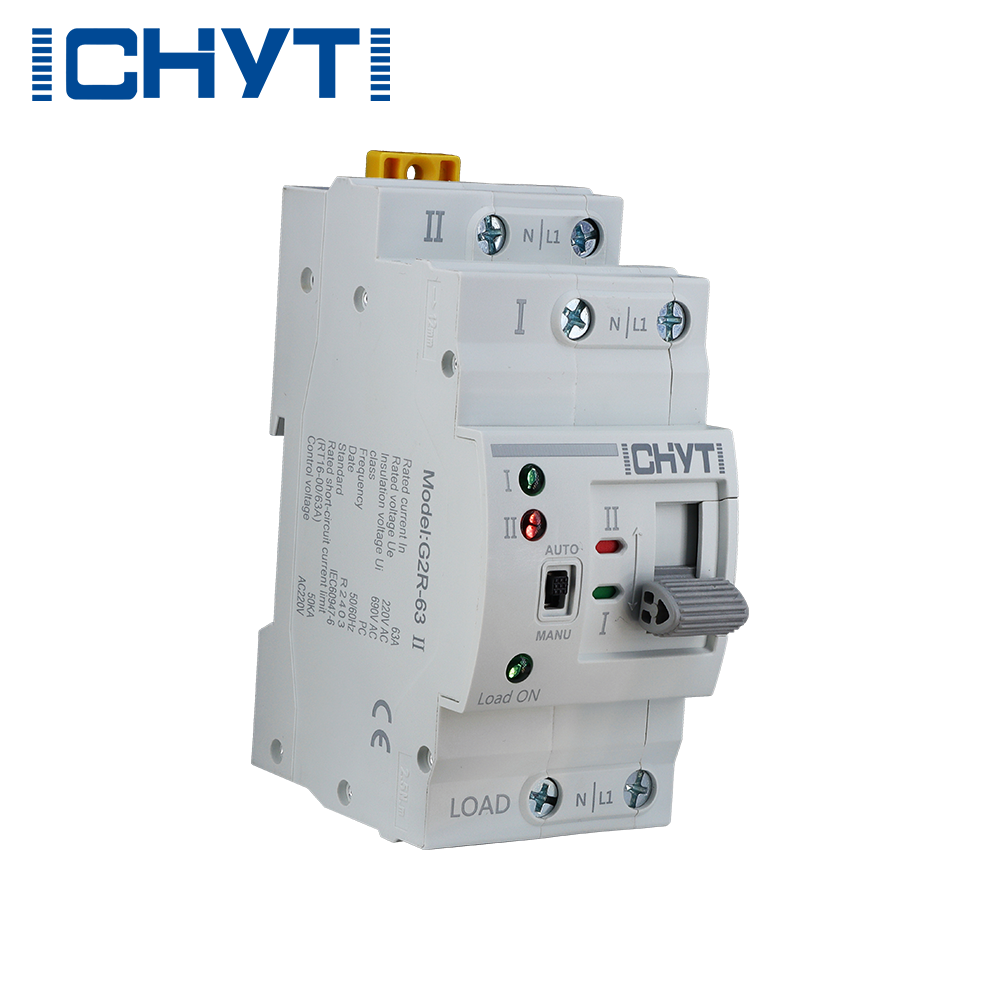

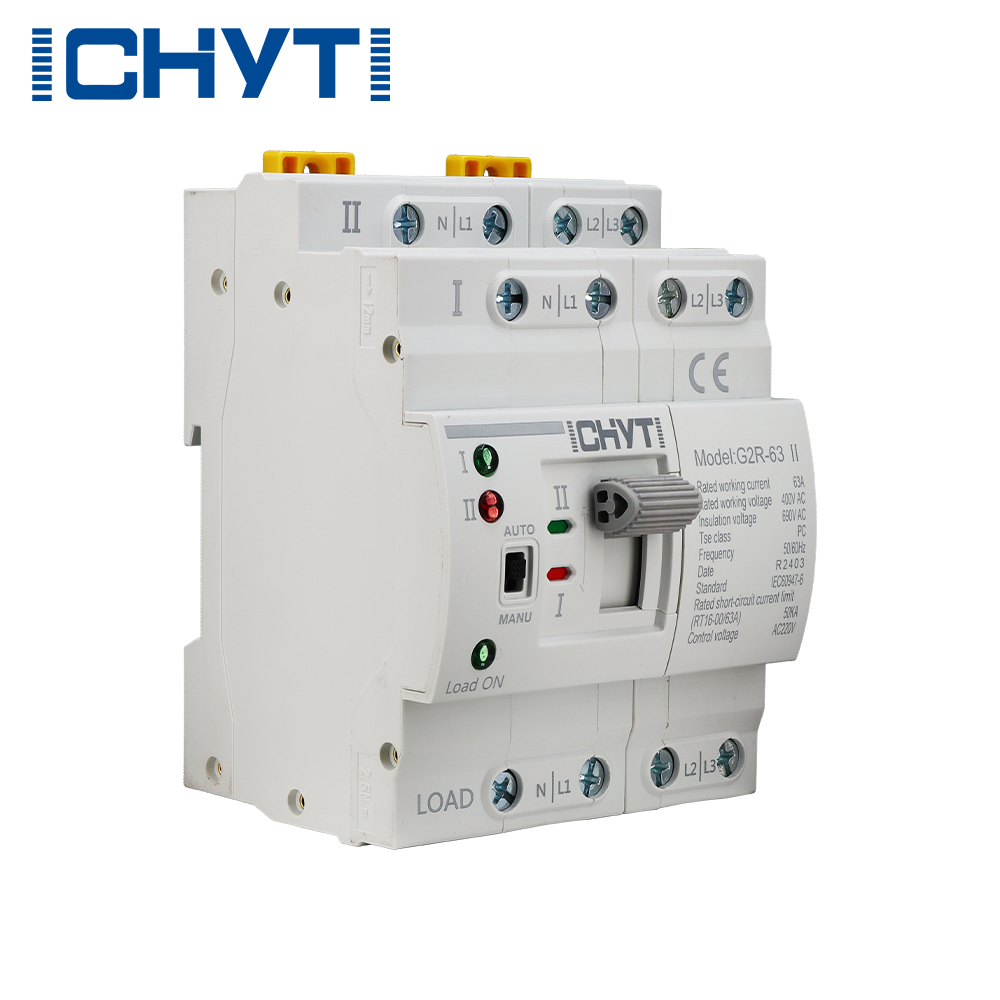

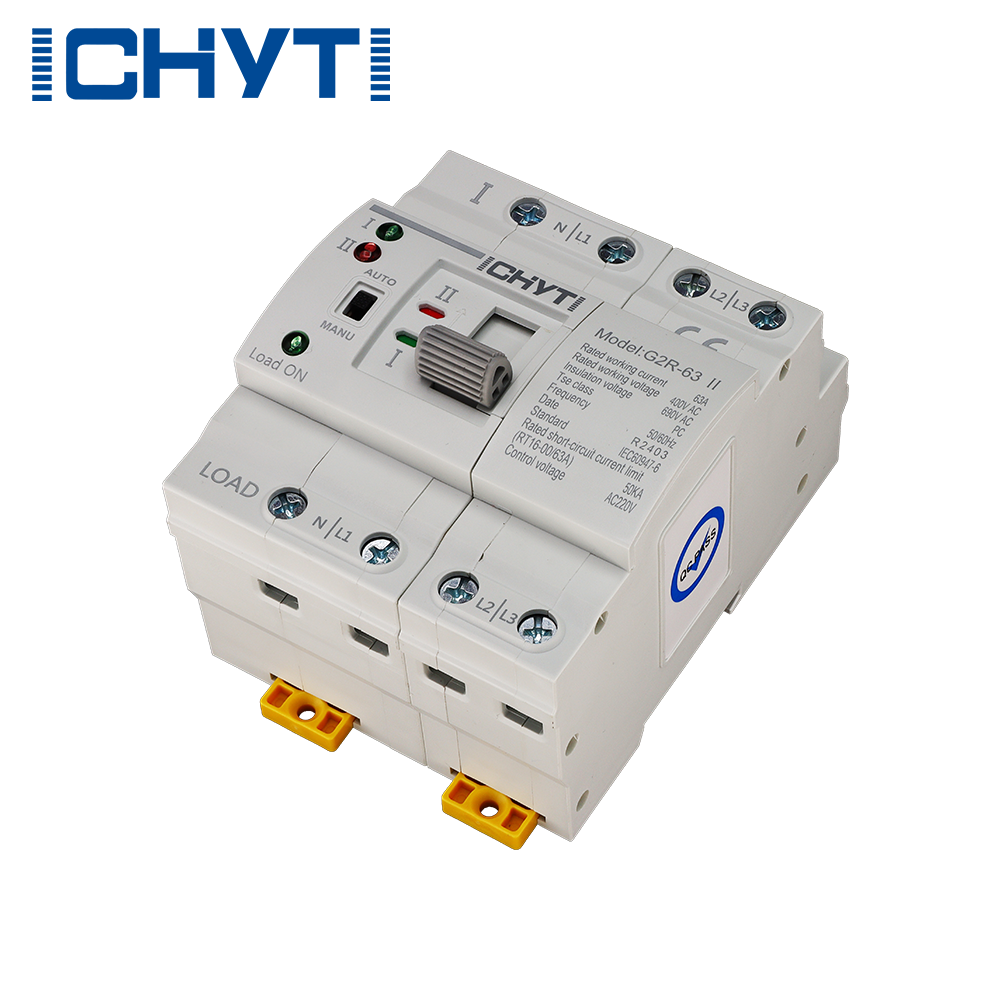

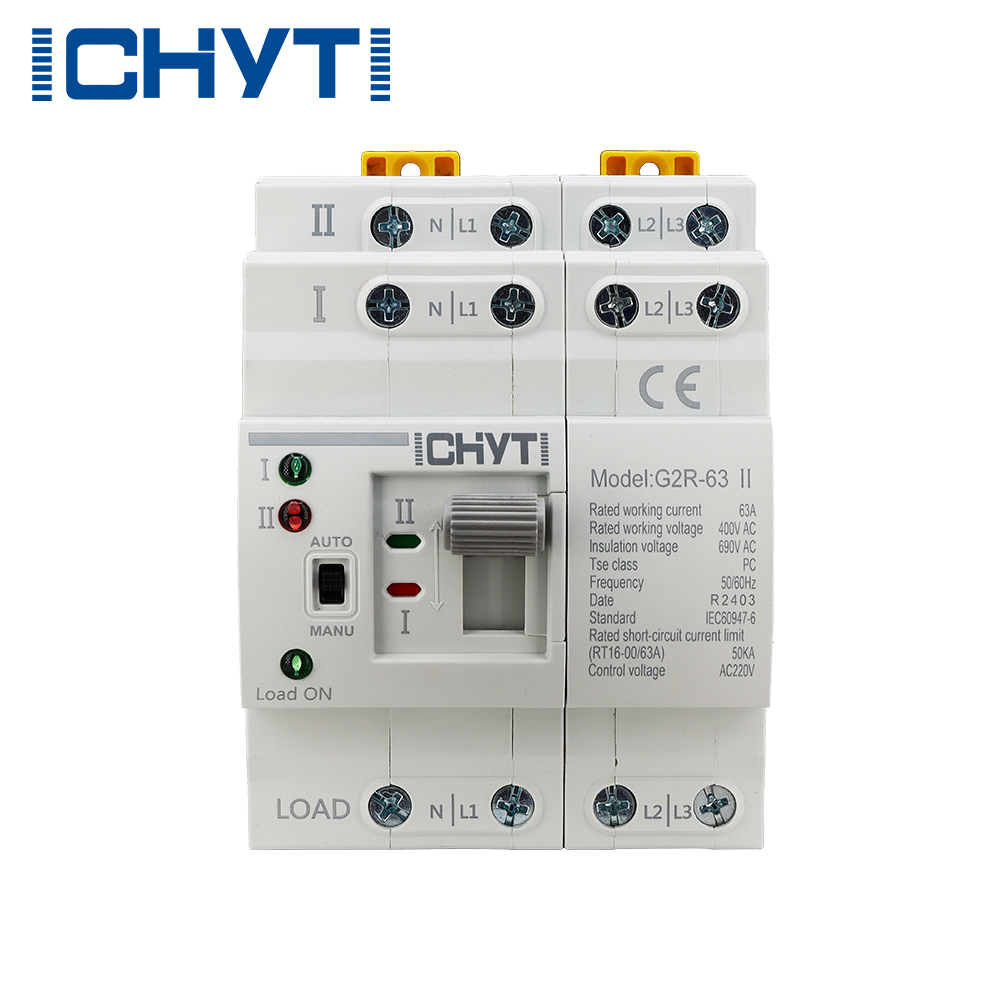

China Factory ICHYTI The G2R-63II series 2P 4P ATS automatic transfer switch Price List electrical appliances have a maximum rated working voltage of AC400V, and a full range of three-stage products to ensure continuous, safe, and reliable operation of important loads. Widely used in important places that do not allow power outages, such as hospitals, schools, banks, chemical industries, and firefighting.

ICHYTI 2P 4P ATS automatic transfer switch Parameter (Specification)

Case grade	63
Rated operating current le(A)	6A/10A/16A/20A/25A/32A/40A/50A/63A
Rated insulation voltage UI	690V
Rated impulse withstand voltage Uimp	8kV
Rated working voltage Ue	AC220V/AC110V
Rated frequency	50/60Hz
Class	PC class: can be switched on and loaded without generating short-cicuit current
Polenumber	2P 4P
Rated short-circuit current lq	50kA
Short circuit protection device (fuse)	RT16-00-63A
Rated impulse withstand voltage	8kV
Control circuit	Rated control voltage Us:AC220V,50Hz Normal working conditions: 85%Us-110%Us
Auxiliary circuit	AC220V/110V 50Hzle=5A
Contactor change-over time	<50ms
Operation change-over time	<50ms
Return change-over time	<50ms
Power off time	<50ms
Change-over operation time	<50ms
Mechanical life	≥8000 times
Electrical life	≥1500times
Usage category	AC-31B

ICHYTI 2P 4P ATS automatic transfer switch Feature

◉ The device is compact in size and suitable for installation in small switchgear systems, saving space and reducing costs.

◉ It can effectively reduce downtime and maintenance costs, bringing more convenience and benefits to users.

◉ Key components are equipped with predictive maintenance self diagnosis and customer replaceable components, ensuring efficient and convenient operation at all times, making users worry free and effortless.

◉ Stable performance can be maintained even under high loads, and can be supported even through manual operation.

◉ The user interface design of the device is easy to operate, allowing users to easily control the device.

◉ The controller is easy to install on the ATS body or door panel, in line with user usage habits, and makes the equipment more convenient and user-friendly.
