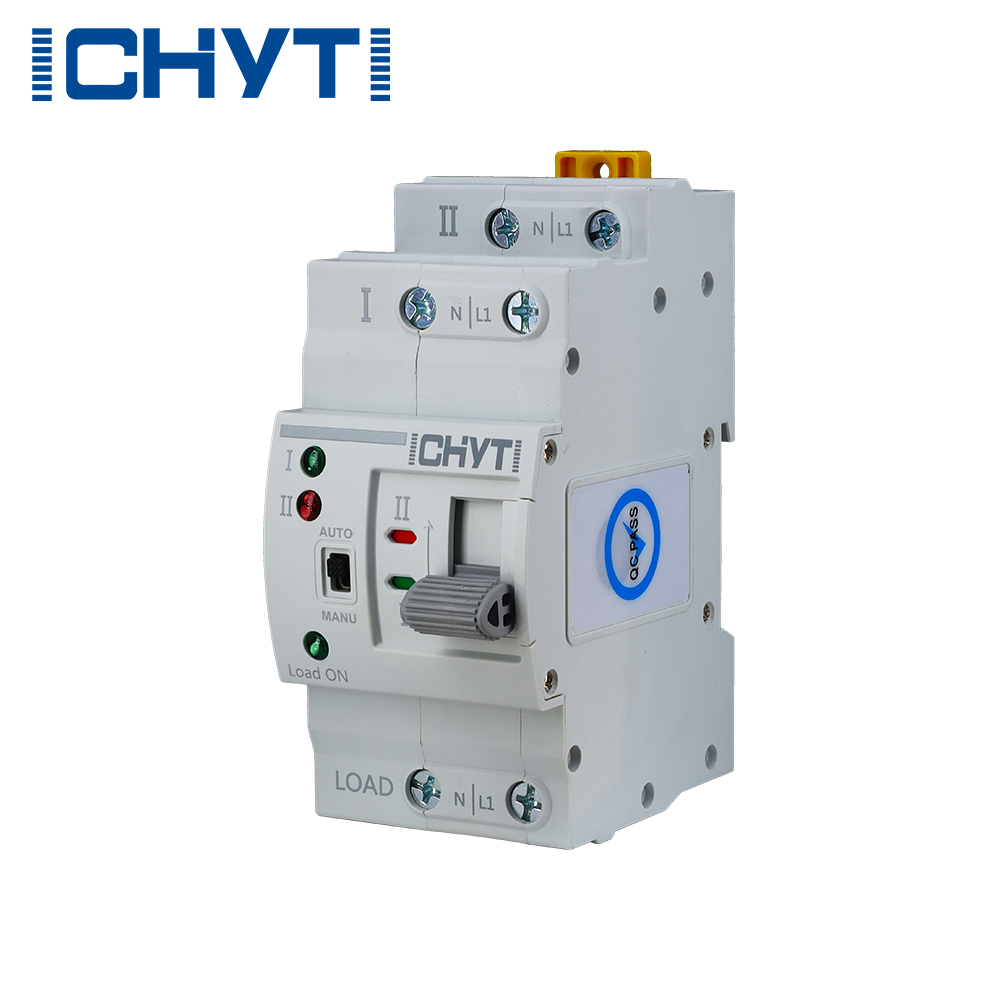

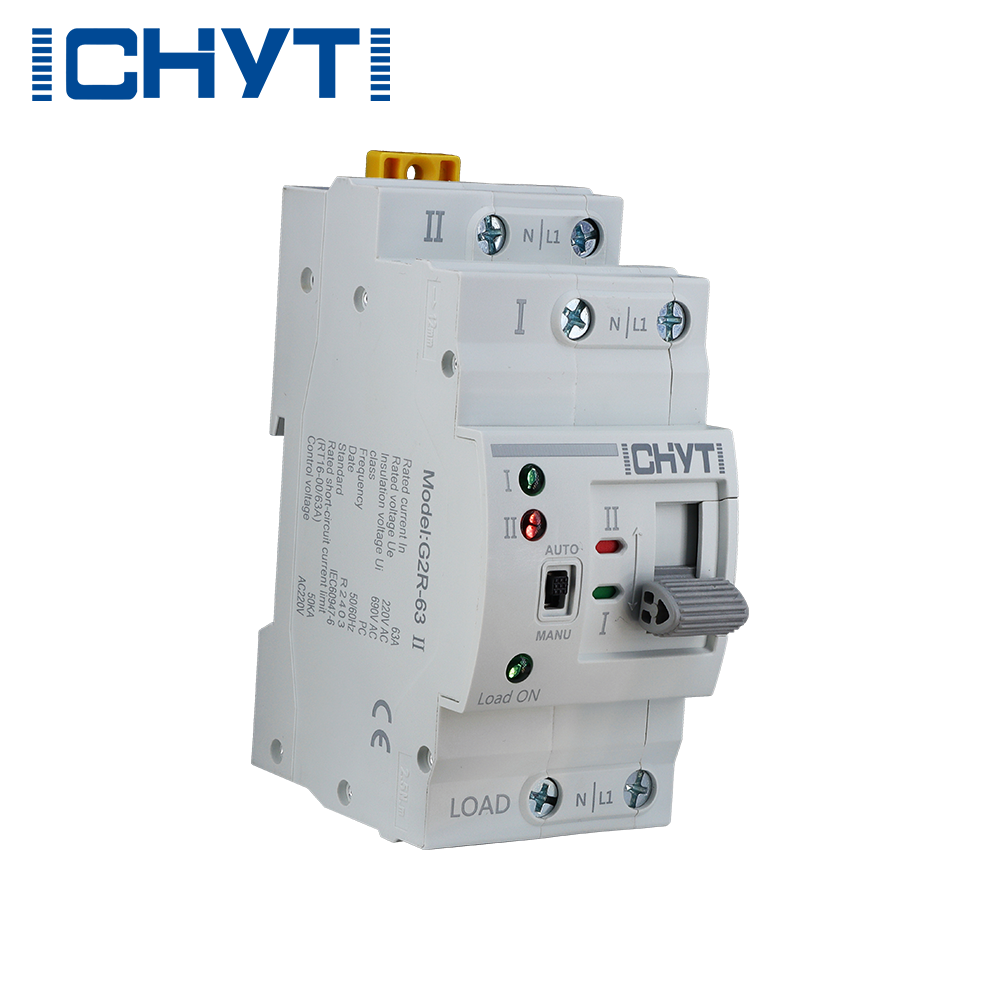

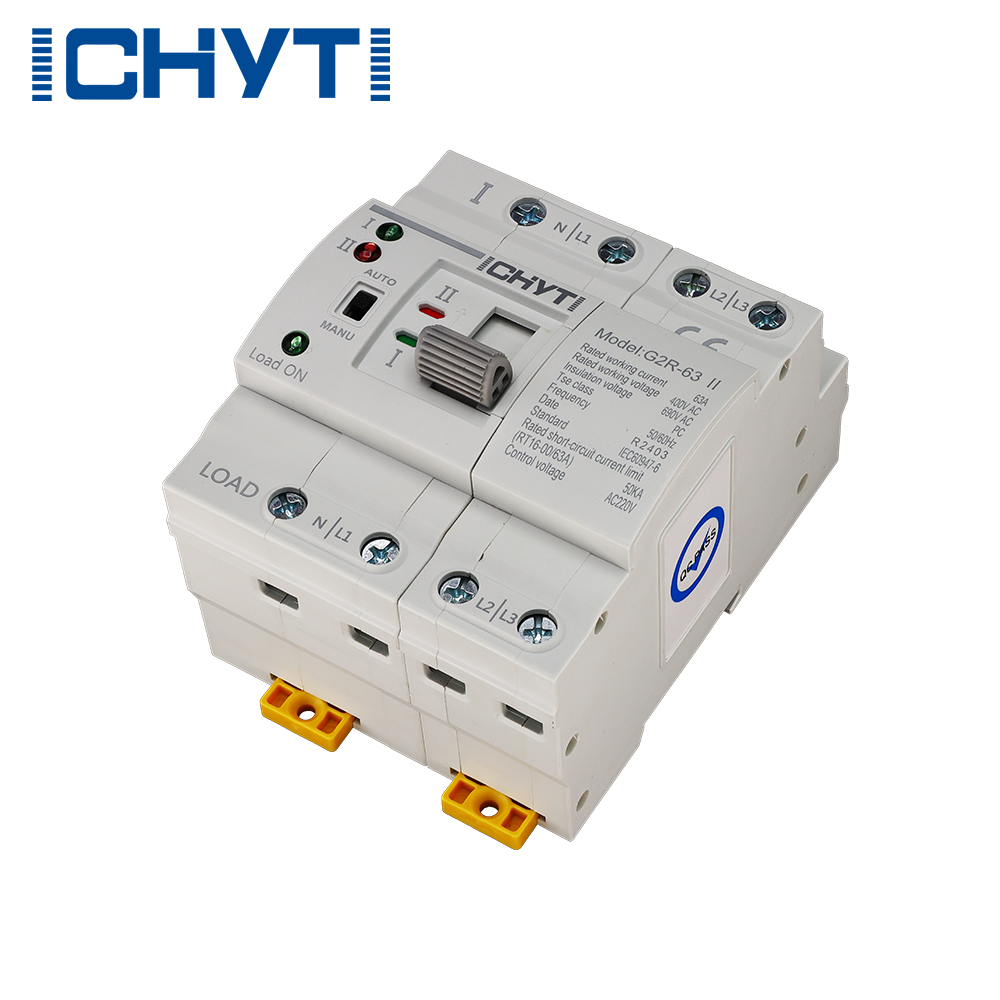

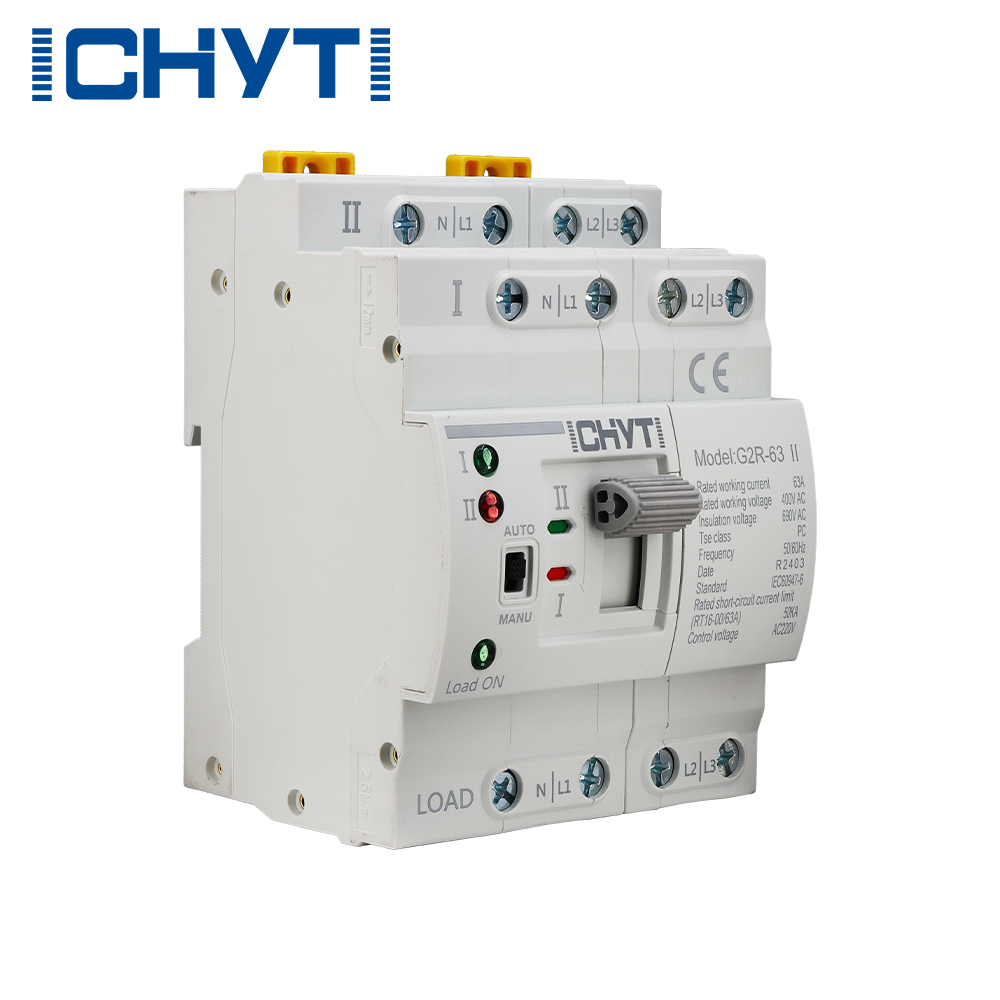

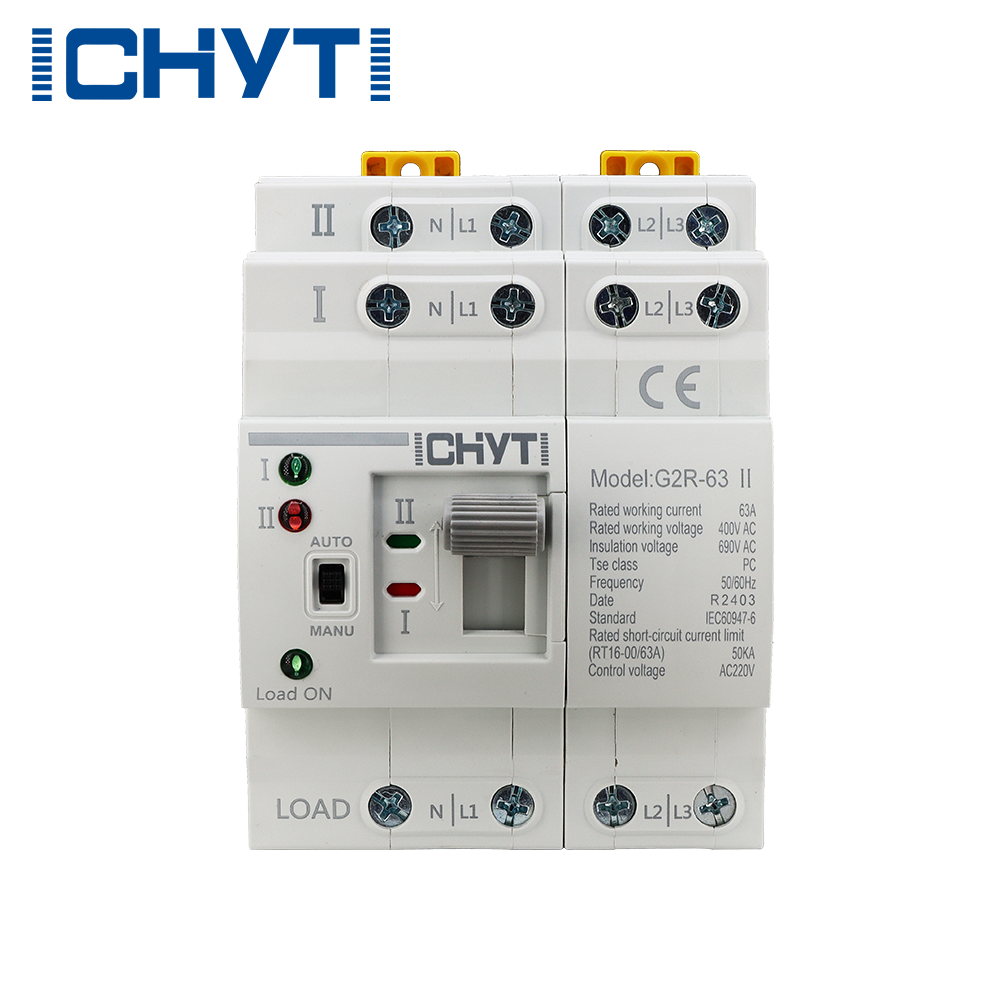

50 AMP Power Auto Transfer Switch

China ICHYTI is one of 50 amp power auto transfer switch manufacturers, supplying products to most ATS manufacturing units around the world. It is a core supplier of many well-known brands.

Send Inquiry

Product Description

Latest Selling 50 amp power auto transfer switch launched by China Factory ICHYTI(公司品牌) is suitable for single-phase and dual wire dual power grids with AC 50Hz, rated voltage 230V, and rated current below 63A. When the power supply fails, it will automatically detect the normal phase A voltage and the backup phase A voltage, only measuring the loss voltage or loss phase to ensure the normal power supply of the load circuit. 50 amp power auto transfer switch complies with the provisions of IEC60947-6-1 and GBT1404811, and has undergone strict quality testing, making it safe to use. Choose ICHYTI(公司品牌) 50 amp power auto transfer switch to provide reliable and stable power supply for your production line, making your production smoother.

ICHYTI 50 amp power auto transfer switch Parameter (Specification)

Case grade	63
Rated operating current le(A)	6A/10A/16A/20A/25A/32A/40A/50A/63A
Rated insulation voltage UI	690V
Rated impulse withstand voltage Uimp	8kV
Rated working voltage Ue	AC220V/AC110V
Rated frequency	50/60Hz
Class	PC class: can be switched on and loaded without generating short-cicuit current
Polenumber	2P 4P
Rated short-circuit current lq	50kA
Short circuit protection device (fuse)	RT16-00-63A
Rated impulse withstand voltage	8kV
Control circuit	Rated control voltage Us:AC220V,50Hz Normal working conditions: 85%Us-110%Us
Auxiliary circuit	AC220V/110V 50Hzle=5A
Contactor change-over time	<50ms
Operation change-over time	<50ms
Return change-over time	<50ms
Power off time	<50ms
Change-over operation time	<50ms
Mechanical life	≥8000 times
Electrical life	≥1500times
Usage category	AC-31B

ICHYTI 50 amp power auto transfer switch Feature

◉ This device has many characteristics, such as no noise, energy saving, simple installation, convenient operation, reliable performance, stability, and so on,

◉ Make it the preferred choice in fields such as hospitals, shopping centers, banks, chemicals, metallurgy, high-rise buildings, military facilities, etc.

◉ Its closed transition and open transition are both achieved through electromagnetic winding, making operation very convenient.

◉ The main function is to monitor whether the two power supplies are out of phase, undervoltage, loss of voltage, and other abnormal situations, and can indicate whether they are within the normal voltage range. This device runs stably and has reliable results, making it a reliable helper for you.
