Automatic ATS Switches For Generator

If you need Low Price automatic ats switches for generator to meet specific application requirements, China ICHYTI online service can provide timely assistance. In addition to existing products, China ICHYTI can also customize automatic ats switches for generator according to your personalized needs. Please use our online services for timely support. China ICHYTI automatic ats switches for generator has been exported to countries and regions such as Europe, America, and the East. We are willing to provide the best solution for your electrical system or other applications.

Send Inquiry

Product Description

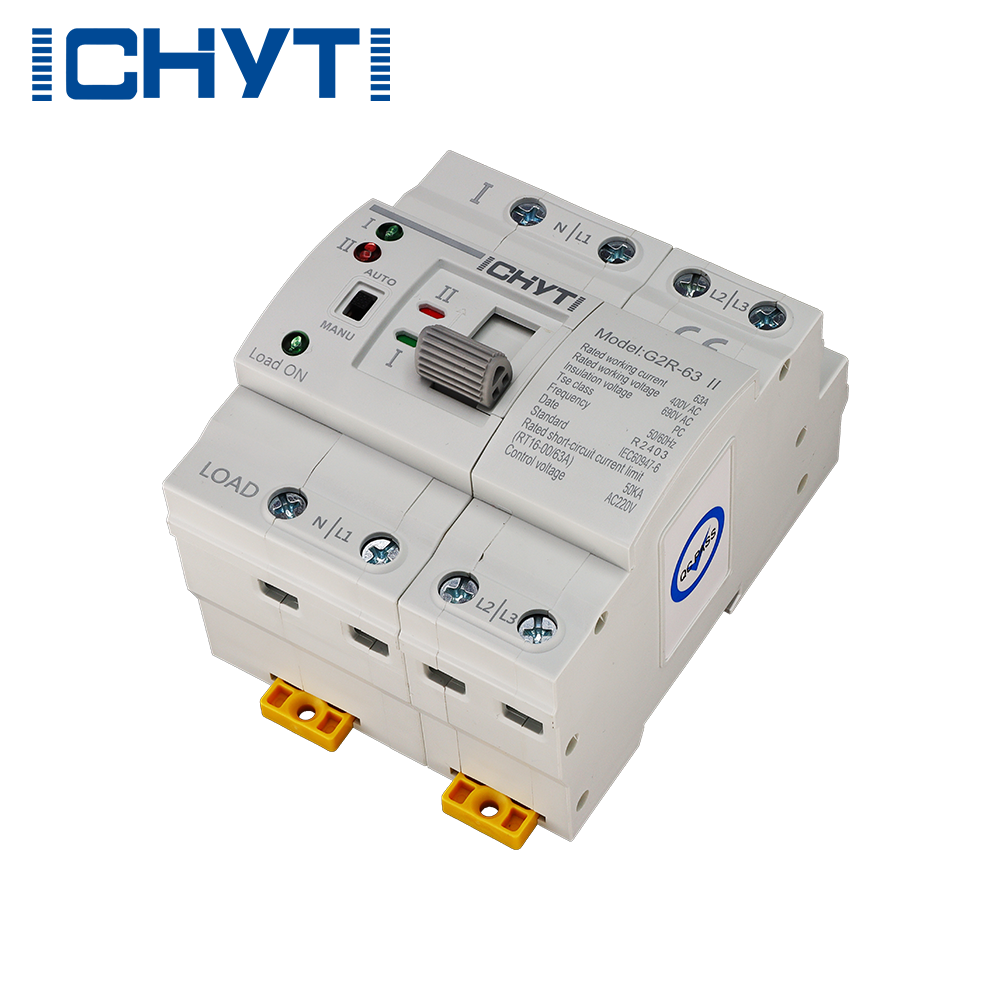

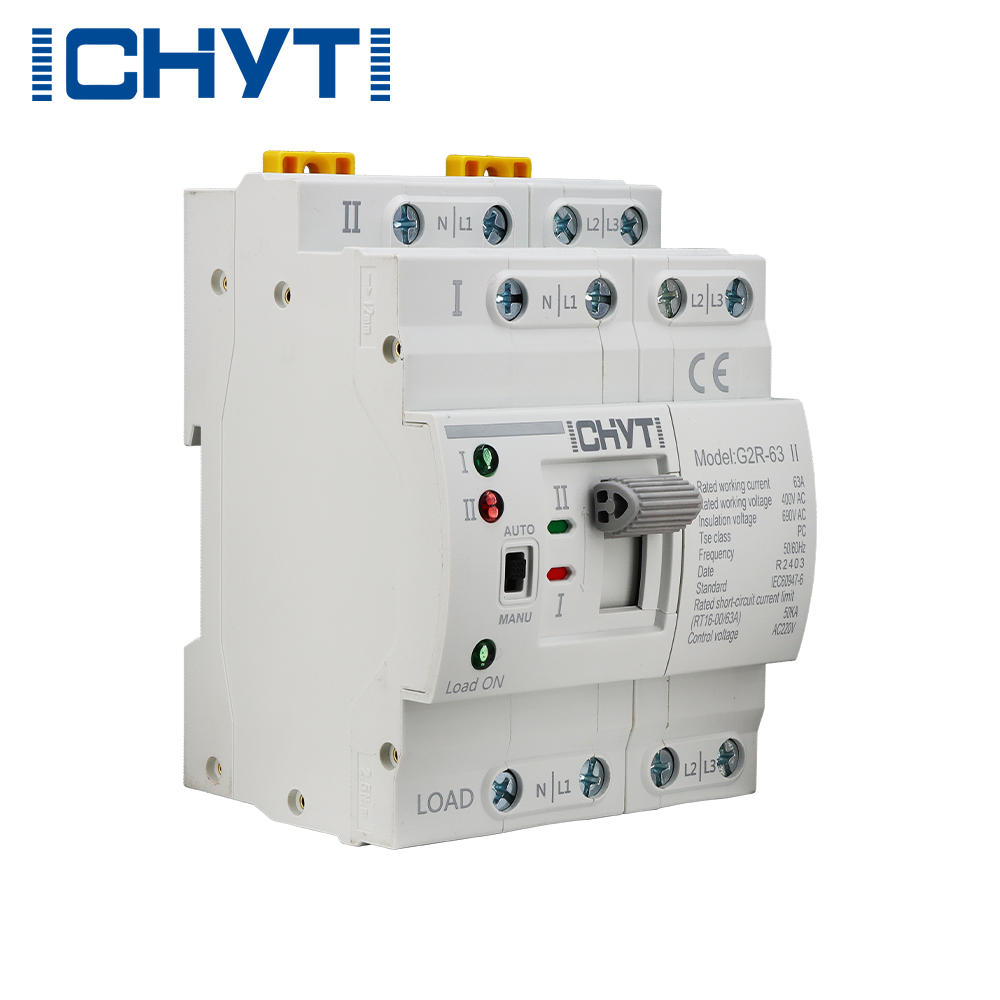

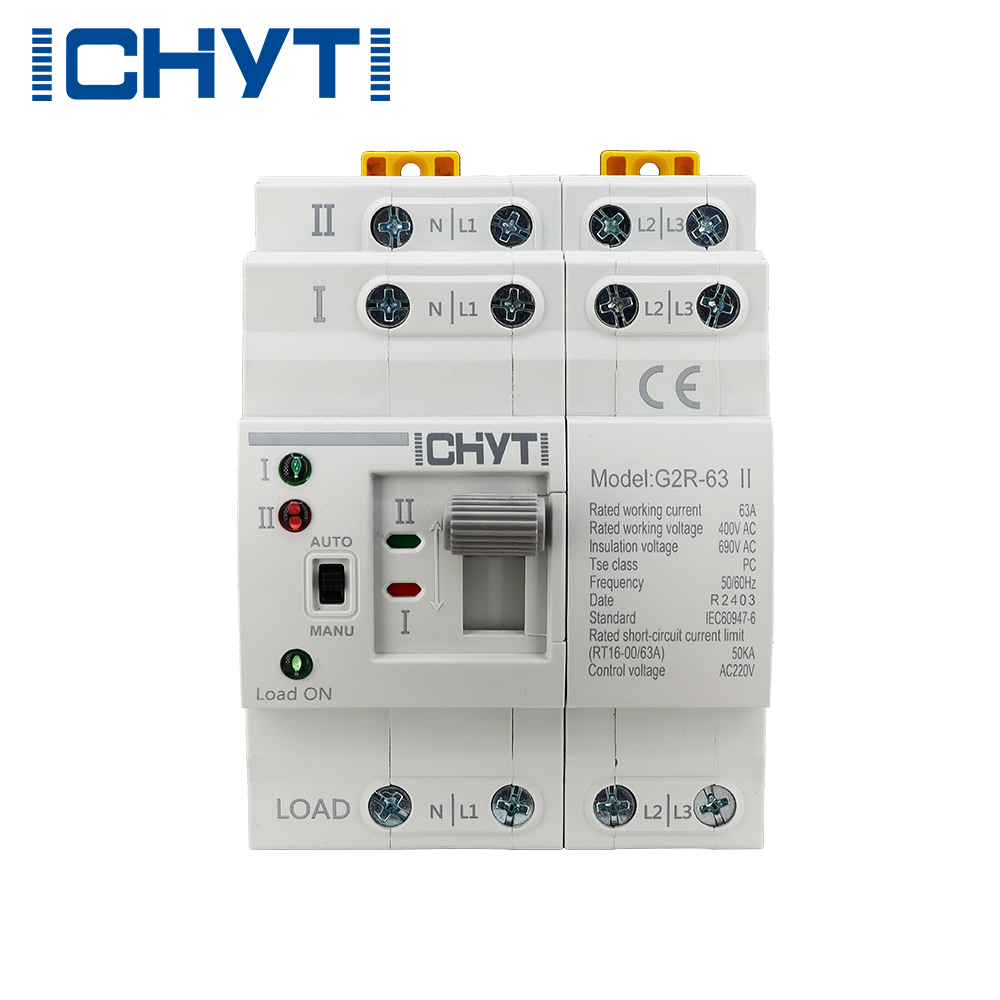

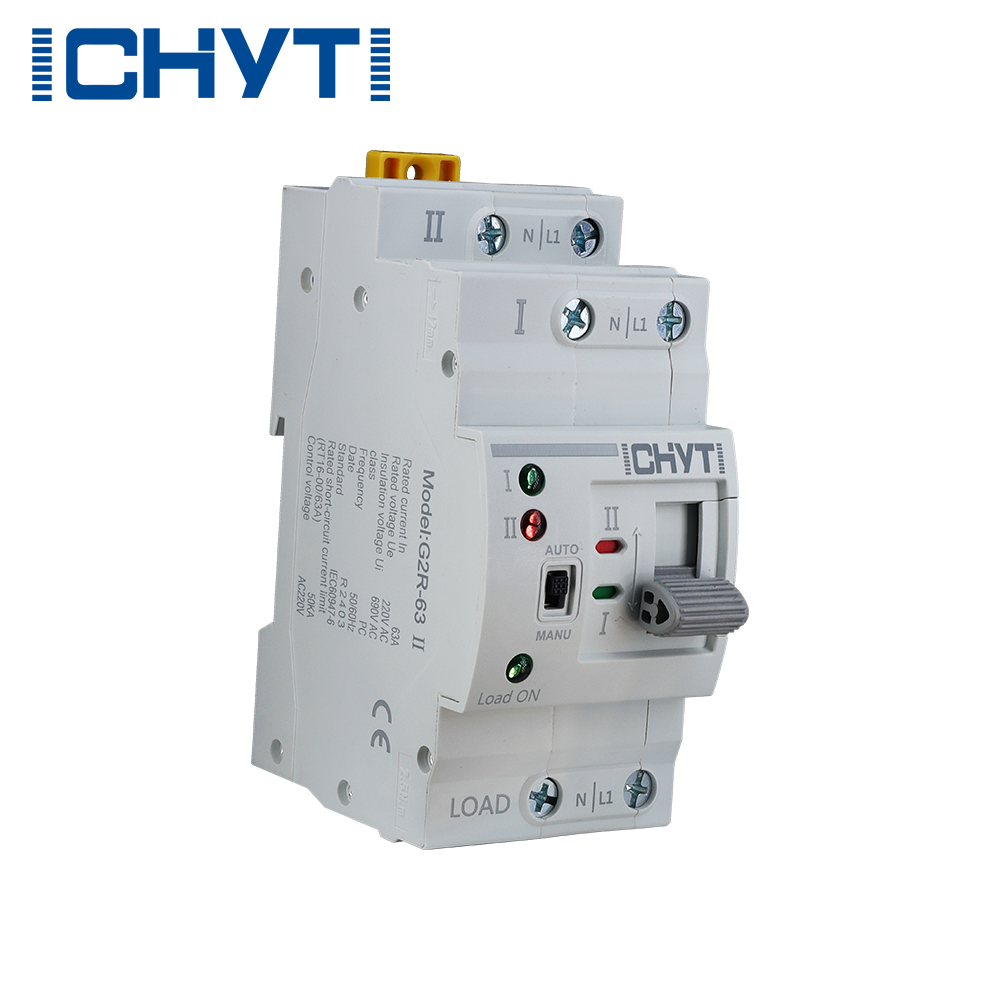

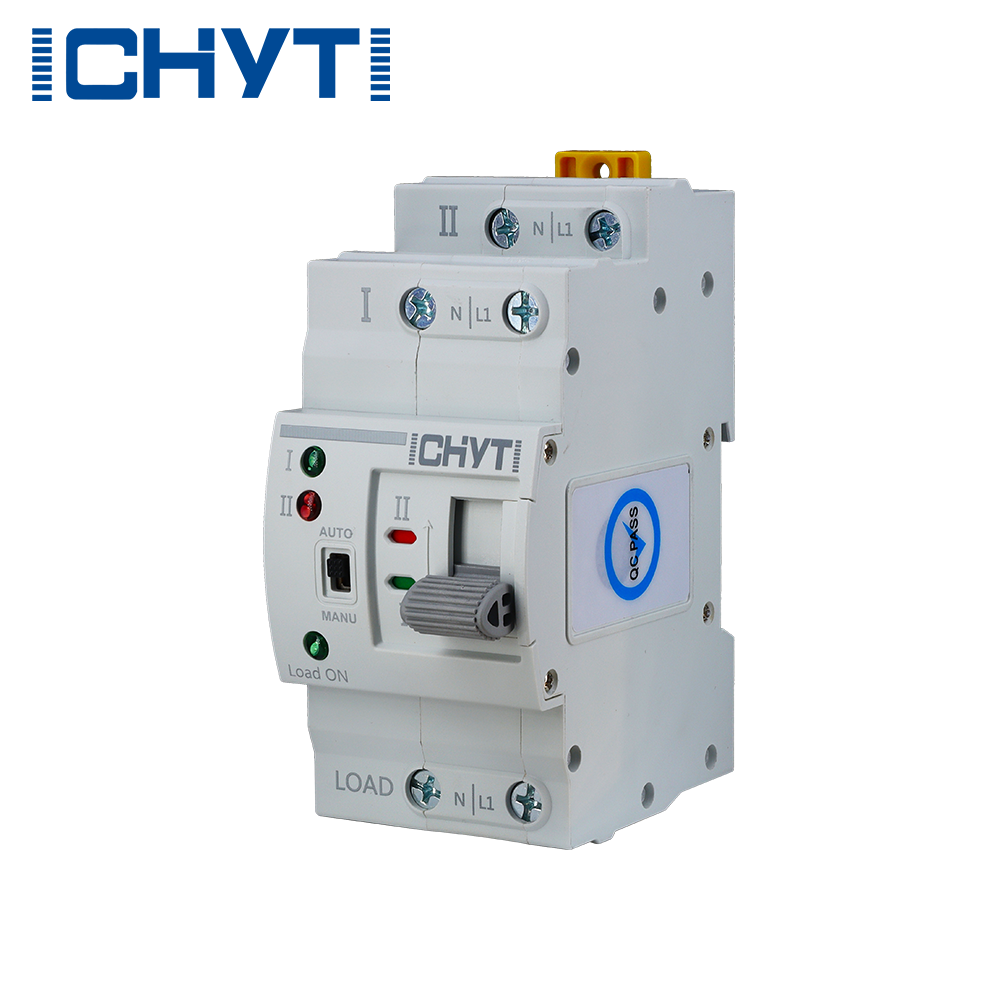

Advanced automatic ats switches for generator from China ICHYTI manufacturer is the best choice in emergency power systems. This switch is equipped with AC ratings of 400V and 63A, and can be used in various occasions of 50 or 60Hz. Its compact design, highly reliable transmission function, easy installation and maintenance, and long-term durability make it a beloved choice for people. This automatic ats switches for generator is suitable for various situations that require continuous power supply and can be controlled through electric and manual operation. The G2R-63 series automatic ats switches for generator complies with the requirements of IEC60947-6-1 for low-voltage switchgear and control devices. In this way, China ICHYTI manufacturers lead the development of the power industry, providing customers with the safest and most reliable equipment, allowing people to have a better user experience.

ICHYTI automatic ats switches for generator Parameter (Specification)

Case grade	63
Rated operating current le(A)	6A/10A/16A/20A/25A/32A/40A/50A/63A
Rated insulation voltage UI	690V
Rated impulse withstand voltage Uimp	8kV
Rated working voltage Ue	AC220V/AC110V
Rated frequency	50/60Hz
Class	PC class: can be switched on and loaded without generating short-cicuit current
Polenumber	2P 4P
Rated short-circuit current lq	50kA
Short circuit protection device (fuse)	RT16-00-63A
Rated impulse withstand voltage	8kV
Control circuit	Rated control voltage Us:AC220V,50Hz Normal working conditions: 85%Us-110%Us
Auxiliary circuit	AC220V/110V 50Hzle=5A
Contactor change-over time	<50ms
Operation change-over time	<50ms
Return change-over time	<50ms
Power off time	<50ms
Change-over operation time	<50ms
Mechanical life	≥8000 times
Electrical life	≥1500times
Usage category	AC-31B

ICHYTI automatic ats switches for generator Feature

◉ Our product meets the standards of IEC947-6:1998 and is very reliable.

◉ Our product is not only suitable for various signal motor starters, elevators, and VFDs, but also for other loads.

◉ Moreover, we provide customers with reliable load disconnect contacts before and after transfer. Our product has three selectable control switches for voltage, frequency, and time delay settings. These control options can meet a wide range of customer needs.

◉ Our product also features dual protection electrical and mechanical interlocks, ensuring the safety of customer work.
