Automatic Auto Transfer Switch For Generator

China ICHYTI factory has a history of more than ten years, and we have been committed to updating automatic auto transfer switch for generator technology and improving management. ICHYTI adheres to the business philosophy of quality support, continuously builds its brand, and achieves success in its business. We have gathered a group of experienced sales teams and established a comprehensive sales network and service system. At present, our automatic auto transfer switch for generator is in a leading position in the market, and we will continue to work hard to promote our business development.

Send Inquiry

Product Description

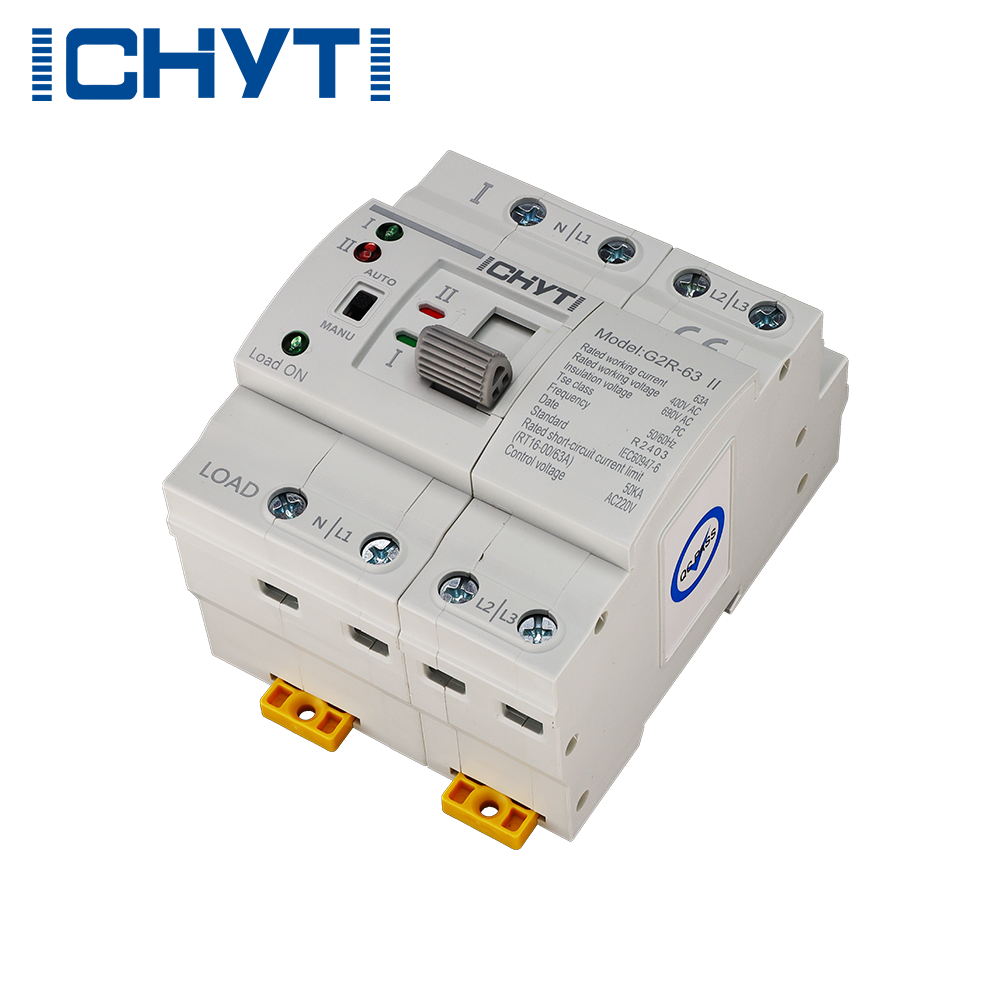

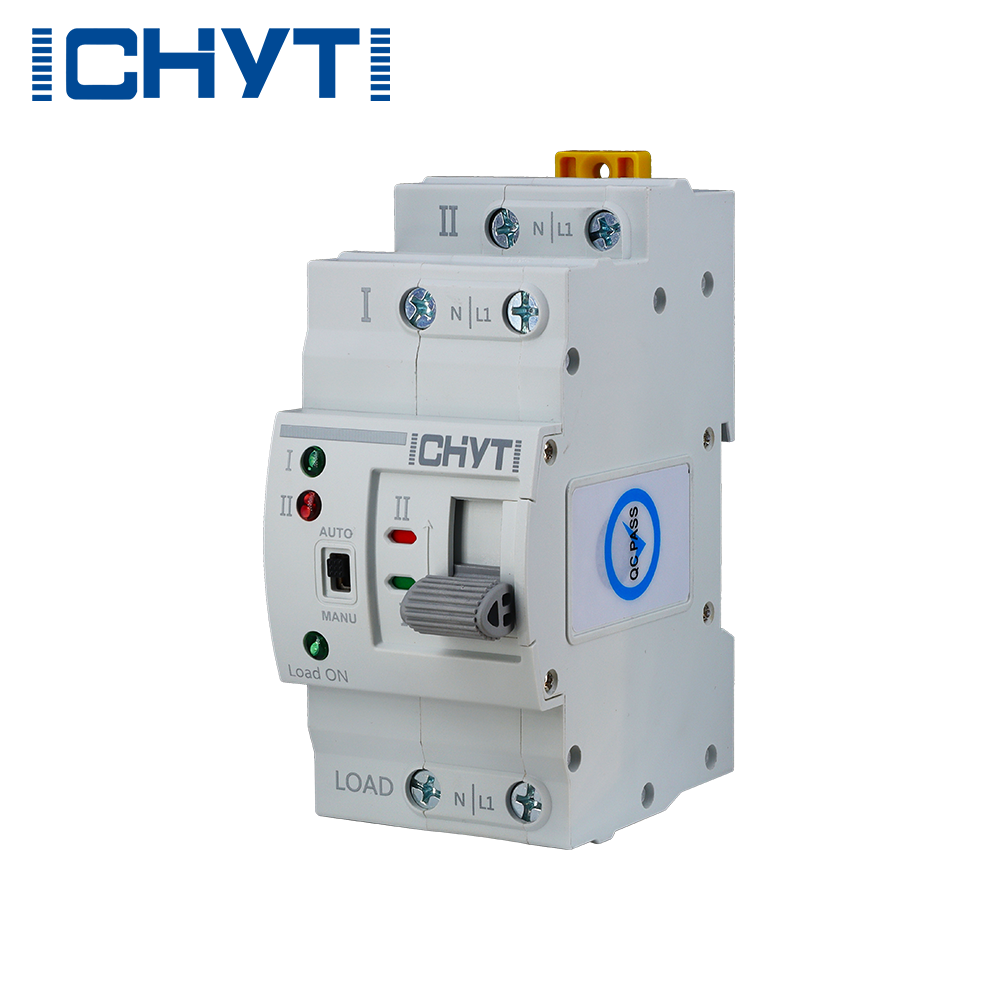

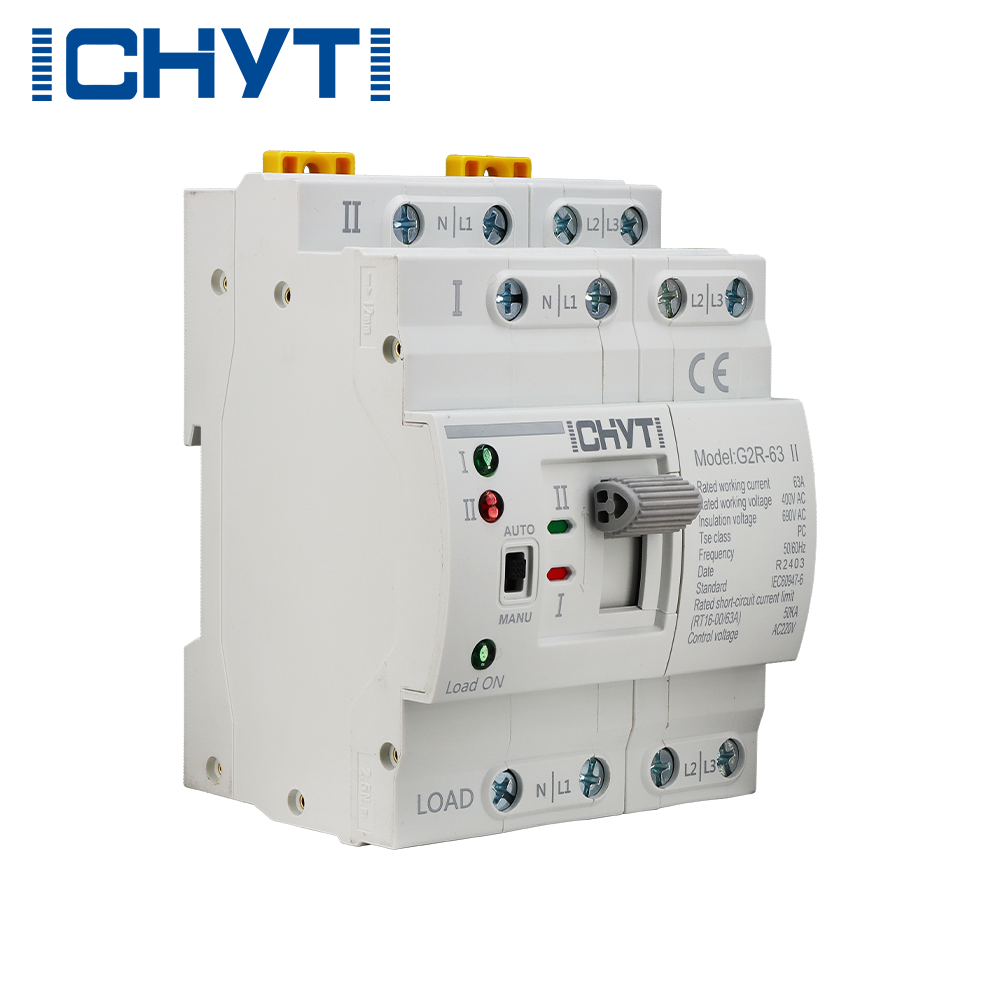

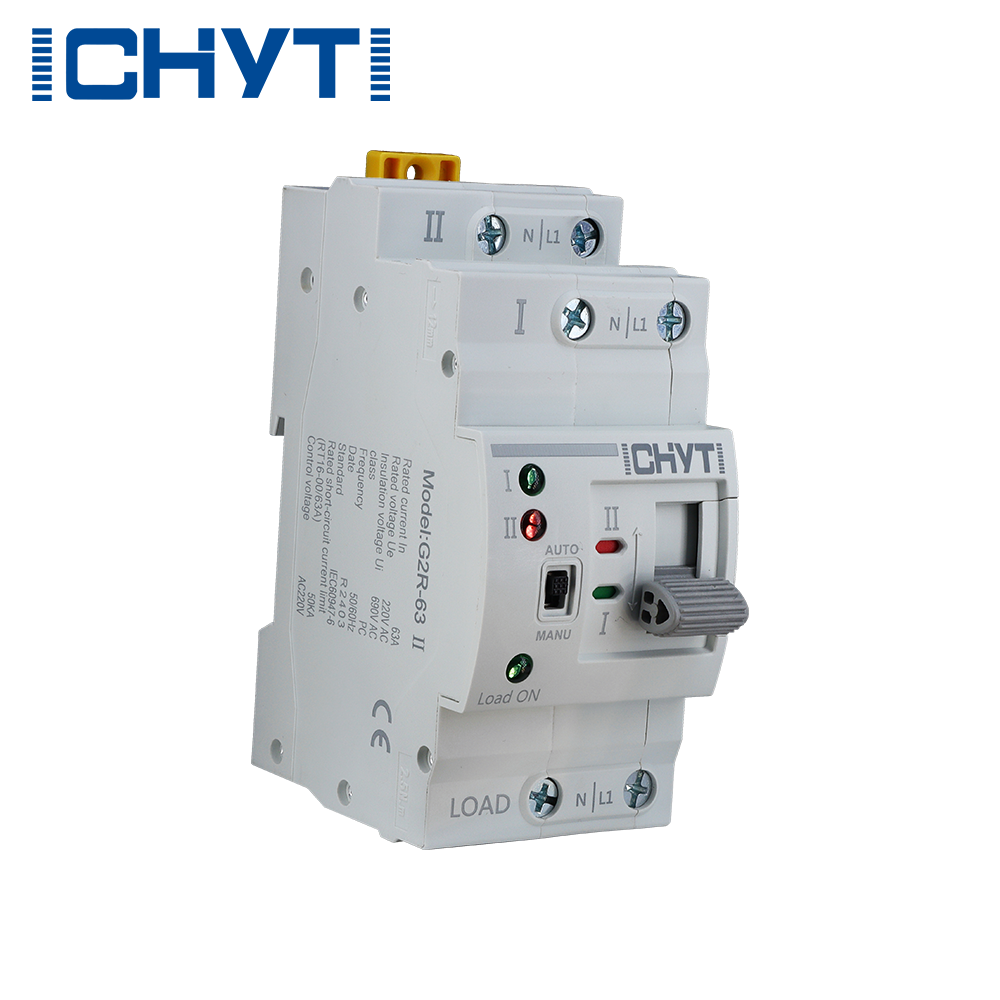

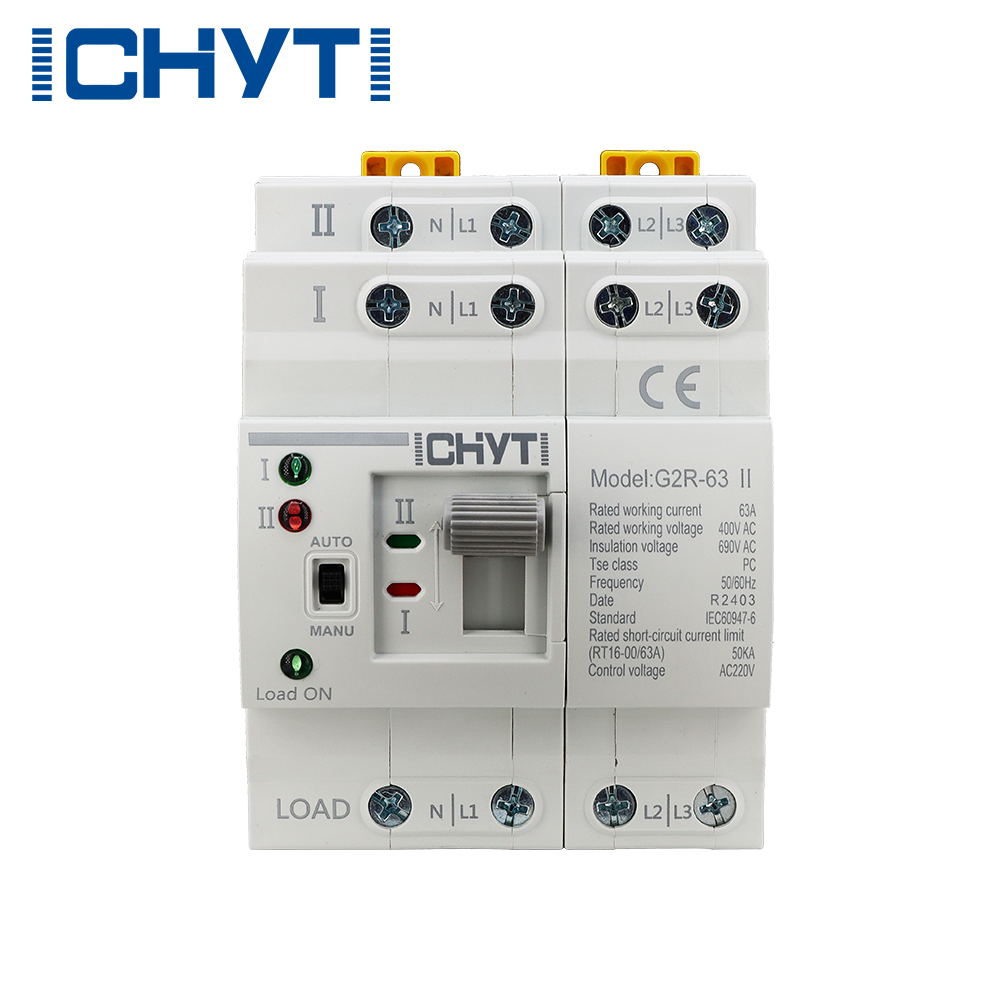

ICHYTI is an excellent supplier in China, specializing in wholesale of automatic auto transfer switch for generator. This switch is specially designed for dual power systems and can operate efficiently at a working voltage of 230V/400V and a working frequency of 50/60Hz. Its maximum rated working current is 63A, and it can be configured as a dual power supply for transmission according to customer requirements. Not only that, the automatic auto transfer switch for generator is also equipped with functions such as short circuit protection, fire prevention, double break, and output ON signal, fully meeting the needs and requirements of customers. Choosing ICHYTI automatic auto transfer switch for generator can ensure a more stable and safe operation of the dual power supply system. We believe that ICHYTI products will definitely bring you higher quality service and better user experience!

ICHYTI automatic auto transfer switch for generator Parameter (Specification)

Case grade	63
Rated operating current le(A)	6A/10A/16A/20A/25A/32A/40A/50A/63A
Rated insulation voltage UI	690V
Rated impulse withstand voltage Uimp	8kV
Rated working voltage Ue	AC220V/AC110V
Rated frequency	50/60Hz
Class	PC class: can be switched on and loaded without generating short-cicuit current
Polenumber	2P 4P
Rated short-circuit current lq	50kA
Short circuit protection device (fuse)	RT16-00-63A
Rated impulse withstand voltage	8kV
Control circuit	Rated control voltage Us:AC220V,50Hz Normal working conditions: 85%Us-110%Us
Auxiliary circuit	AC220V/110V 50Hzle=5A
Contactor change-over time	<50ms
Operation change-over time	<50ms
Return change-over time	<50ms
Power off time	<50ms
Change-over operation time	<50ms
Mechanical life	≥8000 times
Electrical life	≥1500times
Usage category	AC-31B

ICHYTI automatic auto transfer switch for generator Feature

◉ This power supply has the characteristics of a reasonable structure, compactness, and strong visual appeal. At the same time, a protective cover is also installed to make use safer and more reliable.

◉ In addition, the power supply provides comprehensive protection functions, including short circuit, overload, phase failure, and voltage loss protection, making users more confident in using it.

◉ This power supply operates without noise, can save energy and reduce consumption, is convenient for installation and operation, and has stable and reliable performance.

◉ The power supply is also equipped with a reliable remote double break mechanism with EPS fire protection and a power interface running on DC12-24V, which can meet the needs of different customers.
