DC Solar Spd Surge Protective Device

ICHYTI is a leading supplier in the field of lightning protection in China. It is a comprehensive lightning protection enterprise dedicated to the research and development, production, sales, and system solutions of lightning protection products (SPD). The main products include: dc solar spd surge protective device, power lightning protection device, and OEM and ODM are also provided to the outside world. Provide customers with advanced technology, safe and reliable high-quality products and services.

Send Inquiry PDF DownLoad

Product Description

China Factory ICHYTI(公司品牌) dc solar spd surge protective device Free Sample is a surge protection device designed specifically for photovoltaic power generation systems or other DC power supply systems. It adopts the most advanced technology to provide comprehensive lightning overvoltage protection for the system, effectively avoiding losses that may be caused by natural disasters such as lightning strikes and thunderstorms.

dc solar spd surge protective device is equipped with temperature control circuit technology to ensure high safety and stability of the system, and provides a convenient indicator window. Users can judge the status of SPD based on different colored indications. Replacement and maintenance are also very convenient and clearly visible.

If you need higher-level monitoring and management, we also provide remote communication interfaces to help users achieve remote monitoring and management. This not only improves work efficiency, but also enhances both safety and stability.In summary, the dc solar spd surge protective device is your ideal choice, as it will play a crucial role in your solar power generation system, making it safer, more reliable, and more efficient.

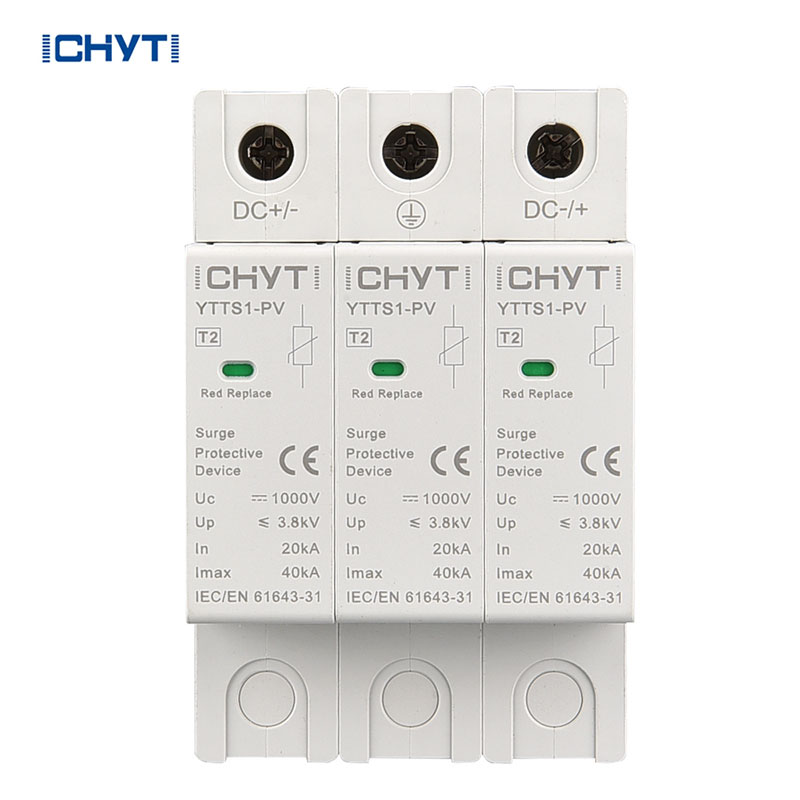

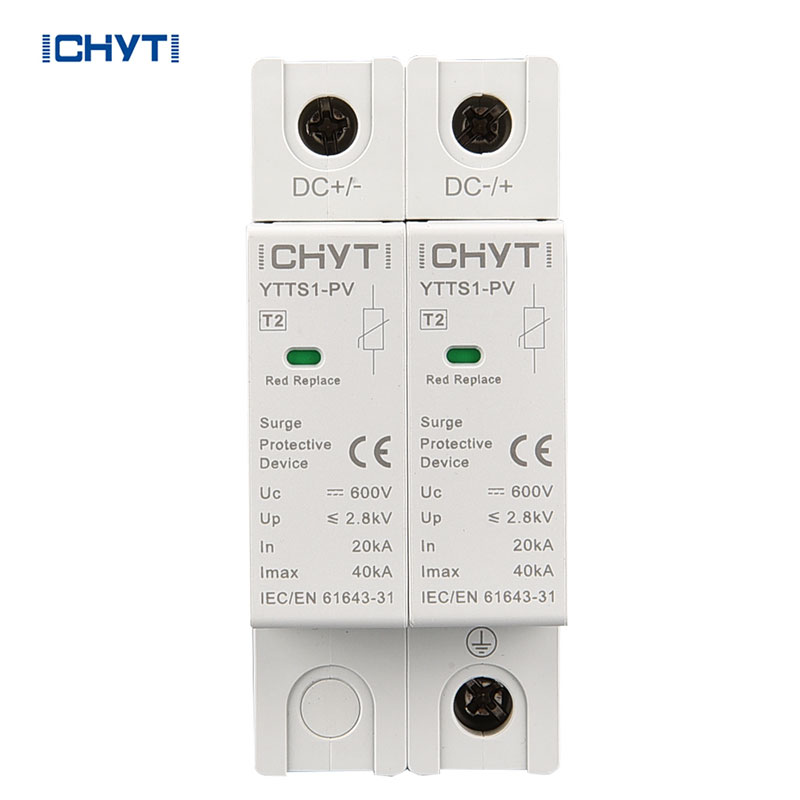

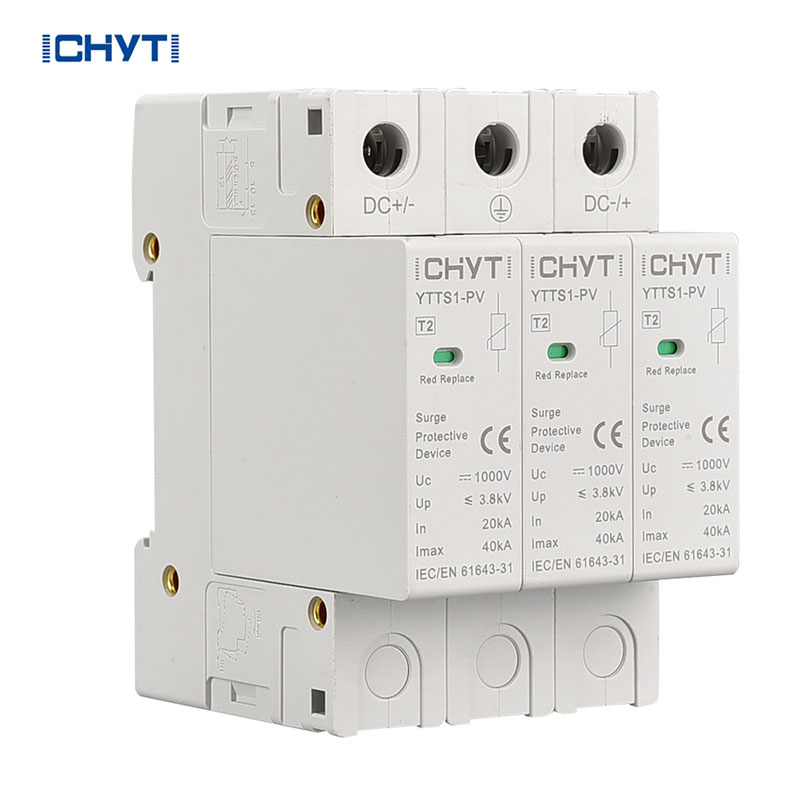

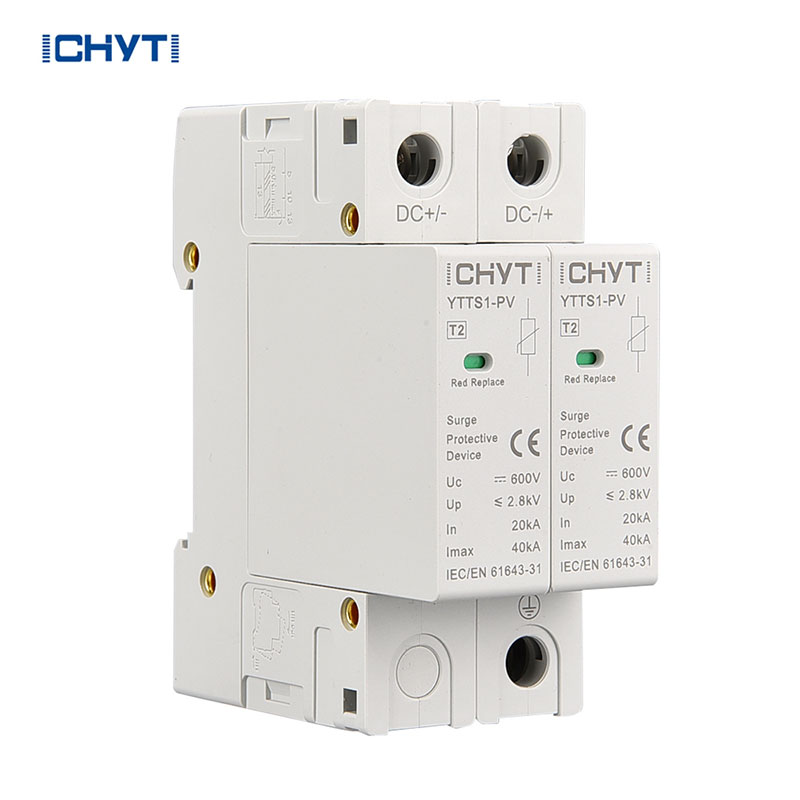

ICHYTI IPRD dc solar spd surge protective device Parameter (Specification)

Product Model	YTTS1-PV
Pole	2P	3P
Rated Frequency	One port
SPD Category	Combined type
Test Category	Class II test
Colour	White	White
Maximum Continuous Operating Voltage Uc	600VDC 1000VDC	1000VDC 1500VDC
Voltage Protection Level Up(8/20μs)	≤2.8kV	≤3.5kV
Nominal Discharge Current In(8/20μs)	20kA	20kA
Maximum Discharge Current Imax(8/20μs)	40kA	40kA
Response Time tA	≤25ns
Size(mm)	36x85x66 54x85x66
Failure Indication	Green: Normal Red:Failure
Sectional Area Of Wires	6~25m㎡
Installation Method	35mm standard rail
Working Environment Temperature	-40℃~+85℃
Sheathing Material	Plastic
Protection Level	IP20
Executive Standard	IEC 61643-31

ICHYTI IPRD dc solar spd surge protective device Feature

This T2 type surge protector is designed for photovoltaic systems, using high-quality chip material zinc oxide, and the equipment is equipped with replaceable modules for easy maintenance. In addition, the product adopts a combination design, which comprehensively improves the sealing performance. These advanced technologies not only make the product perform well, but also very durable, making your photovoltaic system safer and more reliable.

ICHYTI IPRD dc solar spd surge protective device Details

1. New arc baffle: The appearance of this arc suppression plate effectively prevents phase to phase short circuits caused by foreign objects mistakenly falling on the surge inlet point, and also avoids the situation of arc diffusion during surge current impact. This innovative technology will undoubtedly bring more stable and secure guarantees to the development of the electronic field, making people more confident and hopeful about the future.

2. New cooling hole: This specially designed heat sink can quickly transfer heat and effectively reduce the temperature of the varistor, thereby improving its working stability and service life. The application of this technology can not only improve the overall efficiency of electronic devices, but also bring more convenience and innovation to our production and life.

3. Replaceable modules: Easy to disassemble and replace modules

4. Indicator window, with clear red and green indicator lights at a glance
