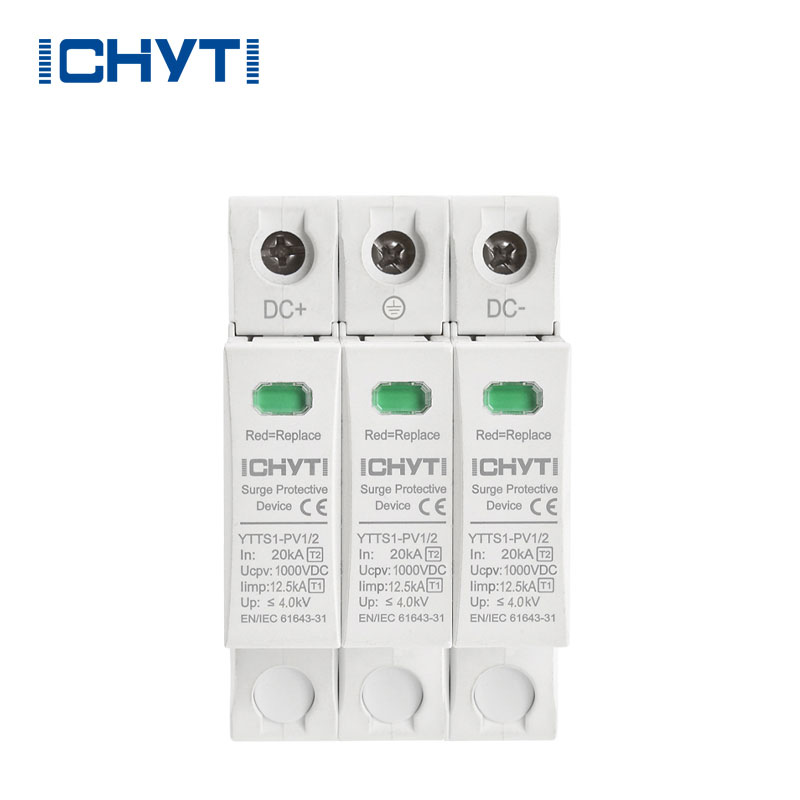

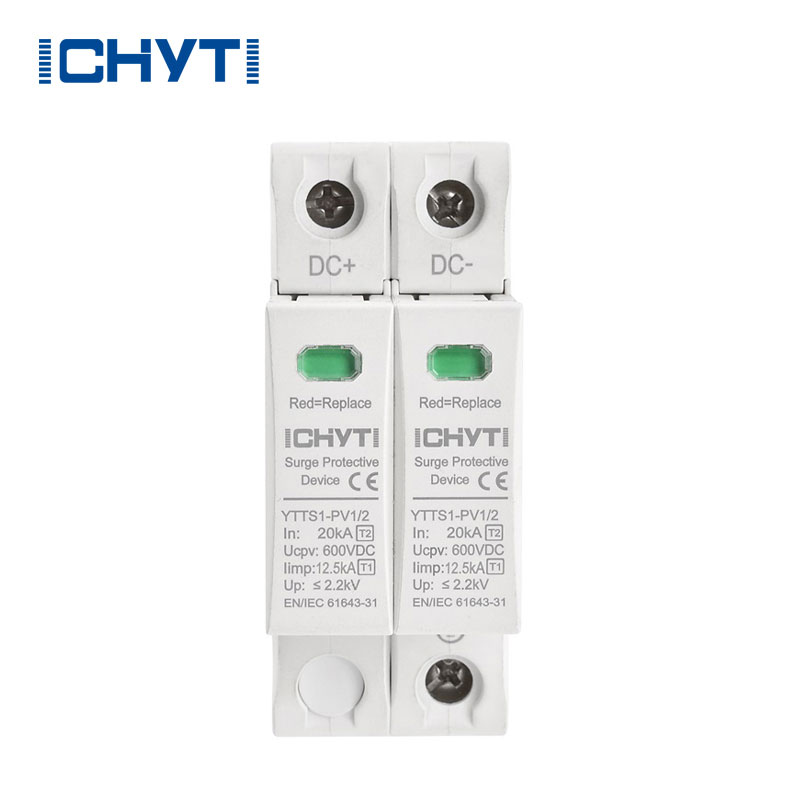

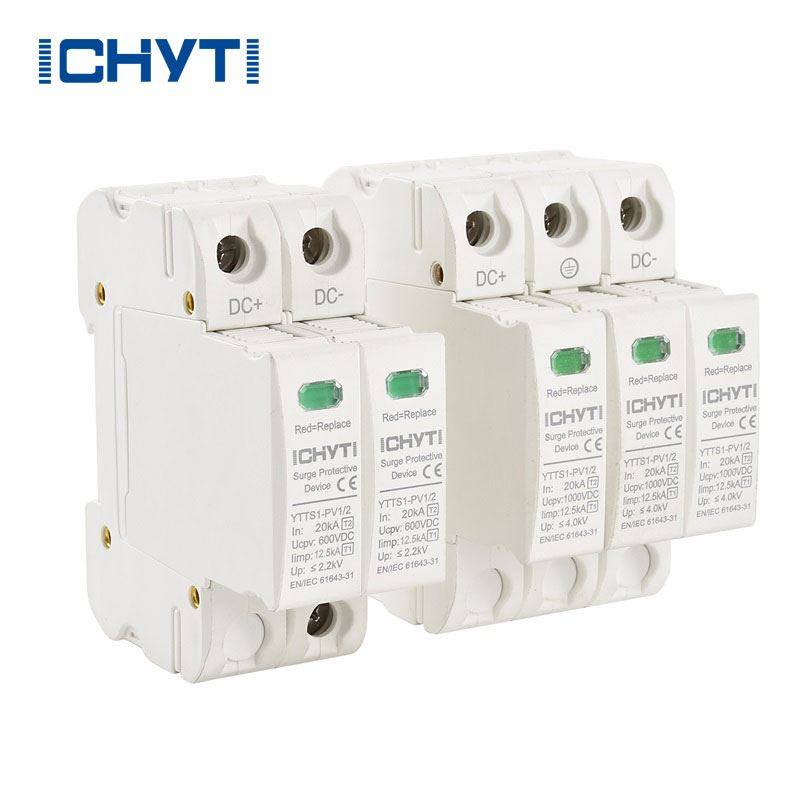

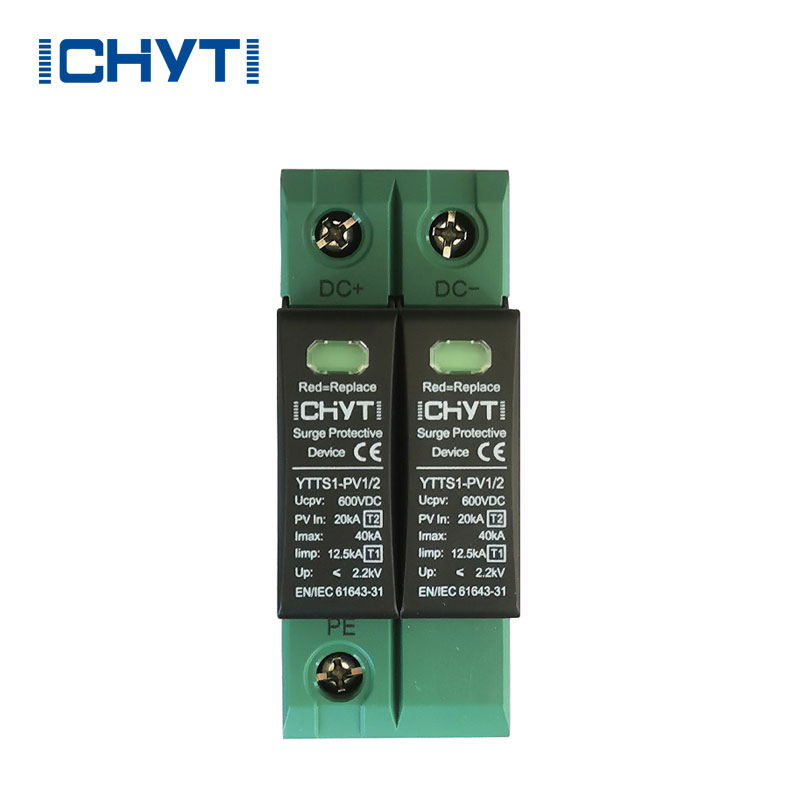

Solar Surge Protector

China ICHYTI Wholesale solar surge protector is a surge protector that has undergone both primary and secondary tests. The first level experiment refers to an experiment conducted according to the nominal discharge current In: 1.2/50 pulse working voltage and maximum pulse current Iimp specified in the specifications, while the second level experiment is an experiment conducted based on the first level experiment and the maximum pulse current Iimp specified in the specifications. T1 and T2 surge protectors are a general term for surge protectors, which are designed based on primary and secondary impulse tests.

ICHYTI solar surge protector Parameter (Specification)

ICHYTI solar surge protector Feature

◉ It can be widely used in different installation situations.

◉ It is suitable for installation in areas below the LPZ0B system partition, and can be installed on three-phase five wire cabinets in construction projects from the outside to the inside to avoid interference from lightning currents. It can also be installed next to the device to limit voltage.

◉ It can ensure low voltage protection level at the same time, and will not continuously leak and current.

ICHYTI solar surge protector Details

ICHYTI solar surge protector Dimensions and wiring

ICHYTI solar surge protector FAQ

Q: How do I choose a DC SPD for my solar system?

A: In order to select the appropriate SPD model for your PV system, it is important to consider the following factors: the temperature at which the SPD will operate, the voltage of the system, the short circuit rating of the SPD, the waveform that needs to be protected against, and the minimum discharge current required by the SPD.

Q: Do you need SPD for solar?

A: To safeguard a home from transient surges in a residential solar power system equipped with microinverters and short DC cabling but longer AC cables, it is recommended to install surge protective devices at the combiner box.

Q: What is SPD in a solar system?

A: CHYT Surge Protective Devices (SPDs) are commonly used in solar power systems, specifically in photovoltaic (PV) or DC systems, to safeguard against electrical surges and spikes. These surges can be caused by a variety of factors, including lightning strikes. SPDs offer a reliable shield against such harmful electrical disturbances, ensuring the smooth operation and longevity of the solar power system.
