Dual Power ATS Automatic Transfer Switch

China ICHYTI is a highly acclaimed manufacturer of dual power ats automatic transfer switch, offering high-quality products at competitive prices. We have been striving to become industry leaders, providing professional services and leading technology. Welcome to contact us, we will provide you with more information and assistance about the dual power ats automatic transfer switch product. We believe that by collaborating with ICHYTI , you will receive the best products and services.

Send Inquiry

Product Description

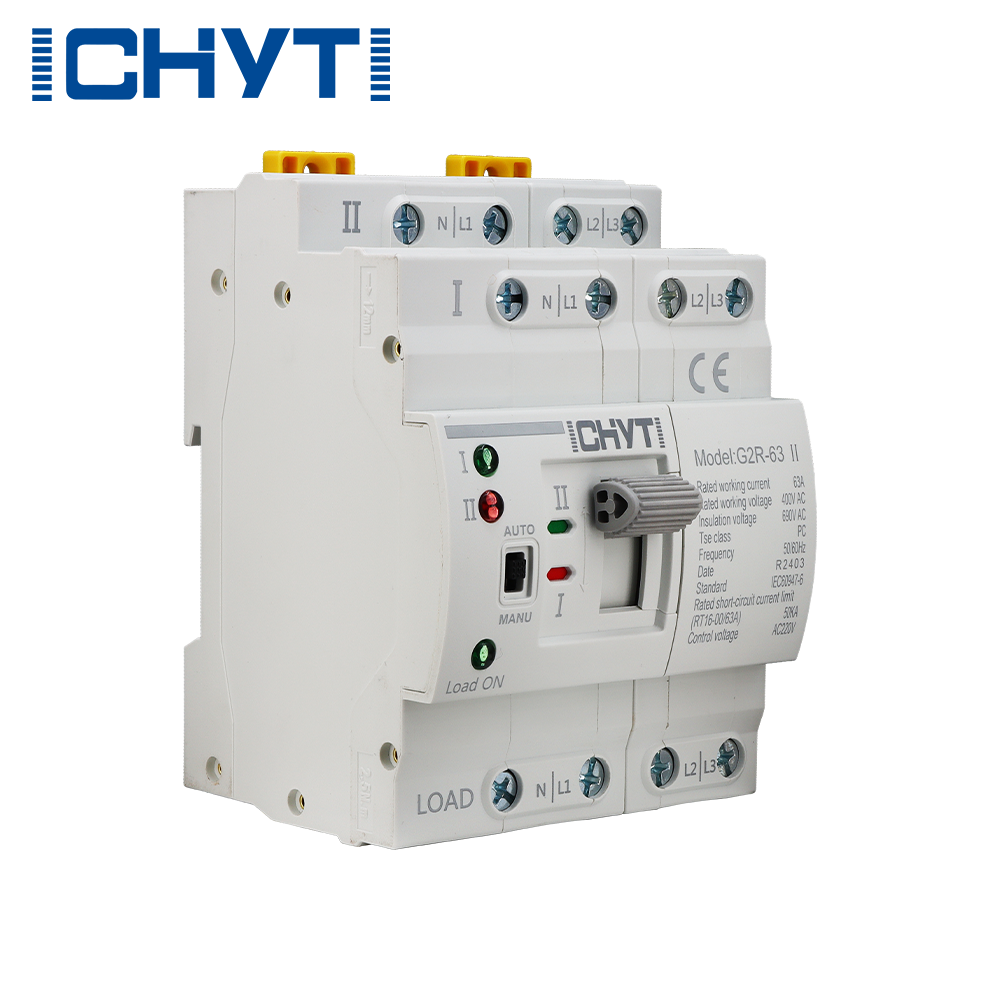

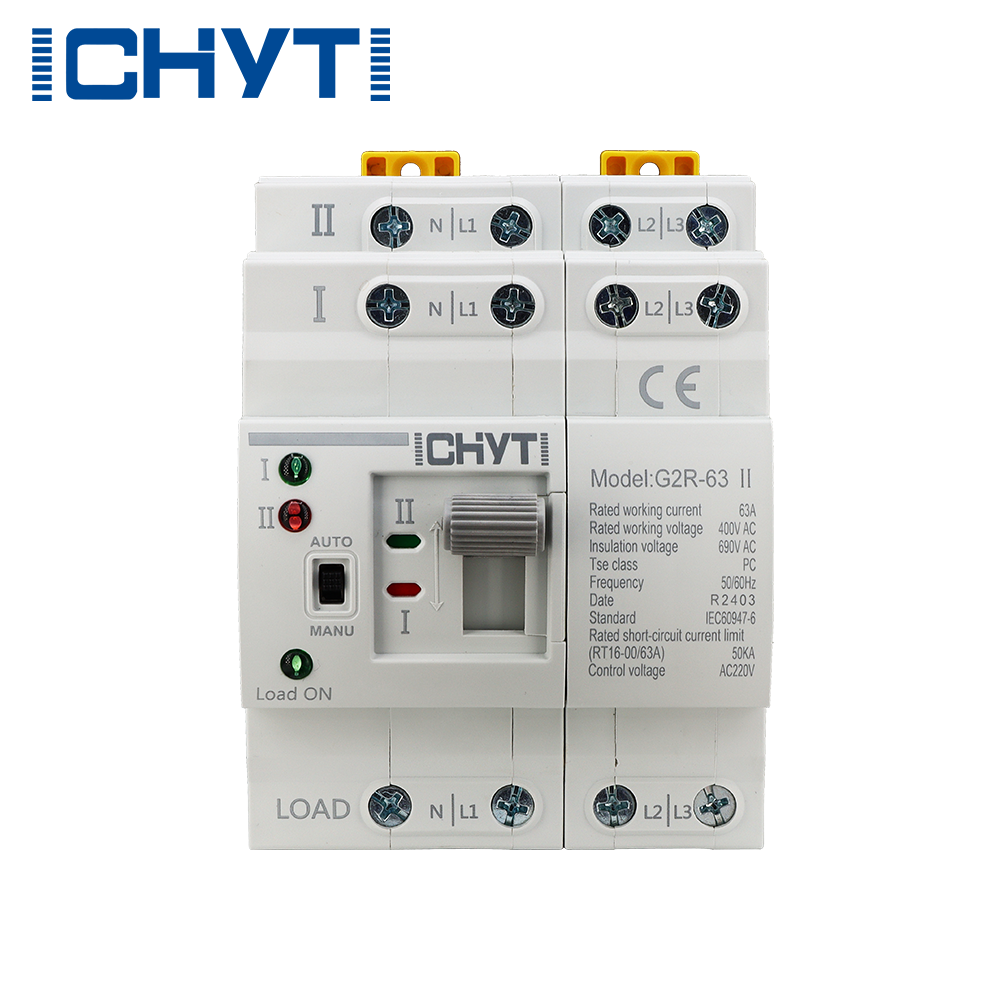

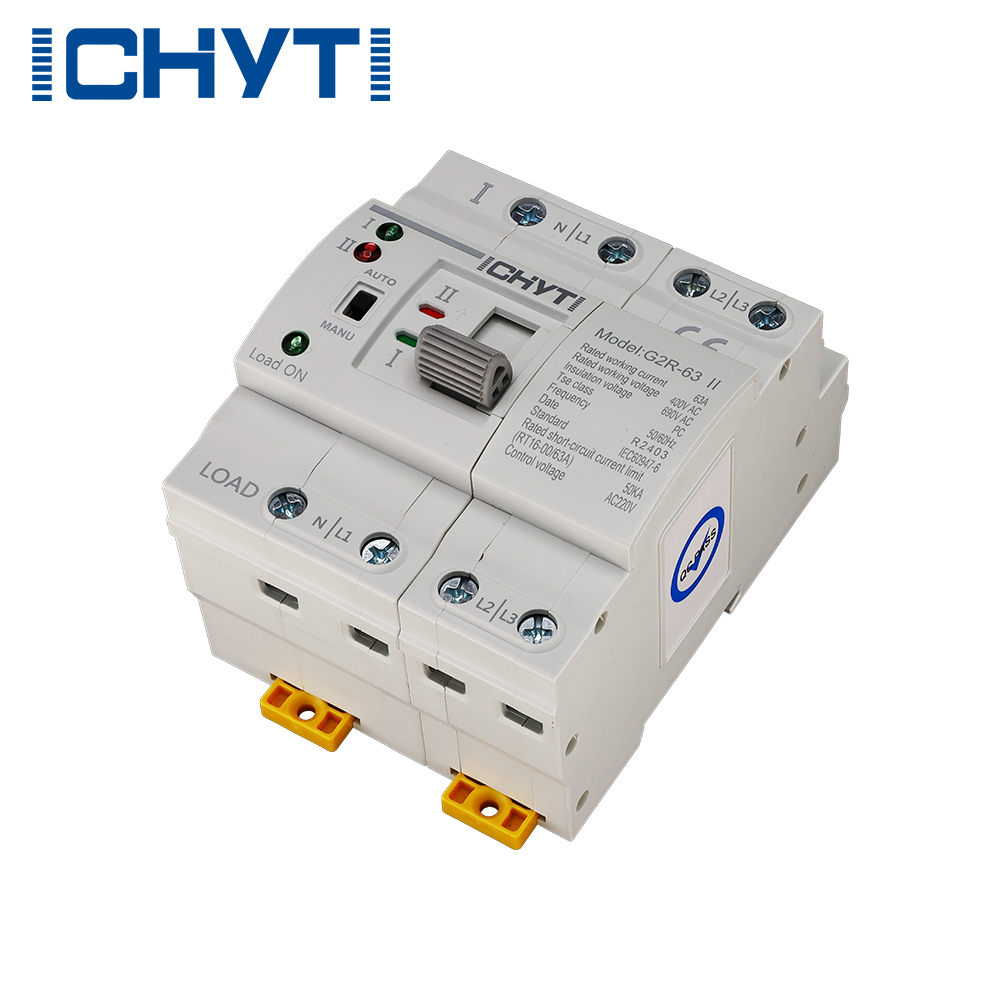

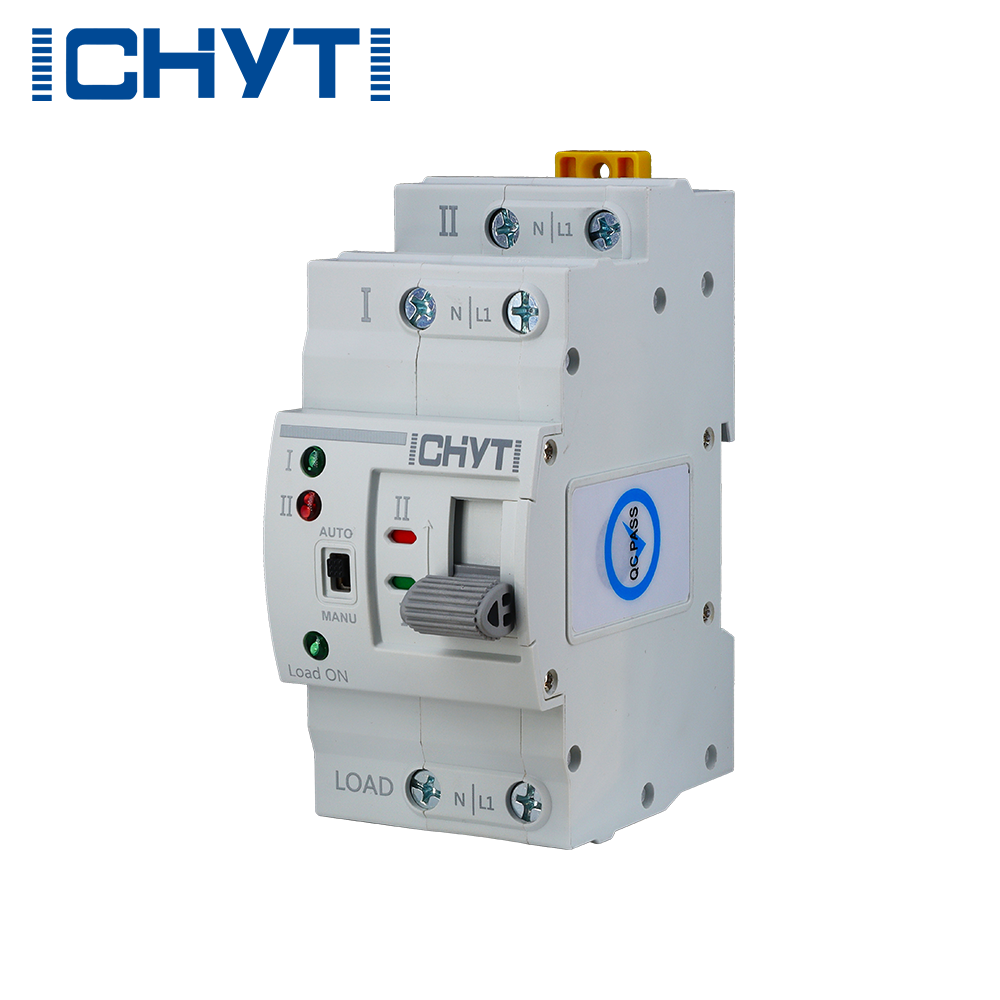

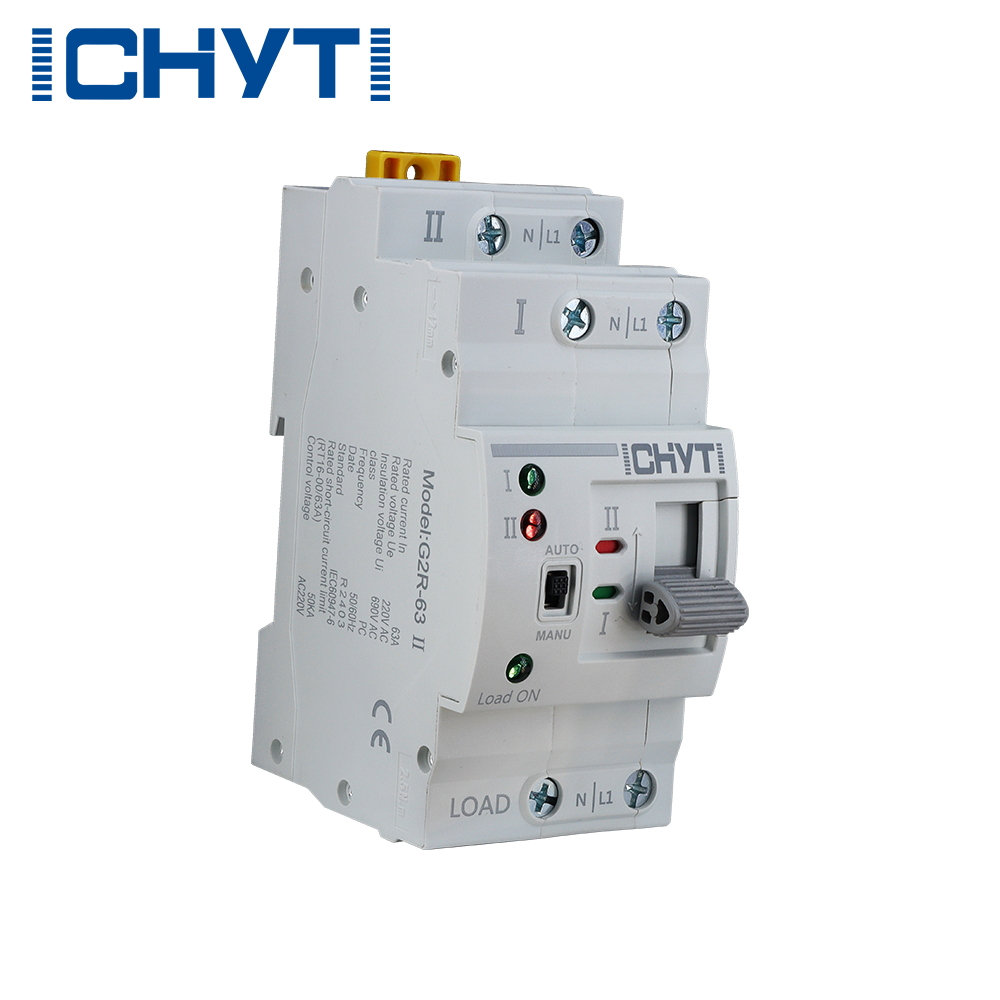

ICHYTI is a China supplier that has launched a batch of dual power ats automatic transfer switch. These switches not only have switch functions but also achieve logic control, making them very suitable for use in mining and other enterprises. It can operate safely in distribution systems with AC50Hz, rated voltage AC400V, and conventional thermal current up to 63A. The dual power ats automatic transfer switch also has functions such as voltage detection, forced shutdown of the "0" position, manual emergency operation, etc. It can be widely used for switching between normal power supply and backup power supply or between two load devices, or for safety isolation. The control circuit board controls the motor through logical commands, and then the motor drives the operating mechanism of the main switch to quickly close, disconnect, or switch the circuit. The safety isolation of the main switch is obvious. This type of switch is not only a way to achieve functionality, but also to ensure the safety and reliability of the entire system operation and maintenance. China suppliers ICHYTI have made important contributions to our technological development and deserve our recognition and support.

ICHYTI dual power ats automatic transfer switch Parameter (Specification)

Case grade	63
Rated operating current le(A)	6A/10A/16A/20A/25A/32A/40A/50A/63A
Rated insulation voltage UI	690V
Rated impulse withstand voltage Uimp	8kV
Rated working voltage Ue	AC220V/AC110V
Rated frequency	50/60Hz
Class	PC class: can be switched on and loaded without generating short-cicuit current
Polenumber	2P 4P
Rated short-circuit current lq	50kA
Short circuit protection device (fuse)	RT16-00-63A
Rated impulse withstand voltage	8kV
Control circuit	Rated control voltage Us:AC220V,50Hz Normal working conditions: 85%Us-110%Us
Auxiliary circuit	AC220V/110V 50Hzle=5A
Contactor change-over time	<50ms
Operation change-over time	<50ms
Return change-over time	<50ms
Power off time	<50ms
Change-over operation time	<50ms
Mechanical life	≥8000 times
Electrical life	≥1500times
Usage category	AC-31B

ICHYTI dual power ats automatic transfer switch Feature

◉ Electric keylock is an efficient and secure switch control system that automatically switches by controlling the power supply of internal circuits. When the electric lock is opened, the switch can be operated automatically and can be set.

◉ The operating handle can manually operate the switch, but the electric lock needs to be turned off.

◉ The padlock mechanism is used for maintenance and repair, and the usage method is simple and convenient. The indicator light can clearly display the working status of the switch, allowing us to have a better understanding of the equipment's operation.

◉ The promotion and use of electric keylocks will effectively improve the quality and safety of life, making our lives more beautiful.
