Electrical Manual ATS Transfer Switch

China ICHYTI is one of the electrical manual ats transfer switch Suppliers. ICHYTI has a strong design team, a professional management team, and a sound management system. Integrating scientific research, production, sales, and service. Provide users with safe, energy-saving, and cost-effective low-voltage electrical products.

Send Inquiry

Product Description

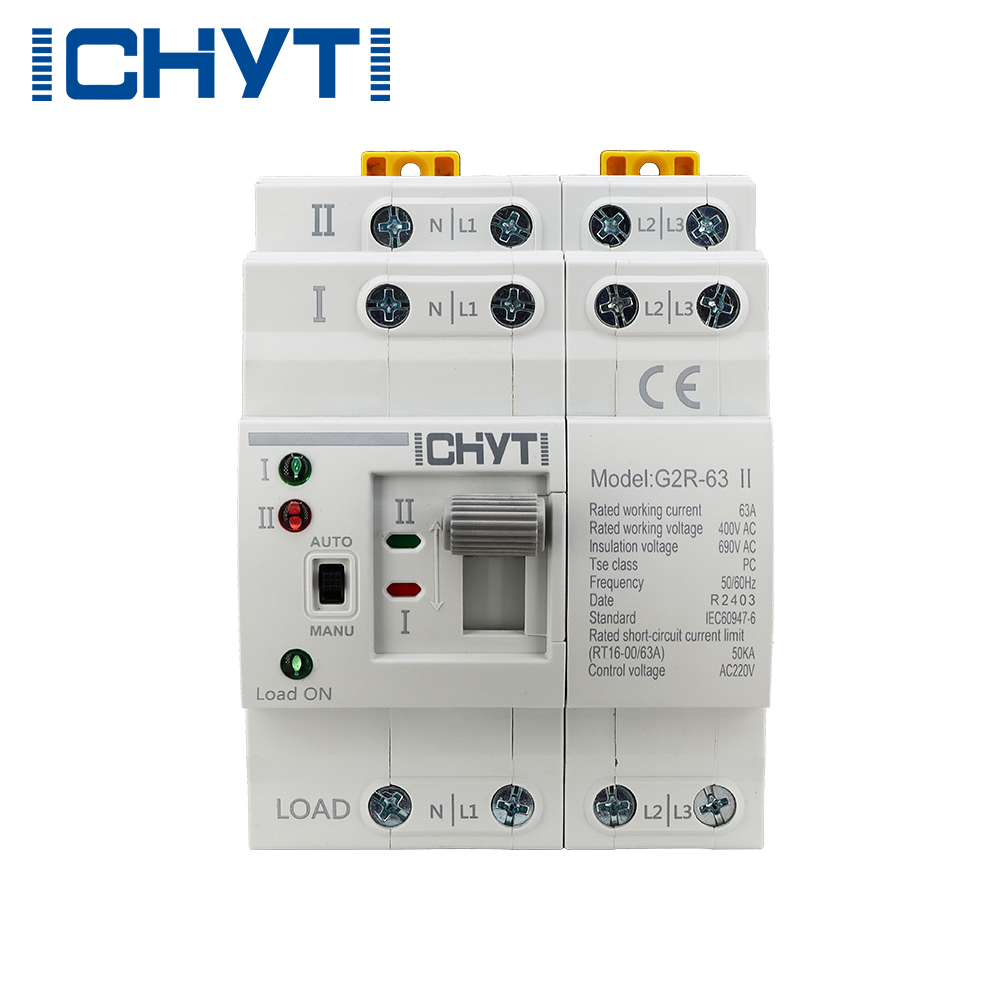

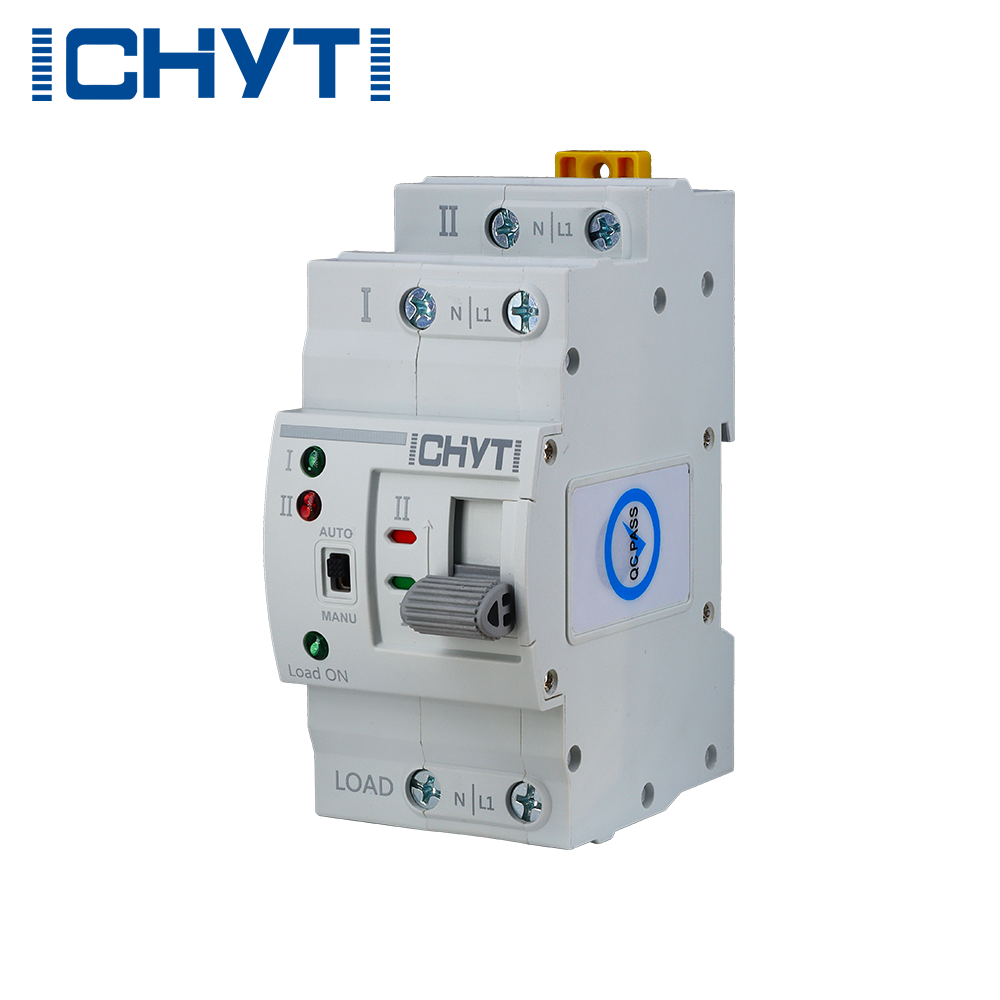

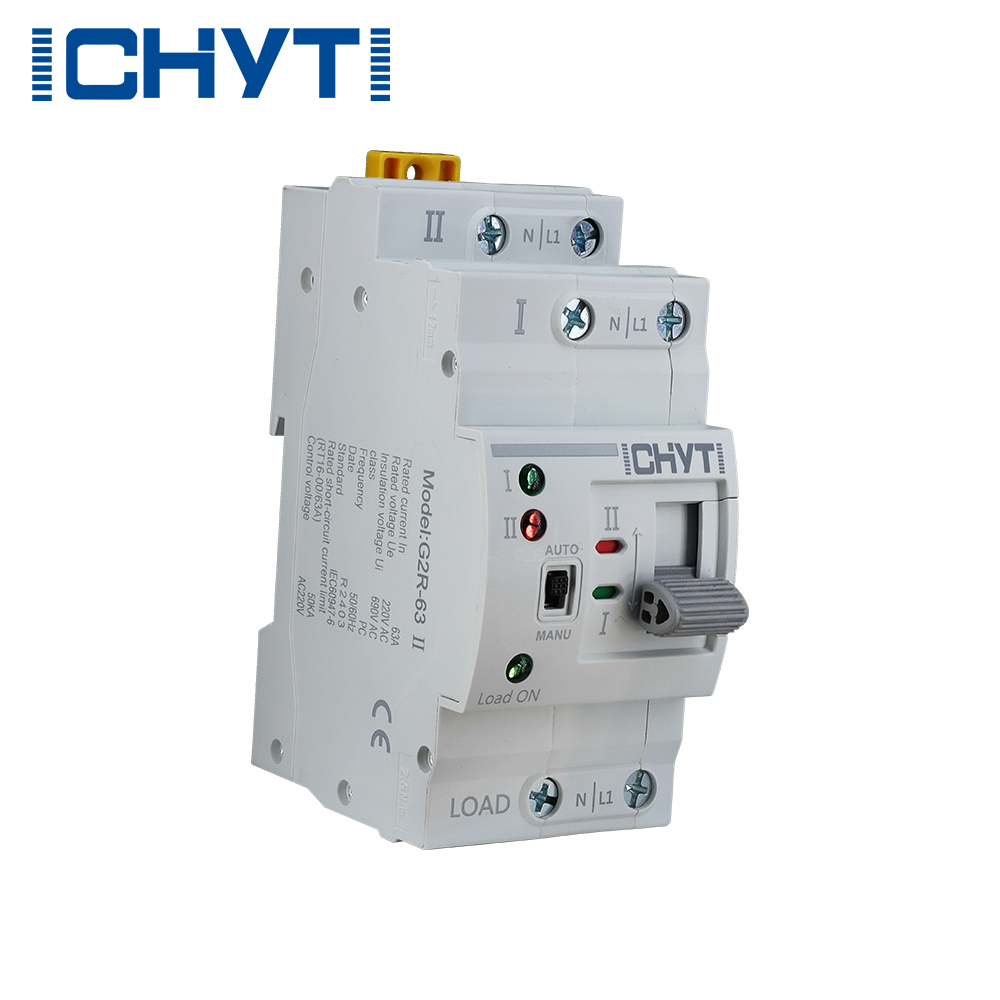

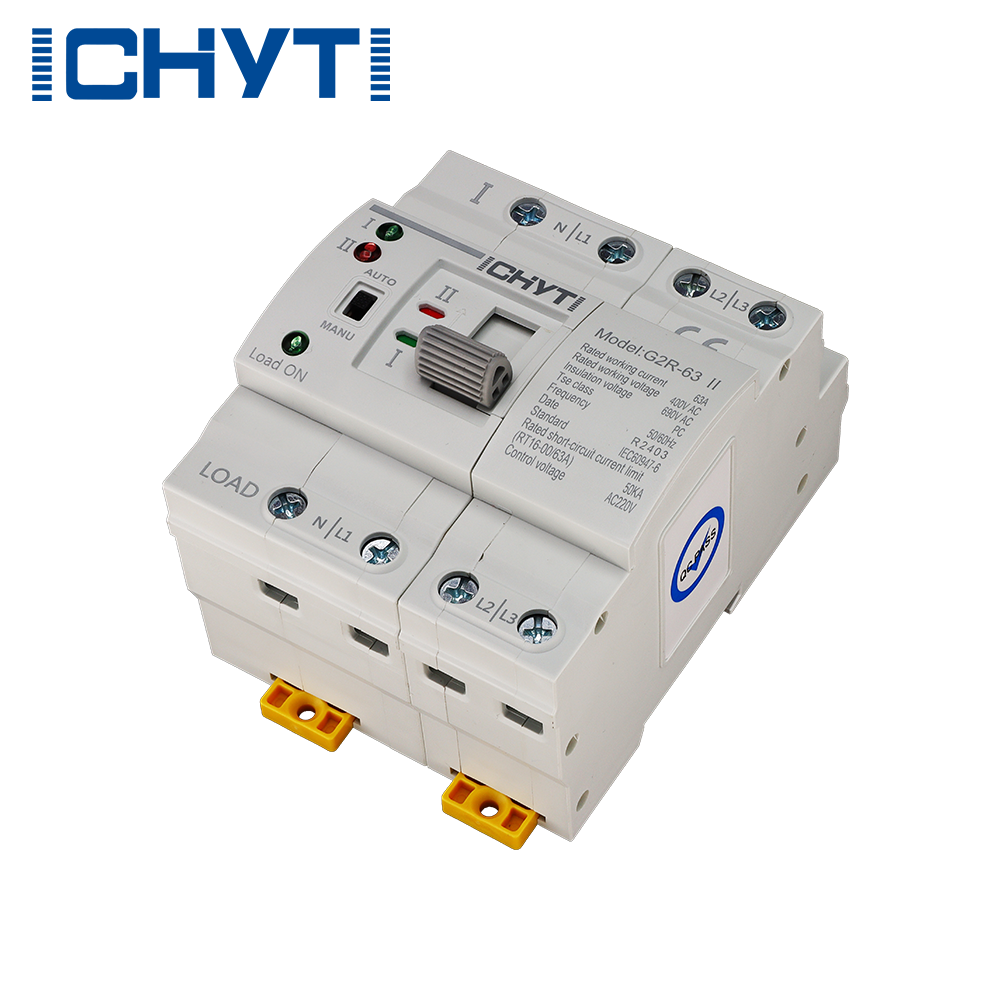

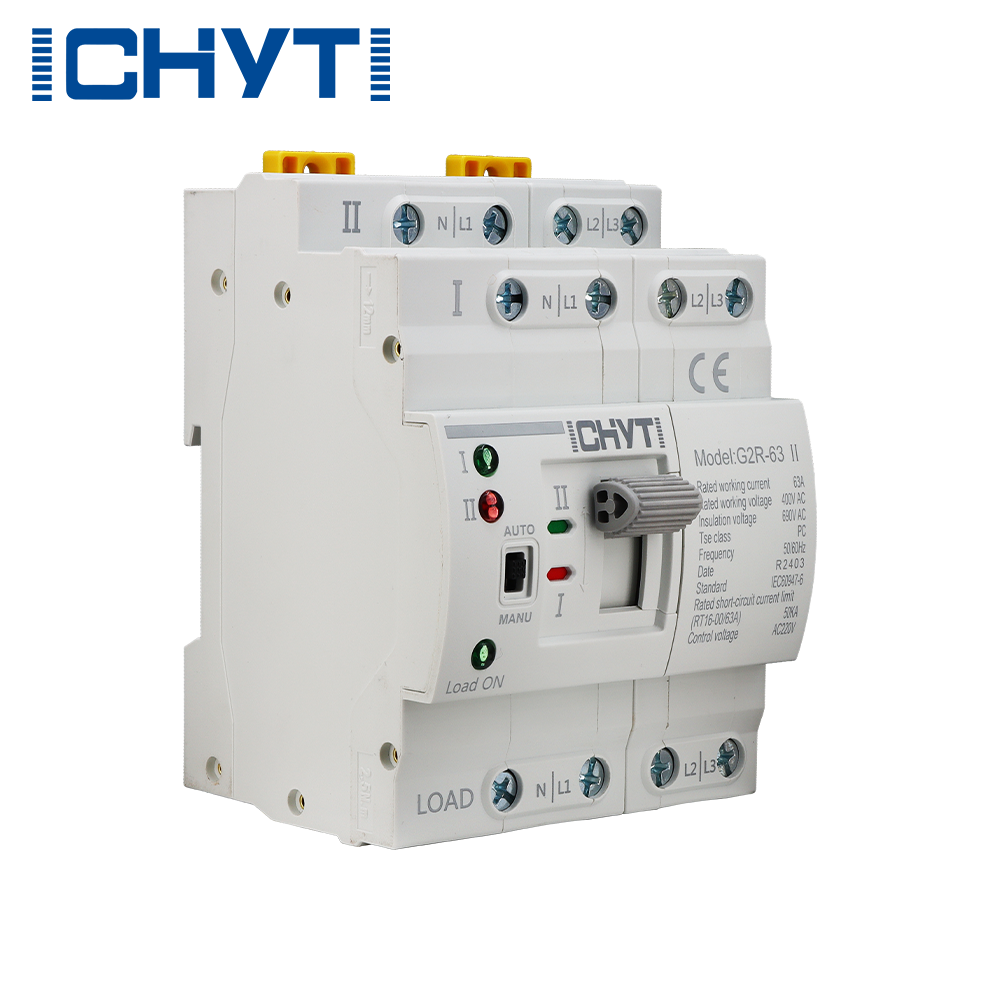

ICHYTI is an excellent China supplier, and its self-developed Durable electrical manual ats transfer switch is a powerful and stable micro household automatic transfer switch. This switch can detect the working status of both normal and backup power sources in real-time, and automatically switch to the backup power source in case of abnormalities in the normal power source, ensuring continuous, reliable, and safe power supply. This electrical manual ats transfer switch is specially designed for household rail installation and is very suitable for Din Rail distribution boxes.

ICHYTI discount electrical manual ats transfer switch, the home power system can operate more safely and efficiently, making our lives more convenient and comfortable.

ICHYTI electrical manual ats transfer switch Parameter (Specification)

Case grade	63
Rated operating current le(A)	6A/10A/16A/20A/25A/32A/40A/50A/63A
Rated insulation voltage UI	690V
Rated impulse withstand voltage Uimp	8kV
Rated working voltage Ue	AC220V/AC110V
Rated frequency	50/60Hz
Class	PC class: can be switched on and loaded without generating short-cicuit current
Polenumber	2P 4P
Rated short-circuit current lq	50kA
Short circuit protection device (fuse)	RT16-00-63A
Rated impulse withstand voltage	8kV
Control circuit	Rated control voltage Us:AC220V,50Hz Normal working conditions: 85%Us-110%Us
Auxiliary circuit	AC220V/110V 50Hzle=5A
Contactor change-over time	<50ms
Operation change-over time	<50ms
Return change-over time	<50ms
Power off time	<50ms
Change-over operation time	<50ms
Mechanical life	≥8000 times
Electrical life	≥1500times
Usage category	AC-31B

ICHYTI electrical manual ats transfer switch Feature

◉ This device has a compact and reasonable structure, beautiful appearance, and is also equipped with a protective cover, ensuring safe and reliable power supply.

◉ Whenever it is necessary to monitor the power circuit and switch to a backup power source, this device can be in place in one step.

◉ It is perfect for dual power systems with AC 50Hz and 400V.

◉ This device is also equipped with a set of dry output contacts for a backup generator, making startup and shutdown easier.
