Molded Case Circuit Breaker Dc Mccb
ICHYTI manufacturer was founded in 2008 and has accumulated ten years of experience in the molded case circuit breaker dc mccb. We pride ourselves on our ability to deliver your orders on time by carefully scheduling our production process. Prior to packing your order, we provide a production report to keep you updated on the progress. Additionally, we promptly send you a shipping notice and photos as soon as your order is shipped.
Send Inquiry PDF DownLoad
Product Description
China Suppliers ICHYTI Bulk molded case circuit breaker dc mccb is suitable for DC power grid circuits, with a rated voltage range of DC250V to DC1000V and a rated current of 10A to 1250A. molded case circuit breaker dc mccb has overload long delay protection and short-circuit instantaneous protection functions, which can be used to distribute electrical energy and protect lines and power equipment from overload, short circuit and other fault hazards. The shell of the circuit breaker is made of plastic material.
ICHYTI molded case circuit breaker dc mccb Parameter (Specification)
|
Type |
|
YTTM1-125/PV2 |
YTTM1-250/PV2 |
YTTM1-400 YTTM1-630 |
|
|
Pole |
|
2P |
|
|
|
|
Max Rated Current |
|
125A |
250A |
400A |
630A |
|
Electrical Characteristics |
|
|
|
|
|
|
Rated Working Voltage |
Ue |
500V DC |
|
|
|
|
Rated Current |
ln(A) |
63A.80A,100A.125A |
125A,160A,200A.250A |
315A |
500A |
|
Rated Insulated Voltage |
Ui |
550VDC |
|
350A |
630A |
|
Rated Impulsed Voltage |
Uimp |
8KV |
|
400A |
|
|
|
|
|
|
|
|
|
1Min Power Frequency Withstand Voltage |
|
3.8KV |
|
|
|
|
Ultimate Breaking Capacity |
leu |
15kA |
20kA |
25kA |
35kA |
|
Run Breaking Capacity |
les |
15kA |
20kA |
25kA |
35kA |
|
Protection |
|
Thermal Magnetic Type |
|
|
|
|
Tripping Type |
|
|
|
|
|
|
Control And Indication |
|
Optional |
|
|
|
|
Control Manual |
Direct(RHD) |
Optional |
164.5x79.5x118mm |
|
|
|
Exlended(ERH) |
Optional |
|
|
|
|
|
Mode MOD |
|
Optional |
|
|
|
|
Shunt Release(SHT) |
|
Optional |
|
|
|
|
Auxiliary Release |
|
Yes |
|
|
|
|
Terminal End Cover |
|
Yes |
|
|
|
|
Interphase Barriers |
|
|
|
|
|
|
Service Life/Cycle Operation |
|
|
|
|
|
|
Mechanical |
|
10000 |
|
|
|
|
Electrical |
|
2000 |
|
|
|
|
Size(LxWxH) |
|
150.5x64.5x119mm |
|
|
|
|
Ingress Protection |
|
An Sides IP40, Connection Terminal IP20 |
|
|
|
|
Installation Environment |
|
|
|
|
|
|
Comply With |
|
IEC60947-2/GB14048.2 |
|
|
|
|
Storage Temperature |
|
Y0C~+85C |
|
|
|
ICHYTI molded case circuit breaker dc mccb Feature
◉ The operating mechanism has quick closing and quick breaking functions.
◉ In the contact arc extinguishing system, the dynamic and static contacts are installed using the principle of parallel conductors. The static contacts are designed in an H-shape and can be repelled, which is conducive to rapid breaking under high current. Components made of high arc resistant materials are installed around the dynamic and static contacts, which is conducive to rapid arc extinguishing.
◉ Compact structure and small volume.
◉ Various models such as thermal magnetic, leakage current, DC, and intelligent have unified overall dimensions.
◉ Accessory independent installation unit, users only need to open the accessory cover to install and replace accessories.
◉ Mechanical and electrical interlocking can be installed between two circuit breakers.
◉ Zero or short flashover, safe and reliable operation.
◉ Easy to use, users can install on site.

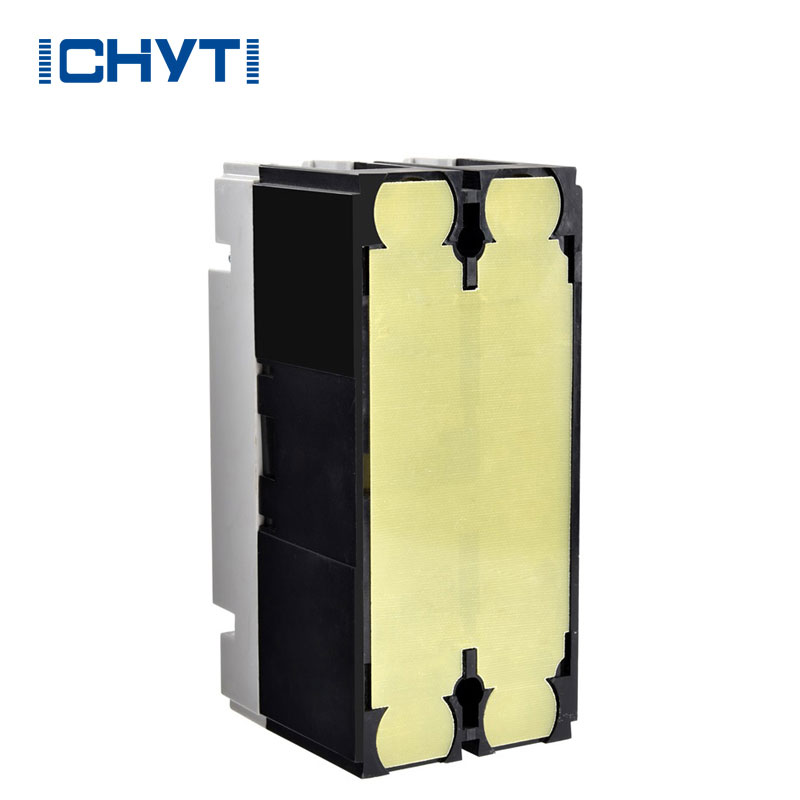

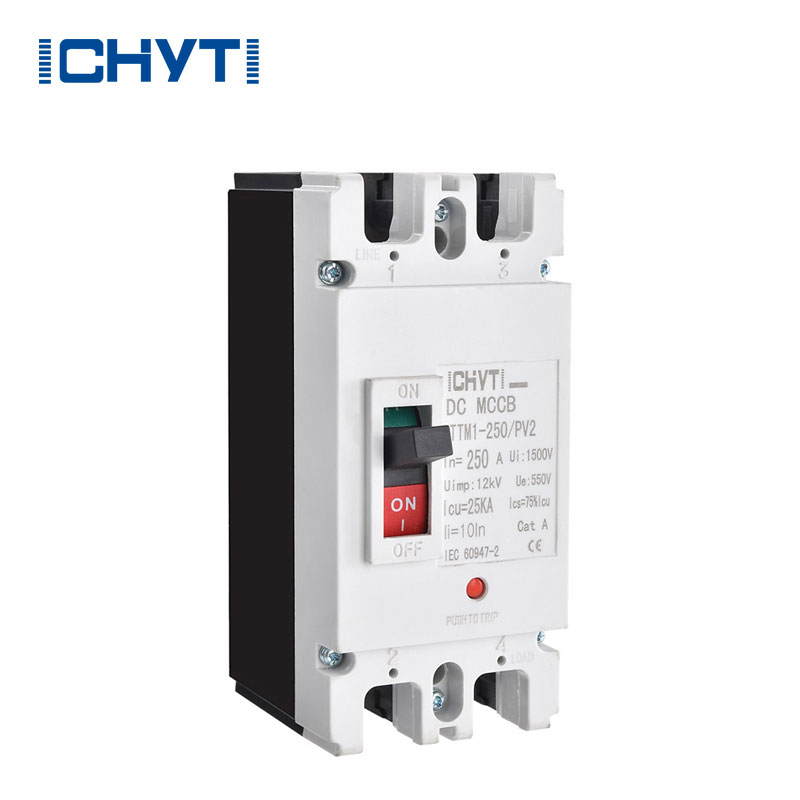

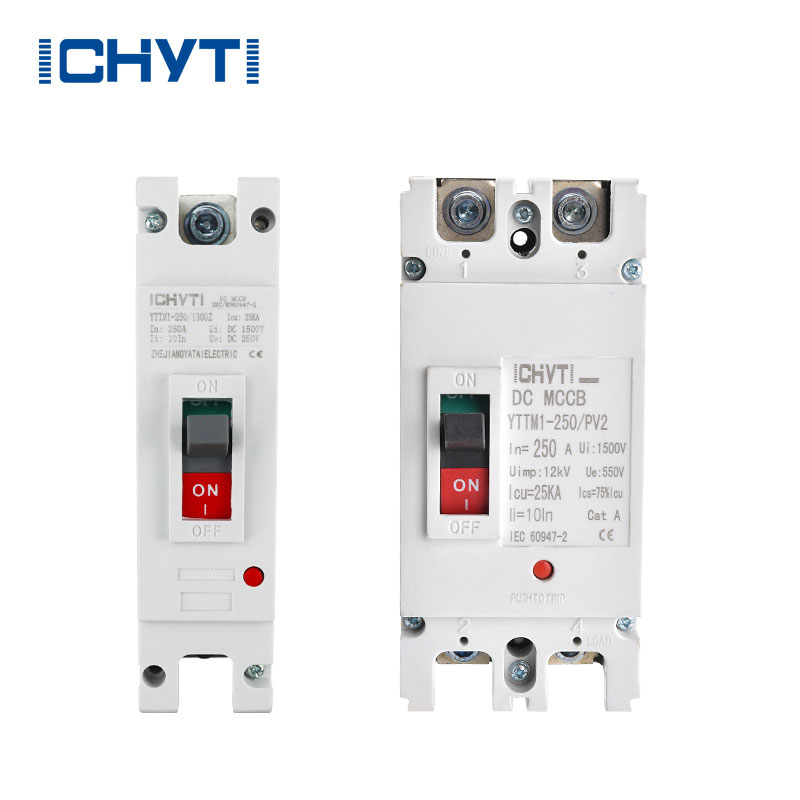

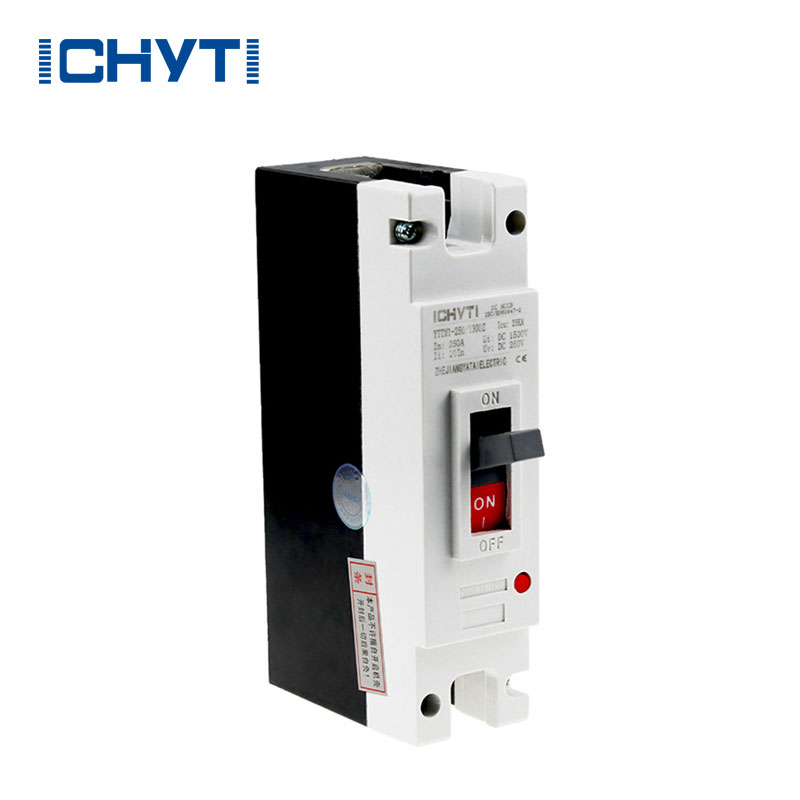

ICHYTI molded case circuit breaker dc mccb Details
ICHYTI molded case circuit breaker dc mccb Dimensions and wiring
ICHYTI molded case circuit breaker dc mccb Application
Molded case DC circuit breakers are suitable for DC power grid circuits with rated voltages ranging from DC250V to DC1000V and rated currents ranging from 10A to 1250A. The operating mechanism of this circuit breaker can quickly achieve closing and breaking functions, with a compact structure and small volume, making it very convenient to use.
