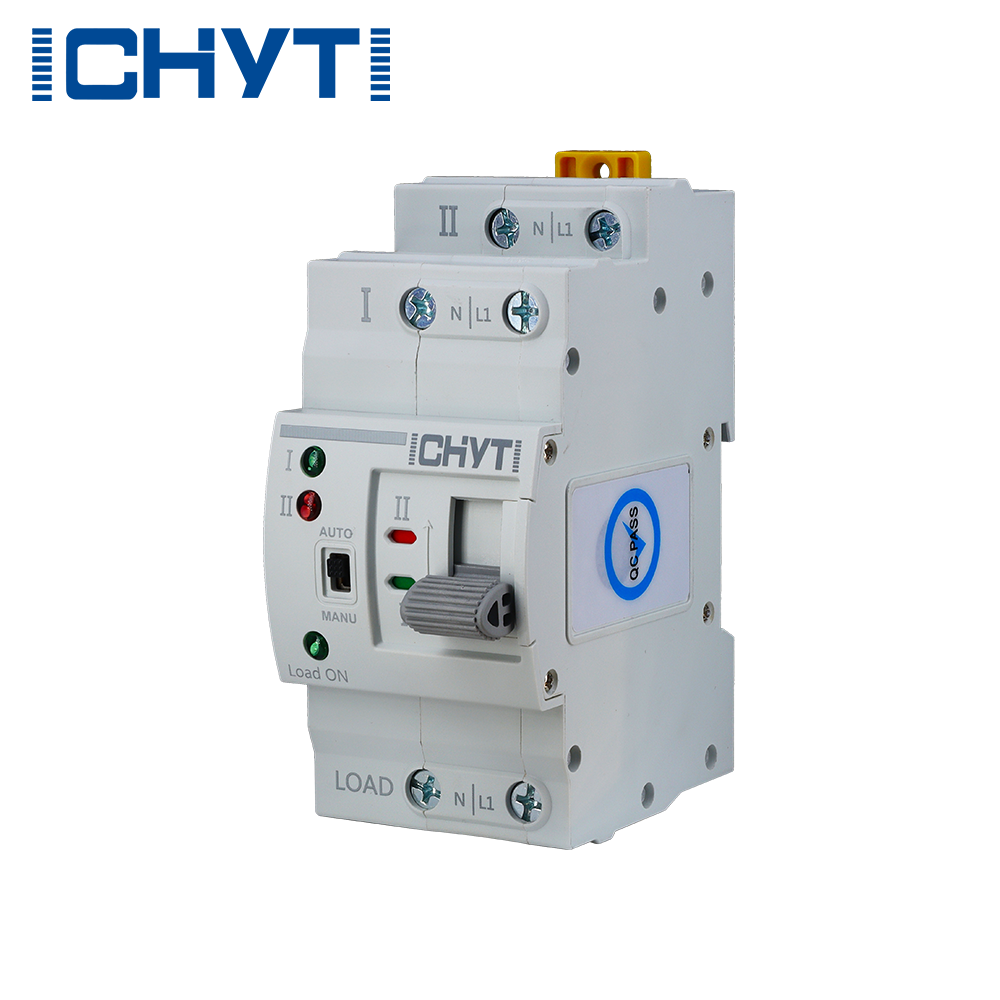

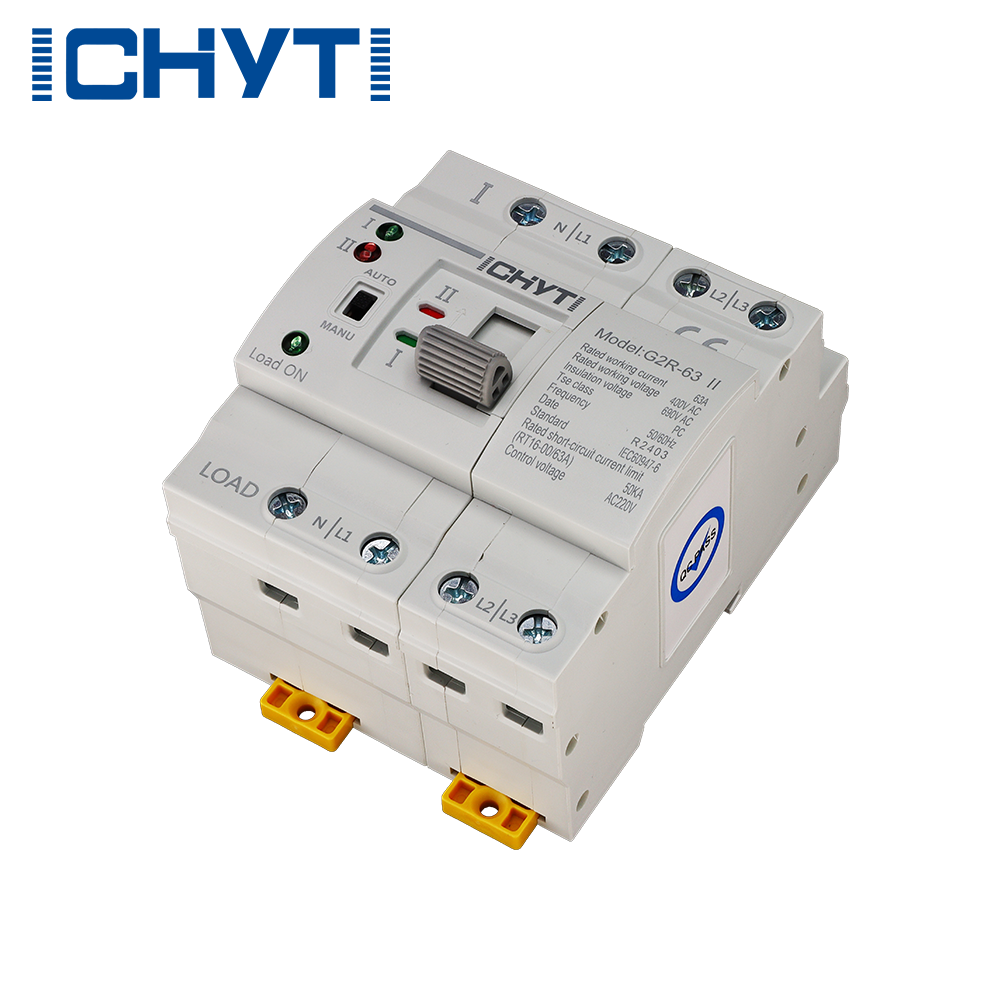

Single Phase 240v Auto Changeover Switch

China factory ICHYTI single phase 240v auto changeover switch can be customized according to your needs, and we guarantee that you can purchase with confidence. We look forward to working with you and are always ready to provide you with more information to help you solve any problems. Our laboratory complies with IEC international standards and can meet all product testing requirements. Let's believe together that ICHYTI single phase 240v auto changeover switch will be your most reliable choice.

Send Inquiry

Product Description

China ICHYTI is a supplier with excellent quality, and our single phase 240v auto changeover switch is a reliable product. This switch is widely used in production workshops, docks, airports, and data centers, providing users with safe and stable power supply. ICHYTI provides controllers with various functions to meet the needs of various applications. This product also offers a one-year warranty service, allowing users to purchase with greater confidence. I believe that ICHYTI low-priced single phase 240v auto changeover switch will make your work smoother and your life safer and more reliable.

ICHYTI single phase 240v auto changeover switch Parameter (Specification)

Case grade	63
Rated operating current le(A)	6A/10A/16A/20A/25A/32A/40A/50A/63A
Rated insulation voltage UI	690V
Rated impulse withstand voltage Uimp	8kV
Rated working voltage Ue	AC220V/AC110V
Rated frequency	50/60Hz
Class	PC class: can be switched on and loaded without generating short-cicuit current
Polenumber	2P 4P
Rated short-circuit current lq	50kA
Short circuit protection device (fuse)	RT16-00-63A
Rated impulse withstand voltage	8kV
Control circuit	Rated control voltage Us:AC220V,50Hz Normal working conditions: 85%Us-110%Us
Auxiliary circuit	AC220V/110V 50Hzle=5A
Contactor change-over time	<50ms
Operation change-over time	<50ms
Return change-over time	<50ms
Power off time	<50ms
Change-over operation time	<50ms
Mechanical life	≥8000 times
Electrical life	≥1500times
Usage category	AC-31B

ICHYTI single phase 240v auto changeover switch Feature

This ATS automatic transfer switch has multiple advantages, allowing users to enjoy more convenience during use. Firstly, it can save installation space and costs, allowing users to achieve more benefits with less cost. Secondly, its compact size allows it to be easily installed in smaller switchgear, saving more space. In addition, it can also reduce downtime, lower maintenance costs, and enable users to gain more benefits with lower costs. Most importantly, its key modules have predictive maintenance, self diagnosis, and customer replaceable functions, allowing users to easily respond to any abnormal situations. Finally, it is also very convenient to use, with a user-friendly controller interface that can be installed on the ATS body or door panel.
