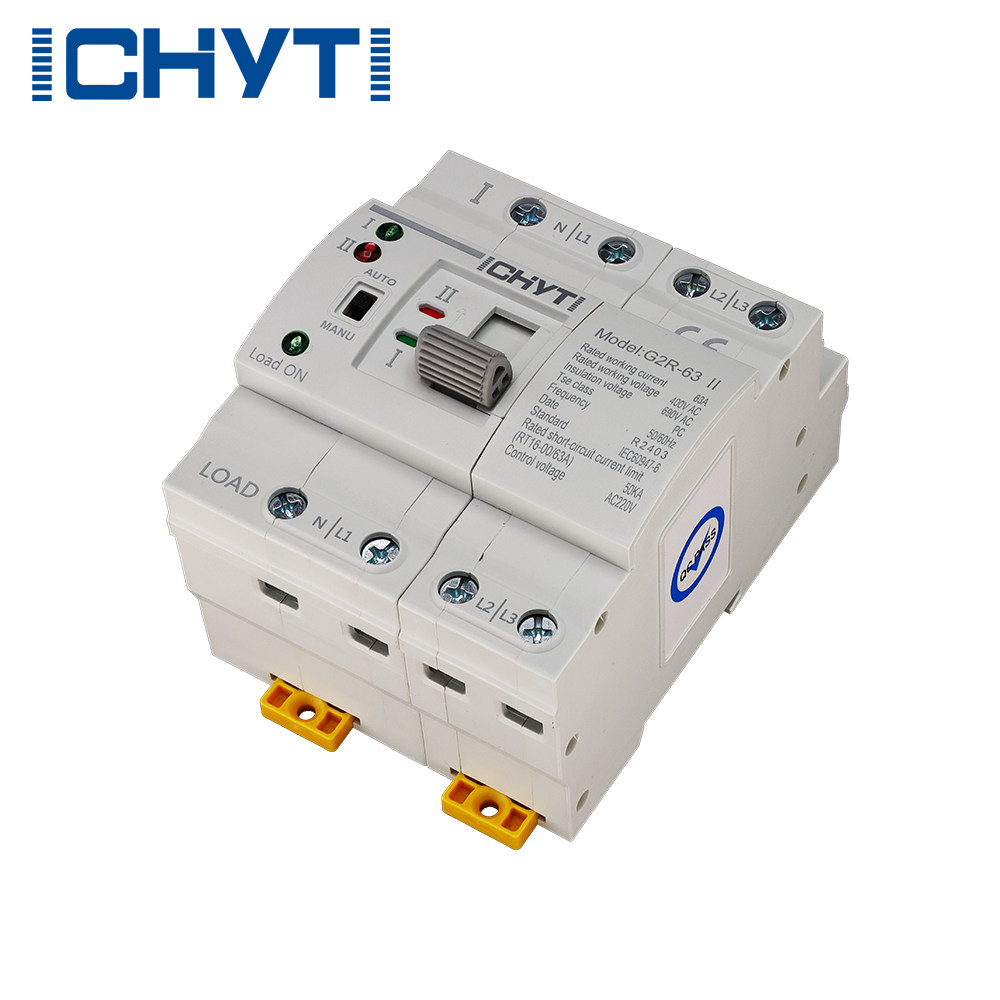

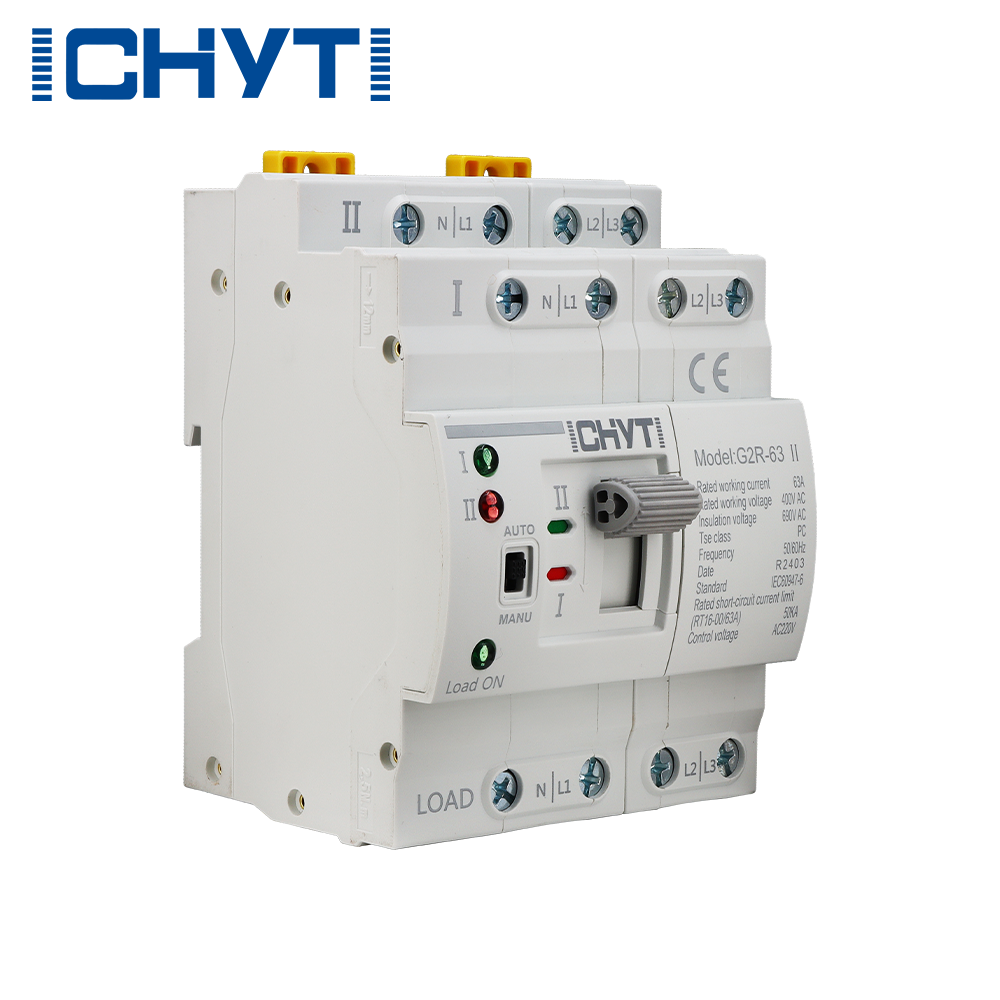

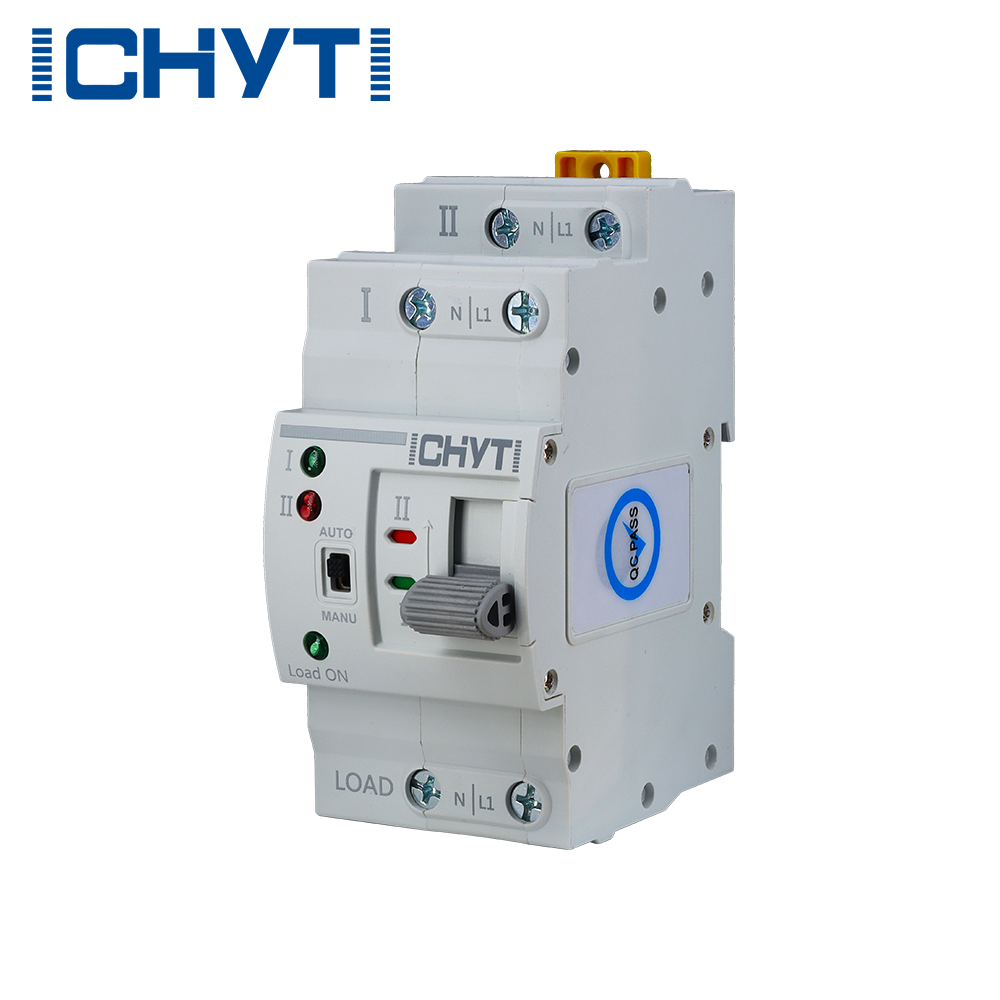

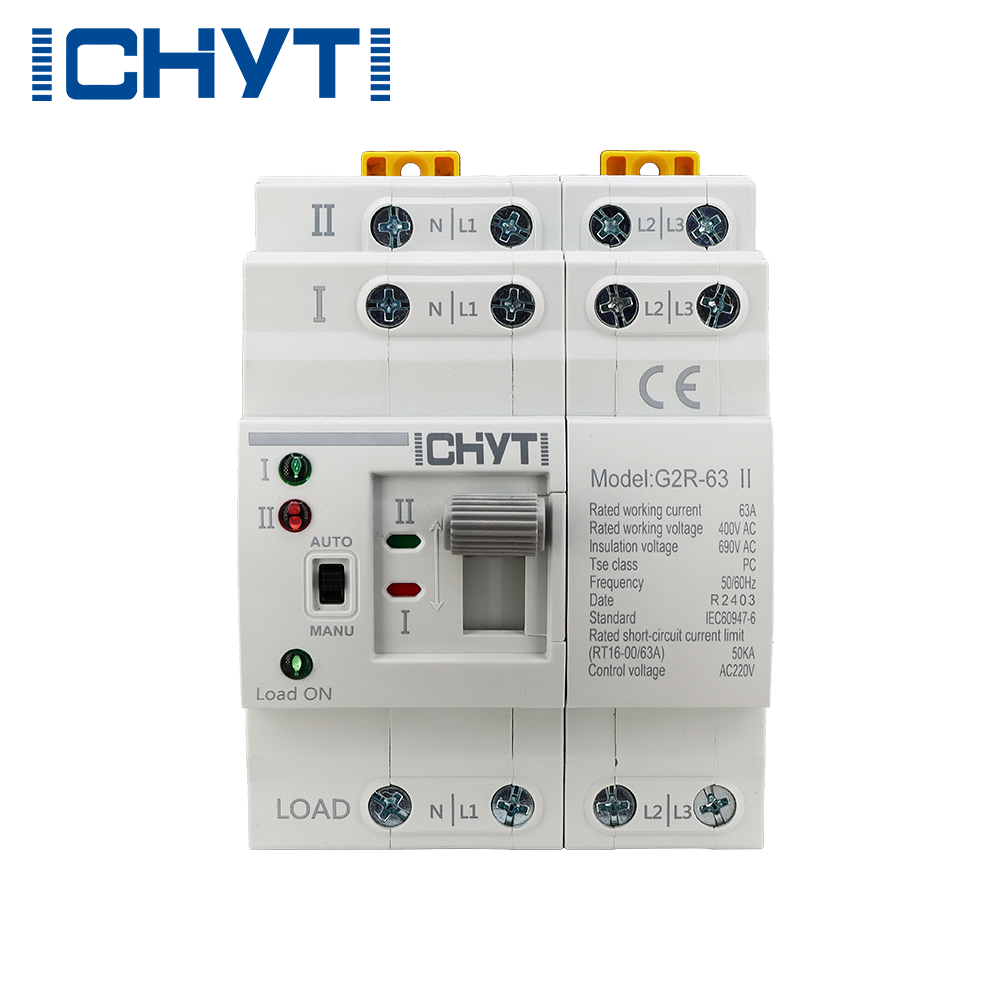

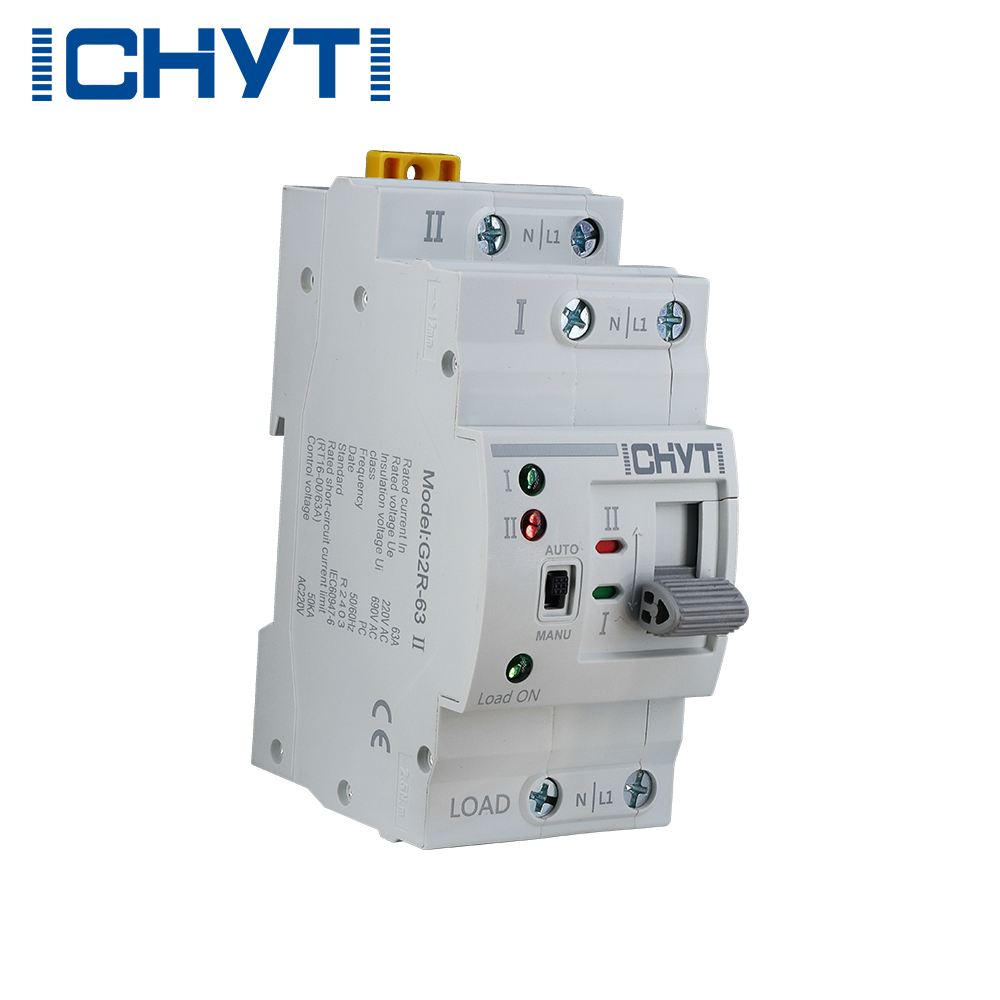

Single Phase ATS Automatic Changeover Switch

China ICHYTI is a high-tech global supplier approved by MID, dedicated to the design, development, manufacturing, and export of single phase ats automatic changeover switch. We have maintained a leading position in the past decade, continuously developing new products and improving existing ones based on market demand and international standards using the latest technological methods. Our vision is to become a leader in the industry and provide customers with the best products and services. We believe that through continuous efforts and innovation, we will constantly surpass ourselves and achieve greater success.

Send Inquiry

Product Description

ICHYTI Factory customized single phase ats automatic changeover switch price list is an efficient and safe electrical equipment that includes multiple switching devices and other necessary appliances. It can automatically detect power circuits and achieve fast switching of load circuits, thereby achieving seamless power conversion. This type of equipment is widely used in various electrical equipment and occasions, and is highly welcomed by customers for its high efficiency, safety, and reliability. Our ICHYTI has always adhered to the business philosophy of "integrity, quality, and innovation", constantly innovating and providing customers with higher quality products and services.

ICHYTI single phase ats automatic changeover switch Parameter (Specification)

Case grade	63
Rated operating current le(A)	6A/10A/16A/20A/25A/32A/40A/50A/63A
Rated insulation voltage UI	690V
Rated impulse withstand voltage Uimp	8kV
Rated working voltage Ue	AC220V/AC110V
Rated frequency	50/60Hz
Class	PC class: can be switched on and loaded without generating short-cicuit current
Polenumber	2P 4P
Rated short-circuit current lq	50kA
Short circuit protection device (fuse)	RT16-00-63A
Rated impulse withstand voltage	8kV
Control circuit	Rated control voltage Us:AC220V,50Hz Normal working conditions: 85%Us-110%Us
Auxiliary circuit	AC220V/110V 50Hzle=5A
Contactor change-over time	<50ms
Operation change-over time	<50ms
Return change-over time	<50ms
Power off time	<50ms
Change-over operation time	<50ms
Mechanical life	≥8000 times
Electrical life	≥1500times
Usage category	AC-31B

ICHYTI single phase ats automatic changeover switch Feature

The double row composite contact lateral connection mechanism adopts micro motor pre energy storage and microelectronic control technology, bringing us a safe and reliable technological innovation. It applies zero crossing technology, further improving its performance. The safety performance of this institution is excellent, very stable and reliable. At the same time, the micro motor pre storage and microelectronic control technology developed and applied in the horizontal traction mechanism of the double row composite contact has basically achieved the functions of no flicker and no arc extinguishing cover. In terms of structural design, reliable mechanical and electrical interlocks are adopted to ensure its safe operation. The application of zero crossing technology can forcibly reset and cut off two power sources, achieving safety protection in emergency situations. In addition, the institution also has functions such as switch position indication and padlock to achieve power and load isolation. We believe that this technological innovation will bring more efficient, safer, and more convenient performance to our production and life.
