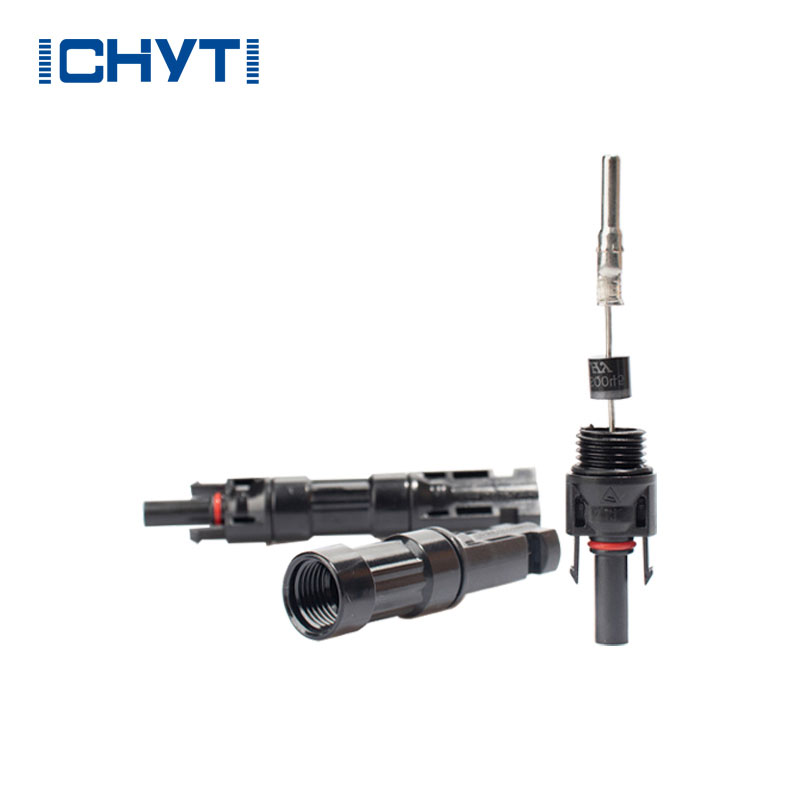

  • Solar Diode ConnectorSolar Diode Connector

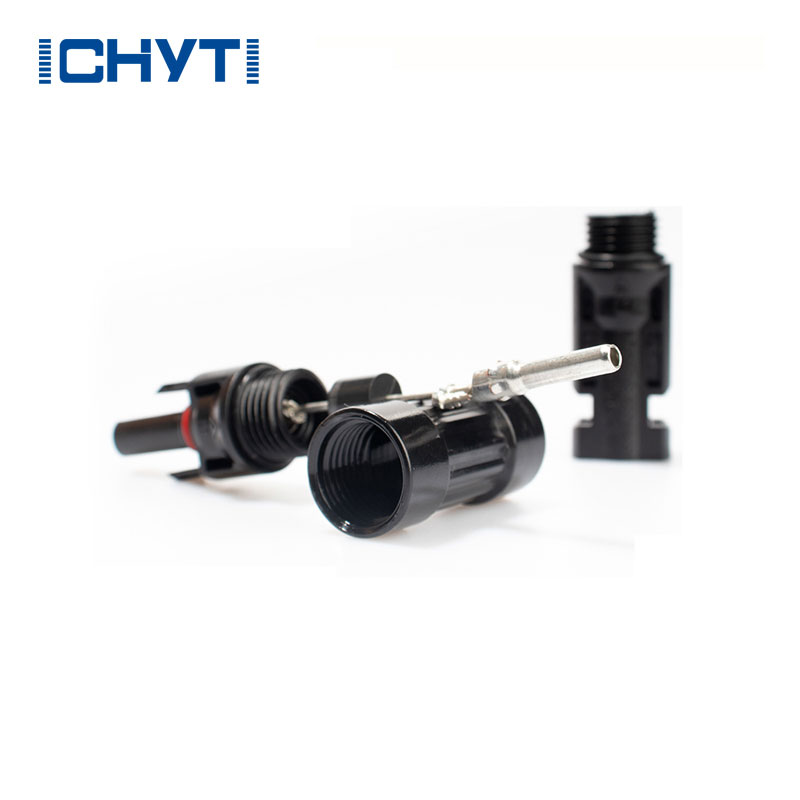

  • Solar Diode ConnectorSolar Diode Connector

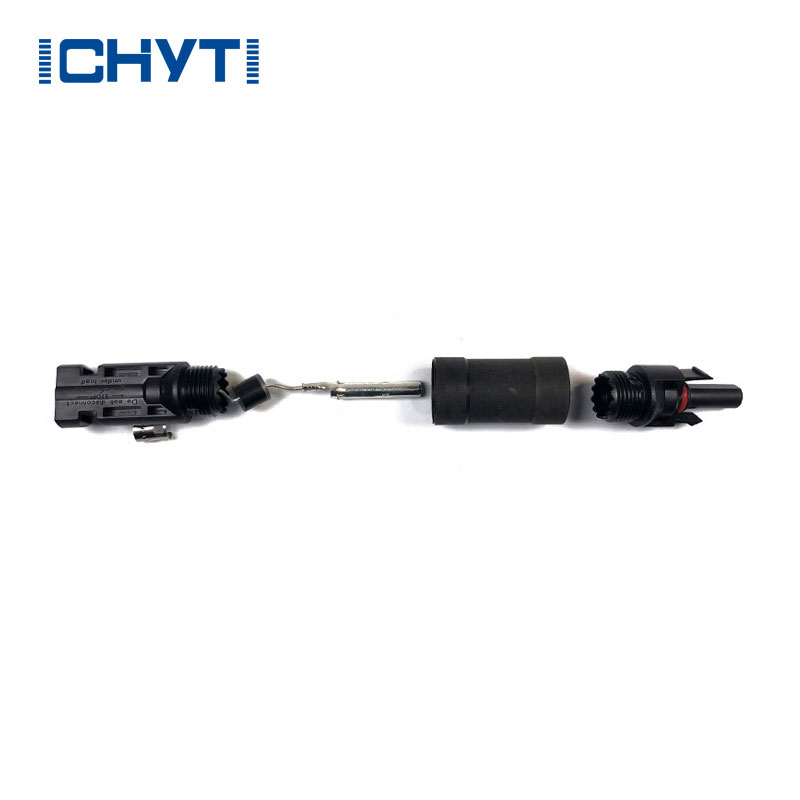

  • Solar Diode ConnectorSolar Diode Connector

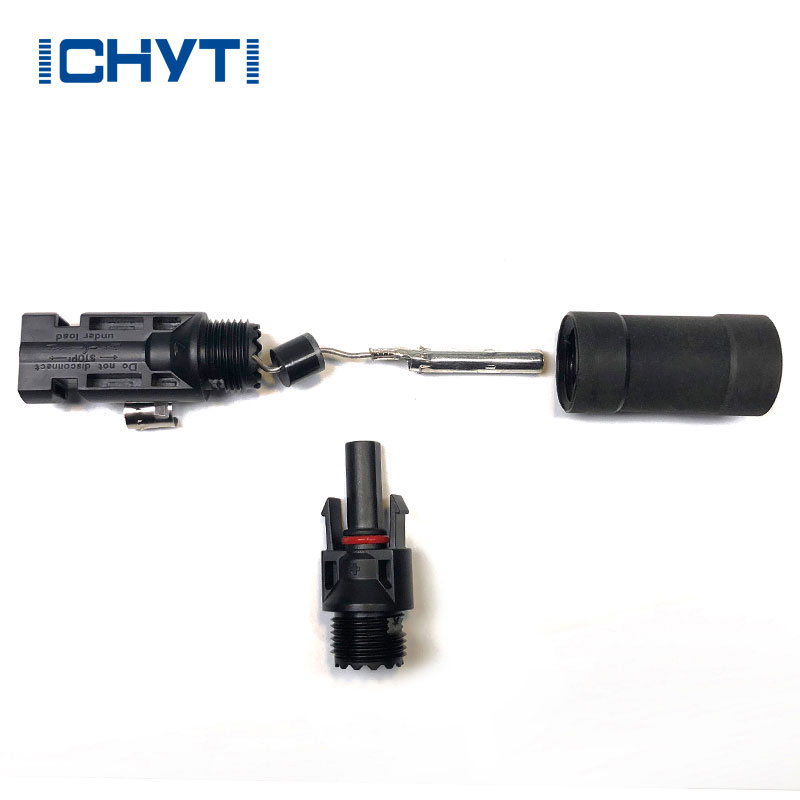

  • Solar Diode ConnectorSolar Diode Connector

Solar Diode Connector

ICHYTI factory focuses on researching, developing, and innovating solar diode connector. Alongside this, ICHYTI offers a variety of solar products that are suitable for specific occasions. Through customization, ICHYTI is able to cater to the diverse requirements of its customers. Furthermore, ICHYTI provides short delivery times, specialized installation guidance, and comprehensive after-sales services, including model selection assistance.

Send Inquiry    PDF DownLoad

Product Description

China Suppliers ICHYTI Buy Discount solar diode connector is equipped with built-in diodes, allowing customers to choose from different specifications. Customers can choose based on the current and voltage of the system to ensure the normal operation and safety of the photovoltaic system. solar diode connector is a generator contact surface specifically designed for the installation and protection of photovoltaic systems, which matches the terminals of FMC4 series products and can be used in conjunction with general-purpose MO connectors. Mainly used to protect products before and after confluence components.



ICHYTI solar diode connector Parameter (Specification)

Technical Data



Adapting Current

10Az1 5A

Rated Voltage

1000V DC

Test Voltage

6kV(50HZ,1min)

Overvoltage Category/Pollution Degree

CAT III /2

Contact Resistance Of Plug Connector

0.5mQ

Contact Material

Copper, Tin-plated

Insulation Material

PPO

Degree Of Protection

IP2*/IP67

Flame Class

UL94-VO

Safety Class

II

Insertion Force/ Withdrawal Force

< 50N/> 50N

Connecting System

Crimp connection

Temperature Range

-40℃- + 85℃


ICHYTI solar diode connector Feature

 Features low power loss

 The device has automatic locking function, facilitating the connection of male and female points

 Connection is simpler and more reliable during installation

 Possess anti-aging and UV resistant properties

 The equipment casing has a radiation effect

 The device has a popular appearance and is suitable for most on-site installation scenarios

 Simple on-site processing

 Convenient equipment installation and strong universality



ICHYTI solar diode connector Details

 Designed for solar, Real material, don't worry about it.

 IP67 Waterproof grade, High grade waterproof and dustproof design increases the service life and safety of products.

 Thickened copper core , Thickened all copper inner core faster transmission and more durable.

Solar Diode Connector



ICHYTI solar diode connector Dimensions and wiring

Solar Diode Connector
