Solar Panel Wire Connectors

ICHYTI offers a wide range of solar panel wire connectors made in China, along with exceptional after-sales service and competitive pricing. We are excited to collaborate with you and provide you with top-quality new energy products, including solar distribution systems, DC MCCBs, DC surge protectors, DC fuses, PV combiner boxes. Our power distribution systems cater to the construction industry and include ATS MCBs and MCCBs, enabling you to transition from AC to DC systems seamlessly. With our enriched product line, ICHYTI has become the preferred choice for one-stop service sourcing centers for customers.

Send Inquiry PDF DownLoad

Product Description

China Suppliers ICHYTI Durable solar panel wire connectors In Stock is suitable for connecting 2.5 square millimetre, 4 square millimetre and 6 square millimetre solar cables, enabling the solar cable to be quickly and reliably connected to the solar panel converter of the photovoltaic system. solar panel wire connectors is compatible with the multi contact 4 connector, making it easy to use and connect.

ICHYTI solar panel wire connectors Parameter (Specification)

Connector system	①4mm
Rated voltage	1500V DC(IEC)1 1000V/ 1500V DC(UL)2
Rated current	17A(1.5mm2)
	22A(2.5mm2,14AWG)
	30A(4mm2/6mm2/12AWGJ0AWG)
Test voltage	6kV(50HZJmin)
Ambient temperature range	-40℃-+90℃(IEC) -40℃- + 75℃(UL)
Upper limiting temperature	+ 105℃(IEC)
Contact material	Copper, Tin-plated
Insulation material	PC/PV
Degree of protection, mated	IP67
unmated	IP2X
Contact resistance of plug connectors	0.5mQ
Flame class	UL94-VO
Safety class	II
Locking system	Snap-in
Salt mist spray test, degree of severity 5	IEC60068-2-52

ICHYTI solar panel wire connectors Feature

◉ Sound insulation photovoltaic cables have different insulation diameter designs;

◉ The positive and negative poles can achieve efficient seamless connection and high protection level;

◉ The seamless design of cables can effectively achieve waterproof and dustproof effects;

◉ The use of tinned copper material can effectively reduce resistance impedance and resist oxidation.

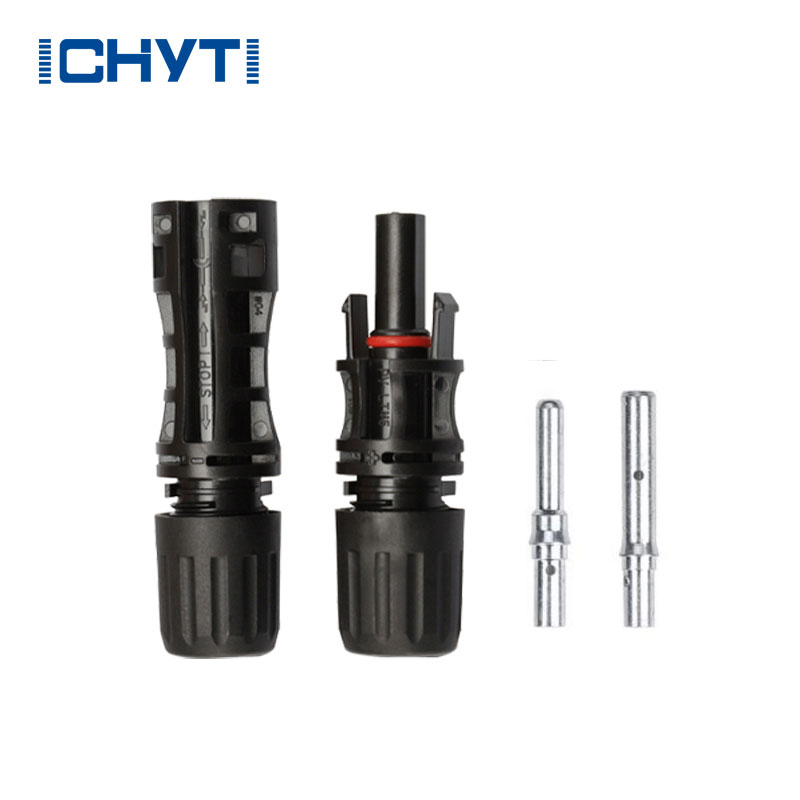

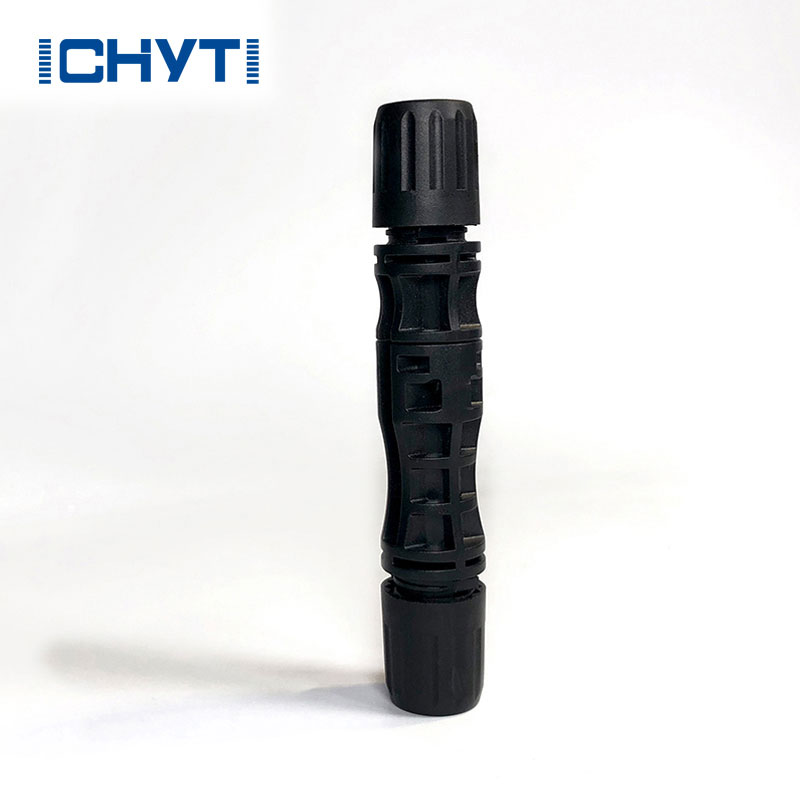

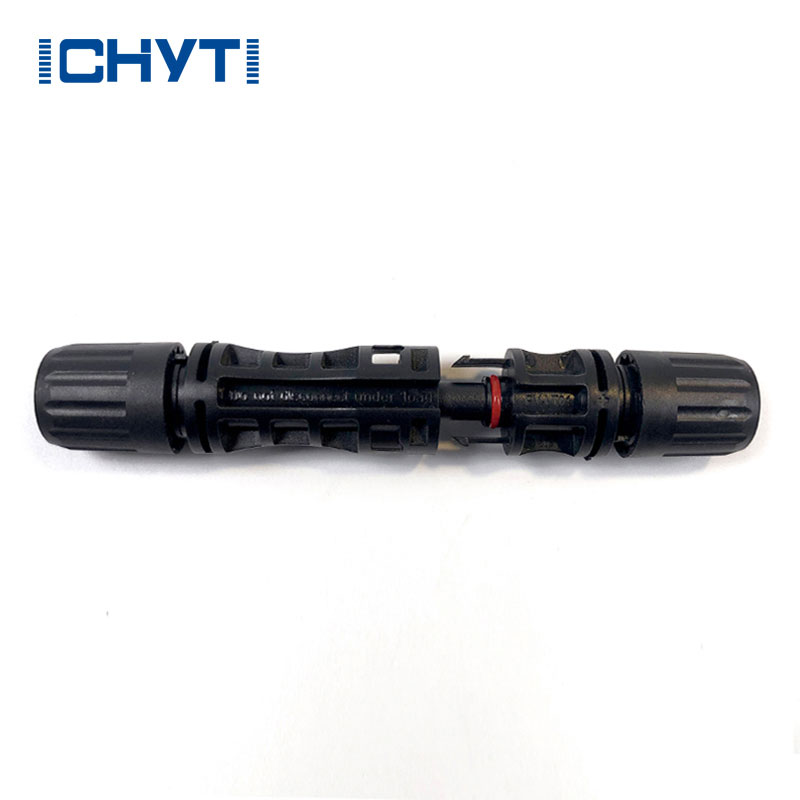

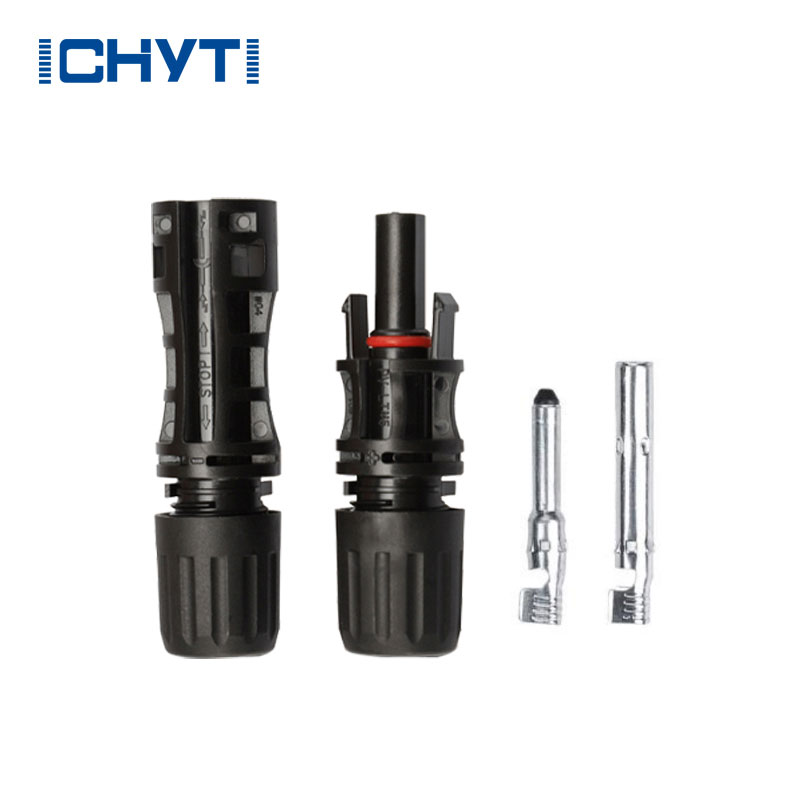

ICHYTI solar panel wire connectors Details

Solar Panel Wire Connectors

ICHYTI solar panel wire connectors Dimensions and wiring

Solar Panel Wire Connectors

ICHYTI solar panel wire connectors FAQ

Q: Do all solar panels use MC4 connectors?

A: MC4 solar connectors are the standard for modern solar panel systems. These connectors have a durable IP67 rating, which ensures their waterproof and dustproof capabilities. They are compatible with both 4mm and 6mm solar wires and offer reliable performance in a variety of weather conditions.

Q: What are solar connectors called?

A: CHYT MC4 connectors are a standard type of single-contact electrical connectors that are widely employed for interconnecting solar panels.

Q: What is a PV connector?

A: Photovoltaic connectors are utilized in solar energy applications for the purpose of linking solar panels together in arrays. They provide compatibility between power interfaces for various manufacturers.
