Quick Connect Solar Connectors

CHYT is one of the professional Quick Connect Solar Connectors manufacturers and suppliers in China. Our products are CE certified and have in stock of factory, welcome to wholesale Quick Connect Solar Connectors from us.

Our connectors are designed with the latest innovation in solar panel technology, making installation faster, easier, and more efficient. With our Quick Connect technology, installation times can be reduced by up to 50%, drastically reducing installation costs and providing a more convenient experience for both installers and customers.

But our Quick Connect Solar Connectors aren't just efficient - they're also built to last. Constructed with high-quality, durable materials, our connectors are designed to withstand even the harshest of weather conditions, ensuring that your solar panel installation remains secure and reliable for years to come.

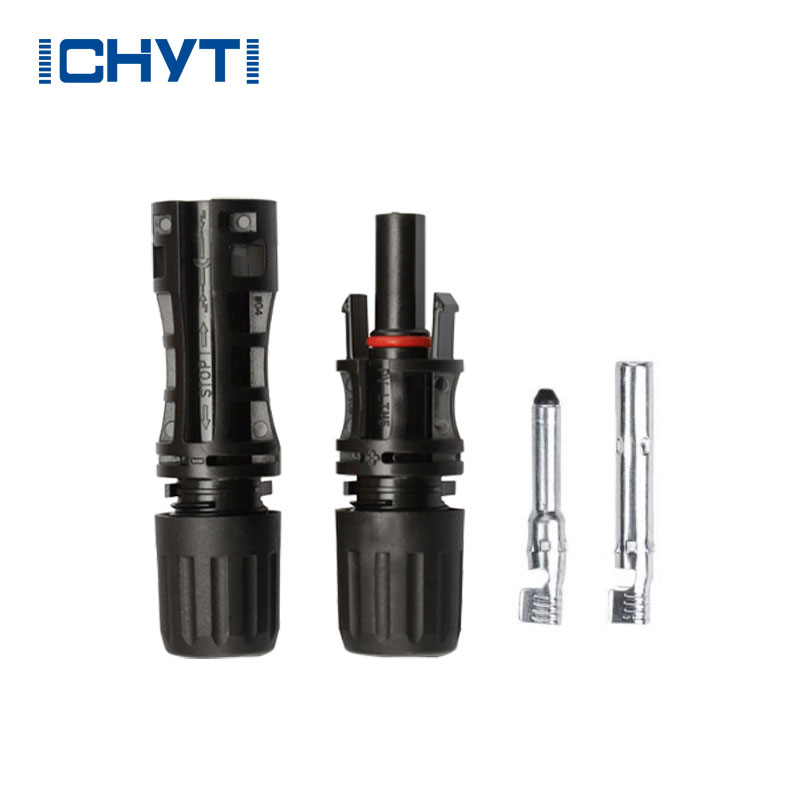

ICHYTI solar panel cable connectors Parameter (Specification)



ICHYTI solar panel cable connectors Performance Requirement

◉ Photovoltaic connectors should have good conductivity, and the contact resistance should not exceed 0.35 milliohms.
◉ It is necessary to have sufficient safety performance to ensure the safety performance of solar cell components. The environment and climate in which solar energy equipment is used can sometimes be extremely harsh, so it must have waterproof, high-temperature resistant, anti-corrosion, high insulation and other performance, and the protection level should reach IP68.
◉ The structure of the solar connector should be firm and reliable, and the male and female connectors that are correctly inserted should have a connection force of not less than 80N. For connection 4mm ² The MC4 connector of the cable should not exceed the upper limit temperature of 105 degrees Celsius when carrying 39A current. The MC4/H4 connector is a single core connector with male and female connectors, which has many advantages such as good sealing, convenient insertion, and easy maintenance and repair.

ICHYTI solar panel cable connectors Details

ICHYTI solar panel cable connectors Dimensions and wiring



ICHYTI solar panel cable connectors Installation precautions

When selecting a plug, attention should be paid to product quality, including compliance with the size of the internal metal conductor, material thickness, elasticity, and coating that meet the ability to carry large currents and have good contact. The plastic of the plug shell should ensure a smooth surface without cracks, and the interface should be well sealed. When installing component connectors, it is necessary to avoid exposure to sunlight and rain, in order to avoid aging of the connectors, corrosion of internal connectors and cables, increase of contact resistance, and even ignition, leading to a decrease in system efficiency or fire accidents.

The installation and crimping process of photovoltaic connectors are of utmost importance, and professional crimping tools should be used. Before the construction of photovoltaic power plants, relevant engineering installation personnel should receive training on crimping operations.
