Product Description

https://youtu.be/SHpoVNGZbuM

China Manufacturers ICHYTI Latest Selling 3 phase ac surge protection device Brands are suitable for installation in AC 50/60Hz, 380V TN-STN-C-STATIT and other power systems, and are used at the connection point between LPZ1 or LPZ2 and LPZ3. It is designed in accordance with IEC61643-1 and GB188021 standards, using a 35mm standard rail surge protective device module and equipped with a fault release device.

ICHYTI 3 phase ac surge protection device Parameter (Specification)

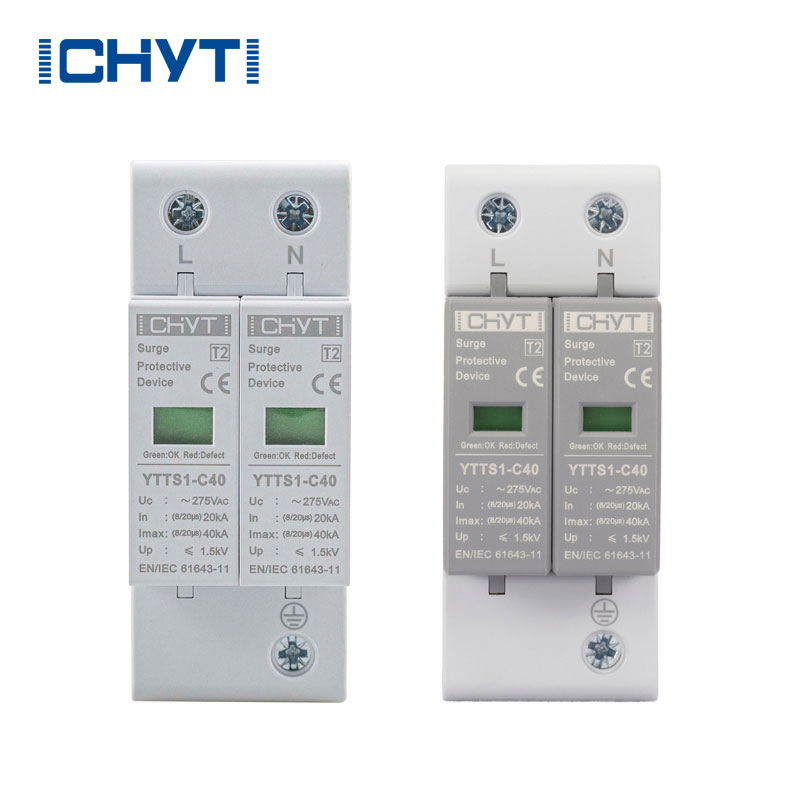

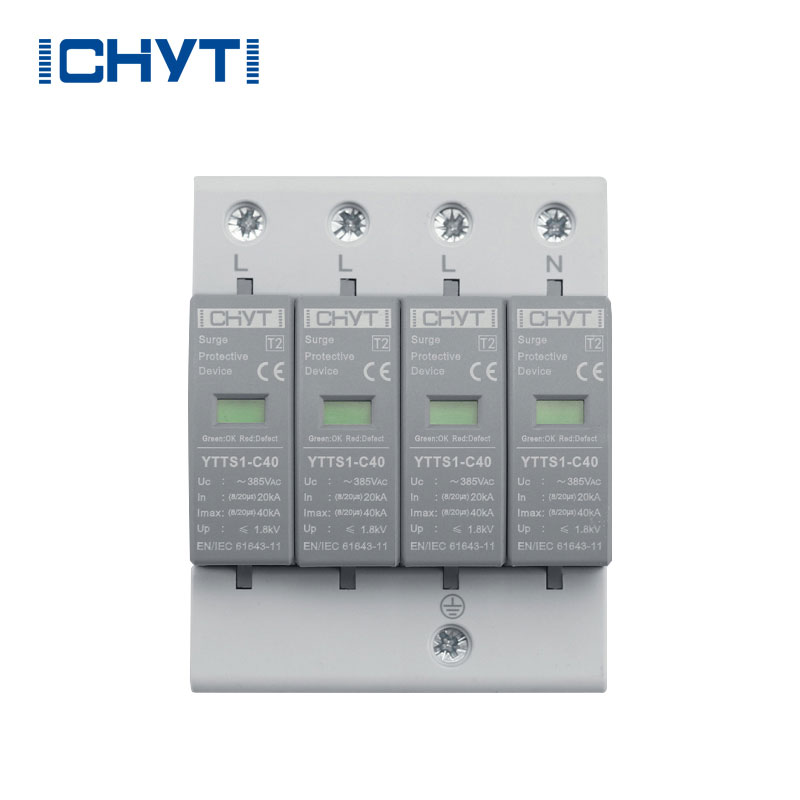

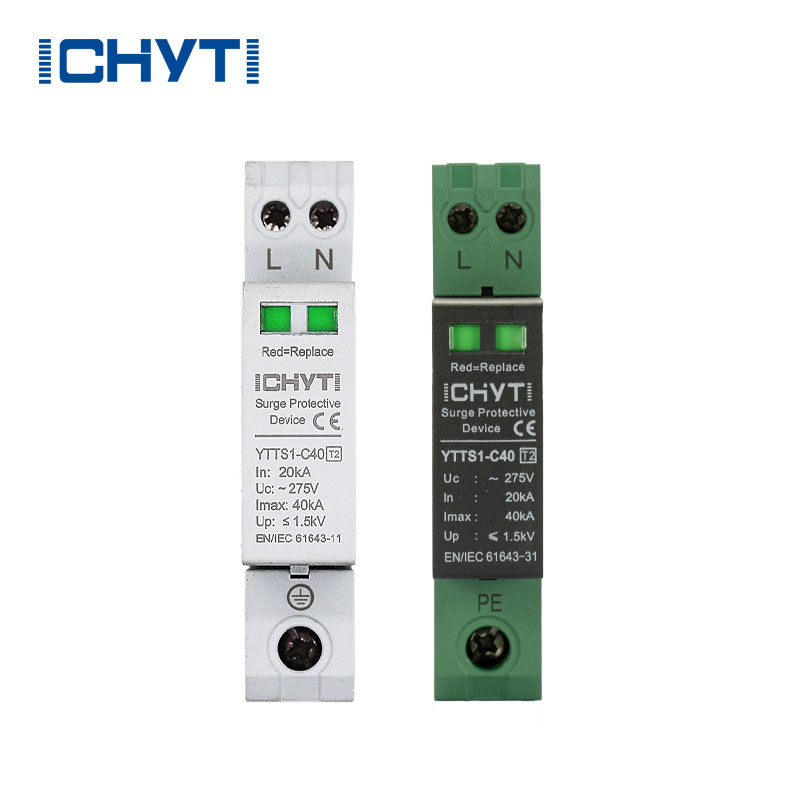

Product Model	YTTS1-C40
Pole	1P+N	2P	4P
Rated Frequency	One port
SPD Category	Combined type
Test Category	Class n test
Maximum Continuous Operating Voltage Uc	275VAC	275VAC	385VAC
Voltage Protection Level Up(8/20ps)	<1.5kV	<1.5kV	<1.8kV
Nominal Discharge Current ln(8/20ps)	20kA
Maximum Discharge Current Imax(8/2O\|JS)	40 kA
Response Time tA	<25ns
Size	18x90x72	36x90x72	72x90x72
Failure Indication	Green: Normal Red: Failure
Sectional Area Of Wires	6~25mm2

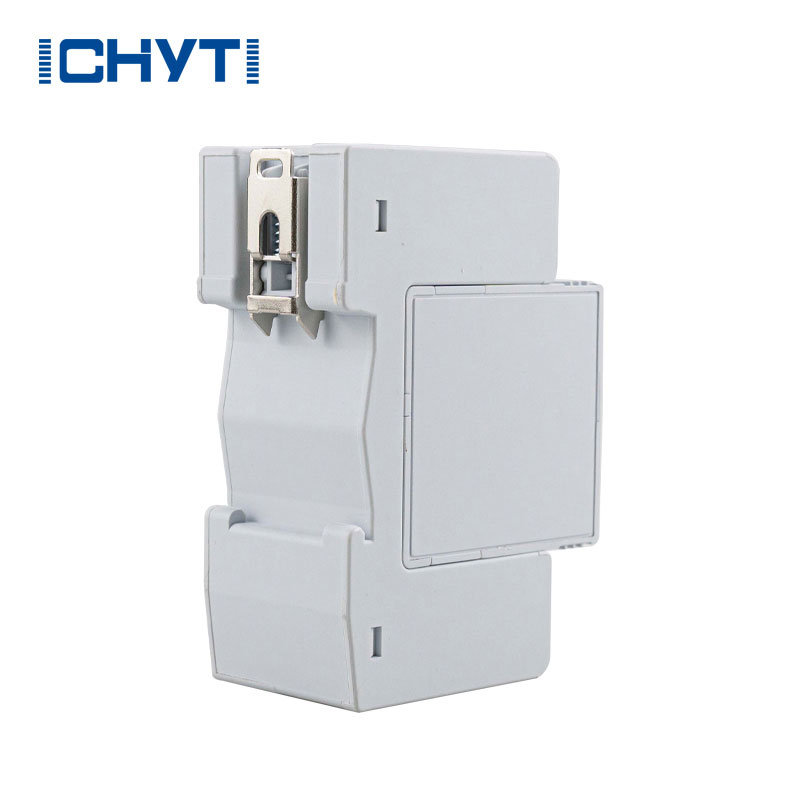

Installation Method	35mm standard rail
Working Environment Temperature	-40℃~+85℃
Sheathing Material	Plastic
Protection Level	IP20
Executive Standard	I EC 61643-11

ICHYTI 3 phase ac surge protection device Feature

The TN-S or TNC-S system is an electrical system in which the neutral and grounding wires are separated at the starting point through a cable to protect the grounding connection. This system is usually connected to transformer grounding to minimize cable breakage and L-PE faults. However, the cost of this system is relatively high, whether in terms of cables, installation, or maintenance.

ICHYTI 3 phase ac surge protection device Details

ICHYTI 3 phase ac surge protection device Dimensions and wiring

ICHYTI 3 phase ac surge protection device Basic components

The discharge gap, also known as the protective gap, is usually composed of two metal rods spaced at a certain distance, exposed to air.

Gas discharge tube is composed of a pair of mutually separated cold cathode plates, sealed in glass tube or ceramic tube filled with inert gas (such as argon).

varistor is a metal oxide semiconductor nonlinear resistor, whose main component is ZnO, and its resistance is very sensitive to voltage.

The suppression diode has a clamping and voltage limiting function, which can be used as the last few protection components in multi-level protection circuits. It has the advantages of low clamping voltage and fast action response.

Choke coil is a common mode interference suppression device that uses ferrite as the magnetic core.

14 wavelength short circuit breaker is a microwave signal surge protection device made based on the spectrum analysis of lightning waves and the standing wave theory of antenna and feeder lines.
