3 Phase Ac Surge Protector

China suppliers ICHYTI 3 phase ac surge protector is suitable for IT, TT, TN-C, TN-S, TN-C-S and other power systems with AC rated voltage up to 380V at 50/60Hz. 3 phase ac surge protector can protect against the direct and indirect effects of lightning voltage and other transient overvoltage on the system.

ICHYTI 3 phase ac surge protector Parameter (Specification)

ICHYTI 3 phase ac surge protector Feature

◉ Internal overcurrent and overheating protection temperature control can be used for circuit breaker protection.

◉ Suitable for different power supply systems, available in three options: 1P+N, 2P, and 4P.

◉ The dual thermal isolation switch device can provide reliable protection measures.

◉ It has functions such as dust prevention and corrosion prevention.

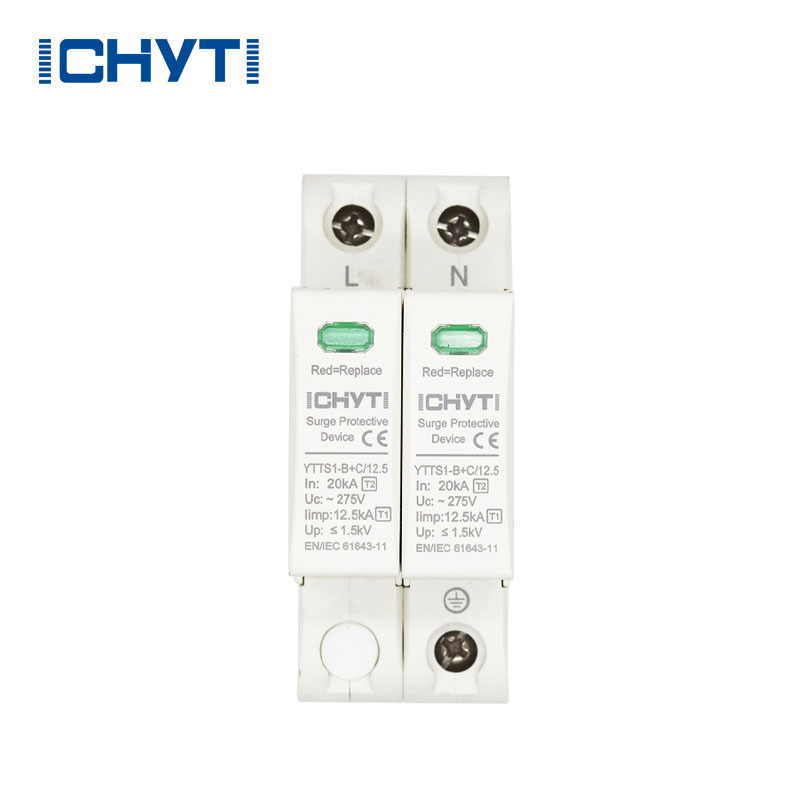

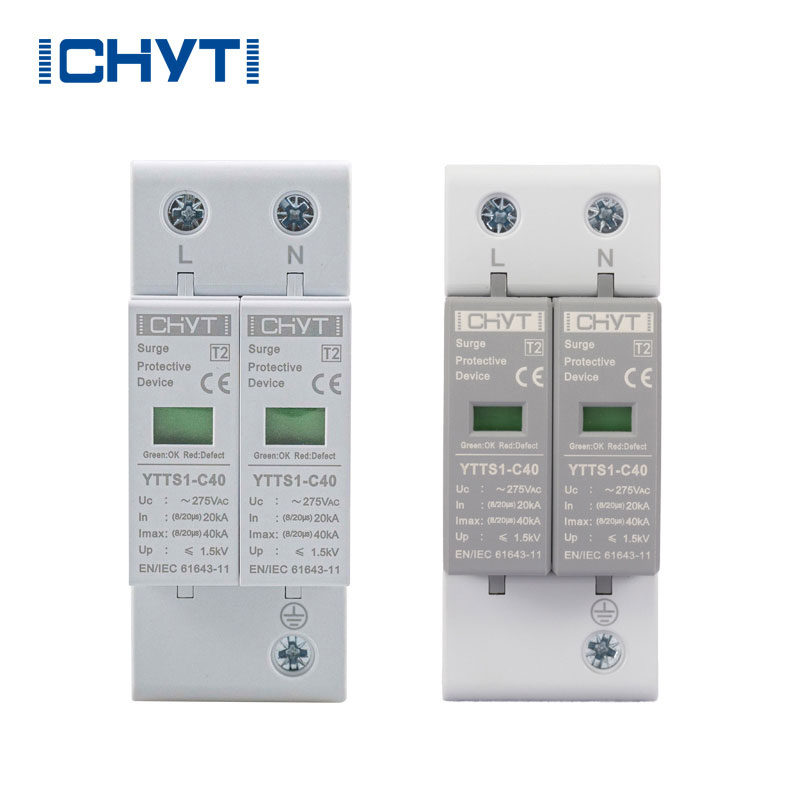

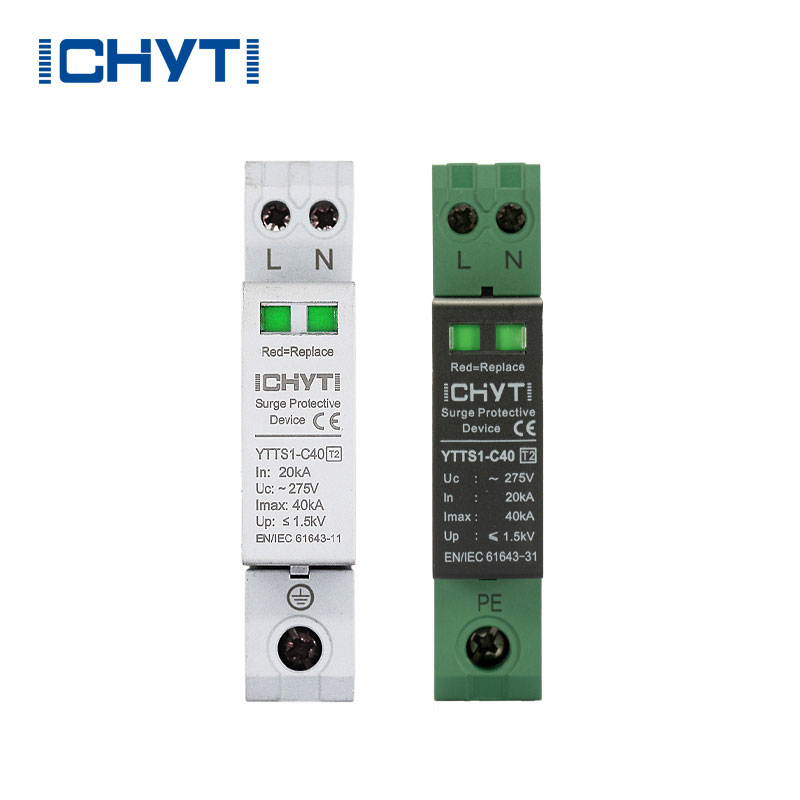

ICHYTI 3 phase ac surge protector Details

ICHYTI 3 phase ac surge protector Dimensions and wiring

ICHYTI 3 phase ac surge protector FAQ

Q: Can SPD work without earthing?

A: Grounding is an essential component that is necessary for effective surge protection. Surge protectors do not work on ungrounded outlets as they typically use metal oxide varistors (MOVs) to divert excess current into the ground line.

Q: Does an SPD need a breaker?

A: It is recommended that SPDs be connected via a circuit breaker that is appropriately rated, rather than directly into the main lugs of the panel. In cases where circuit breakers are not feasible or not available, a fused disconnect switch should be utilized to connect to the lines and enable easy servicing of the SPD.

Q: Which is better Type 1 or Type 2 SPD?

A: CHYT Type 1 SPD is identified by a current wave of 10/350µs and is characterized as a surge protection device that provides protection against direct lightning strikes on or near a building. On the other hand, Type 2 SPD is regarded as the primary protection system for all low voltage electrical installations. It is installed in every electrical switchboard to impede the spread of overvoltages in the electrical system and safeguard the loads against damaging surges.
