Type 2 Ac Surge Protection Device

We sincerely welcome you to our factory to purchase our best-selling, cost-effective, and high-quality type 2 ac surge protection device. We look forward to collaborating with you. As a leading technology enterprise, ICHYTI Electric has an experienced and efficient collaborative technology research and development team, which has obtained multiple independent intellectual property rights and actively collaborates with industry-leading professional research institutions and enterprises in technology development.

Send Inquiry PDF DownLoad

Product Description

https://youtu.be/SHpoVNGZbuM

China Manufacturers ICHYTI Low Price type 2 ac surge protection device Made in China is suitable for protecting AC power electronic devices from overvoltage. It is a C-level overvoltage protection device designed in accordance with IEC and GB standards, and can choose corresponding specifications based on different power supply voltages.

ICHYTI type 2 ac surge protection device Parameter (Specification)

Product Model	YTTS1-C40
Pole	1P+N	2P	4P
Rated Frequency	One port
SPD Category	Combined type
Test Category	Class n test
Maximum Continuous Operating Voltage Uc	275VAC	275VAC	385VAC
Voltage Protection Level Up(8/20ps)	<1.5kV	<1.5kV	<1.8kV
Nominal Discharge Current In(8/2O\|JS)	20kA
Maximum Discharge Current lmax(8/20\|JS)	40 kA
Response Time tA	<25ns
Size	18x90x72	36x90x72	72x90x72
Failure Indication	Green: Normal Red: Failure
Sectional Area Of Wires	6~25mm2
Installation Method	35mm standard rail
Working Environment Temperature	-40℃~+85℃
Sheathing Material	Plastic
Protection Level	IP20
Executive Standard	IEC 61643-11

ICHYTI type 2 ac surge protection device Feature

◉ Made of high-temperature resistant plastic, with good sealing performance and easy installation.

◉ Equipped with dual thermal disconnect protection device, providing more reliable protection.

◉ Adopting a plug type design, the module can be replaced without power outage.

◉ Maximum discharge current with 40kA T2 8/20 protection level.

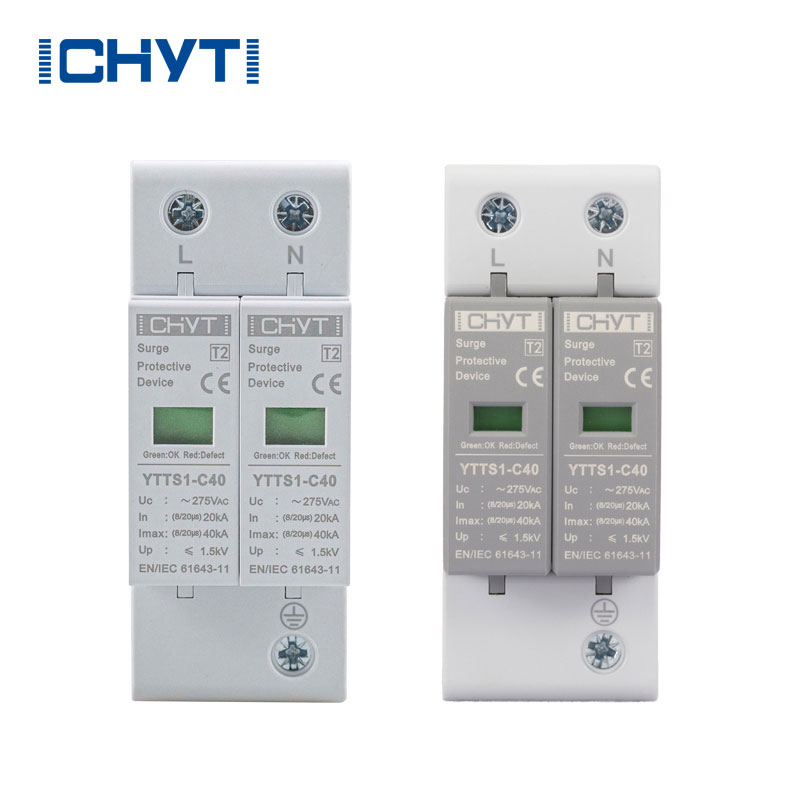

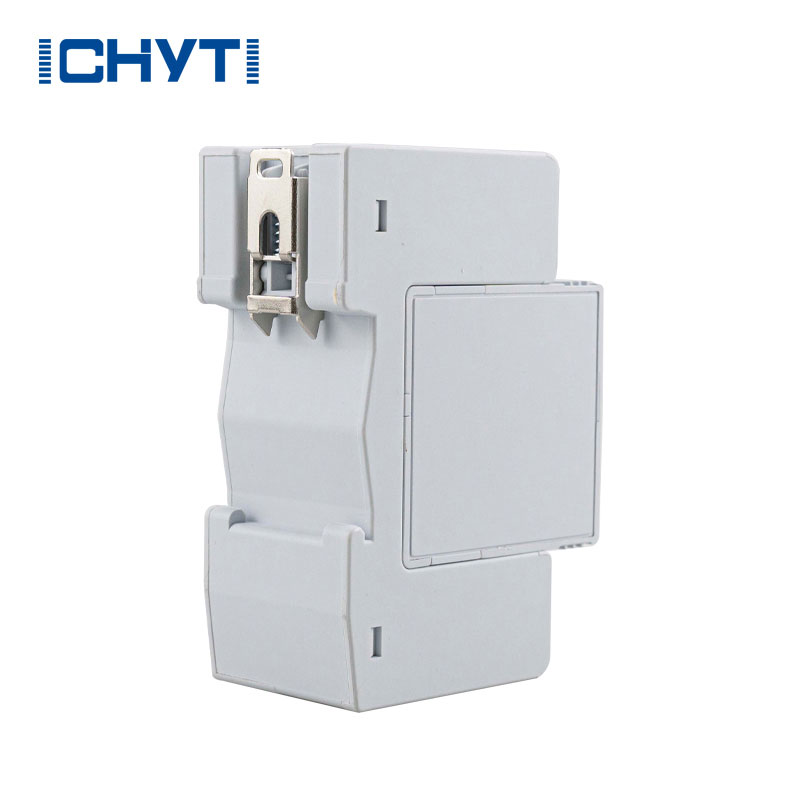

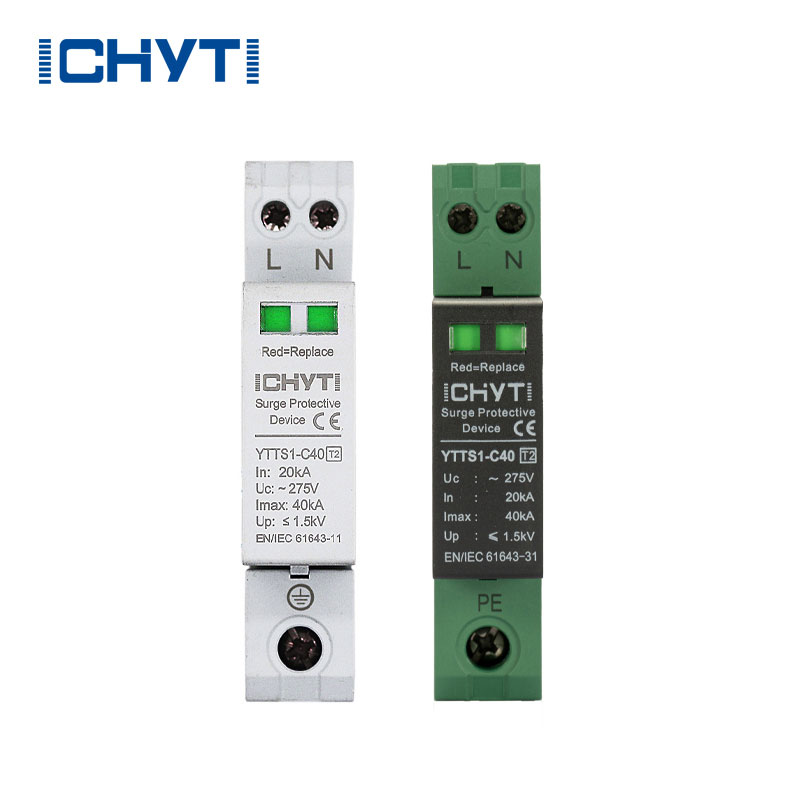

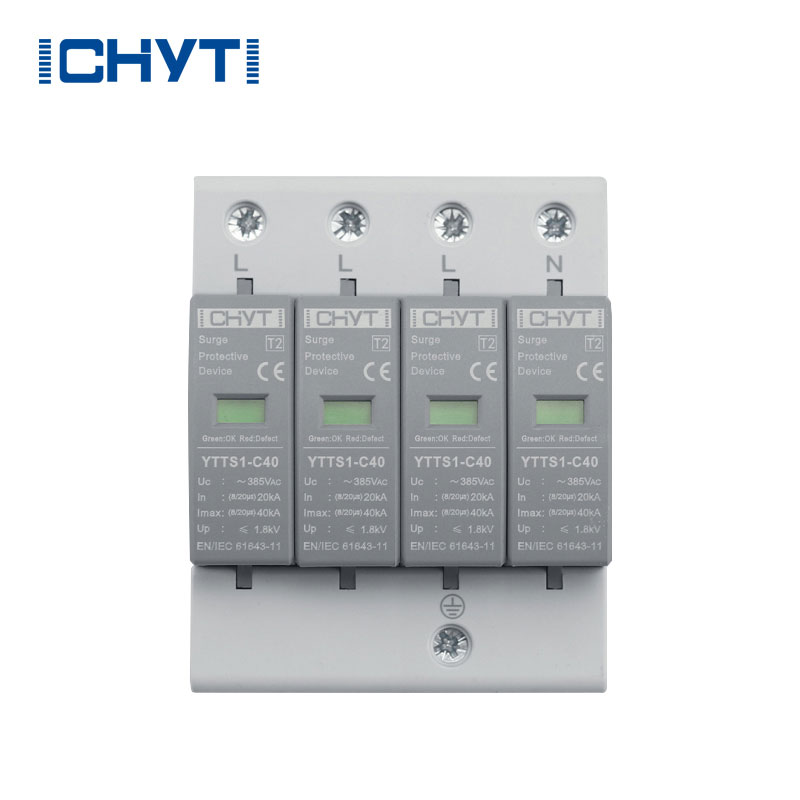

ICHYTI type 2 ac surge protection device Details

ICHYTI type 2 ac surge protection device Dimensions and wiring

ICHYTI type 2 ac surge protection device Classification

SPD can be divided into voltage switching type, voltage limiting type, and combination type based on its working principle. Voltage switching SPDs exhibit high impedance when there is no instantaneous overvoltage. Once they respond to lightning instantaneous overvoltage, their impedance will suddenly change to low impedance, allowing lightning current to pass through. Therefore, they are also known as "short-circuit switching SPDs". Voltage limiting SPDs also have high impedance when there is no instantaneous overvoltage.

However, as the surge current and voltage increase, their impedance will continue to decrease, and their current voltage characteristics are strongly nonlinear, sometimes referred to as "clamp type SPDs". The combined SPD is composed of voltage switching and voltage limiting components, which can exhibit characteristics of voltage switching, voltage limiting, or both, depending on the characteristics of the applied voltage.
