Product Description

China Suppliers ICHYTI Low Price ac lightning surge arrester In Stock Types 1+2, T1+T2, B+C, I+II, and Iimp 12.5kA are surge protectors developed specifically for the protection of industrial site entrances. ac lightning surge arrester is the best solution designed specifically for industrial applications where lightning protection systems or mesh enclosures have already been installed. They can release the current generated by lightning strikes and prevent it from spreading to the equipment, thus protecting all electrical equipment from lightning strikes. ac lightning surge arrester types include 1+2/B+C, I+II, with a current waveform of 10/350μS。

ICHYTI ac lightning surge arrester Parameter (Specification)

Product Model	YTTS1-B + C/12.5
Pole	2P
Rated Frequency	One port
SPD Category	Combined type
Test Category	Class I+II test
Maximum Continuous Operating Voltage Uc	275VAC
Voltage Protection Level Up(8/20ps)	<1.5kV
Nominal Discharge Current ln(8/20\|us)	20kA
Maximum Discharge Current lmax(8/20ps)	40kA
Impulse current limp(10/350ms)	12.5kA
Response Time tA	<25ns
Size	36x90x80
Failure Indication	Green: Normal Red: Failure
Sectional Area Of Wires	6~25mm2
Installation Method	35mm standard rail
Working Environment Temperature	-40℃~+85℃
Sheathing Material	Plastic
Protection Level	IP20
Executive Standard	IEC 61643-11

ICHYTI ac lightning surge arrester Feature

◉ It complies with the EN 61643-11/IEC 61643-11 standard.

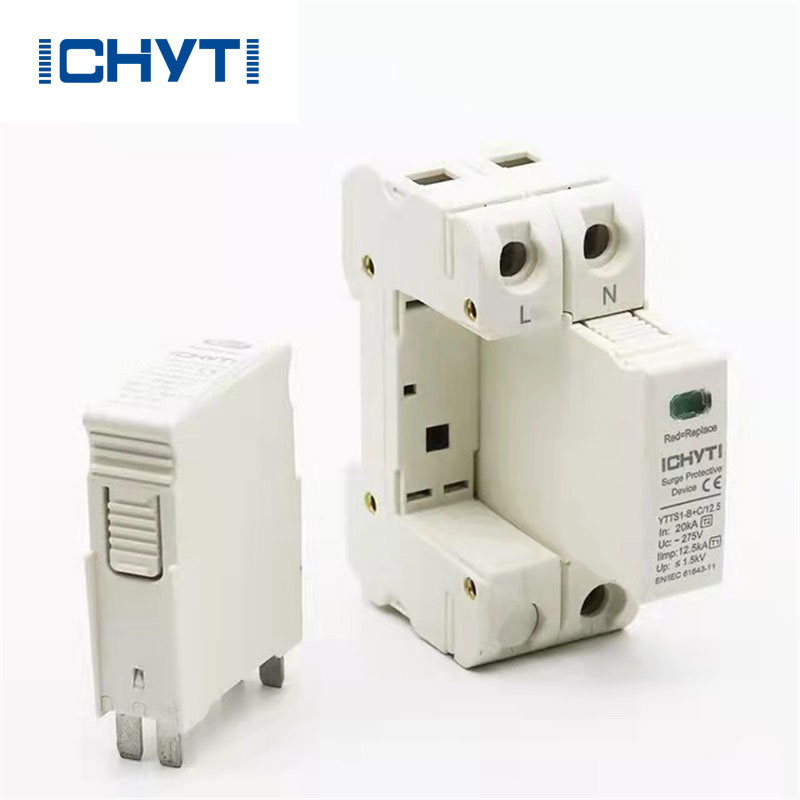

◉ The SPD adopts a plug-in module design, which is easy to replace.

◉ The visual indication function is clear, with green indicating normal operation and red indicating the need for replacement.

◉ Remote alarm contact can easily monitor status.

◉ In addition, this SPD has fast thermal response capability and can provide self-protection.

◉ This surge protector SPD type is T1+T2, Iimp 12.5 kA, suitable for AC power supply.

◉ Its voltage protection level (upper) is less than 1.5kV.

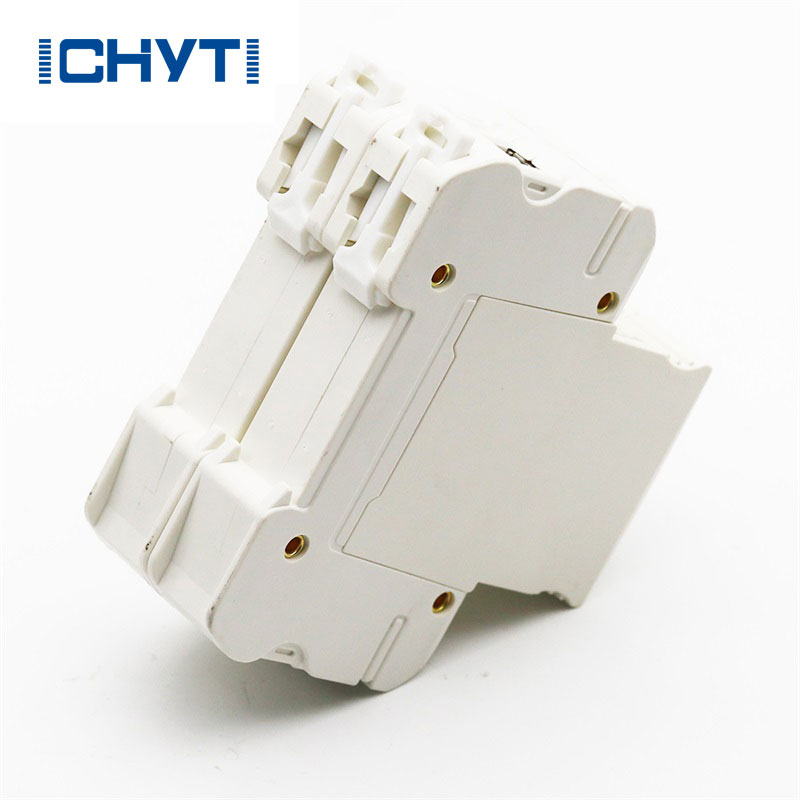

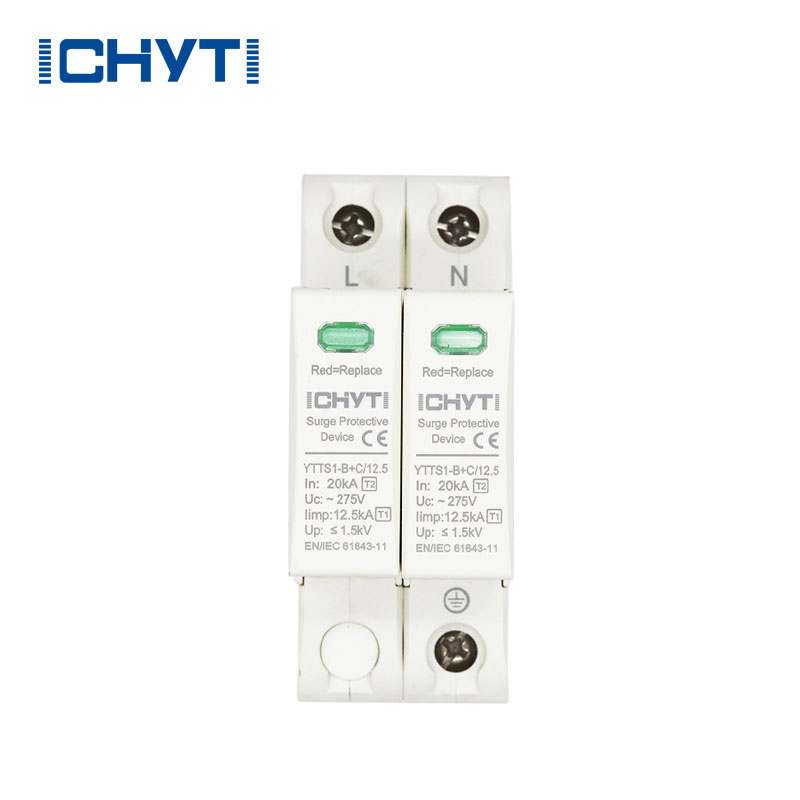

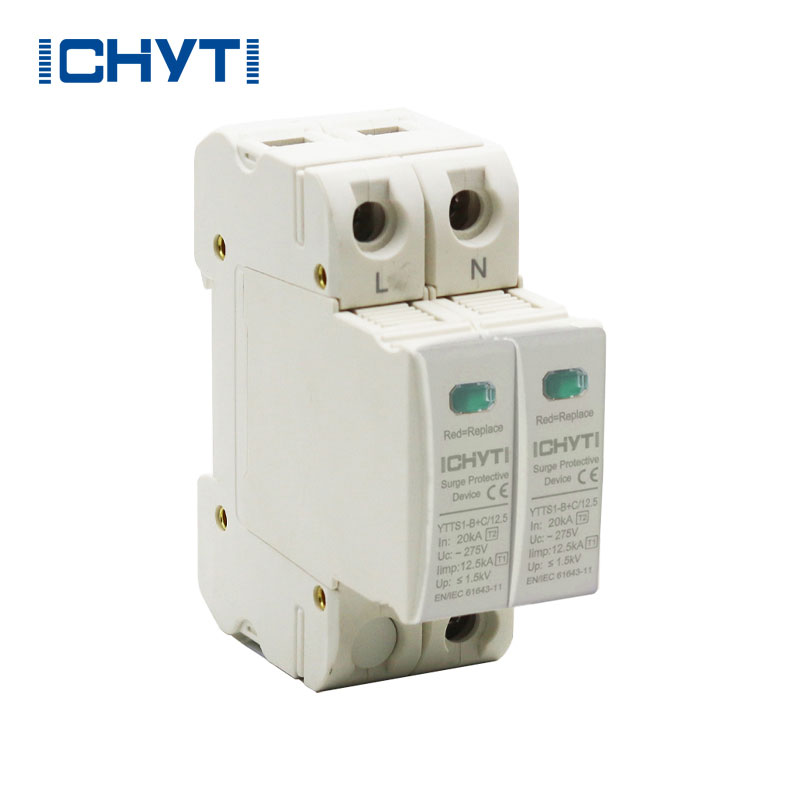

ICHYTI ac lightning surge arrester Details

ICHYTI ac lightning surge arrester Dimensions and wiring

ICHYTI ac lightning surge arrester FAQ

Q: Is a surge protector the same as a voltage protector?

A: CHYT AC surge suppressor functions to either block or divert high voltage surges in the power supply, thus safeguarding the delicate electronic components from damage. Similarly, a voltage regulator regulates incoming AC voltage and stabilizes it to maintain a consistent power supply.

Q: Why use residual current circuit breaker?

A: RCCBs, or Residual Current Circuit Breakers, are the most secure devices for identifying and interrupting electrical leakage currents. They ensure protection against electric shock resulting from indirect contacts.
